Map Sensor: Description

The MAP sensor (Fig 1) mounts to the drivers side intake manifold plenum.

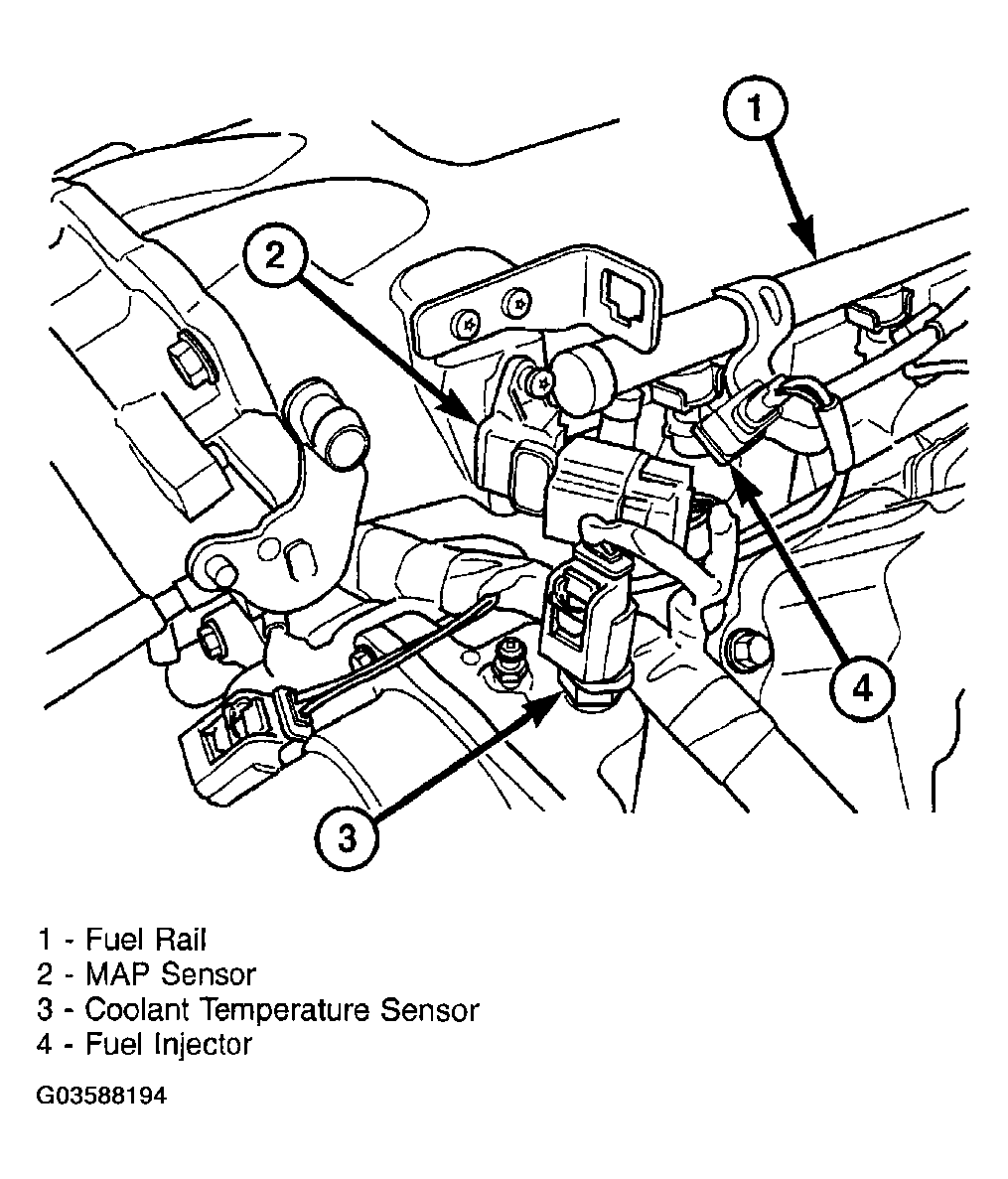

Fig 1: Installing MAP & Coolant Temp Sensor
G03588194Courtesy of DAIMLERCHRYSLER CORP.
