Right Side Impact Airbag Control Module Connector End View

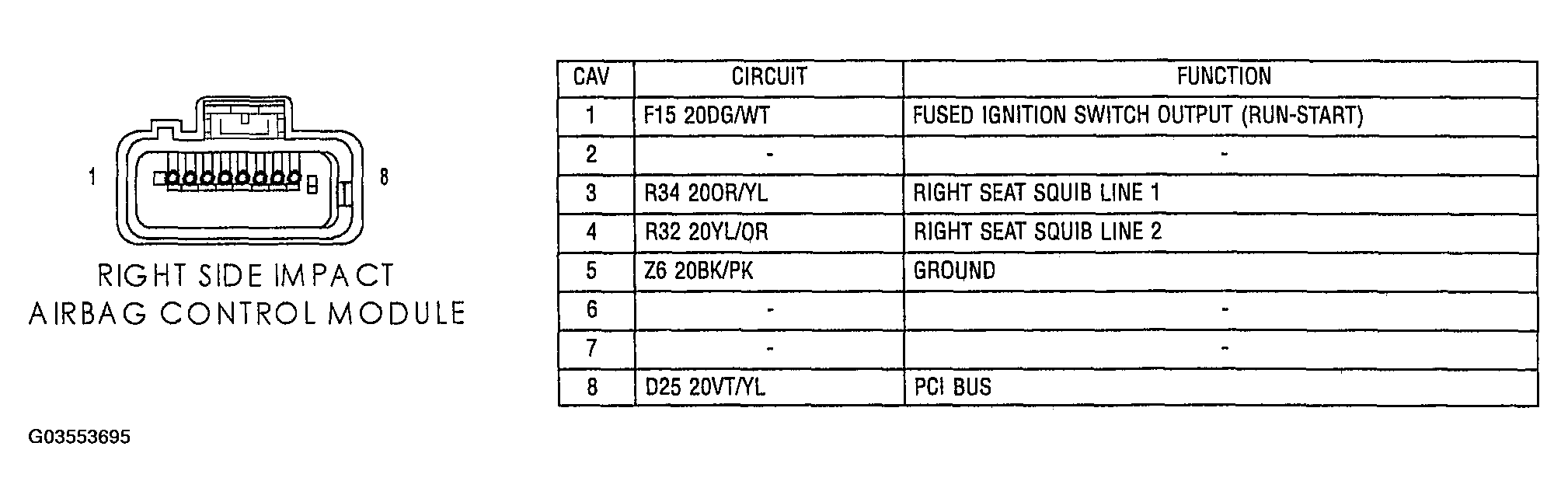

Fig 1: Identifying Right Side Impact Airbag Control Module Connector Terminals And Specifications (8-Way)
G03553695Courtesy of DAIMLERCHRYSLER CORP.
