Multi-Function Switch Connector End View

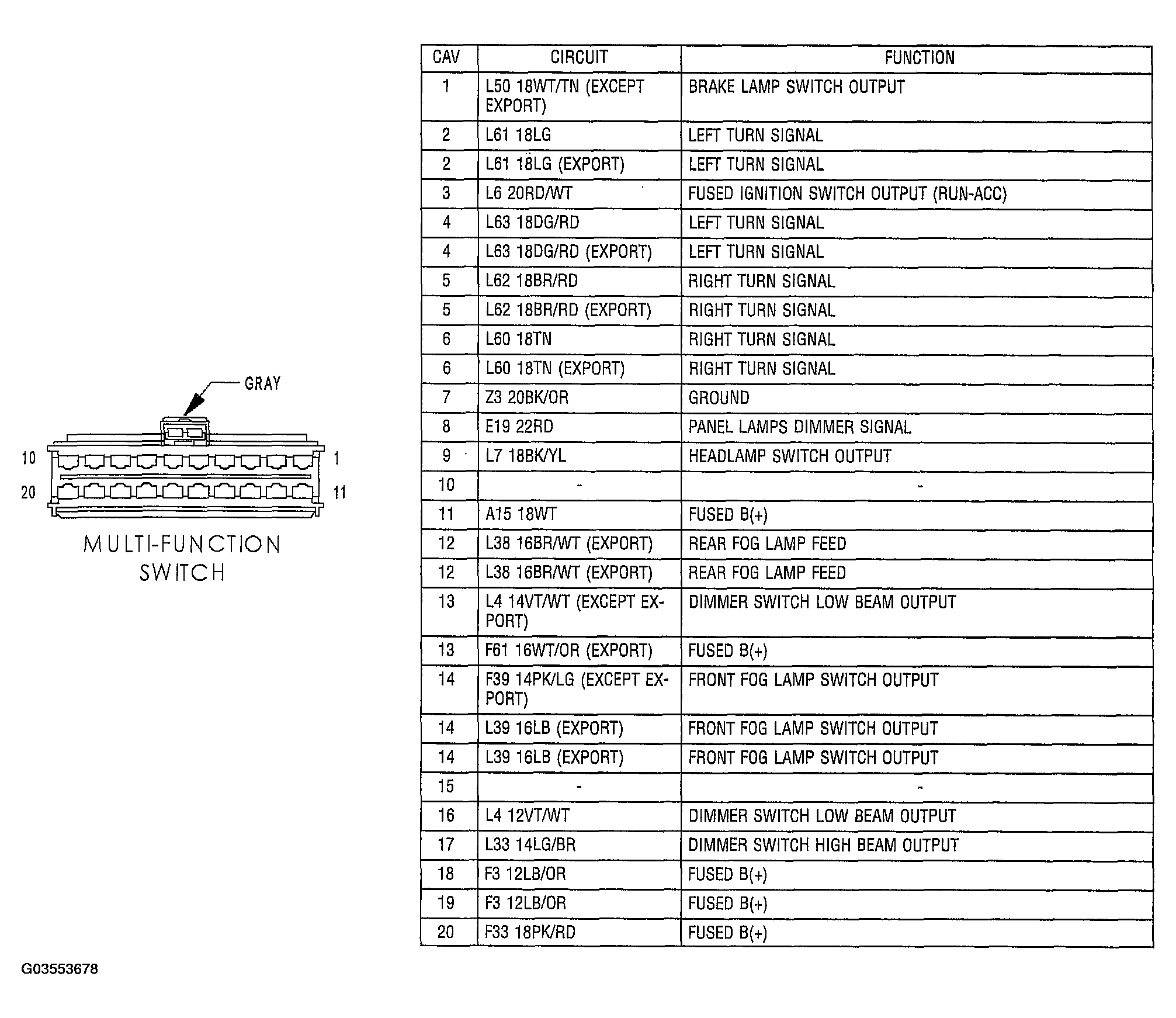

Fig 1: Identifying Multi-Function Switch Connector Terminals And Specifications (Gray 20-Way)
G03553678Courtesy of DAIMLERCHRYSLER CORP.
