Fuel Pump Module Connector End View

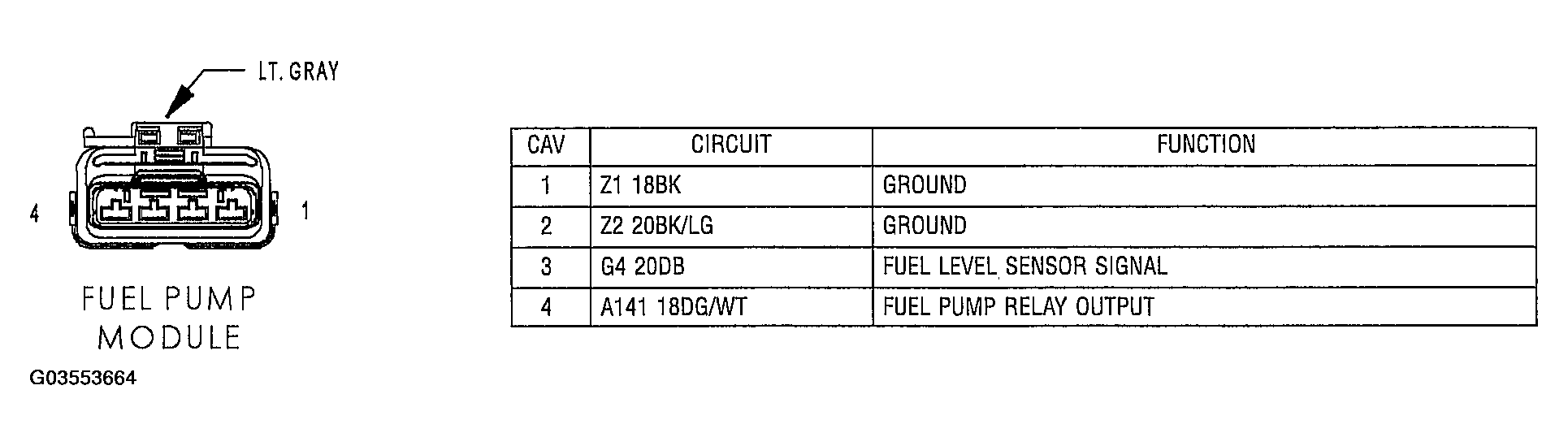

Fig 1: Identifying Fuel Pump Module Connector Terminals And Specifications (LT. Gray 4-Way)
G03553664Courtesy of DAIMLERCHRYSLER CORP.
