Airbag Control Module Connector End View

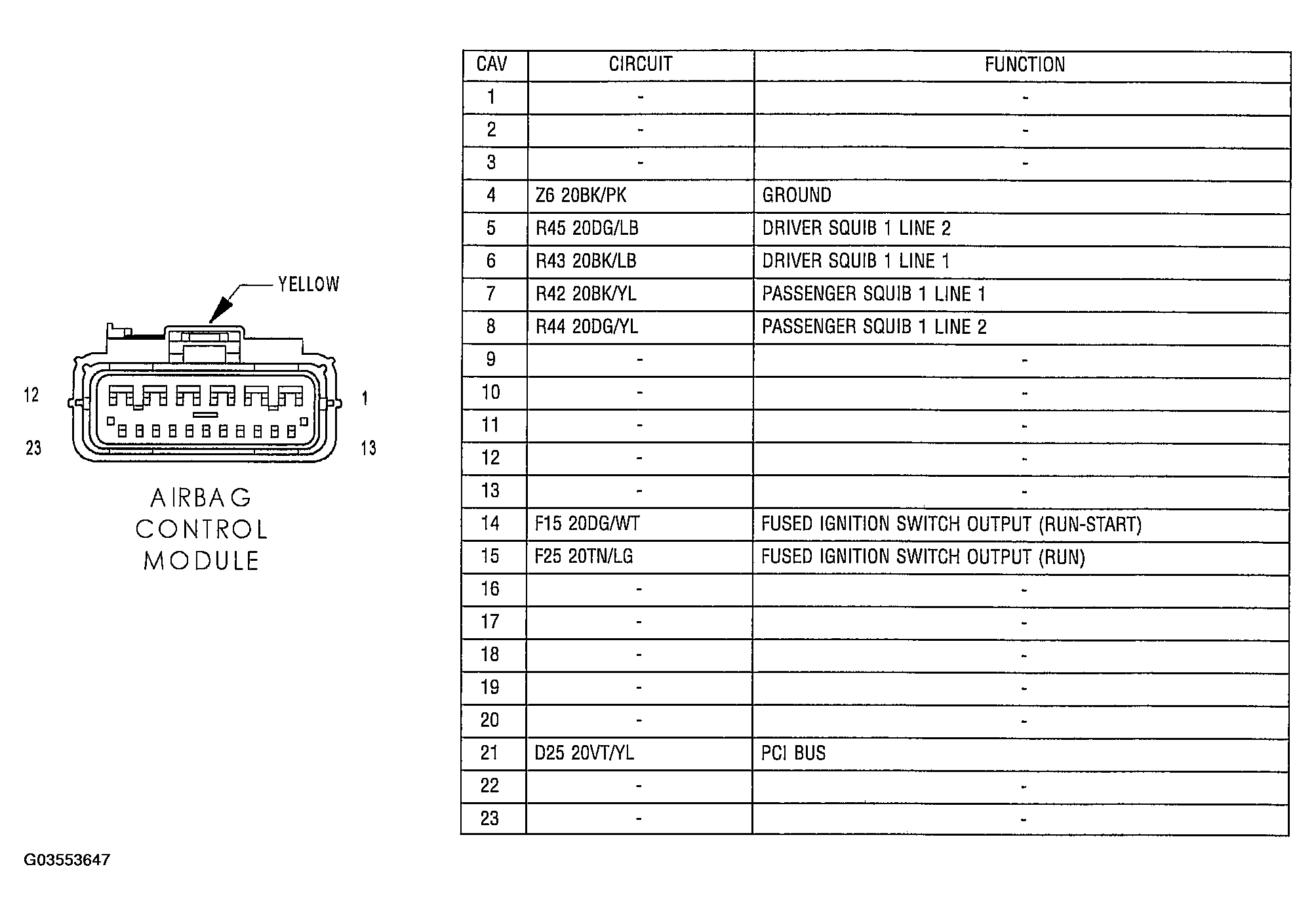

Fig 1: Identifying Airbag Control Module Connector Terminals And Specifications (Yellow 23-Way)
G03553647Courtesy of DAIMLERCHRYSLER CORP.
