Sentry Key Immobilizer Module Connector End View

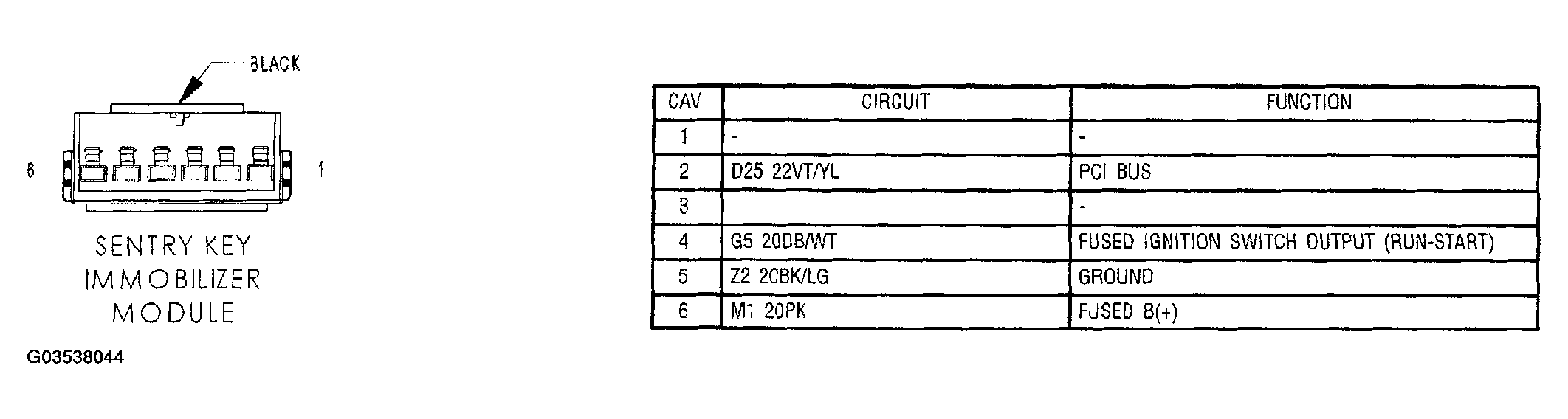

Fig 1: Sentry Key Immobilizer Module Connector End View
G03538044Courtesy of DAIMLERCHRYSLER CORP.
