Power Distribution Module

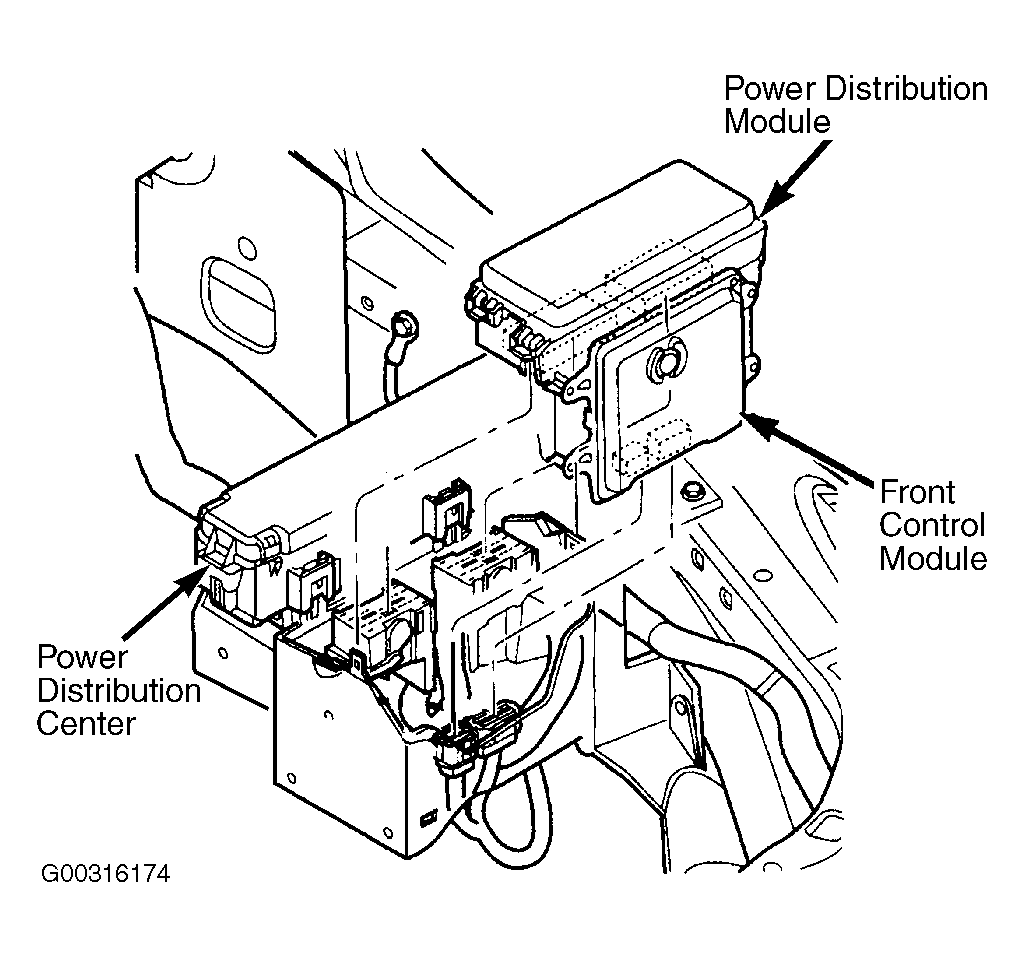

NOTE: Power distribution module is an integral part of Integrated Power Module. Integrated Power Module consists of Power Distribution Module and Front Control Module. Integrated Power Module is located on driver's side of engine compartment, in front of brake master cylinder, and in front of power distribution center. See Figure .

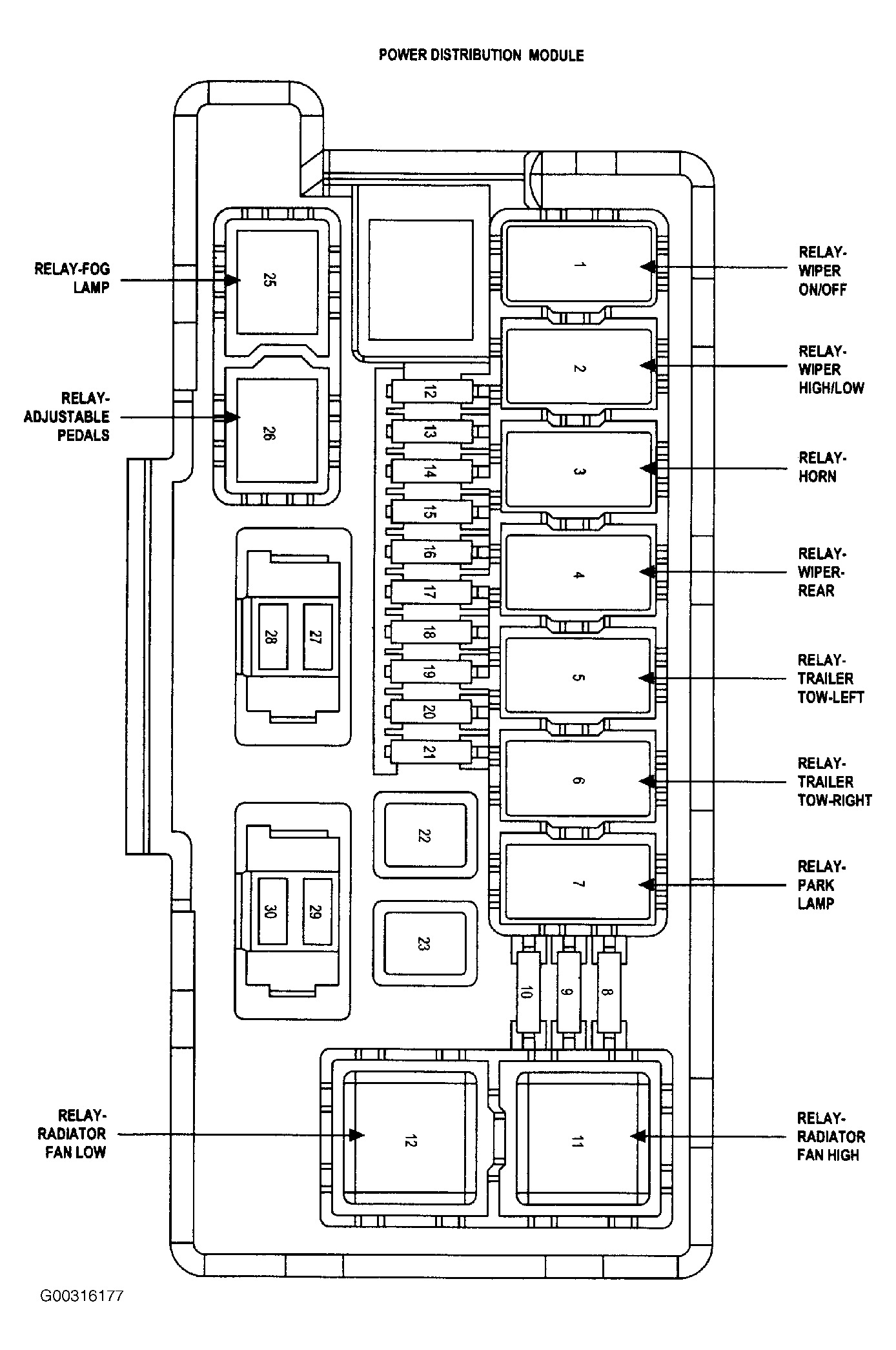

Fig 1: Identifying Power Distribution Module Components
G00316177Courtesy of DAIMLERCHRYSLER CORPORATION

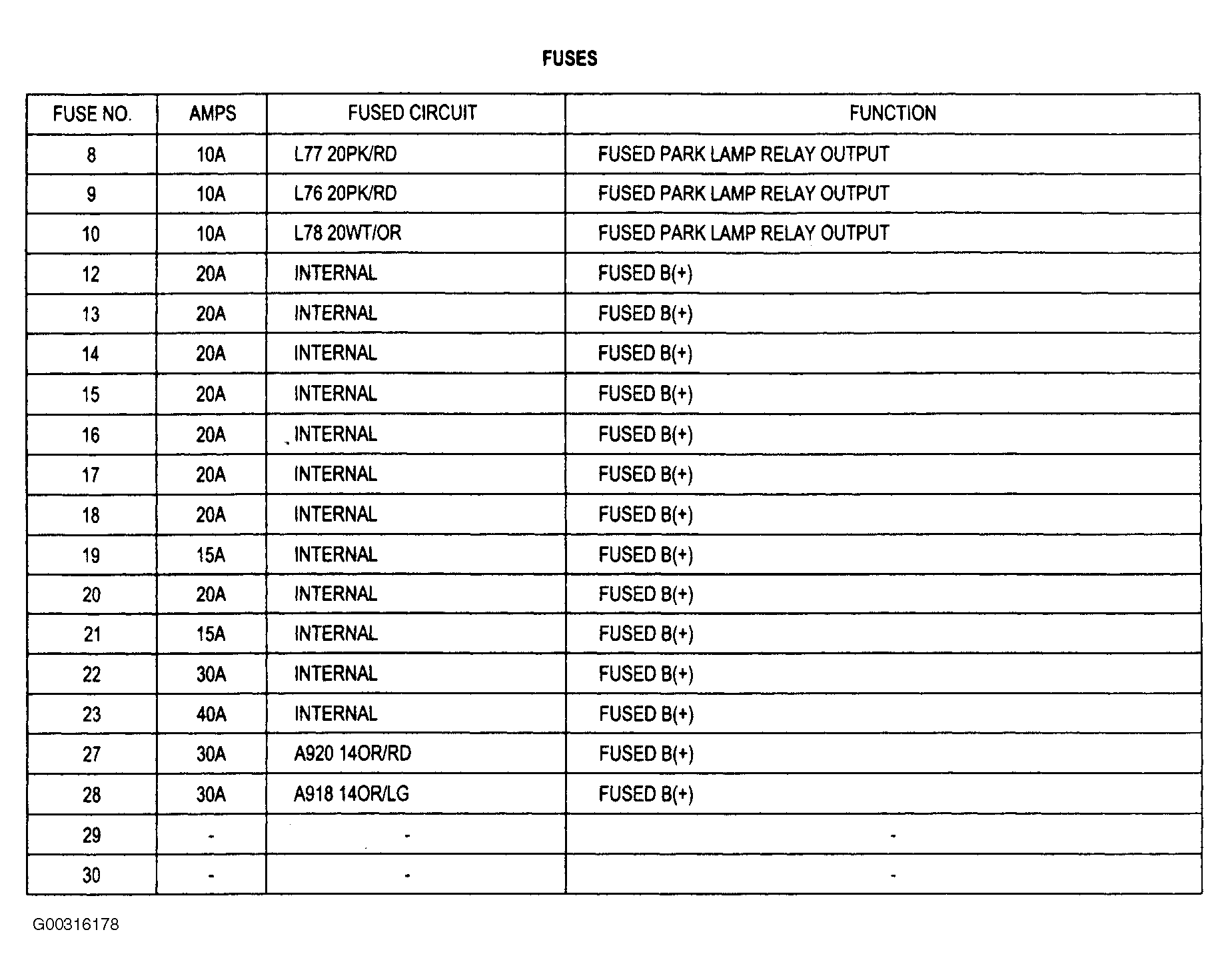

Fig 2: Power Distribution Module Legend
G00316178Courtesy of DAIMLERCHRYSLER CORPORATION
