Module-Seat Memory: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the driver seat cushion/cover (2) (Refer to CUSHION/COVER-CUSHION - FRONT ).
  3. Unsnap the memory seat module (4) from the side brackets.
  4. Pivot the module upward and disconnect the electrical connectors (1).
  5. Pull the module rearward to remove it from the front of the seat frame (3).

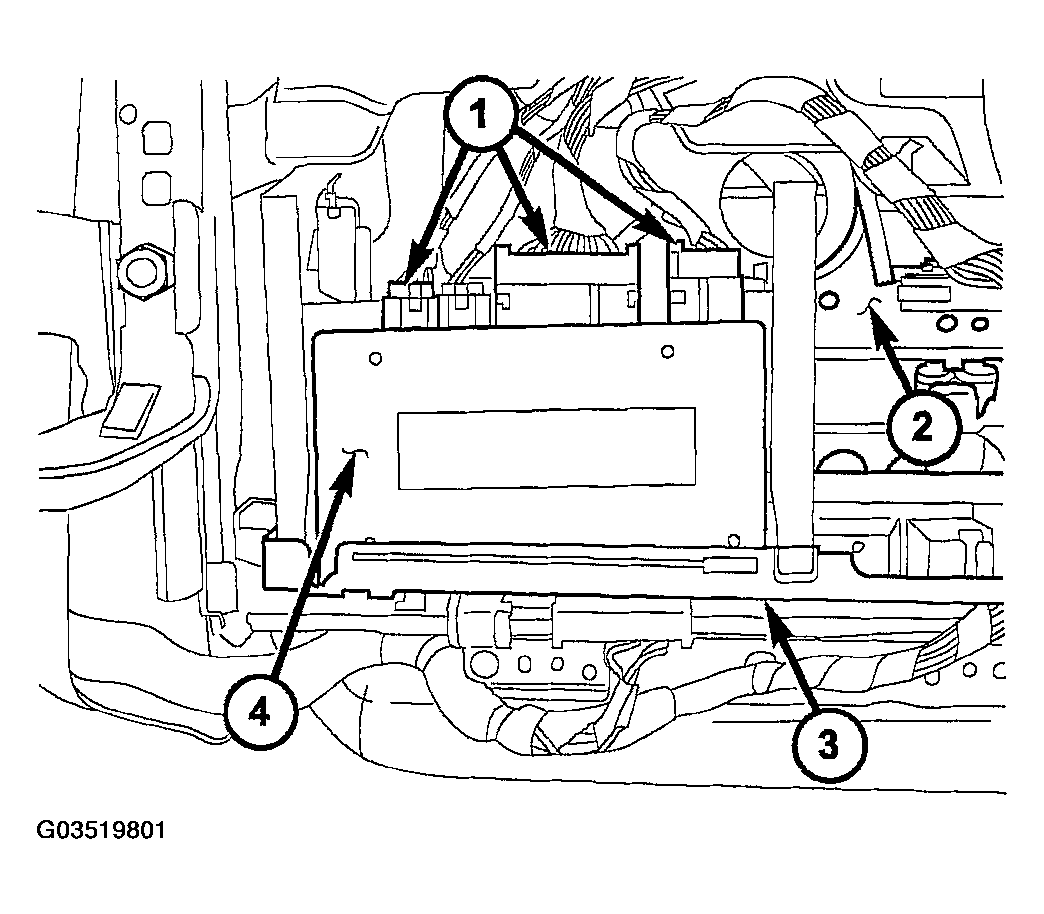

    Fig 1: Removing Memory Seat Module
    G03519801Courtesy of DAIMLERCHRYSLER CORP.
