Module-Seat Memory: Installation

  1. Place the module (4) into position making sure the front snaps into the seat frame (3).
  2. Connect the memory seat module harness connectors (1).
  3. Pivot the module (4) downward and snap it into place in the side brackets.
  4. Install the driver seat cushion/cover (2) (Refer to CUSHION/COVER-CUSHION - FRONT ).
  5. Connect the battery negative cable.
  6. Verify system and vehicle operation.

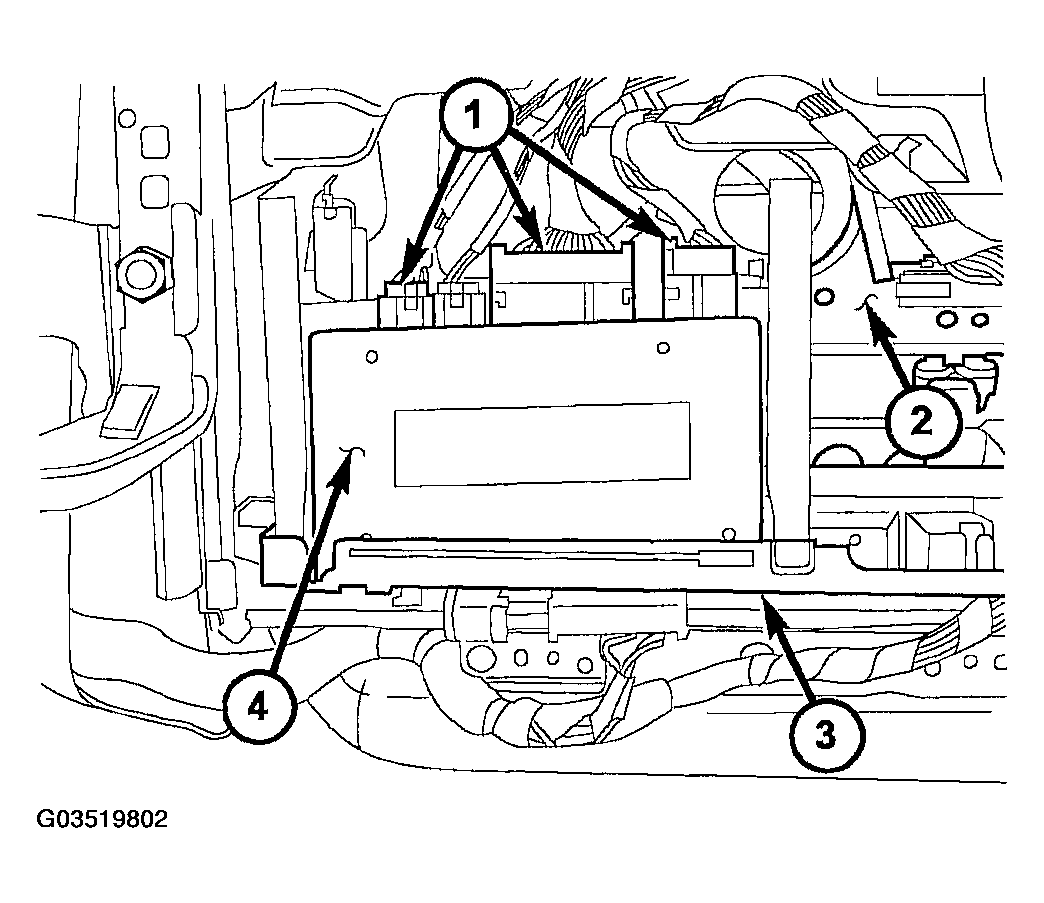

    Fig 1: Installing Memory Seat Module
    G03519802Courtesy of DAIMLERCHRYSLER CORP.
