Connector Views

Control A/C Heater C1 (ATC):

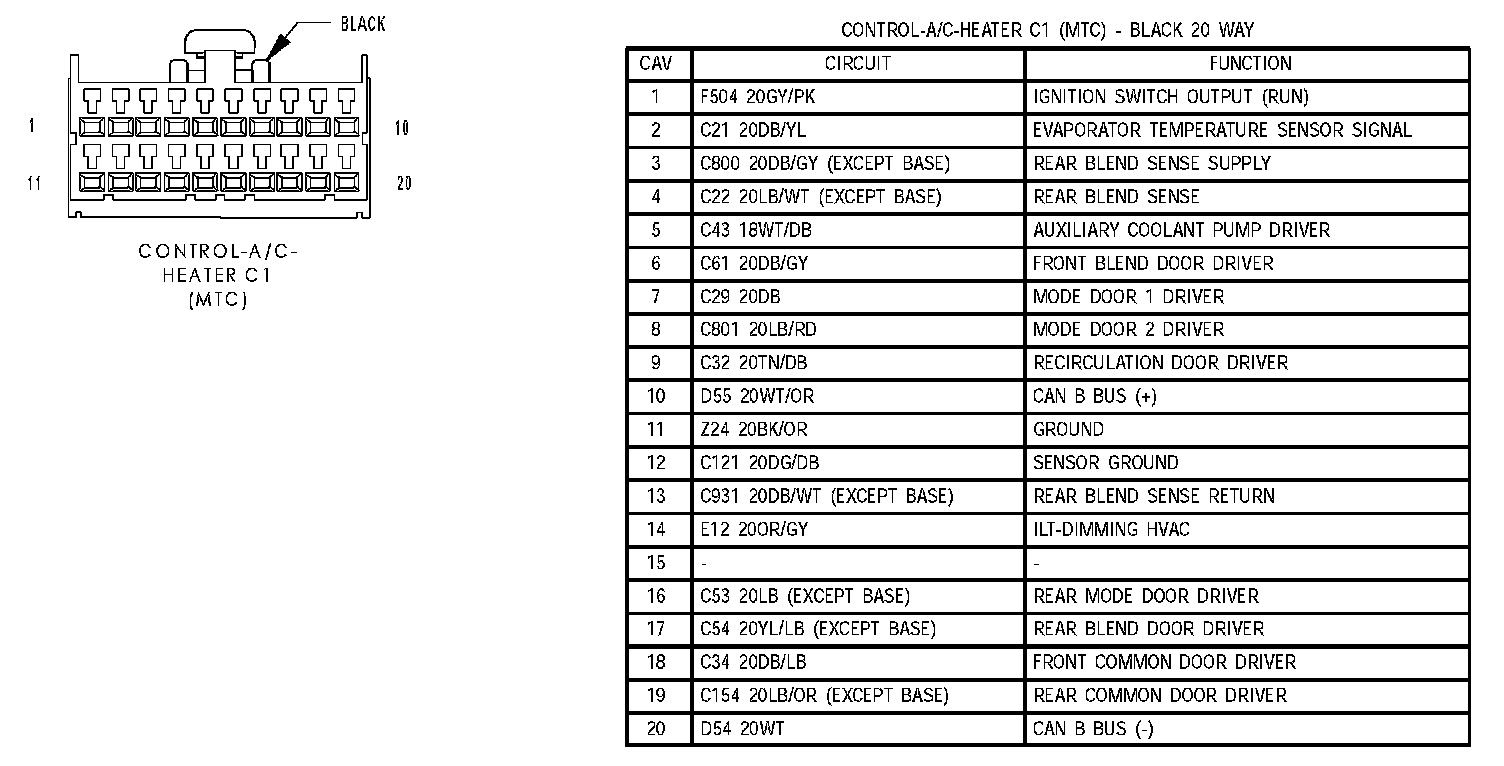

Control A/C Heater C1 (MTC):





Control A/C Heater C2 (ATC):





Control A/C Heater C2 (MTC):





Control A/C Heater C3 (ATC):





Control A/C Heater C3 (MTC):





Control A/C Heater Rear:
