Power Distribution Center
Power Distribution Center
8w-10-2 Power Distribution Center:

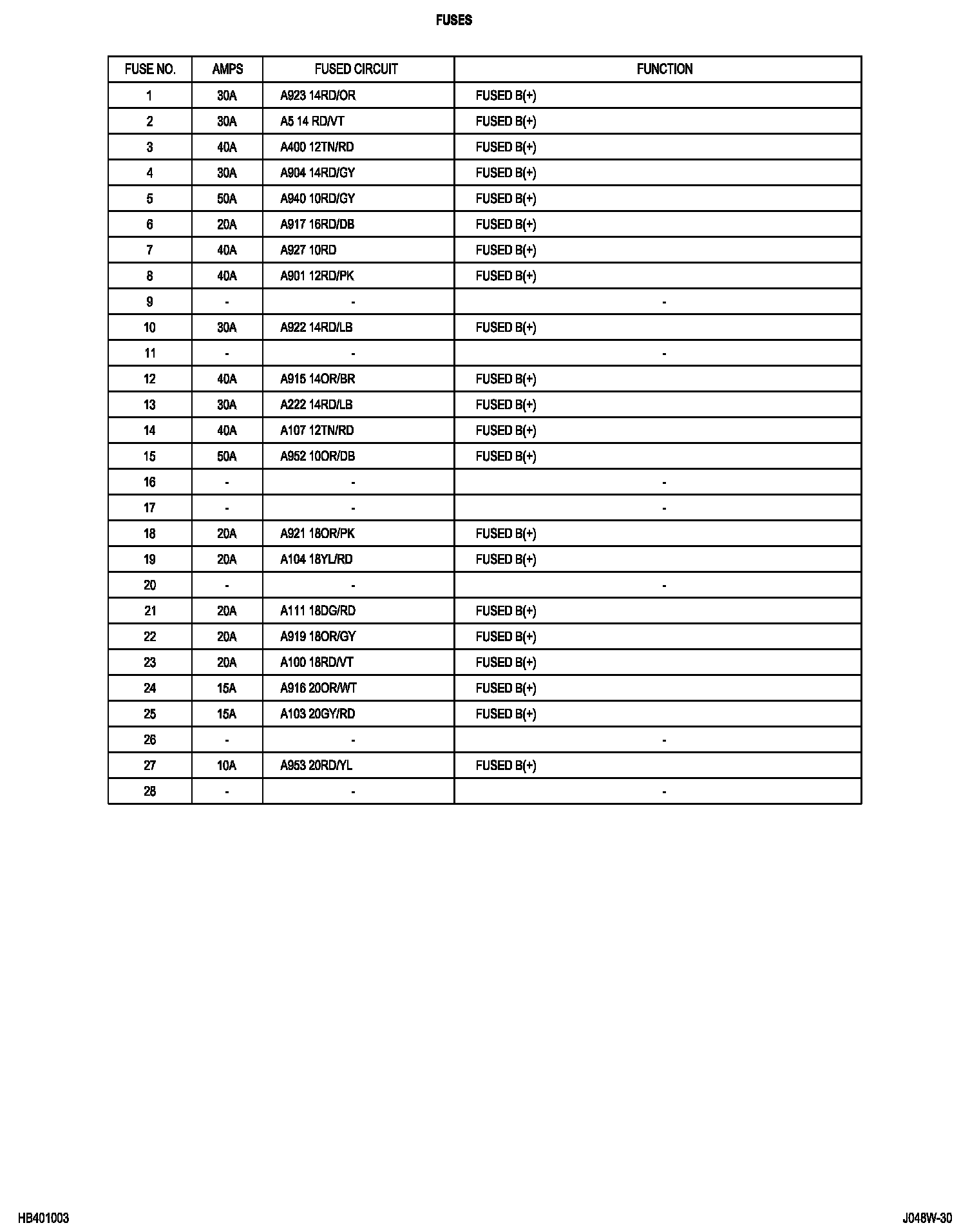

8w-10-3 Fuses (PDC):
