Junction Block



Junction Block

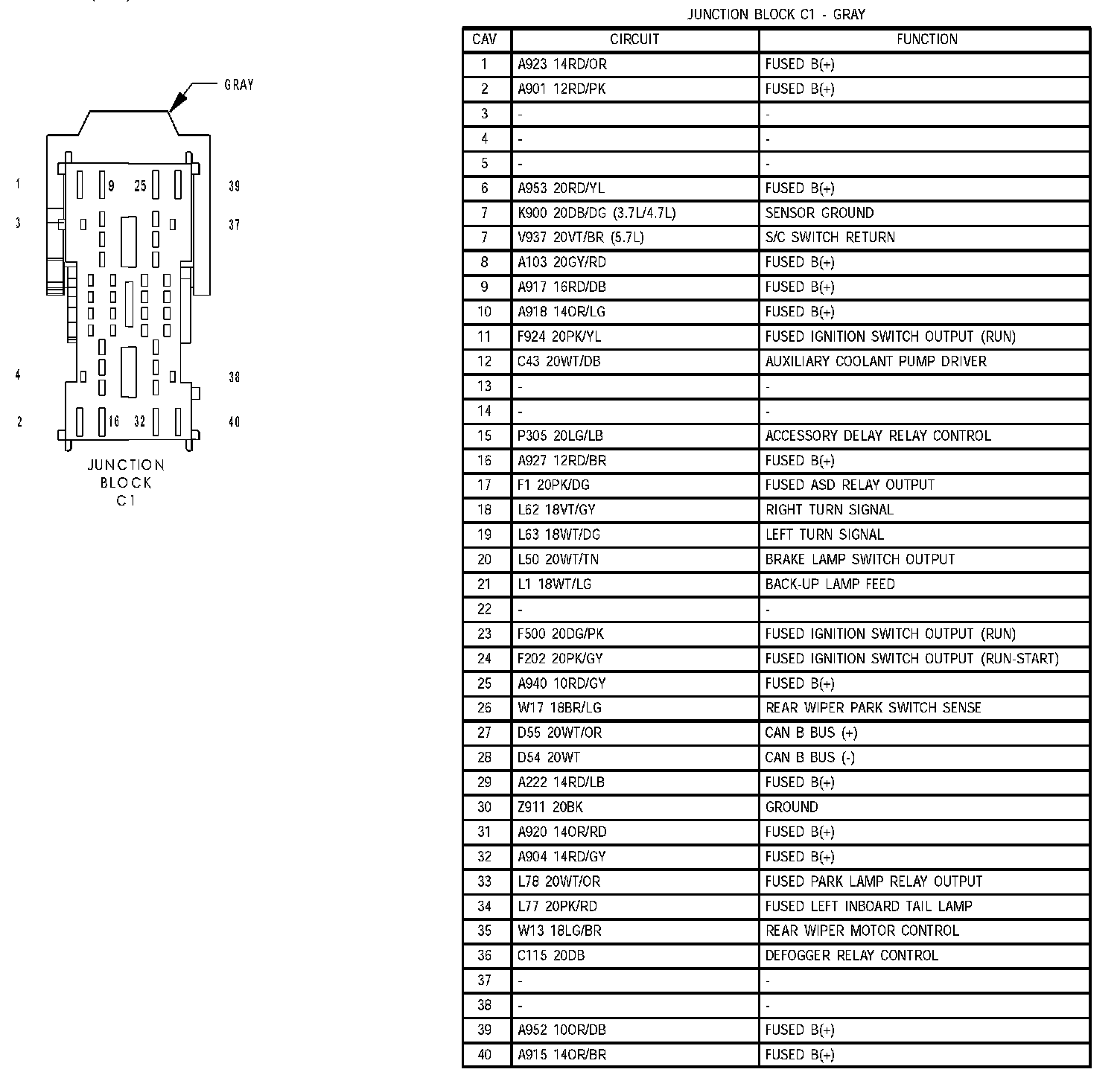

Junction Block C1:

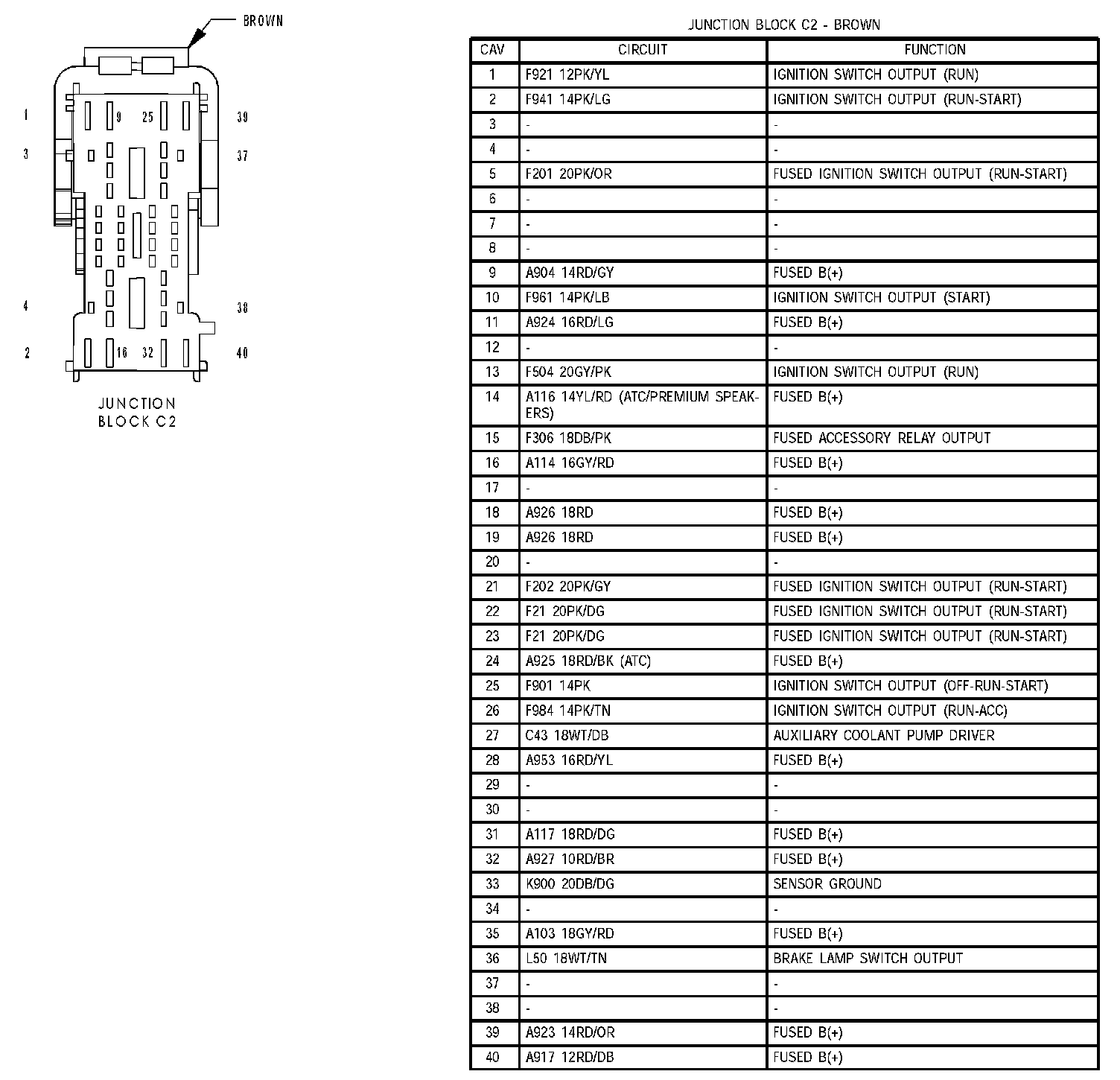

Junction Block C2:

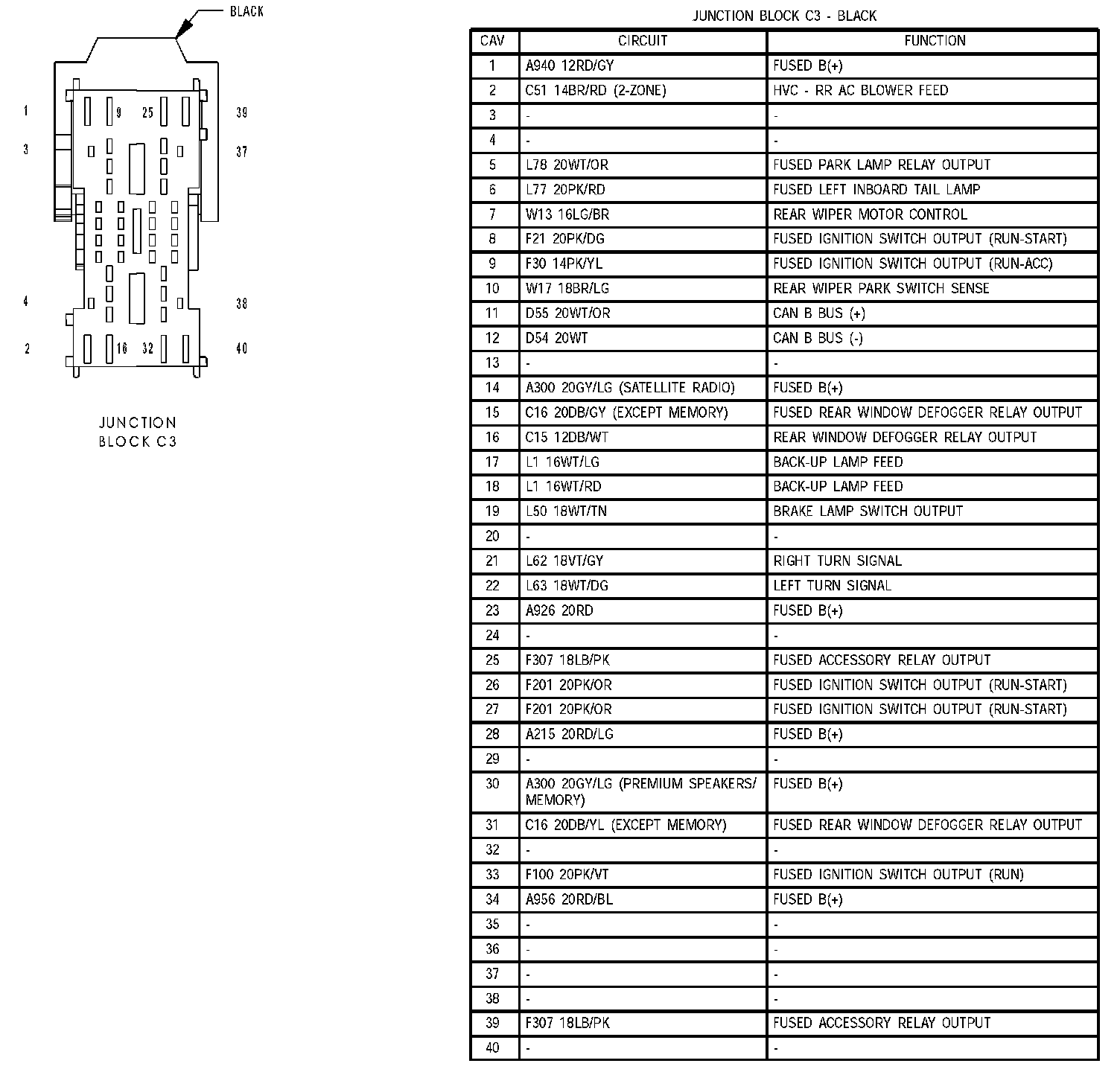

Junction Block C3:

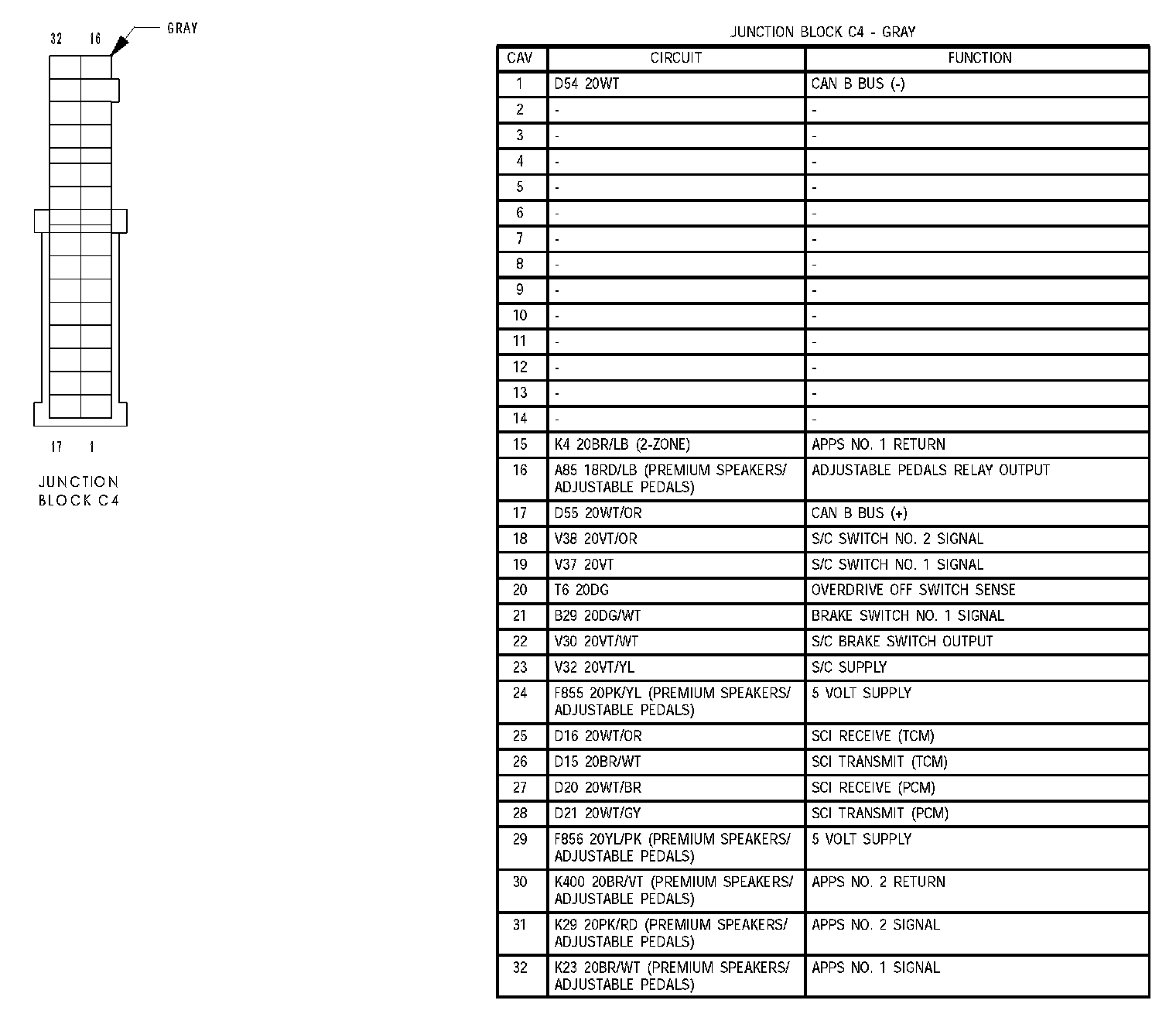

Junction Block C4:

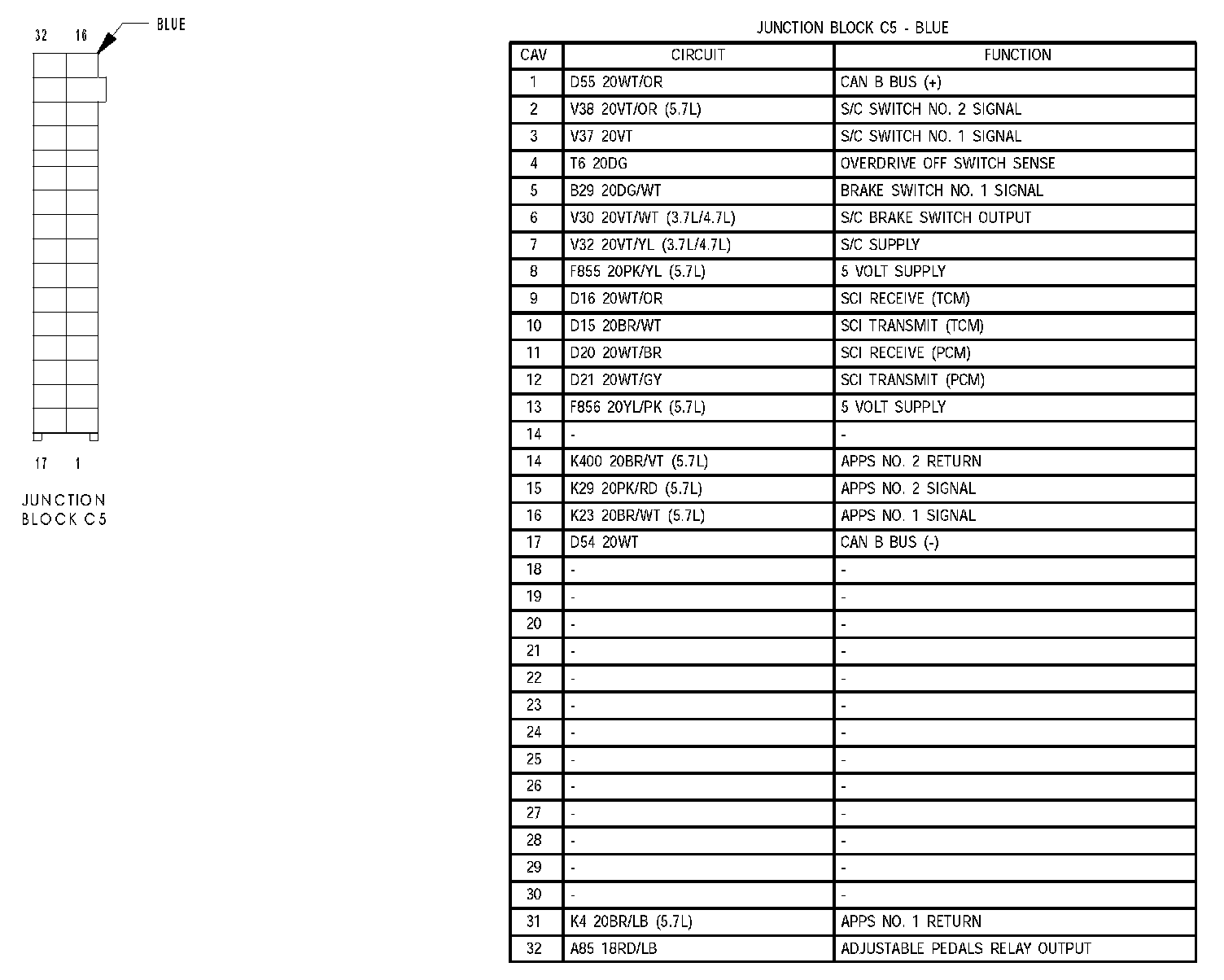

Junction Block C5:
