Glow Plug: Installation

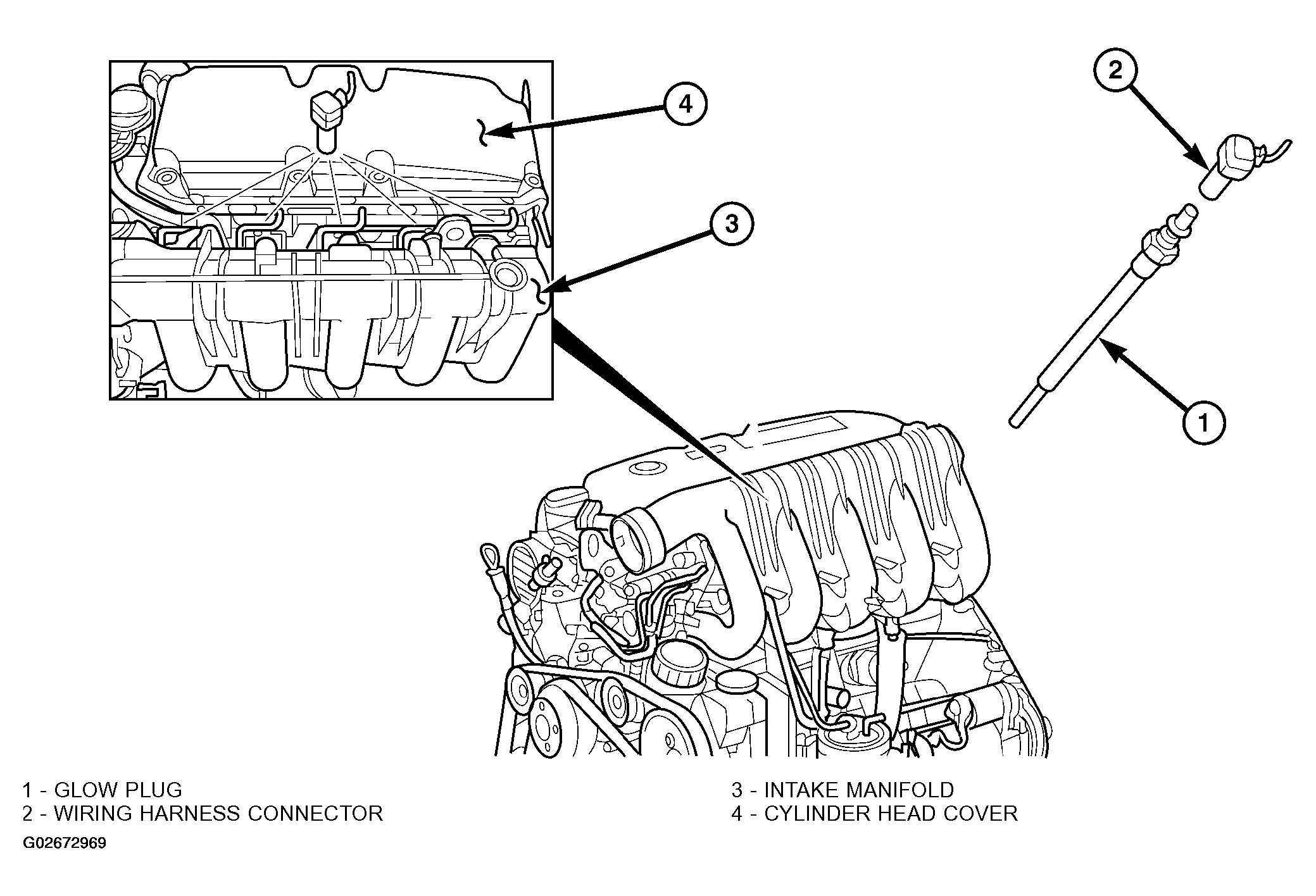

  1. Screw glow plug(s) into cylinder head and tighten to 12 N.m (115 lbs. in) (Figure ).
  2. Connect the glow plug wiring harness connector(s)
  3. Connect negative battery cable.
