Audio System: Notes

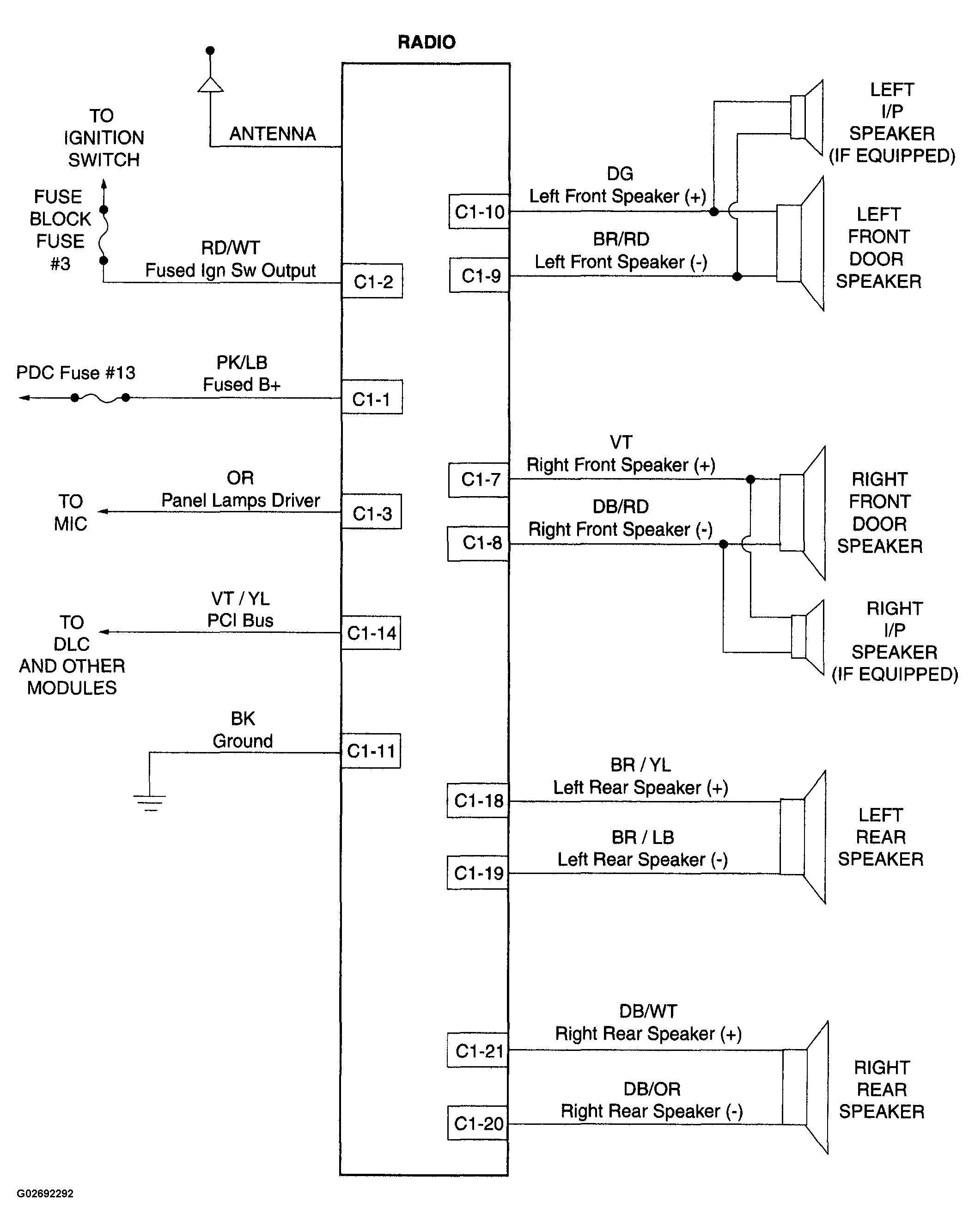

Fig 1: Audio System Schematic Diagram

G02692292

Courtesy of DAIMLERCHRYSLER CORP.
