Engine Controls - Self Diagnostics - 2.0L
>>
Connector Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector Identification
NOTE:
See
Fig 1
-
Fig 43
for connector identification.
Fig 1: Identifying Ambient Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 2: Identifying Battery Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 3: Identifying Brakelight Switch Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Camshaft Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 5: Identifying Crankshaft Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 6: Identifying Clutch Upstop Switch Harness Connector Terminals
Courtesy of DAIMLERCHRYSLER CORP.

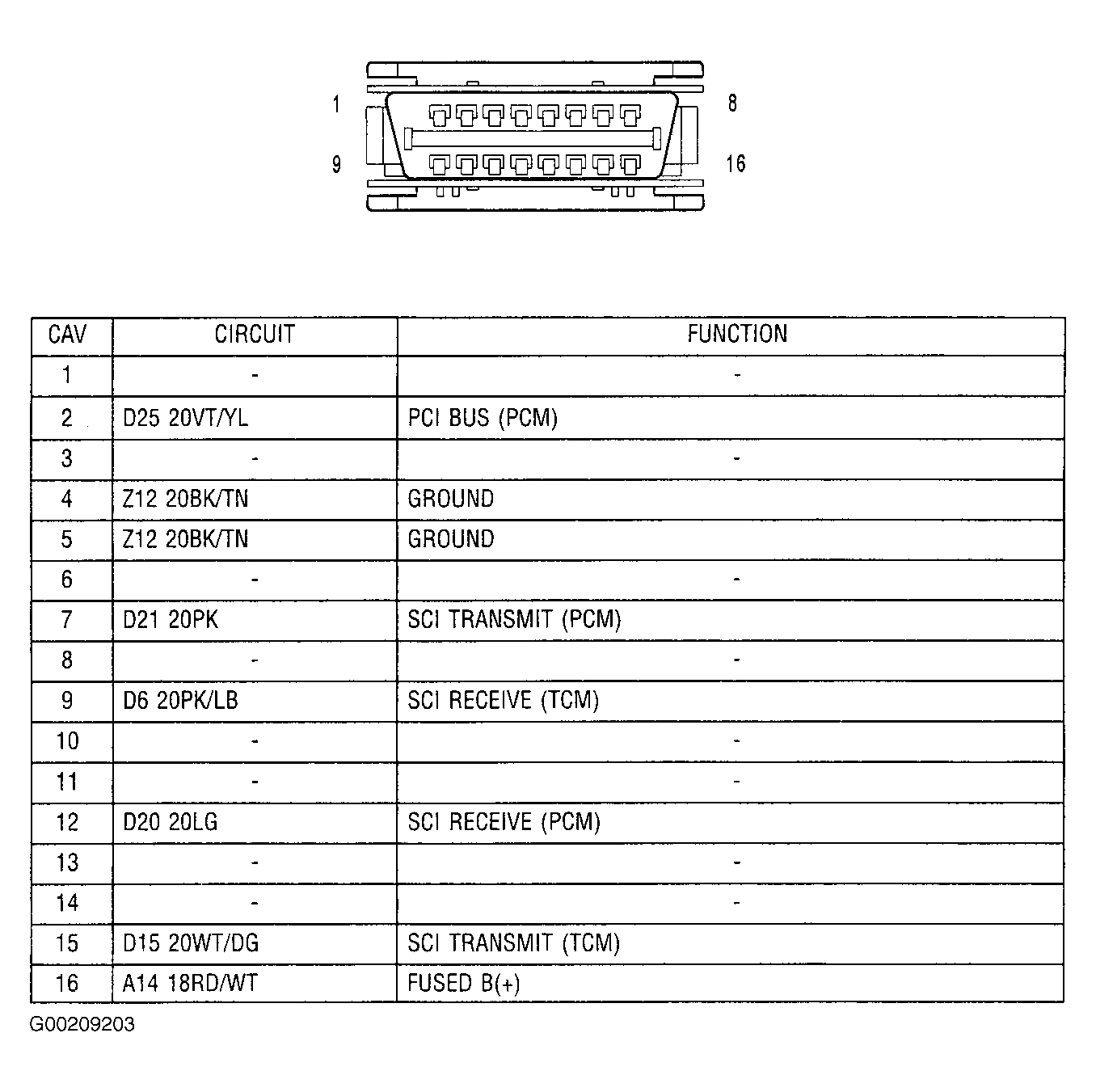

Fig 7: Identifying Data Link Connector Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 8: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 9: Identifying EVAP/Purge Solenoid Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 10: Identifying Evaporative Emissions Purge Solenoid Terminals (Component Side)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying Fuel Injector No. 1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 12: Identifying Fuel Injector No. 2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 13: Identifying Fuel Injector No. 3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 14: Identifying Fuel Injector No. 4 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 15: Identifying Fuel Pump Module Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 16: Identifying Generator Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 17: Identifying Generator Side Connections
Courtesy of CHRYSLER CORP.
Fig 18: Identifying Idle Air Control Motor Harness Connector Terminals
Courtesy of CHRYSLER CORP.

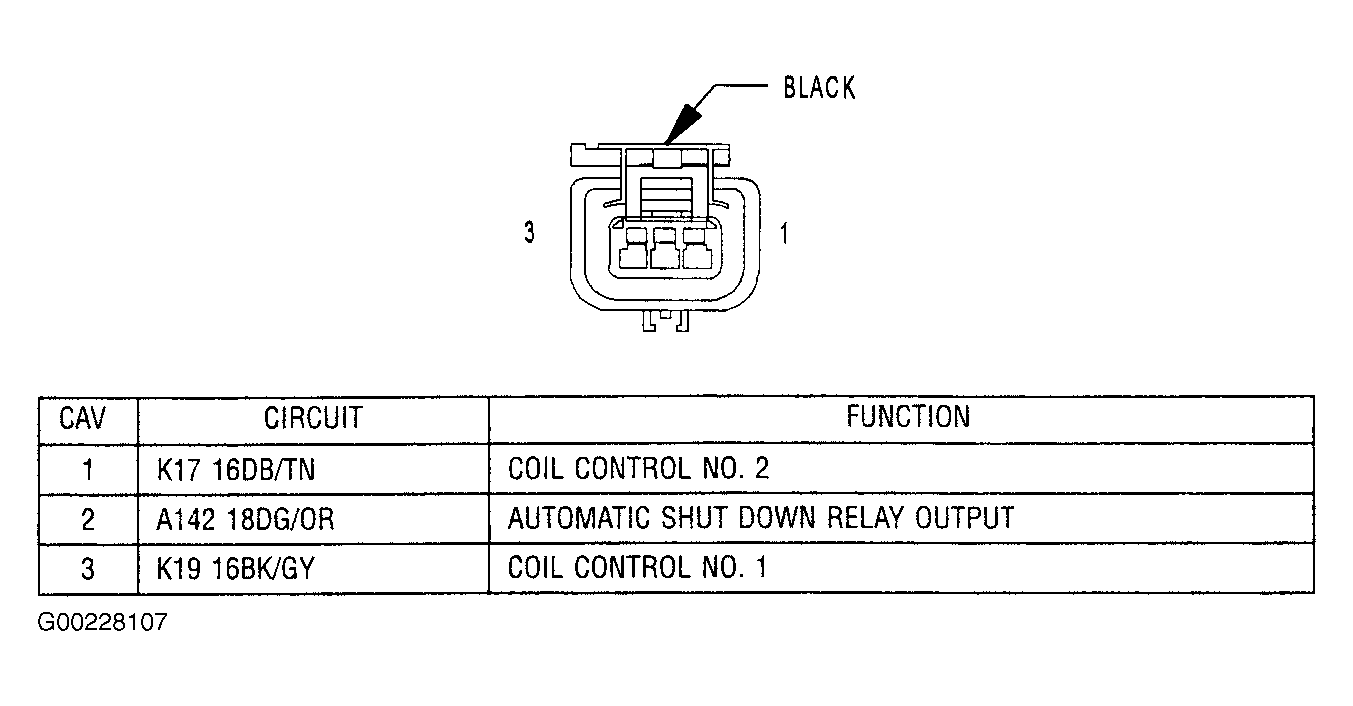

Fig 19: Identifying Ignition Coil Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 20: Identifying Inlet Air Temperature Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 21: Identifying Instrument Cluster Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 22: Identifying Knock Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 23: Identifying MAP Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 24: Identifying Manifold Tuning Valve Solenoid Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 25: Identifying NVLD Assembly Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 26: Identifying Oil Pressure Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.

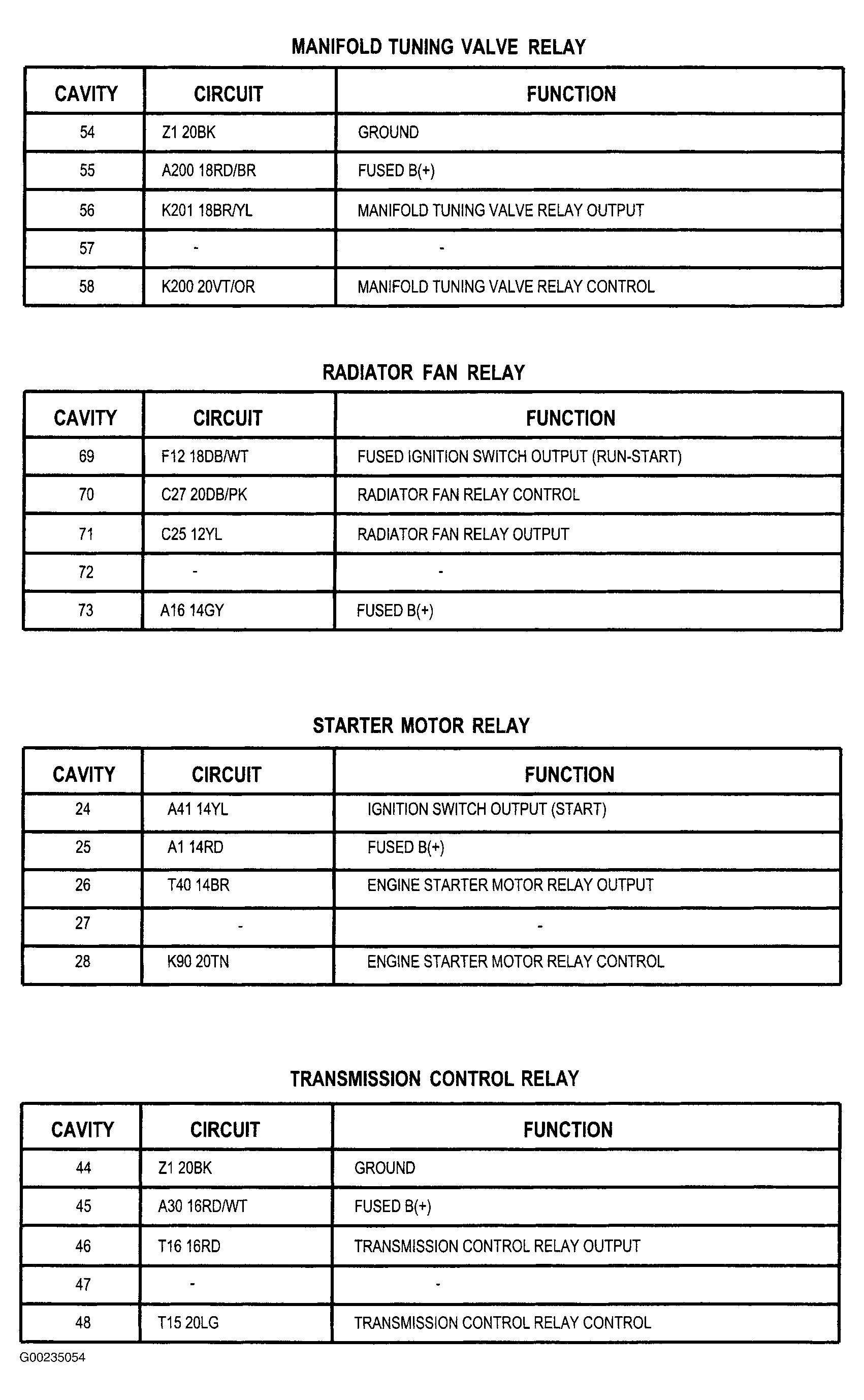

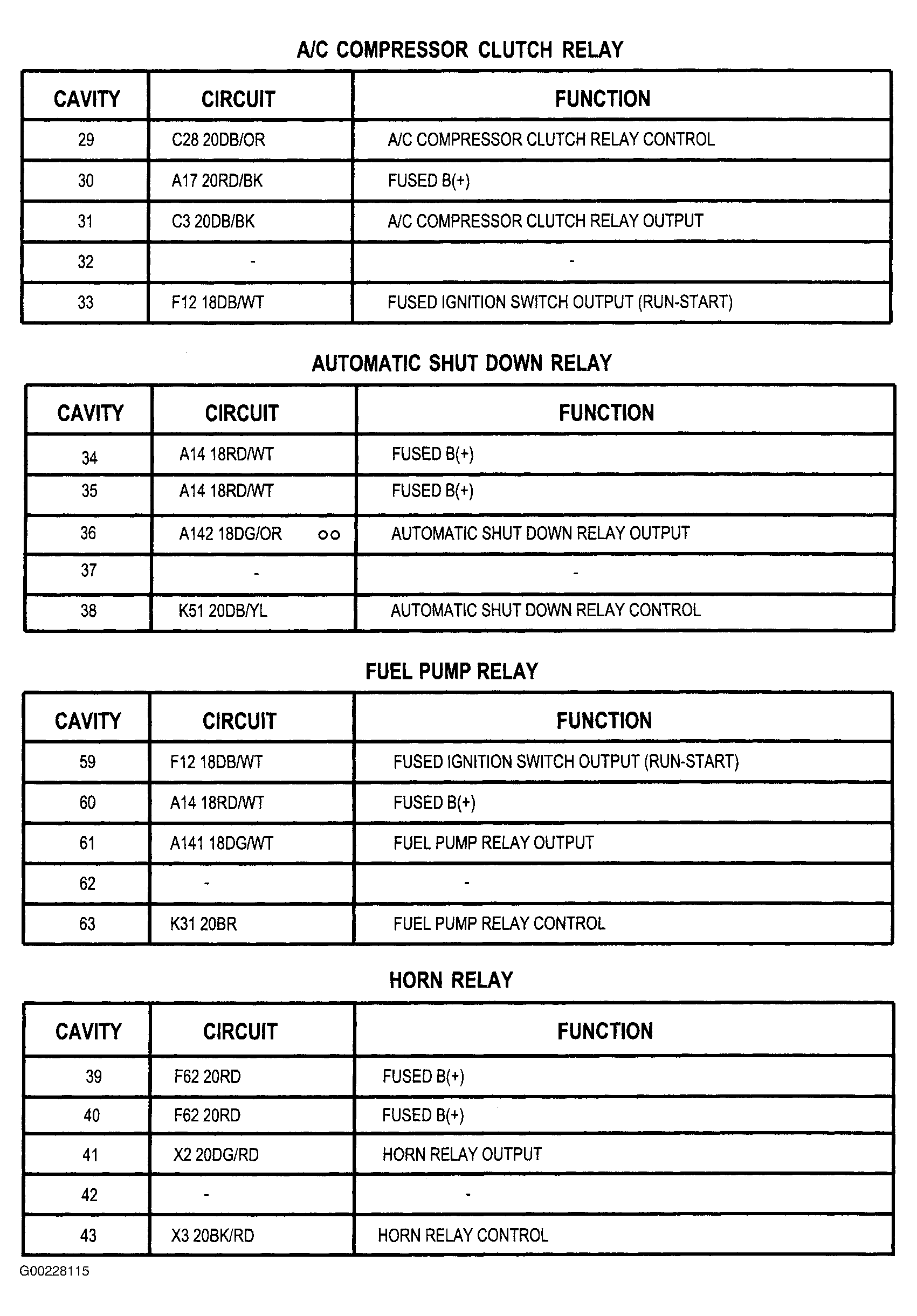

Fig 27: Identifying Power Distribution Center Circuits (1 Of 2)
Courtesy of CHRYSLER CORP.
Fig 28: Identifying Power Distribution Switch Circuits (2 Of 2)
Courtesy of CHRYSLER CORP.
Fig 29: Identifying Power Distribution Center Components (Front View)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Identifying Power Distribution Center Terminals (Rear View)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying Power Steering Pressure Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.

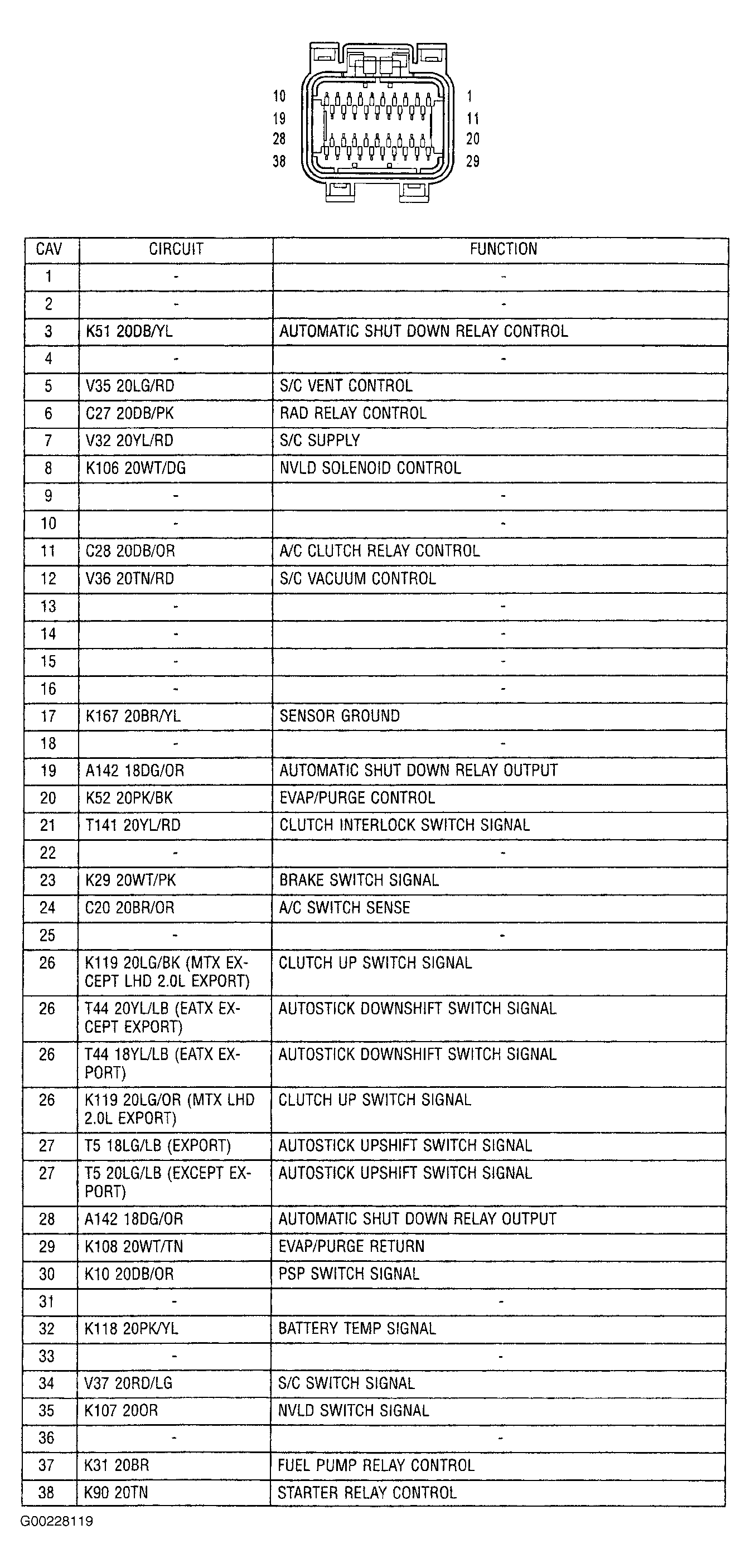

Fig 32: Identifying Powertrain Control Module C1 Harness Connector Terminals
Courtesy of CHRYSLER CORP.

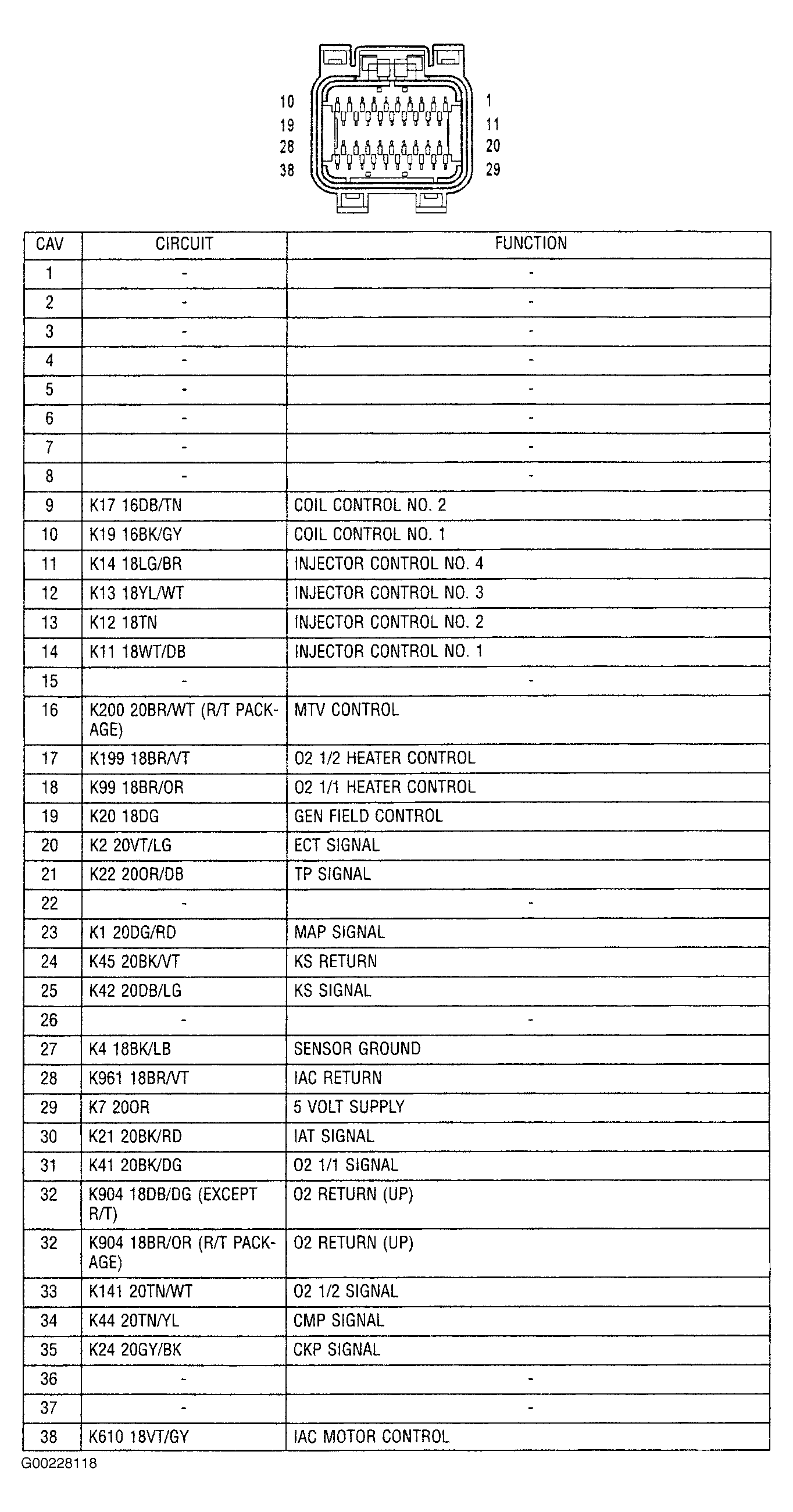

Fig 33: Identifying Powertrain Control Module C2 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 34: Identifying Powertrain Control Module C3 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 35: Identifying Powertrain Control Module C4 Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 36: Identifying Radiator Fan Motor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 37: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
Courtesy of CHRYSLER CORP.

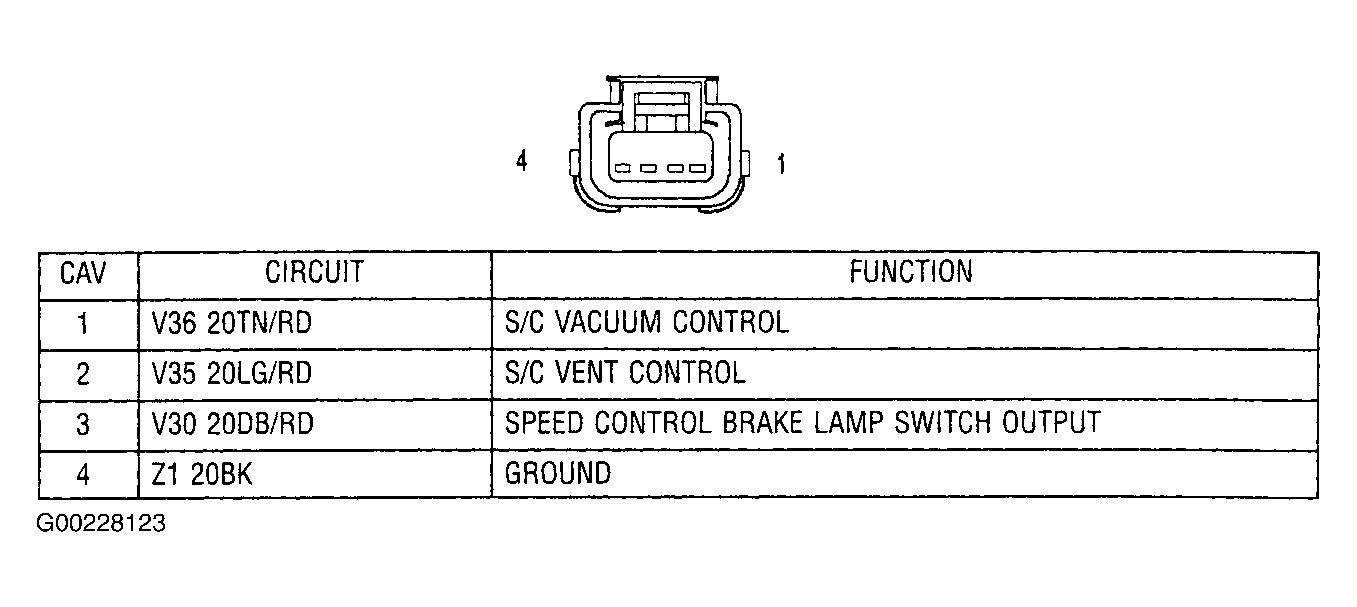

Fig 38: Identifying Speed Control Servo Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 39: Identifying Throttle Position Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 40: Identifying Transmission Range Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Fig 41: Identifying Vehicle Speed Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.

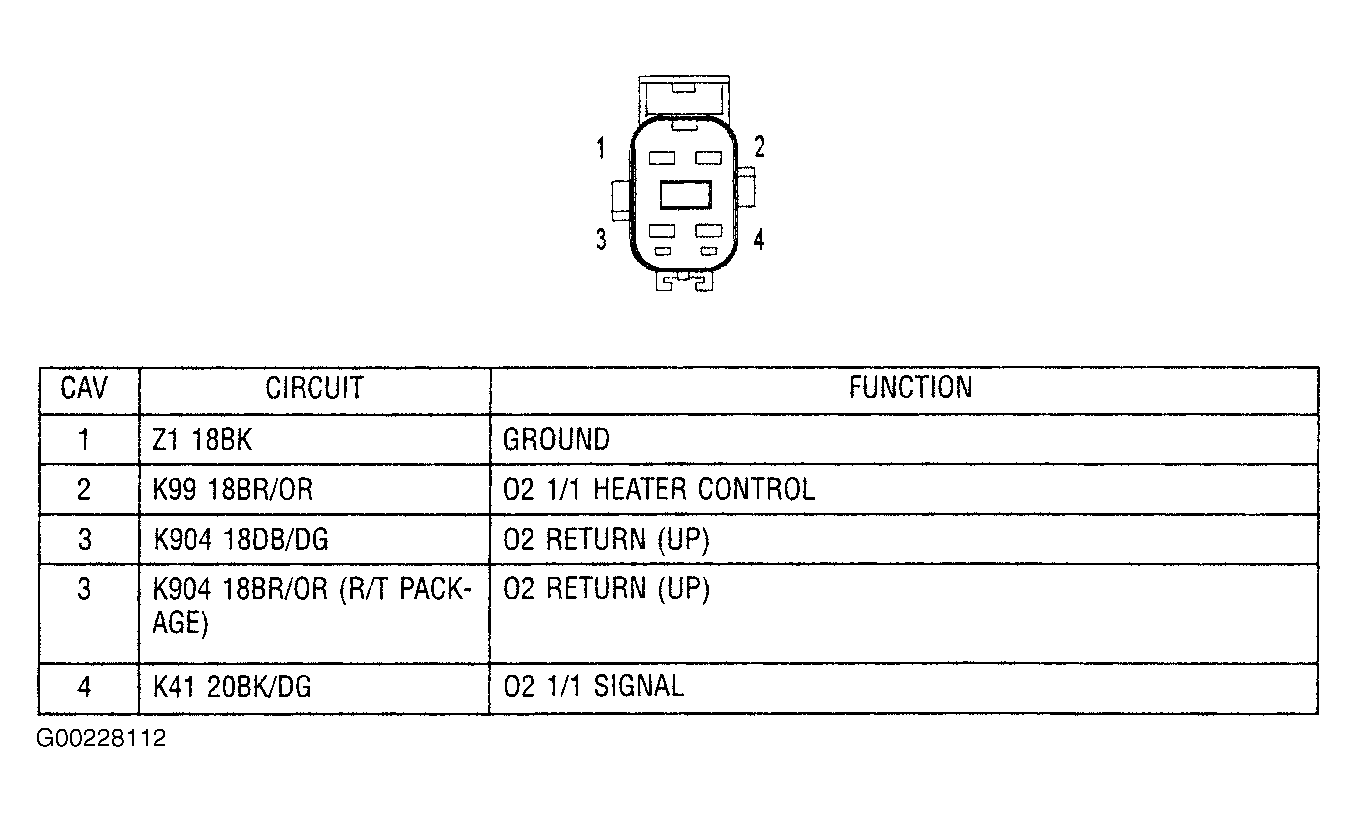

Fig 42: Identifying 1/1 Oxygen Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.

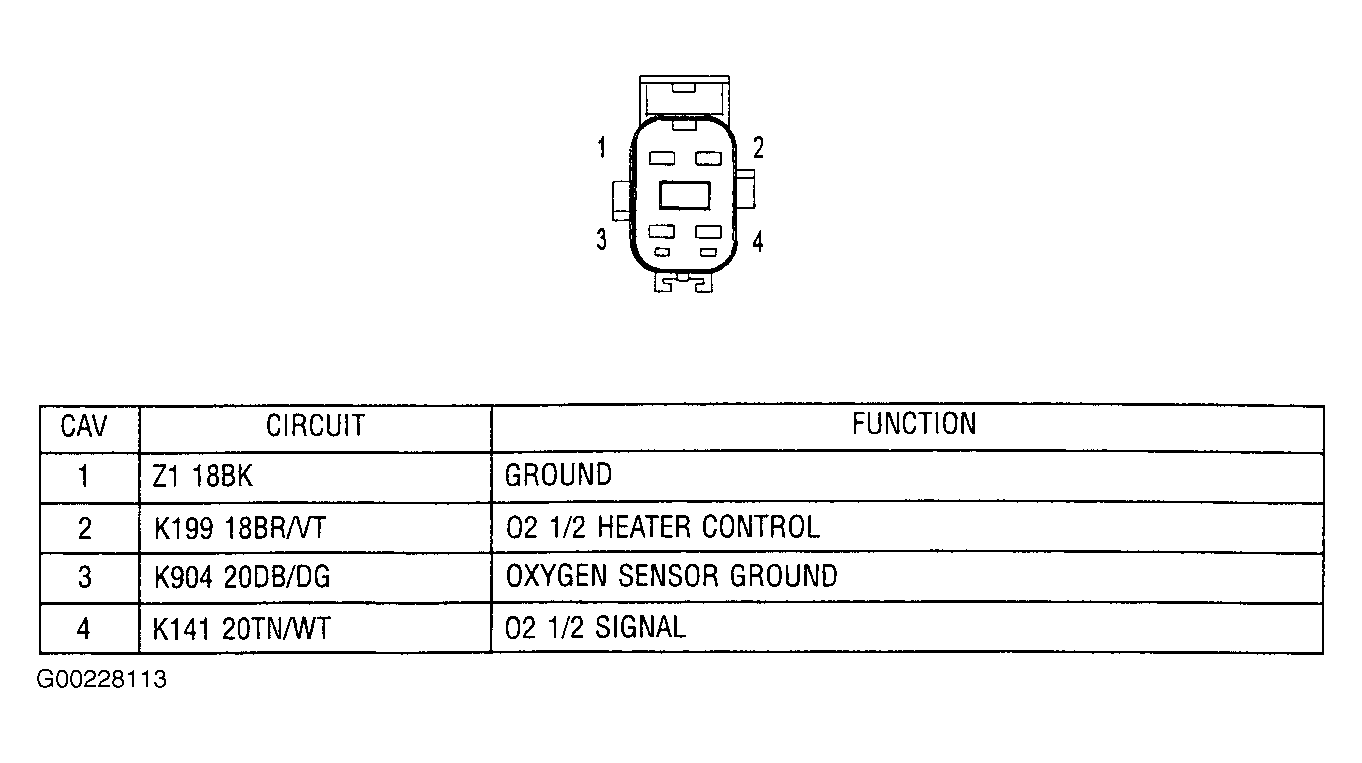

Fig 43: Identifying 1/2 Oxygen Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
