Component Locations

NOTE: See Fig 1 - Fig 20 for component locations.

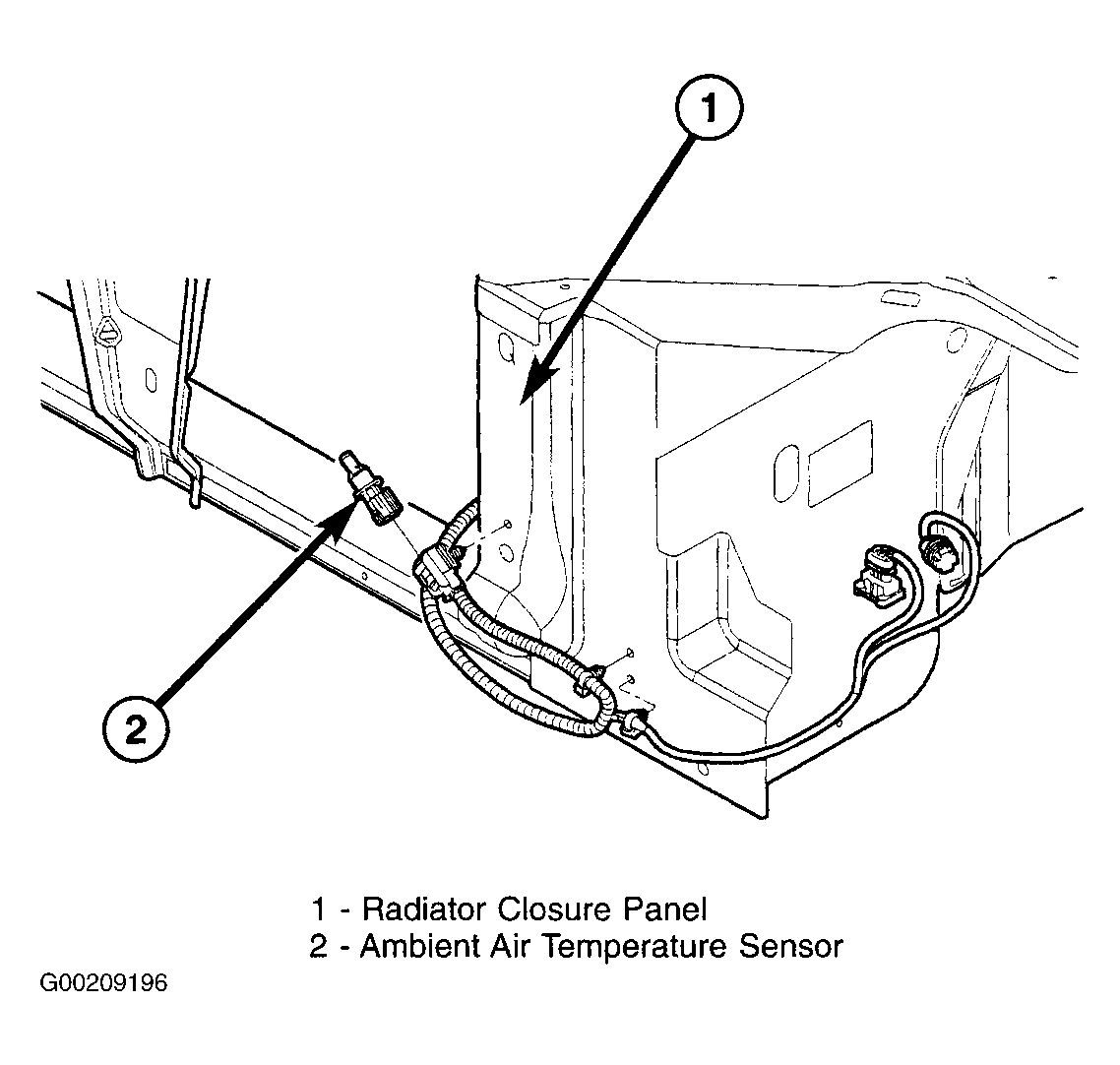

Fig 1: Locating Ambient Air Temperature Sensor

G00209196

Courtesy of CHRYSLER CORP.

Fig 2: Locating Brake Switch & Clutch Upstop Switch

G00059286

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Camshaft Position Sensor

G99G02993

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating Crankshaft Position Sensor

G00191737

Courtesy of CHRYSLER CORP.

Fig 5: Locating Data Link Connector

G00209197

Courtesy of CHRYSLER CORP.

Fig 6: Locating Engine Coolant Temperature Sensor

G00030268

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Locating Evaporative Emissions Canister

G00059287

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Locating Evaporative Emissions Purge Solenoid & Power Steering Switch

G00030270

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 9: Locating Fuel Filter Pressure Regulator

G00059288

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Locating Fuel Injectors, Fuel Rail Test Port, Ignition Coil & Speed Control Servo

G00059289

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Locating Idle Air Control Motor & Throttle Position Sensor

G00059290

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Locating Inlet Air Temperature Sensor & Power Distribution Center

G00059291

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Locating Knock Sensor

G00191745

Courtesy of CHRYSLER CORP.

Fig 14: Locating Manifold Absolute Pressure Sensor

G00014421

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Locating Powertrain Control Module

G00209198

Courtesy of CHRYSLER CORP.

Fig 16: Locating Sentry Key Immobilizer Module

G00059292

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Locating Speed Control Switches

G00059293

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Locating Transmission Range Sensor

G00088591

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Locating 1/1 Oxygen Sensor

G00088557

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Locating 1/2 Oxygen Sensor

G00088558

Courtesy of DAIMLERCHRYSLER CORP.
