Left Power Sliding Door Control Module Connector End View (C2)

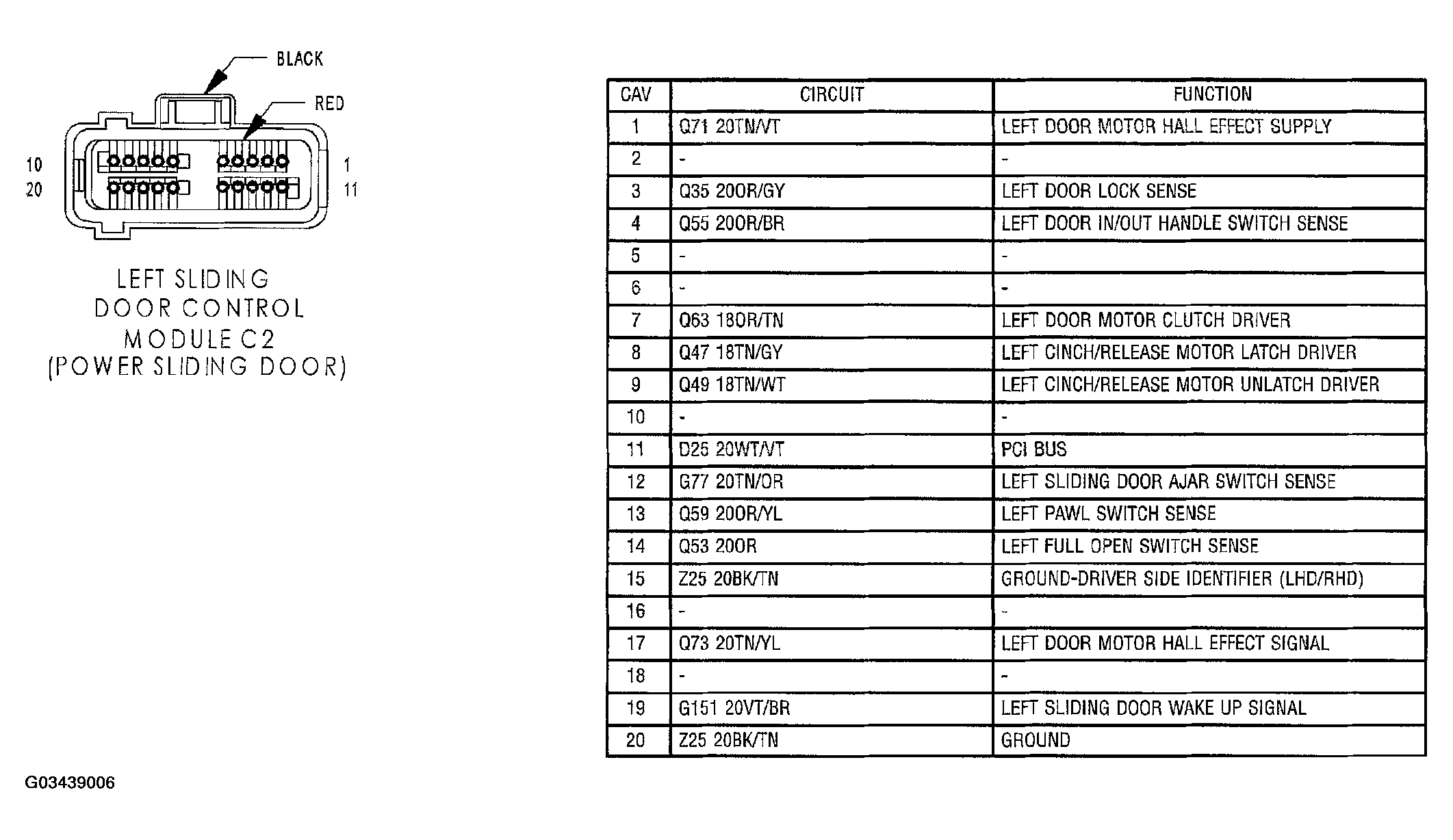

Fig 1: Left Power Sliding Door Control Module Connector End View (C2)
Courtesy of DAIMLERCHRYSLER CORP.
