Integrated Power Module/Body Control Module Power And Grounds

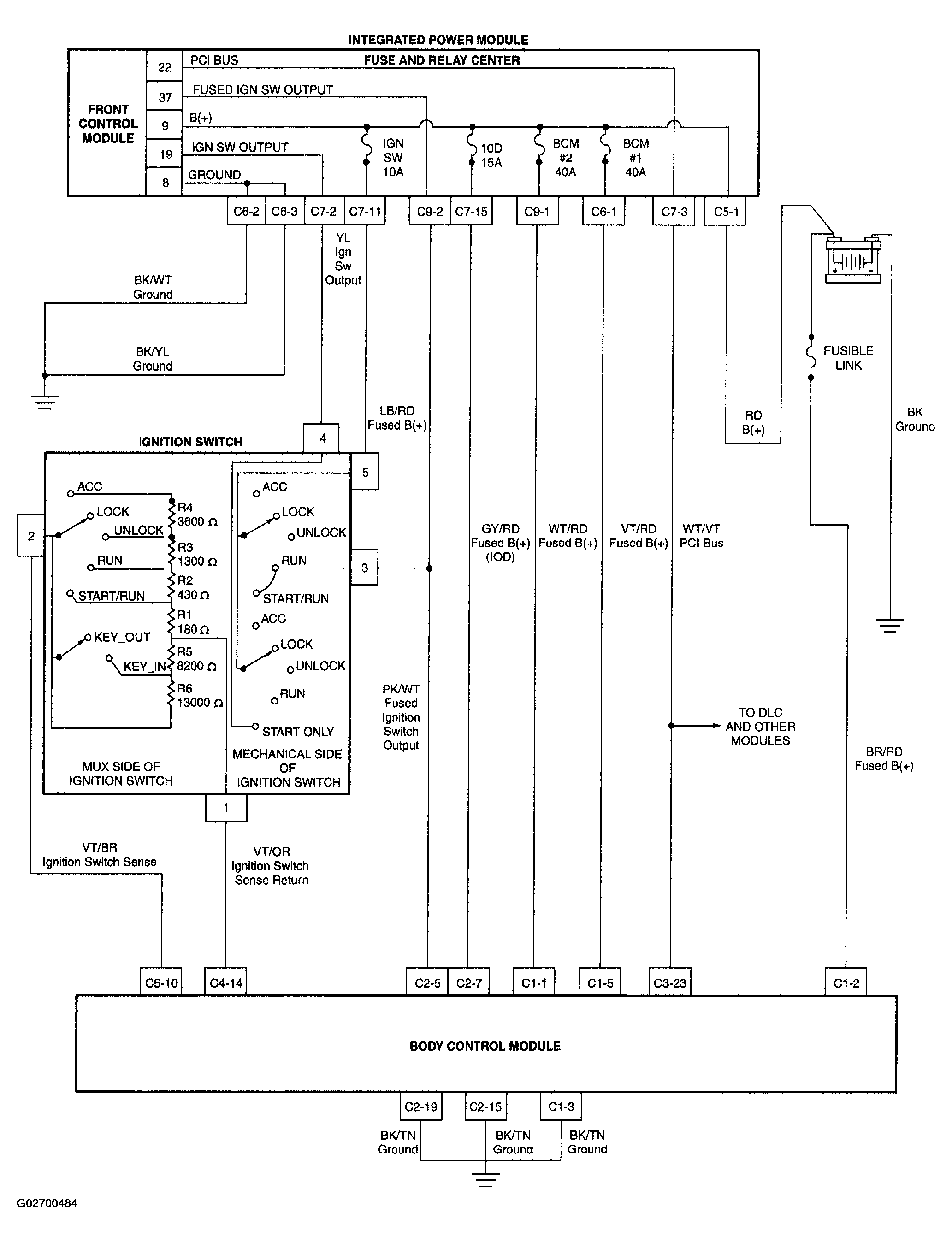

Fig 1: Integrated Power Module/Body Control Module Power And Grounds Schematic Diagram
G02700484Courtesy of DAIMLERCHRYSLER CORP.
