Servicing - A/T: Identification: Transaxle

Transmission identification numbers are stamped on left side of transmission case, just above the oil pan gasket surface. See Fig 1 or Fig 2 . Identification numbers may be required when ordering replacement components. Note that transmission components may not be interchangeable and identification number is required to ensure proper component application.

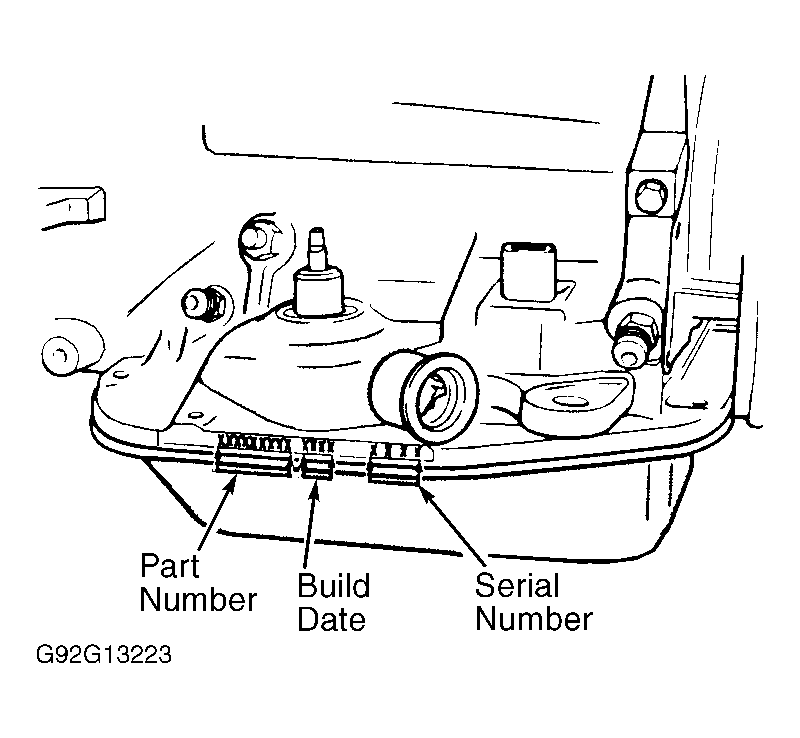

Fig 1: Locating Transmission Identification Numbers (42RE & 46RE)
G92G13223Courtesy of CHRYSLER CORP.

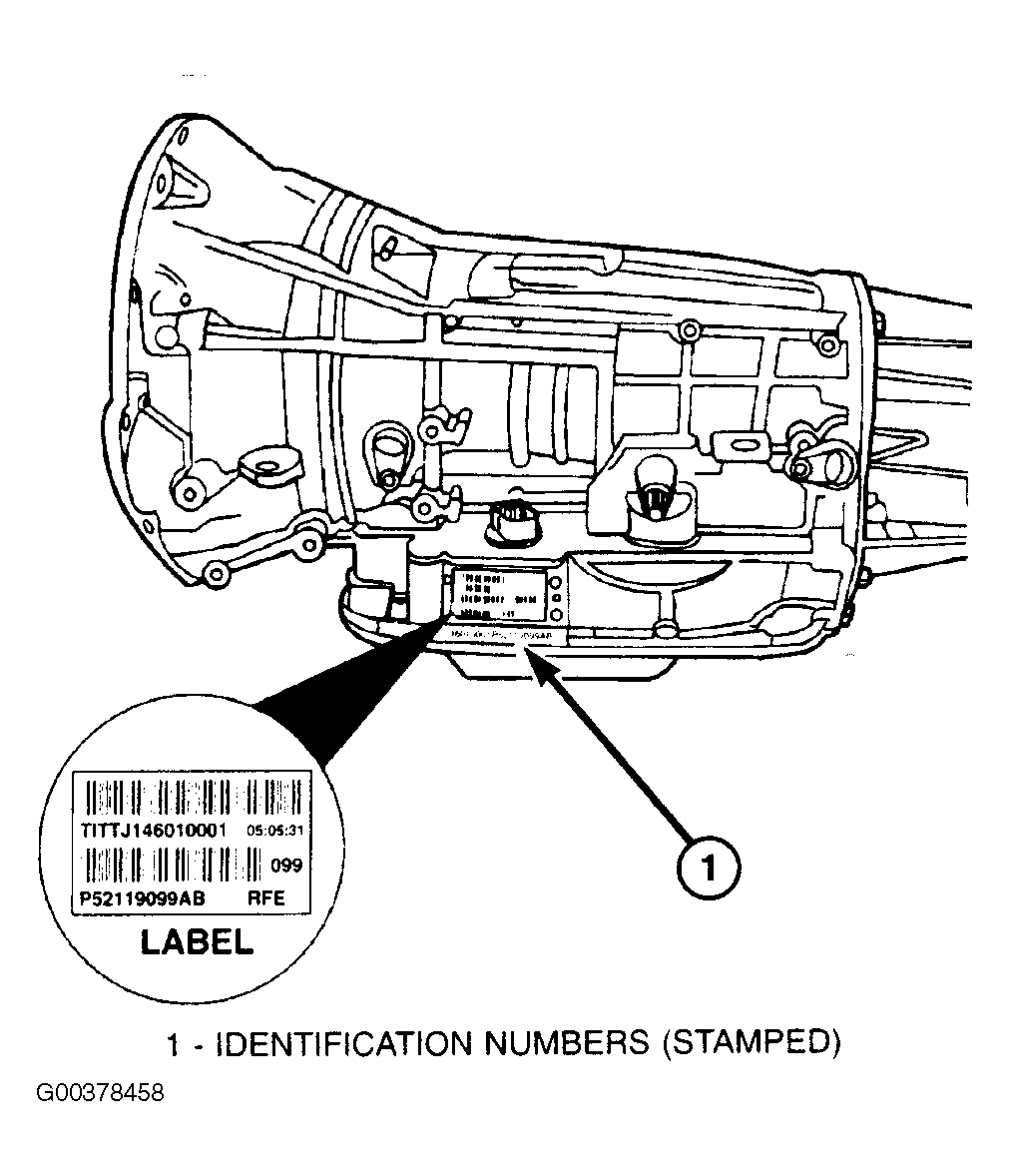

Fig 2: Locating Transmission Identification Numbers (545RFE)
G00378458Courtesy of CHRYSLER CORP.
