Connector Identification

NOTE: See Fig 1-Fig 70 for connector identification.
Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals
G00228254Courtesy of CHRYSLER CORP.
Fig 2: Identifying A/C Pressure Transducer Harness Connector Terminals
G00228255Courtesy of CHRYSLER CORP.
Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals
G00228256Courtesy of CHRYSLER CORP.
Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals
G00228257Courtesy of CHRYSLER CORP.
Fig 5: Identifying Brake Lamp Switch Harness Connector Terminals
G00235025Courtesy of CHRYSLER CORP.
Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals
G00235026Courtesy of CHRYSLER CORP.
Fig 7: Identifying Camshaft Position Sensor Harness Connector Terminals
G00235027Courtesy of CHRYSLER CORP.
Fig 8: Identifying Capacitor Harness Connector Terminals
G00228260Courtesy of CHRYSLER CORP.
Fig 9: Identifying Controller Anti-lock Brake C1 Harness Connector Terminals
G00235028Courtesy of CHRYSLER CORP.
Fig 10: Identifying Controller Anti-lock Brake C2 Harness Connector Terminals
G00234971Courtesy of CHRYSLER CORP.
Fig 11: Identifying Crankshaft Position Sensor Harness Connector Terminals
G00235029Courtesy of CHRYSLER CORP.
Fig 12: Identifying Data Link Connector Harness Connector Terminals
G00235030Courtesy of CHRYSLER CORP.
Fig 13: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
G00235031Courtesy of CHRYSLER CORP.
Fig 14: Identifying Engine Oil Pressure Switch Harness Connector Terminals
G00235032Courtesy of CHRYSLER CORP.
Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00234976Courtesy of CHRYSLER CORP.
Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00234977Courtesy of CHRYSLER CORP.
Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00234978Courtesy of CHRYSLER CORP.
Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00234979Courtesy of CHRYSLER CORP.
Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals
G00234980Courtesy of CHRYSLER CORP.
Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals
G00234981Courtesy of CHRYSLER CORP.
Fig 21: Identifying Fuel Injector No. 7 Harness Connector Terminals
G00234982Courtesy of CHRYSLER CORP.
Fig 22: Identifying Fuel Injector No. 8 Harness Connector Terminals
G00234984Courtesy of CHRYSLER CORP.
Fig 23: Identifying Fuel Pump Module Harness Connector Terminals
G00235033Courtesy of CHRYSLER CORP.
Fig 24: Identifying Generator Harness Connector Terminals
G00235034Courtesy of CHRYSLER CORP.
Fig 25: Identifying Idle Air Control Motor Harness Connector Terminals
G00235035Courtesy of CHRYSLER CORP.
Fig 26: Identifying Ignition Switch Harness Connector Terminals
G00234987Courtesy of CHRYSLER CORP.
Fig 27: Identifying Injector Coil On Plug No. 1 Harness Connector Terminals
G00234962Courtesy of CHRYSLER CORP.
Fig 28: Identifying Injector Coil On Plug No. 2 Harness Connector Terminals
G00234964Courtesy of CHRYSLER CORP.
Fig 29: Identifying Injector Coil On Plug No. 3 Harness Connector Terminals
G00234965Courtesy of CHRYSLER CORP.
Fig 30: Identifying Injector Coil On Plug No. 4 Harness Connector Terminals
G00234966Courtesy of CHRYSLER CORP.
Fig 31: Identifying Injector Coil On Plug No. 5 Harness Connector Terminals
G00234963Courtesy of CHRYSLER CORP.
Fig 32: Identifying Injector Coil On Plug No. 6 Harness Connector Terminals
G00234967Courtesy of CHRYSLER CORP.
Fig 33: Identifying Injector Coil On Plug No. 7 Harness Connector Terminals
G00234968Courtesy of CHRYSLER CORP.
Fig 34: Identifying Injector Coil On Plug No. 8 Harness Connector Terminals
G00234969Courtesy of CHRYSLER CORP.
Fig 35: Identifying Input Speed Sensor Harness Connector Terminals
G00235036Courtesy of CHRYSLER CORP.
Fig 36: Identifying Intake Air Temperature Sensor Harness Connector Terminals
G00235037Courtesy of CHRYSLER CORP.
Fig 37: Identifying Junction Block Fuse View (1 Of 2)
G00234990Courtesy of CHRYSLER CORP.
Fig 38: Identifying Junction Block Circuits (2 Of 2)
G00235038Courtesy of CHRYSLER CORP.

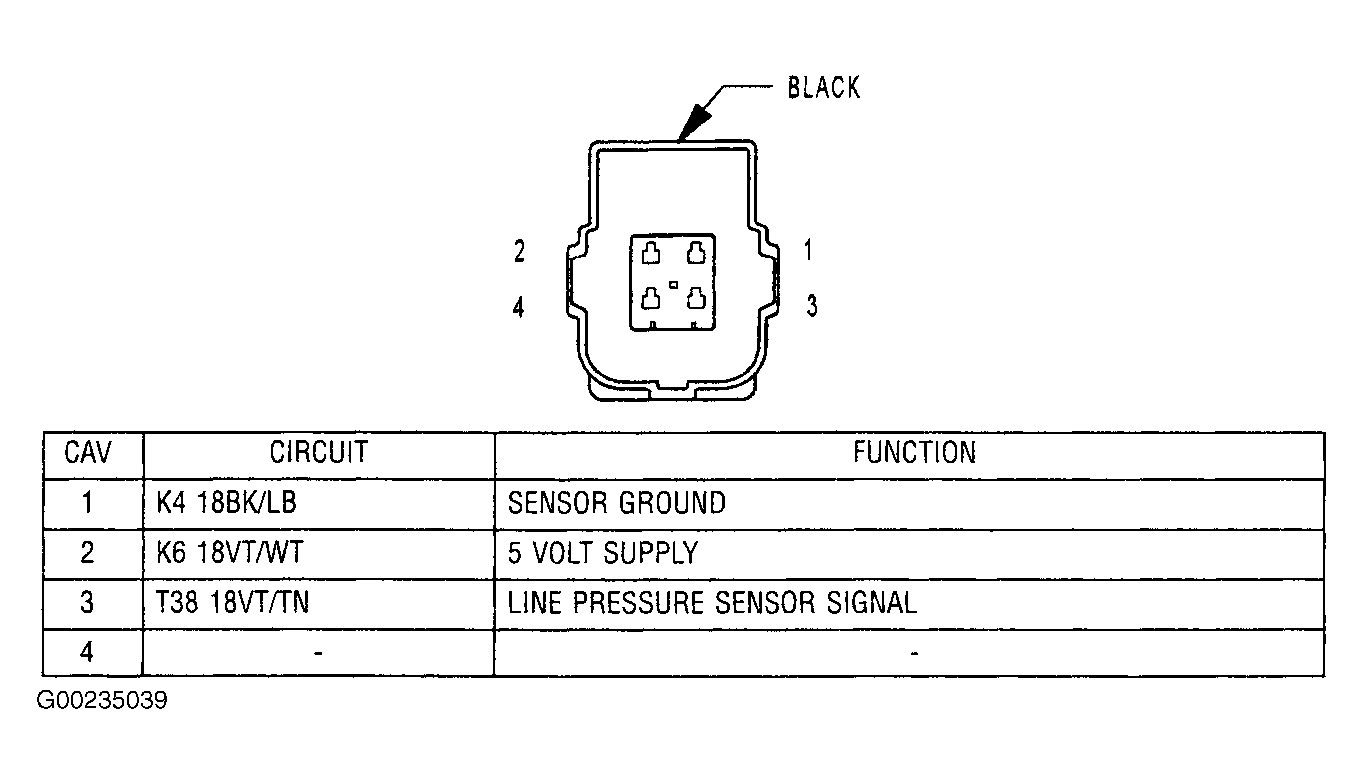

Fig 39: Identifying Line Pressure Sensor Harness Connector Terminals
G00235039Courtesy of CHRYSLER CORP.

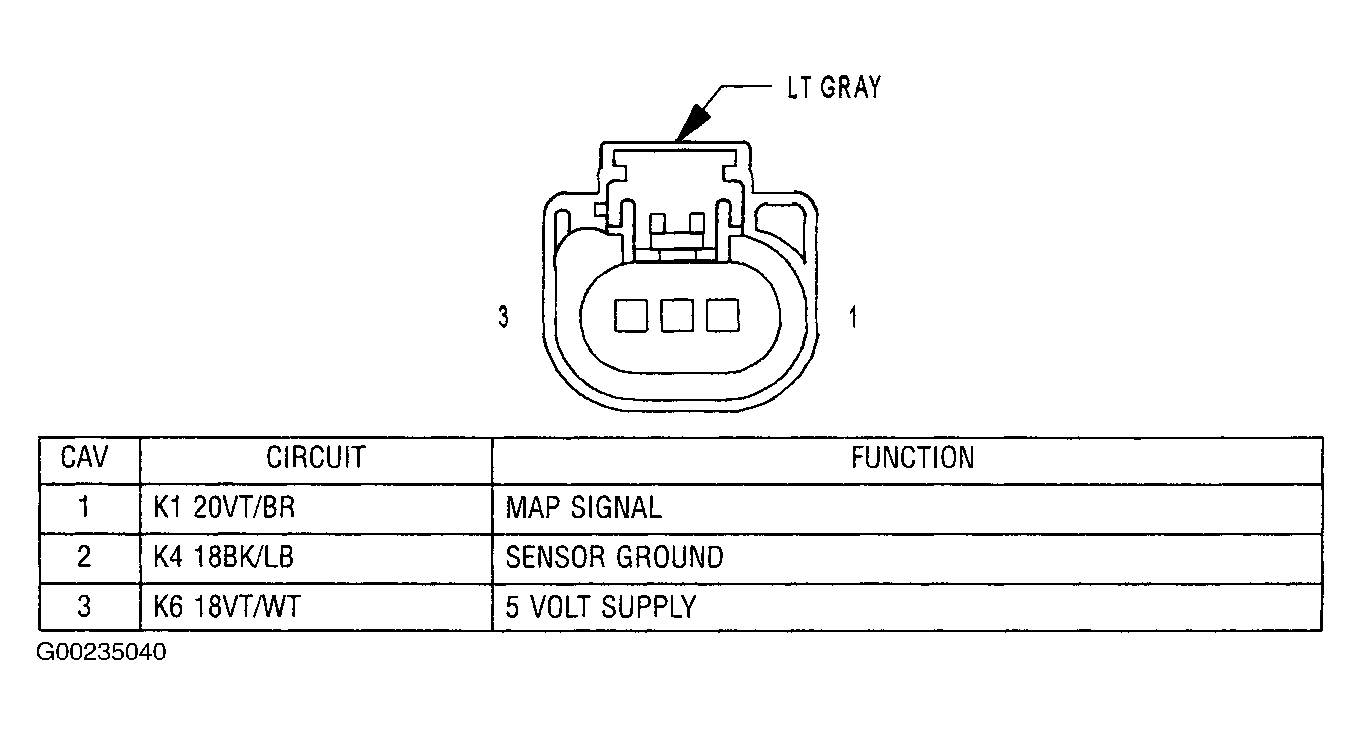

Fig 40: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
G00235040Courtesy of CHRYSLER CORP.
Fig 41: Identifying Natural Vacuum Leak Detection Assembly Harness Connector Terminals
G00234995Courtesy of CHRYSLER CORP.
Fig 42: Identifying Output Speed Sensor Harness Connector Terminals
G00234996Courtesy of CHRYSLER CORP.
Fig 43: Identifying Overdrive Switch Harness Connector Terminals
G00235041Courtesy of CHRYSLER CORP.
Fig 44: Identifying Power Distribution Center Components & Circuits (1 Of 3)
G00235045Courtesy of CHRYSLER CORP.
Fig 45: Identifying Power Distribution Center Components & Circuits (2 Of 3)
G00235046Courtesy of CHRYSLER CORP.
Fig 46: Identifying Power Distribution Center Components & Circuits (3 Of 3)
G00235047Courtesy of CHRYSLER CORP.
Fig 47: Identifying Power Steering Pressure Switch Harness Connector Terminals
G00235006Courtesy of CHRYSLER CORP.
Fig 48: Identifying Powertrain Control Module C1 Harness Connector Terminals
G00235048Courtesy of CHRYSLER CORP.

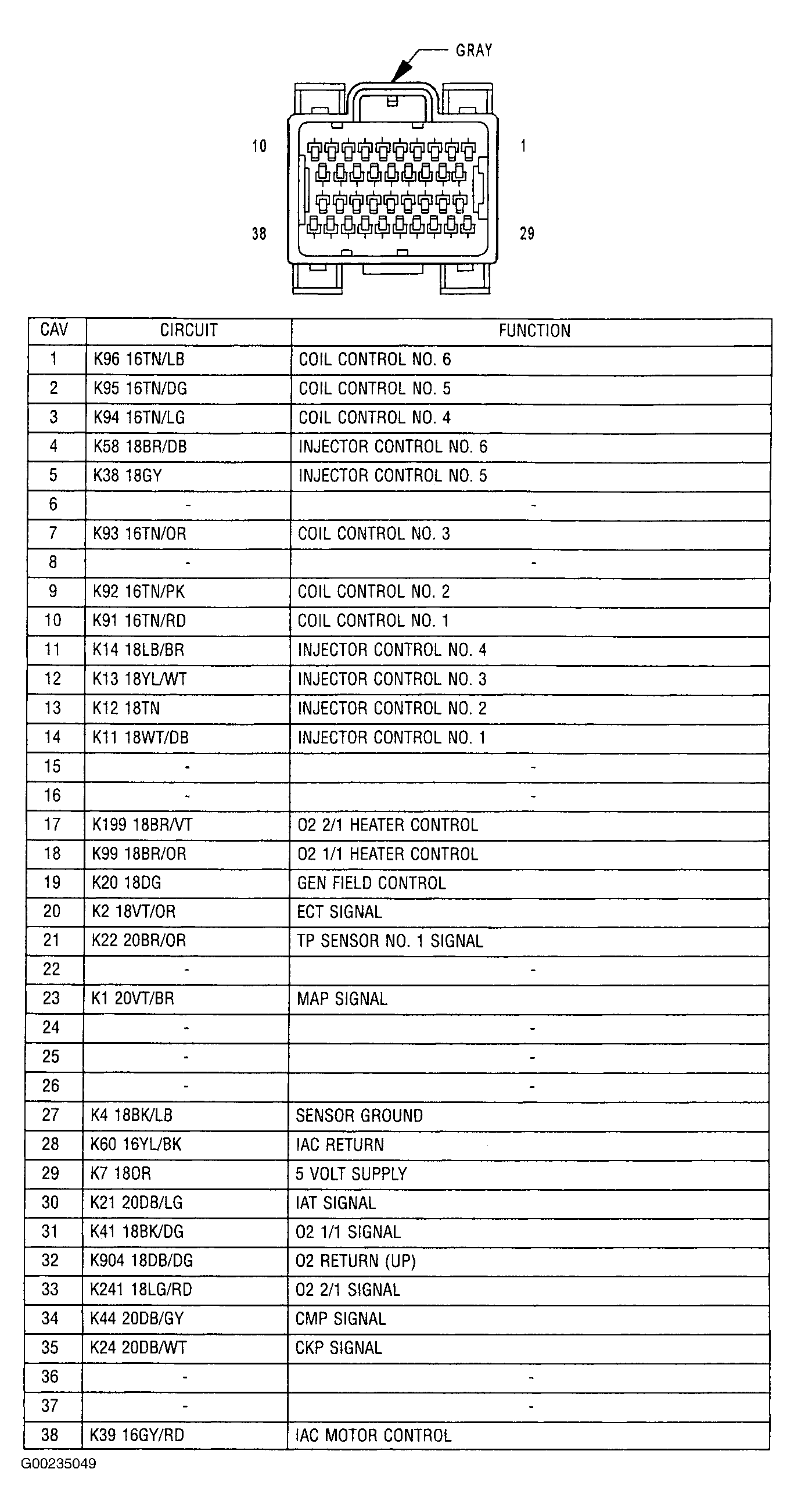

Fig 49: Identifying Powertrain Control Module C2 Harness Connector Terminals
G00235049Courtesy of CHRYSLER CORP.

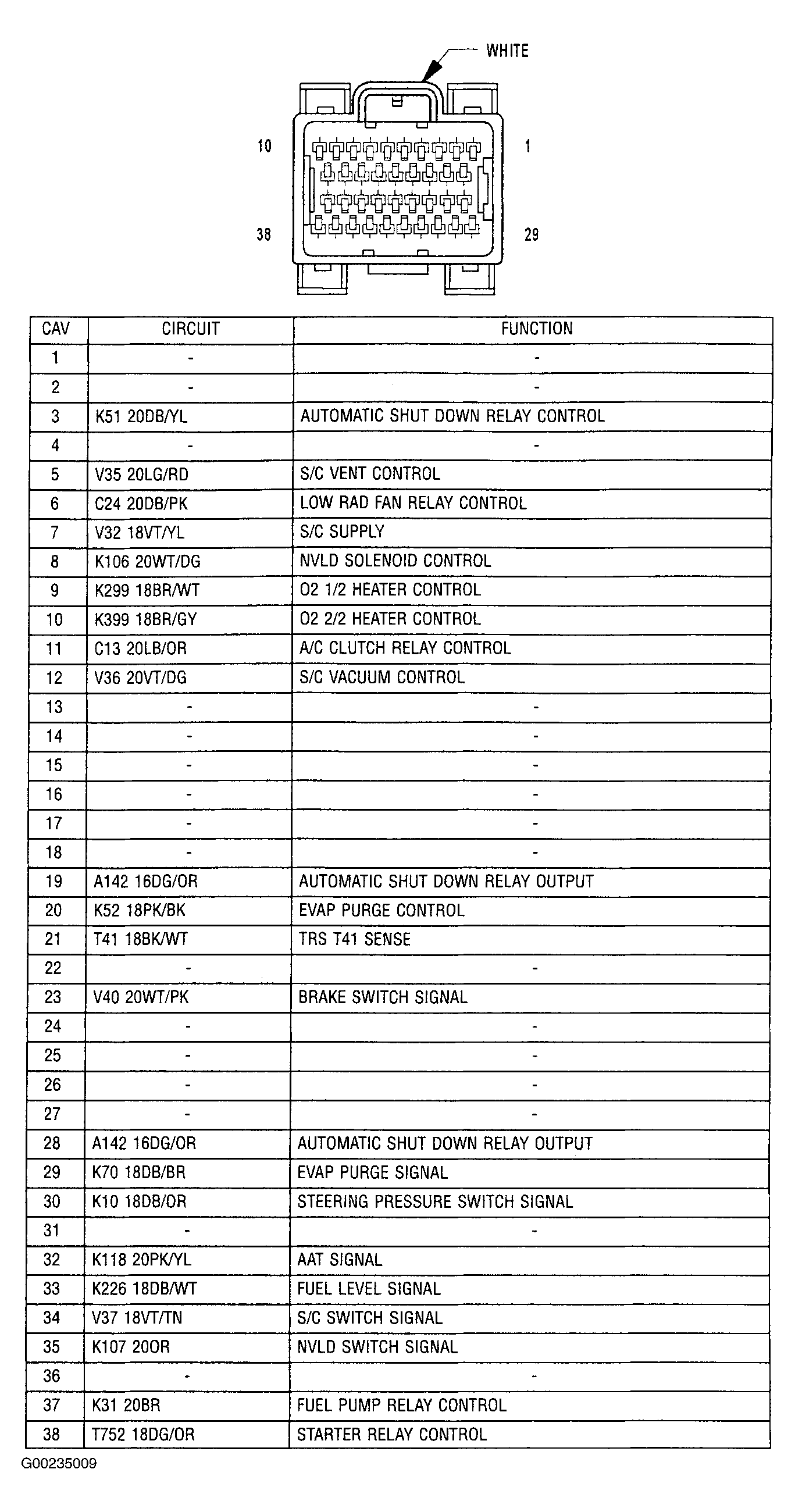

Fig 50: Identifying Powertrain Control Module C3 Harness Connector Terminals
G00235009Courtesy of CHRYSLER CORP.
Fig 51: Identifying Powertrain Control Module C4 Harness Connector Terminals
G00235050Courtesy of CHRYSLER CORP.
Fig 52: Identifying Radiator Fan Motor Harness Connector Terminals
G00235012Courtesy of CHRYSLER CORP.
Fig 53: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
G00096055Courtesy of DAIMLERCHRYSLER
Fig 54: Identifying Speed Control Servo Harness Connector Terminals
G00235051Courtesy of CHRYSLER CORP.
Fig 55: Identifying Speed Control Switch (Left) Harness Connector Terminals
G00234992Courtesy of CHRYSLER CORP.
Fig 56: Identifying Speed Control Switch (Right) Harness Connector Terminals
G00235014Courtesy of CHRYSLER CORP.

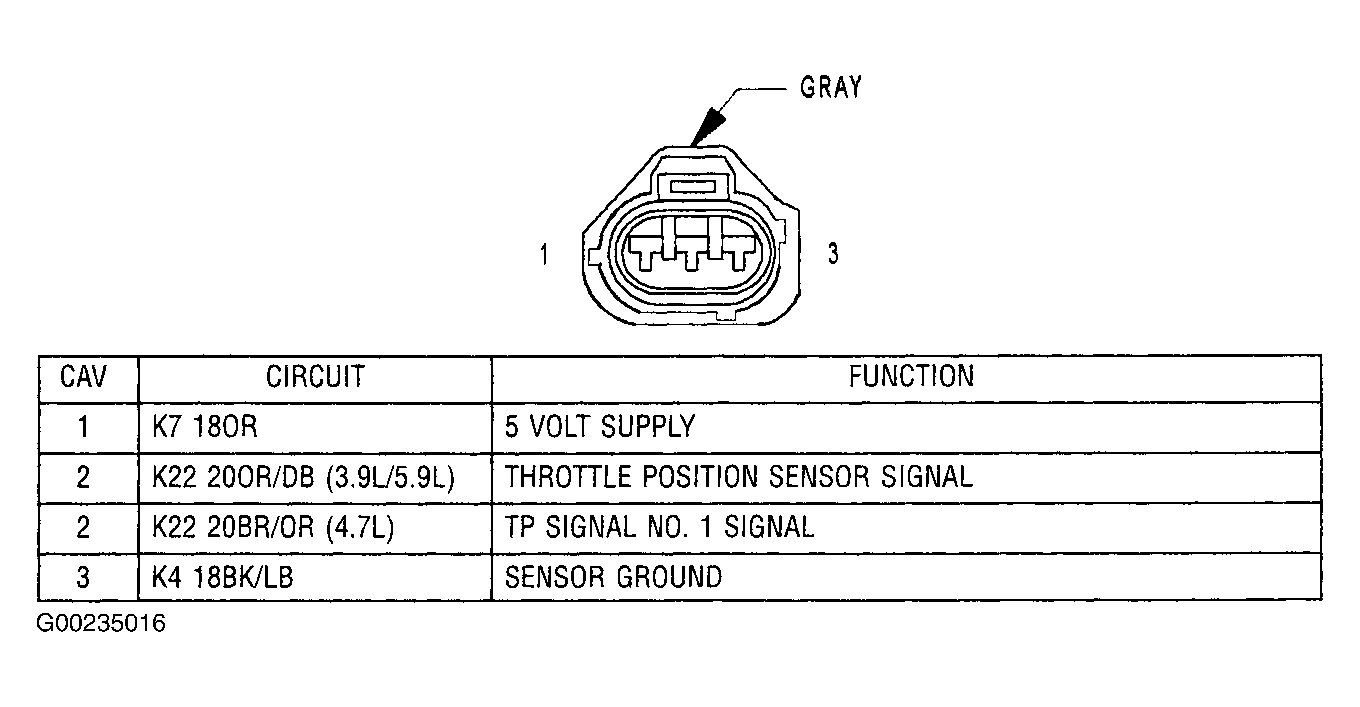

Fig 57: Identifying Throttle Position Sensor Harness Connector Terminals
G00235016Courtesy of CHRYSLER CORP.
Fig 58: Identifying Transfer Case Control Module C1 Harness Connector Terminals
G00235018Courtesy of CHRYSLER CORP.
Fig 59: Identifying Transfer Case Control Module C2 Harness Connector Terminals
G00235052Courtesy of CHRYSLER CORP.
Fig 60: Identifying Transfer Case Control Module C3 Harness Connector Terminals
G00235019Courtesy of CHRYSLER CORP.
Fig 61: Identifying Transfer Case Mode Sensor Harness Connector Terminals
G00235020Courtesy of CHRYSLER CORP.
Fig 62: Identifying Transfer Case Selector Switch Harness Connector Terminals
G00235021Courtesy of CHRYSLER CORP.
Fig 63: Identifying Transfer Case Shift Motor Harness Connector Terminals
G00235022Courtesy of CHRYSLER CORP.
Fig 64: Identifying Transmission Solenoid/TRS Assembly Harness Connector Terminals
G00235053Courtesy of CHRYSLER CORP.

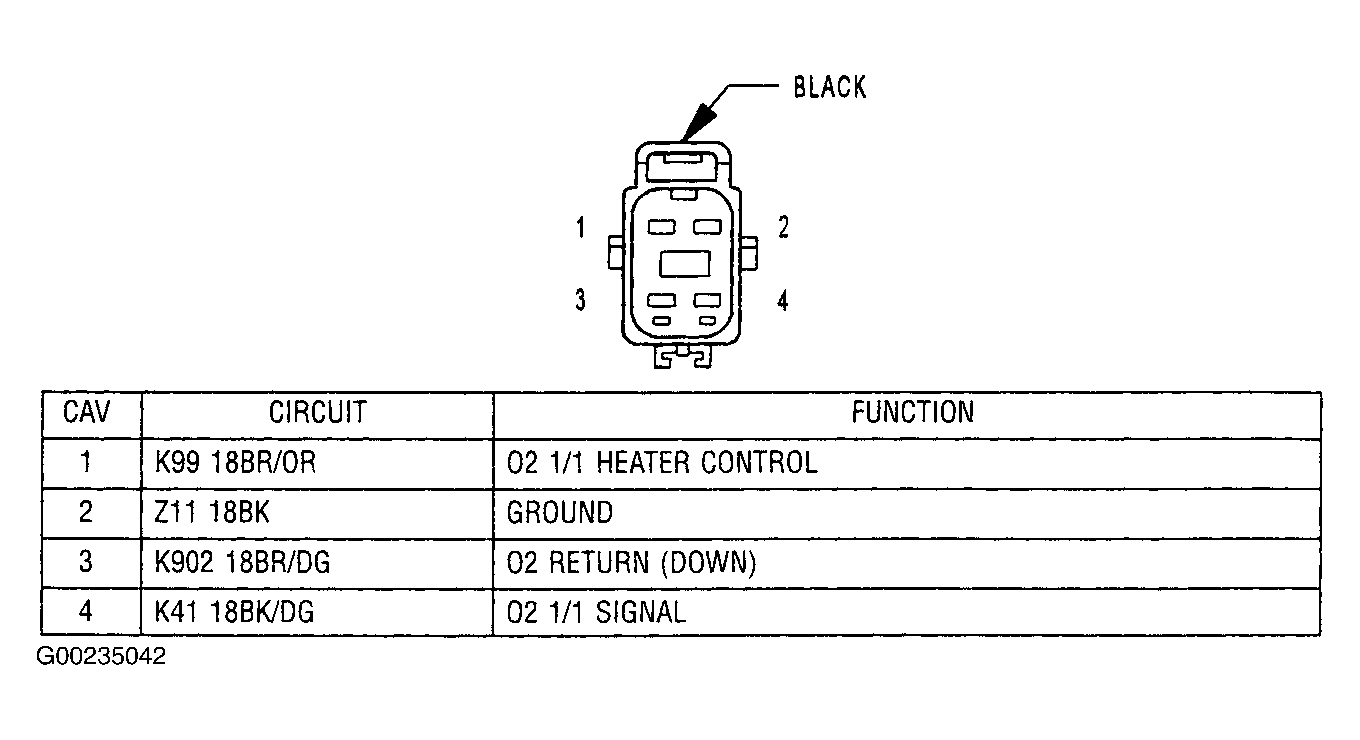

Fig 65: Identifying 1/1 Oxygen Sensor (California) Harness Connector Terminals
G00235042Courtesy of CHRYSLER CORP.

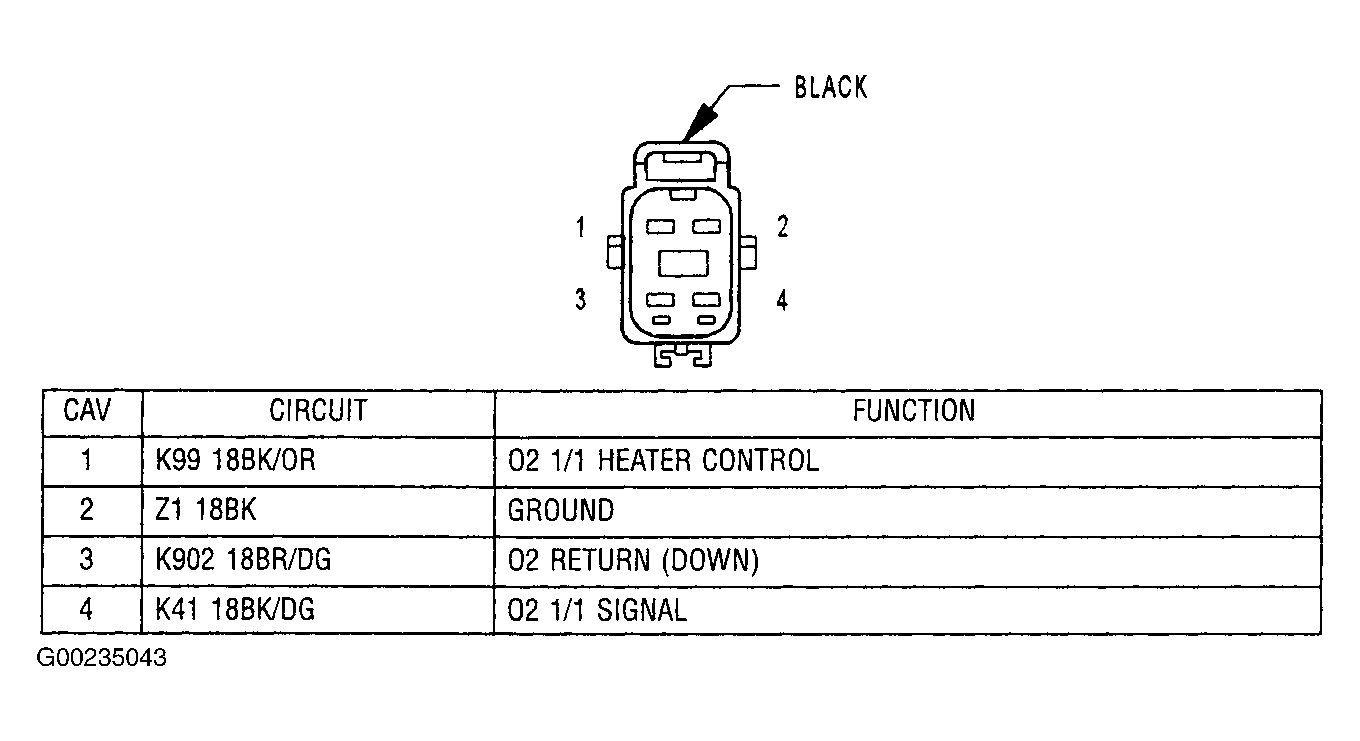

Fig 66: Identifying 1/1 Oxygen Sensor (Except California) Harness Connector Terminals
G00235043Courtesy of CHRYSLER CORP.

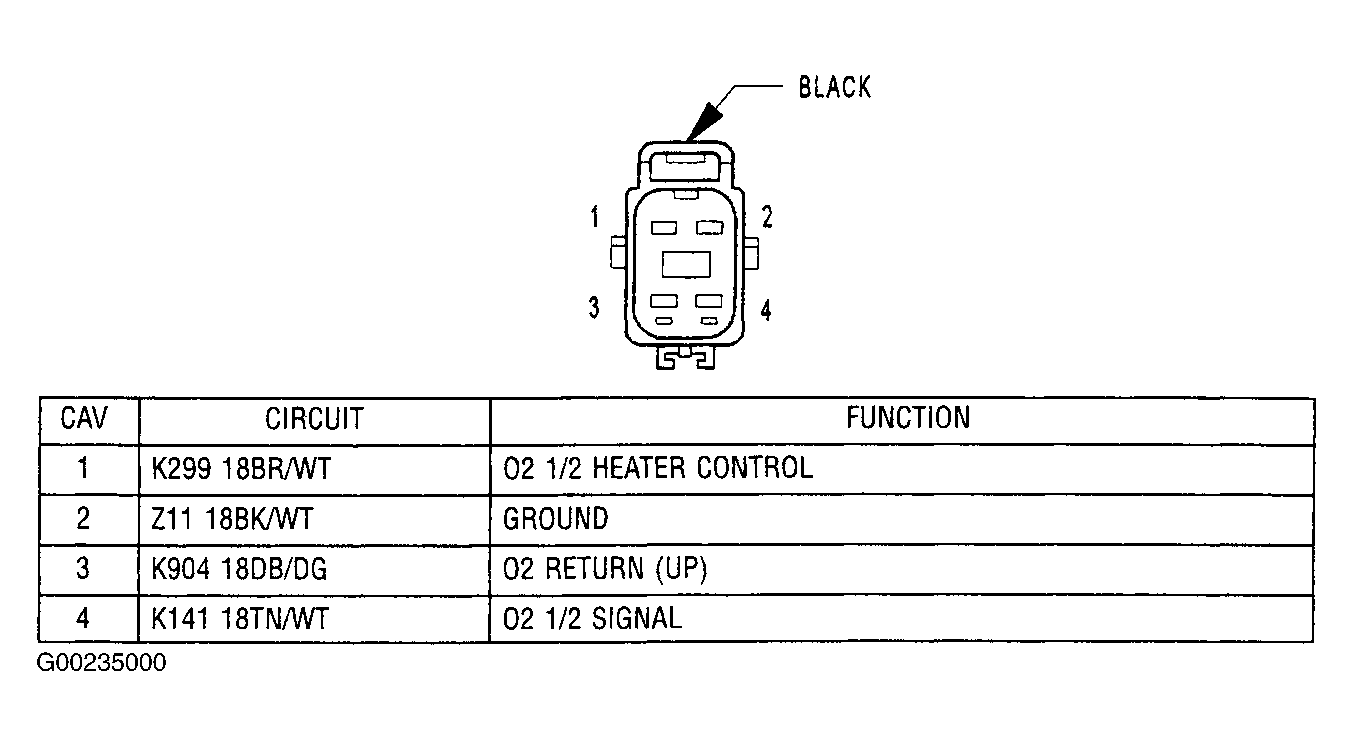

Fig 67: Identifying 1/2 Oxygen Sensor (California) Harness Connector Terminals
G00235000Courtesy of CHRYSLER CORP.

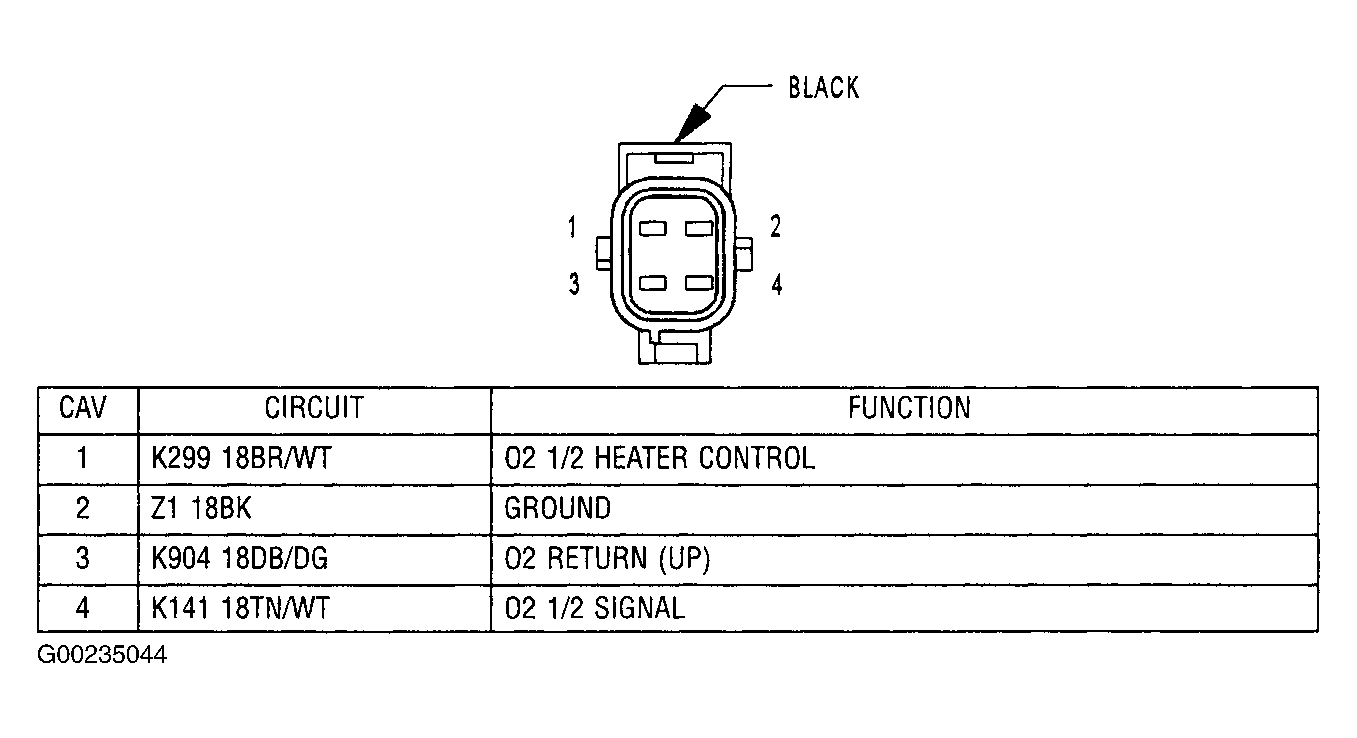

Fig 68: Identifying 1/2 Oxygen Sensor (Except California) Harness Connector Terminals
G00235044Courtesy of CHRYSLER CORP.

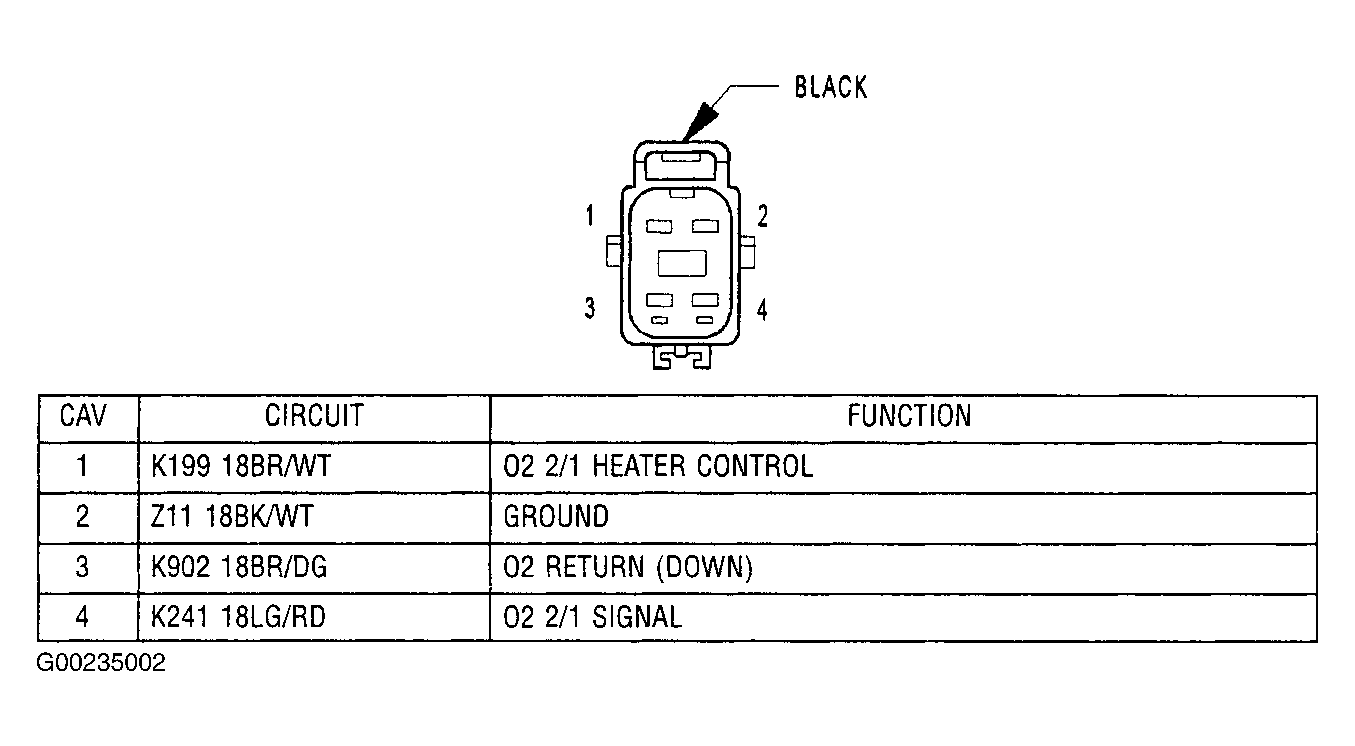

Fig 69: Identifying 2/1 Oxygen Sensor (California) Harness Connector Terminals
G00235002Courtesy of CHRYSLER CORP.

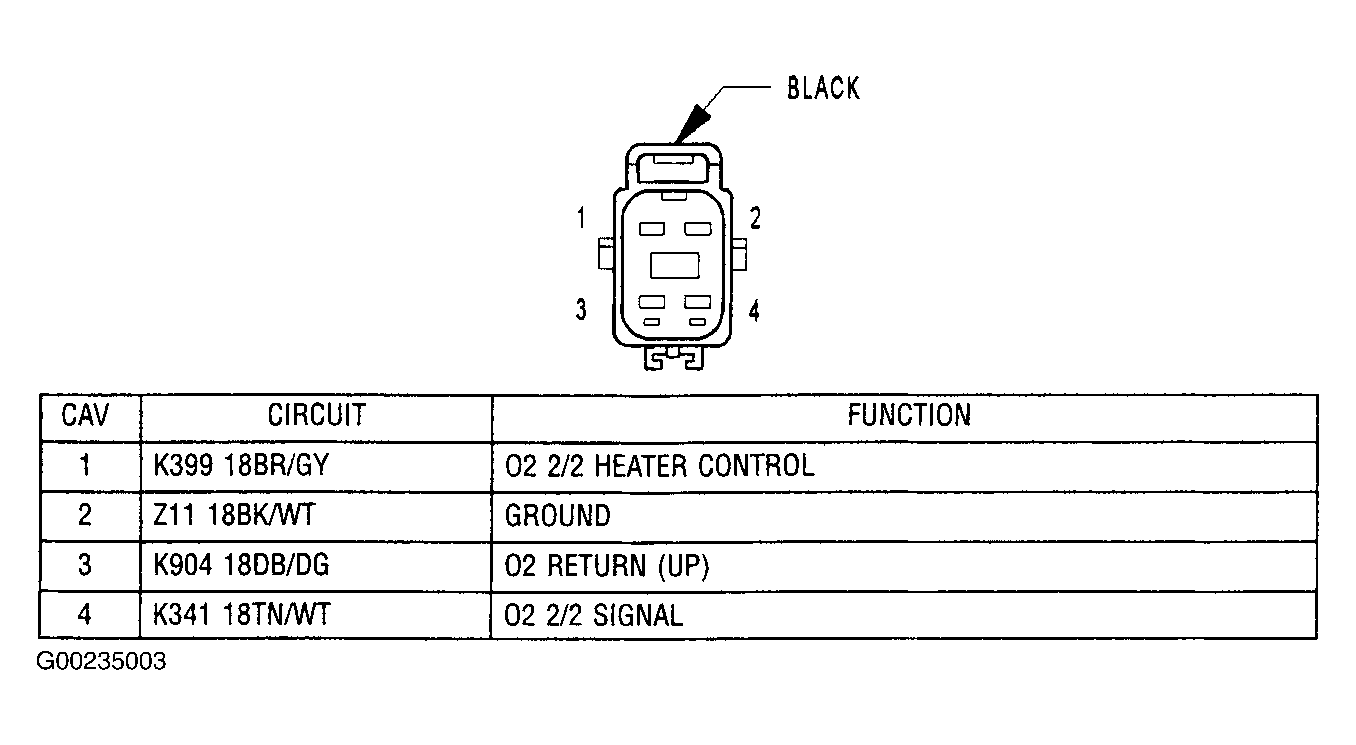

Fig 70: Identifying 2/2 Oxygen Sensor (Except California) Harness Connector Terminals
G00235003Courtesy of CHRYSLER CORP.
