Engine Block Heater - 4.7L: Installation
- Thoroughly clean cylinder block core hole and block heater seat.

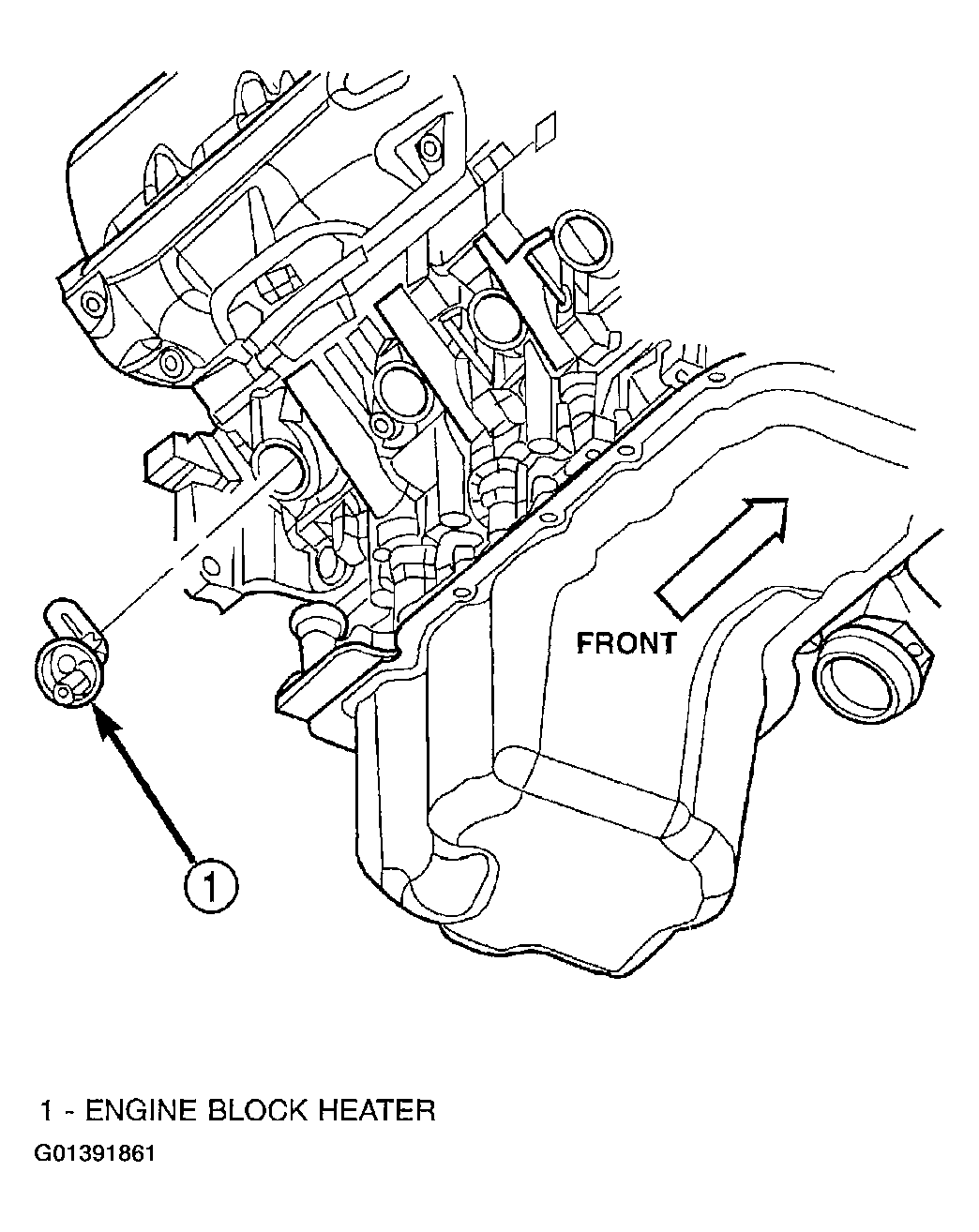

- Insert block heater assembly with element loop pointing at twelve o'clock. (Figure).
- With block heater fully seated, tighten center screw to 2 N.m (17 in. lbs.) torque.
- Refill cooling system. (Refer to STANDARD PROCEDURE - REFILLING COOLING SYSTEM 4.7L ENGINE ).
- Start and warm the engine. Check for leaks.
