Connector Identification

NOTE: For component locations, see COMPONENT LOCATIONS  .
Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals
G00096076Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying A/C Pressure Sensor Harness Connector Terminals
G00096077Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals
G00096079Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals
G00096078Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Brakelight/Lamp Harness Connector Terminals
G00096080Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Identifying Camshaft Position Sensor Harness Connector Terminals
G00096081Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Identifying Capacitor Harness Connector Terminals
G00096082Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Identifying Clockspring Harness Connector C1 Terminals
G00096083Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Identifying Clockspring Harness Connector C3 Terminals
G00096084Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Identifying Coil On Plug No. 1 Harness Connector Terminals
G00096085Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Identifying Coil On Plug No. 2 Harness Connector Terminals
G00096086Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Identifying Coil On Plug No. 3 Harness Connector Terminals
G00096087Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Identifying Coil On Plug No. 4 Harness Connector Terminals
G00096088Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Identifying Coil On Plug No. 5 Harness Connector Terminals
G00096089Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Identifying Coil On Plug No. 6 Harness Connector Terminals
G00096090Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Identifying Coil On Plug No. 7 Harness Connector Terminals
G00096091Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Identifying Coil On Plug No. 8 Harness Connector Terminals
G00096092Courtesy of DAIMLERCHRYSLER CORP.

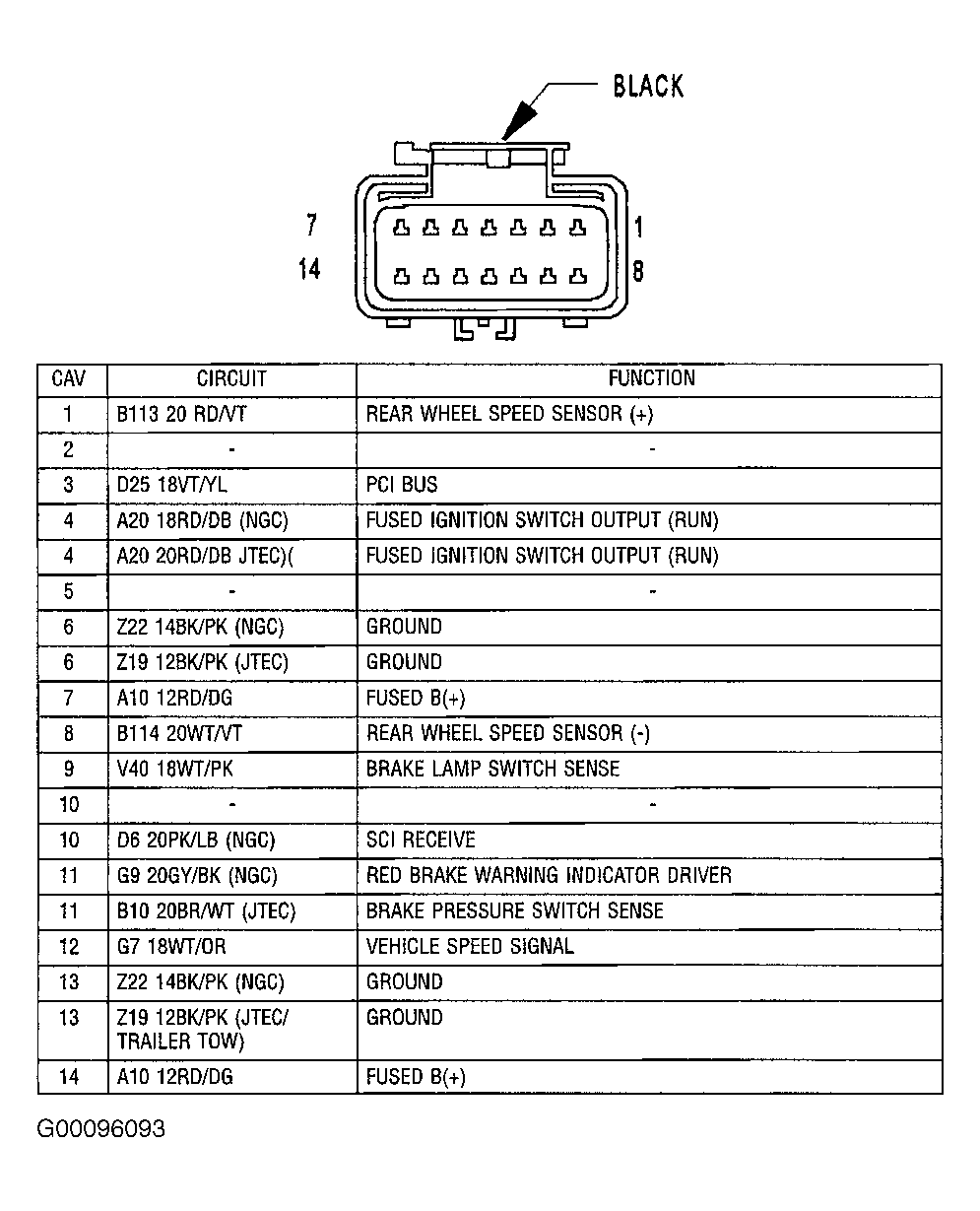

Fig 18: Identifying Controller Anti-Lock Brake Harness Connector C1 Terminals
G00096093Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Identifying Controller Anti-Lock Brake Harness Connector C2 Terminals
G00096094Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Identifying Crankshaft Position Sensor Harness Connector Terminals
G00096095Courtesy of DAIMLERCHRYSLER CORP.

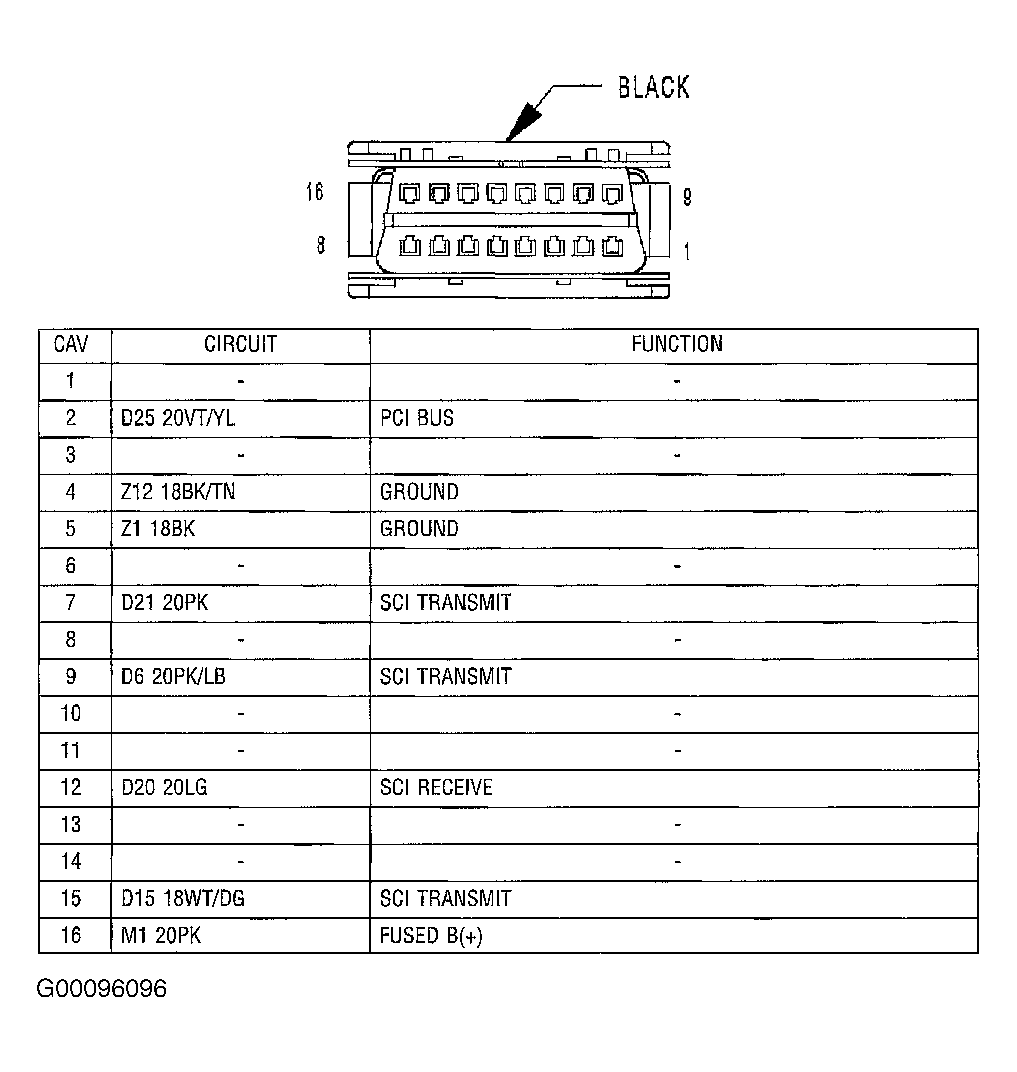

Fig 21: Identifying Data Link Connector Terminals
G00096096Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals
G00096097Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Identifying Engine Oil Pressure Sensor Harness Connector Terminals
G00096098Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Identifying Fuel Injector No. 1 Harness Connector Terminals
G00096099Courtesy of DAIMLERCHRYSLER CORP.
Fig 25: Identifying Fuel Injector No. 2 Harness Connector Terminals
G00096100Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: Identifying Fuel Injector No. 3 Harness Connector Terminals
G00096101Courtesy of DAIMLERCHRYSLER CORP.
Fig 27: Identifying Fuel Injector No. 4 Harness Connector Terminals
G00096102Courtesy of DAIMLERCHRYSLER CORP.
Fig 28: Identifying Fuel Injector No. 5 Harness Connector Terminals
G00096103Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: Identifying Fuel Injector No. 6 Harness Connector Terminals
G00096104Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: Identifying Fuel Injector No. 7 Harness Connector Terminals
G00096105Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: Identifying Fuel Injector No. 8 Harness Connector Terminals
G00096106Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: Identifying Fuel Pump Module Harness Connector Terminals
G00096107Courtesy of DAIMLERCHRYSLER CORP.
Fig 33: Identifying Generator Field Harness Connector Terminals
G00117178Courtesy of DAIMLERCHRYSLER CORP.
Fig 34: Identifying Idle Air Control Motor Harness Connector Terminals
G00117179Courtesy of DAIMLERCHRYSLER CORP.
Fig 35: Identifying Intake Air Temperature Sensor Harness Connector Terminals
G00117180Courtesy of DAIMLERCHRYSLER CORP.

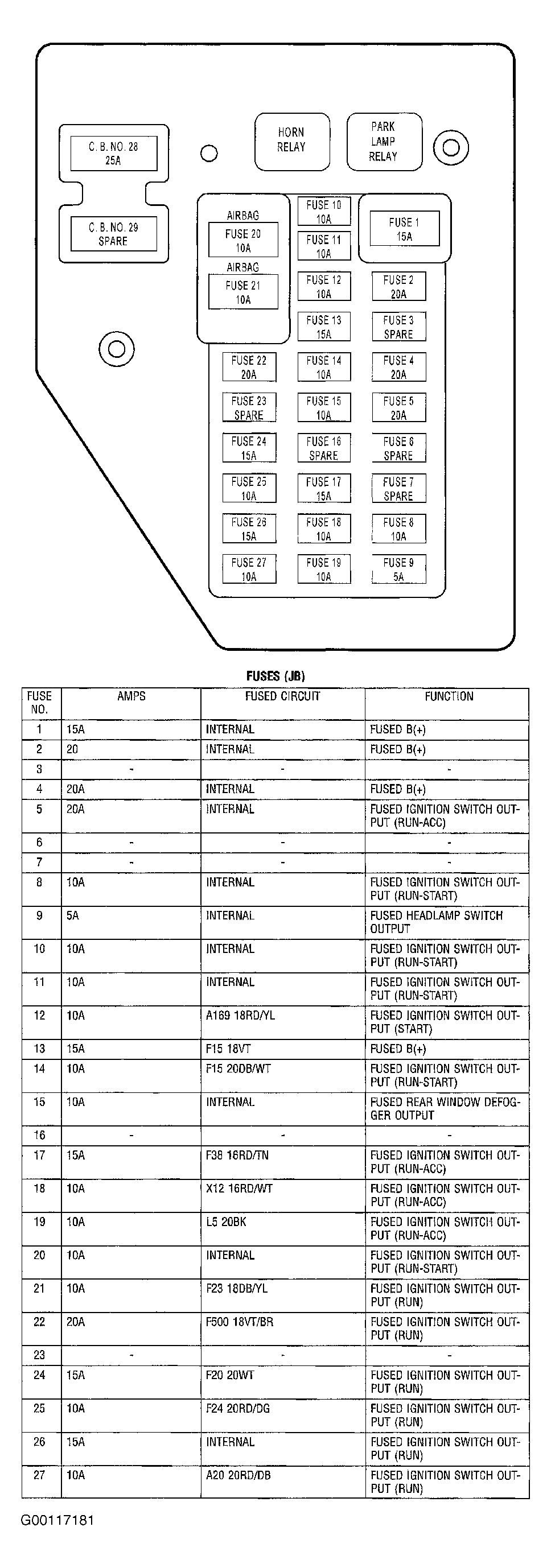

Fig 36: Identifying Junction Block Components & Circuits (Front View)
G00117181Courtesy of DAIMLERCHRYSLER CORP.

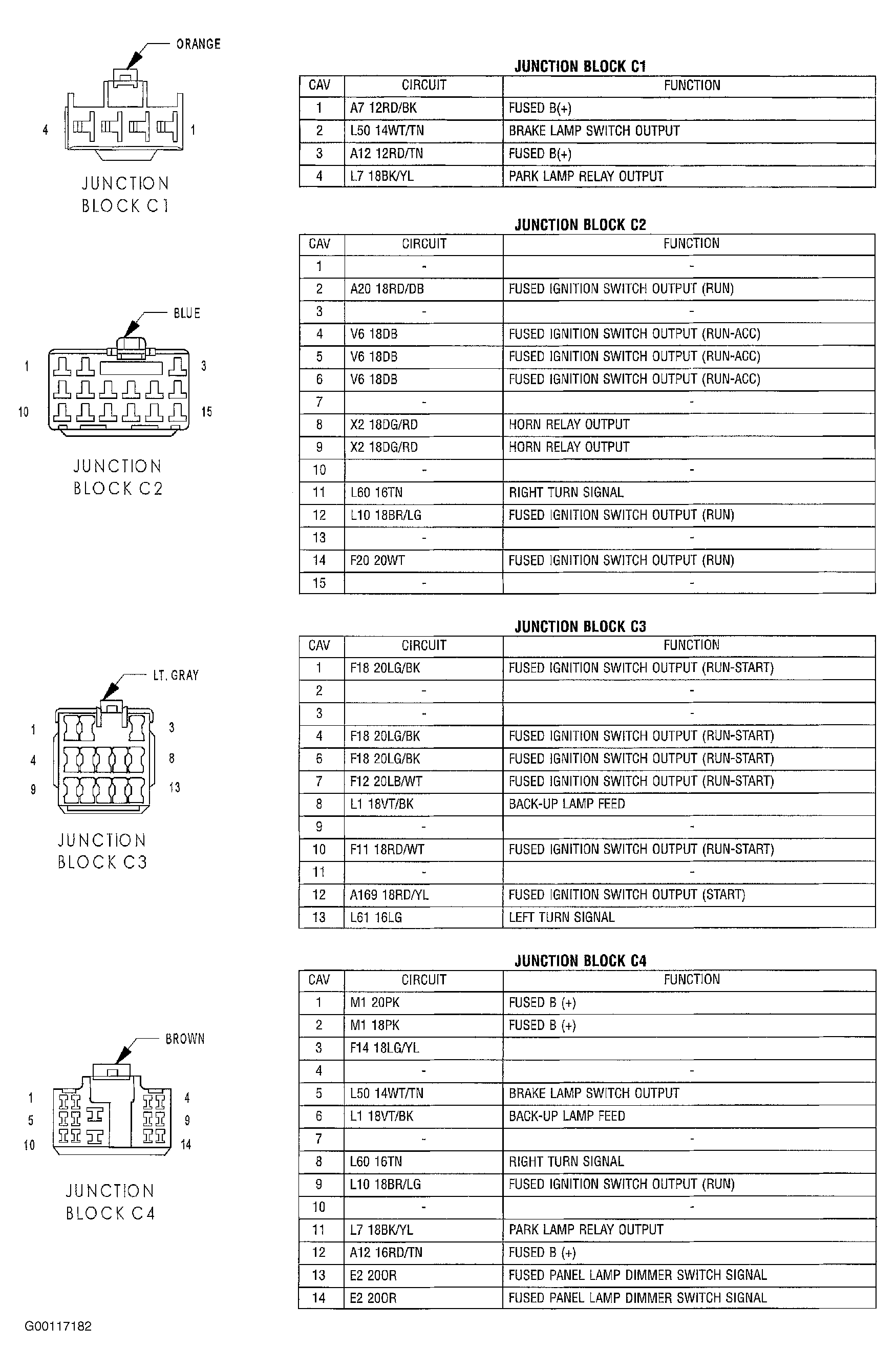

Fig 37: Identifying Junction Block Harness Connector Terminals (Rear View - 1 Of 4)
G00117182Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: Identifying Junction Block Harness Connector Terminals (Rear View - 2 Of 4)
G00117183Courtesy of DAIMLERCHRYSLER CORP.

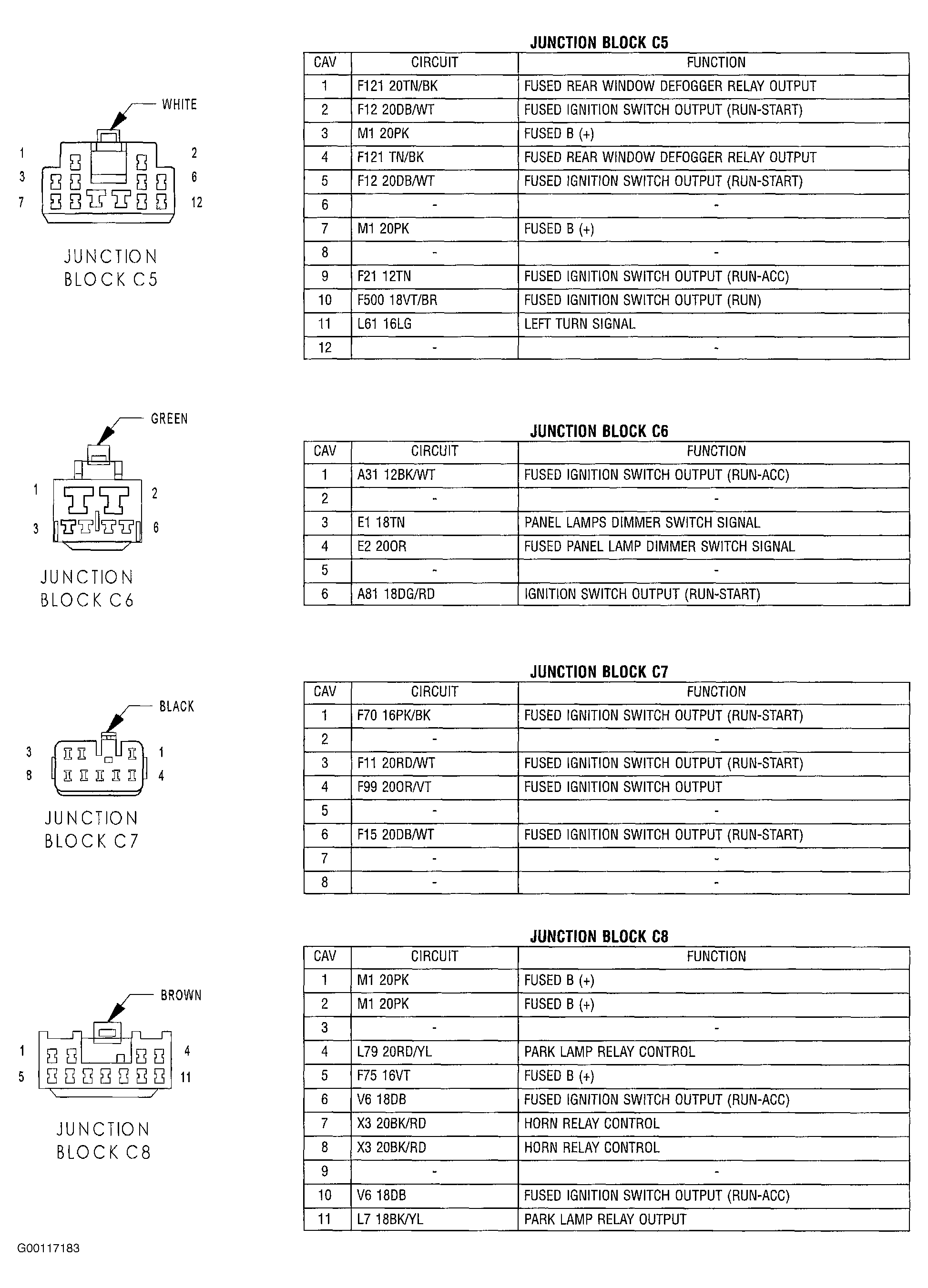

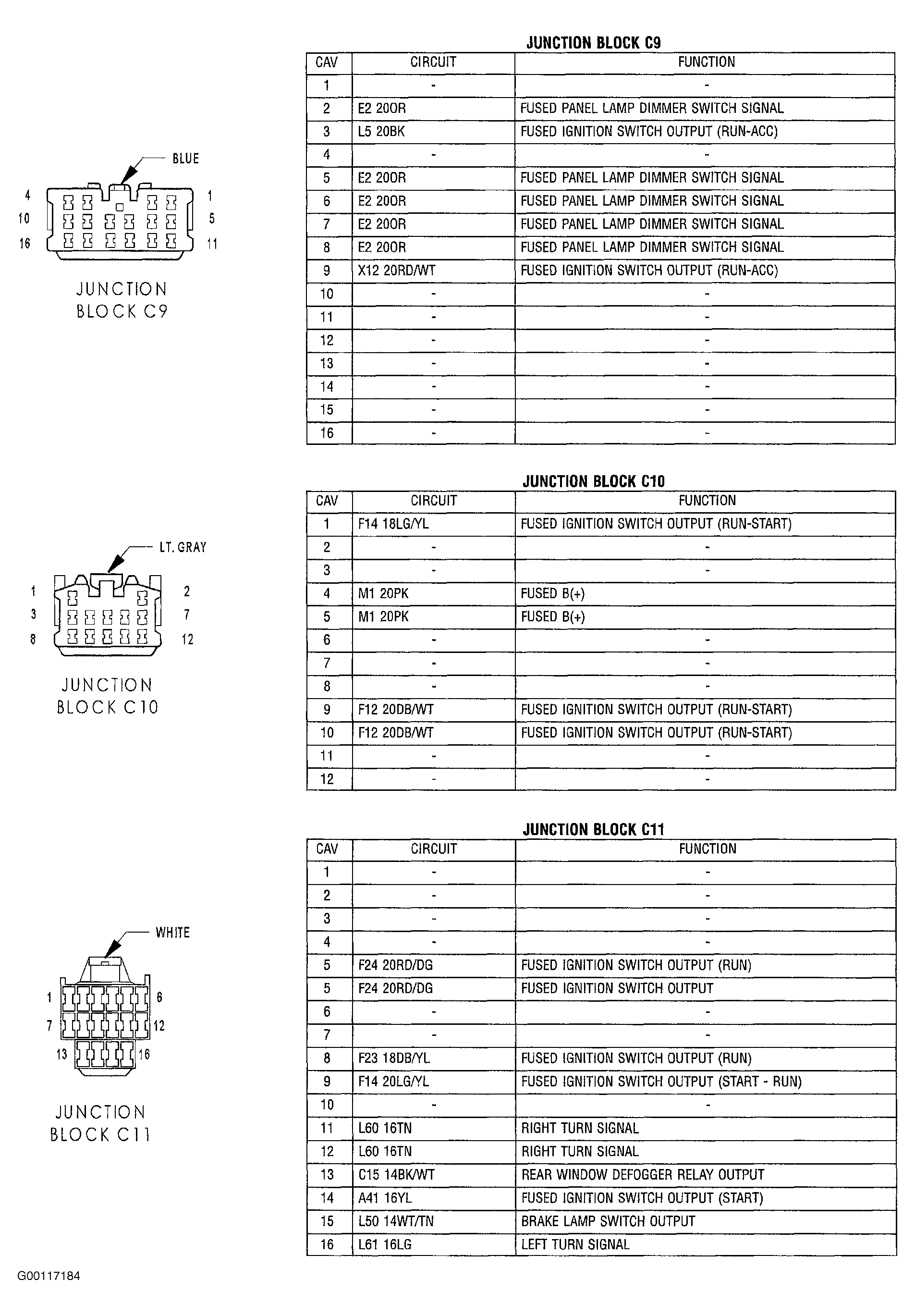

Fig 39: Identifying Junction Block Harness Connector Terminals (Rear View - 3 Of 4)
G00117184Courtesy of DAIMLERCHRYSLER CORP.

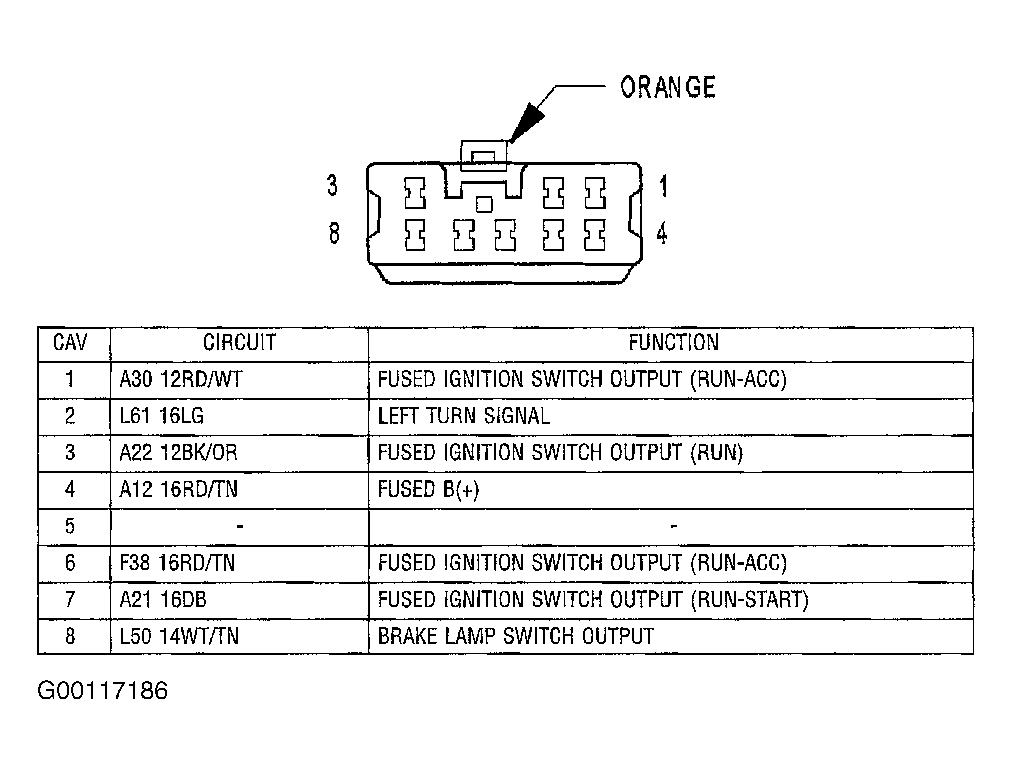

Fig 40: Identifying Junction Block Harness Connector Terminals (Rear View - 4 Of 4)
G00117186Courtesy of DAIMLERCHRYSLER CORP.
Fig 41: Identifying Left Speed Control Switch Harness Connector Terminals
G00117187Courtesy of DAIMLERCHRYSLER CORP.
Fig 42: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
G00117188Courtesy of DAIMLERCHRYSLER CORP.
Fig 43: Identifying Natural Vacuum Leak Detection Pump Harness Connector Terminals
G00117185Courtesy of DAIMLERCHRYSLER CORP.
Fig 44: Identifying Power Distribution Center Components
G00117189Courtesy of DAIMLERCHRYSLER CORP.
Fig 45: Identifying Power Distribution Center Fused Circuits
G00117190Courtesy of DAIMLERCHRYSLER CORP.
Fig 46: Identifying Power Distribution Center Relay Circuits
G00117191Courtesy of DAIMLERCHRYSLER CORP.
Fig 47: Identifying Power Steering Pressure Switch Harness Connector Terminals
G00117192Courtesy of DAIMLERCHRYSLER CORP.
Fig 48: Identifying Powertrain Control Module Harness Connector C1 Terminals
G00117193Courtesy of DAIMLERCHRYSLER CORP.
Fig 49: Identifying Powertrain Control Module Harness Connector C2 Terminals
G00117194Courtesy of DAIMLERCHRYSLER CORP.
Fig 50: Identifying Powertrain Control Module Harness Connector C3 Terminals
G00117195Courtesy of DAIMLERCHRYSLER CORP.
Fig 51: Identifying Powertrain Control Module Harness Connector C4 Terminals
G00117196Courtesy of DAIMLERCHRYSLER CORP.
Fig 52: Identifying Proportional Purge Solenoid Harness Connector Terminals
G00117197Courtesy of DAIMLERCHRYSLER CORP.
Fig 53: Identifying Radiator Fan Motor Harness Connector Terminals
G00117198Courtesy of DAIMLERCHRYSLER CORP.
Fig 54: Identifying Right Speed Control Switch Harness Connector Terminals
G00117199Courtesy of DAIMLERCHRYSLER CORP.
Fig 55: Identifying Sentry Key Immobilizer Module Harness Connector Terminals
G00117202Courtesy of DAIMLERCHRYSLER CORP.
Fig 56: Identifying Speed Control Servo Harness Connector Terminals
G00117200Courtesy of DAIMLERCHRYSLER CORP.
Fig 57: Identifying Throttle Position Sensor Harness Connector Terminals
G00117201Courtesy of DAIMLERCHRYSLER CORP.

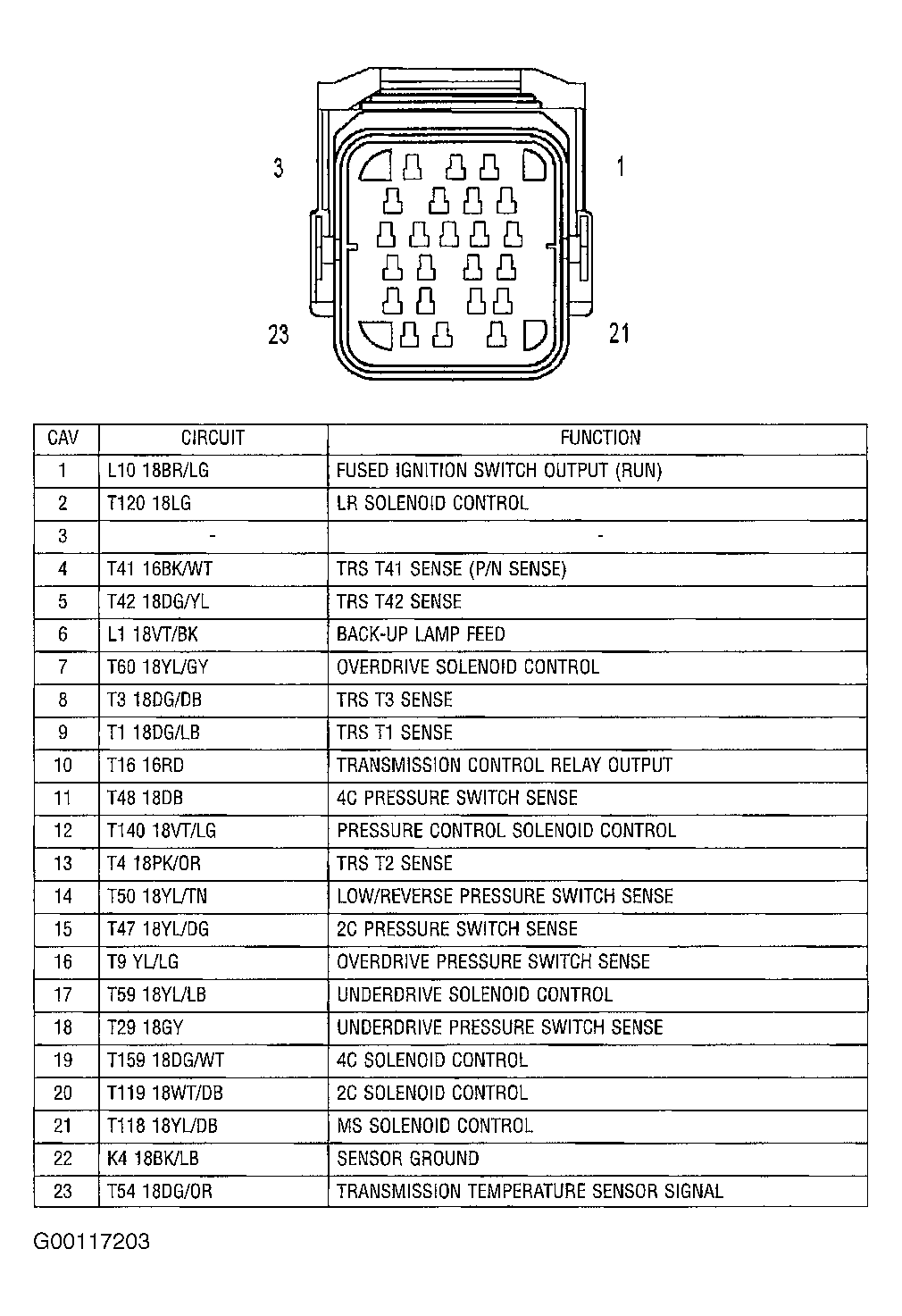

Fig 58: Identifying Transmission Range Sensor/Transmission Solenoid Harness Connector Terminals
G00117203Courtesy of DAIMLERCHRYSLER CORP.
Fig 59: Identifying 1/1 (Upstream) Oxygen Sensor Harness Connector Terminals (California)
G00117204Courtesy of DAIMLERCHRYSLER CORP.
Fig 60: Identifying 1/1 (Upstream) Oxygen Sensor Harness Connector Terminals (Except California)
G00117205Courtesy of DAIMLERCHRYSLER CORP.
Fig 61: Identifying 1/2 (Downstream) Oxygen Sensor Harness Connector Terminals (California)
G00117206Courtesy of DAIMLERCHRYSLER CORP.
Fig 62: Identifying 1/2 (Downstream) Oxygen Sensor Harness Connector Terminals (Except California)
G00117207Courtesy of DAIMLERCHRYSLER CORP.
Fig 63: Identifying 2/1 (Upstream) Oxygen Sensor Harness Connector Terminals (California)
G00117208Courtesy of DAIMLERCHRYSLER CORP.
Fig 64: Identifying 2/2 (Downstream) Oxygen Sensor Harness Connector Terminals (California)
G00117209Courtesy of DAIMLERCHRYSLER CORP.
