Specifications - Starting System

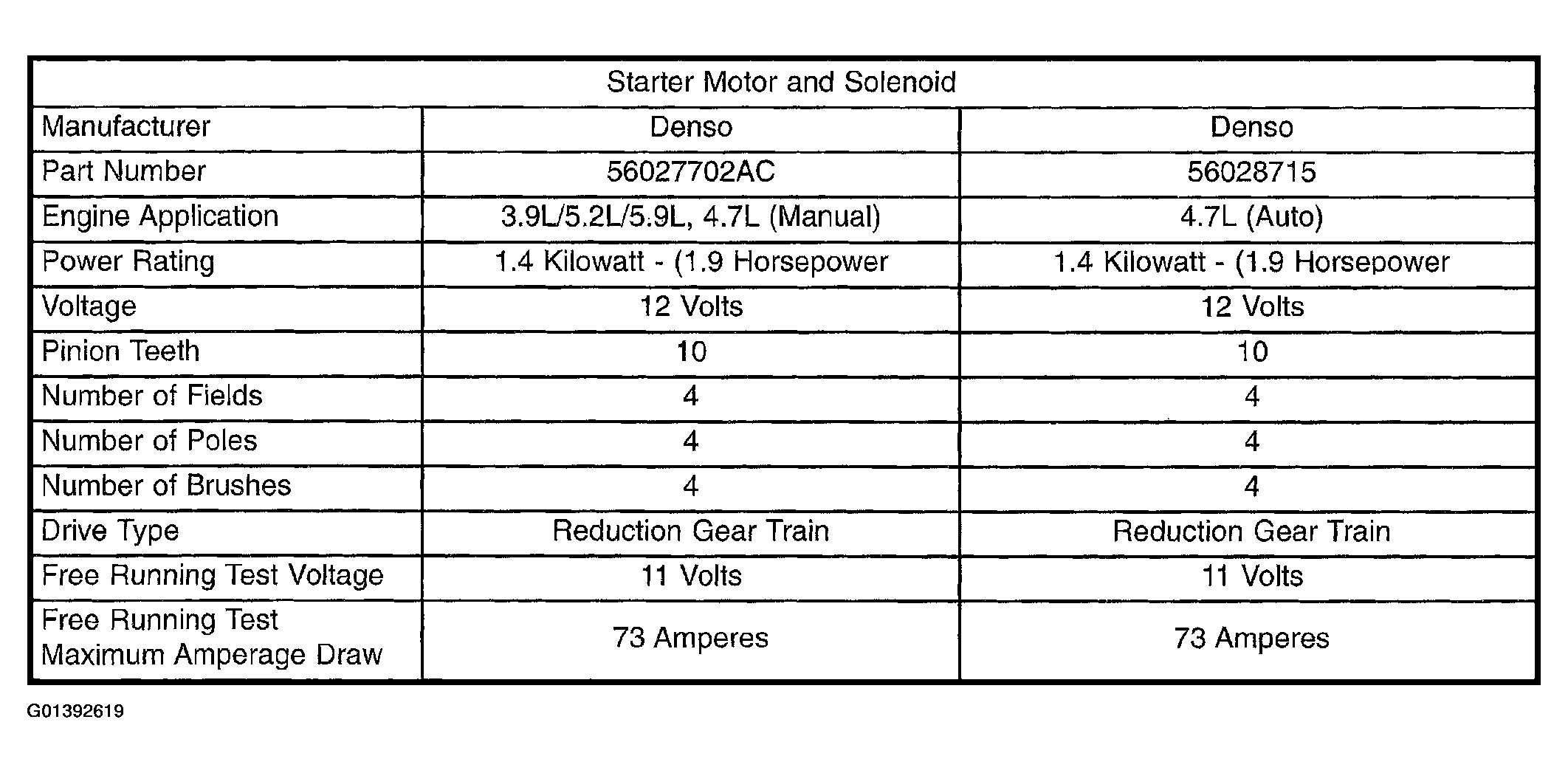

Fig 1: Starting System Specifications (1 Or 2)
G01392619Courtesy of DAIMLERCHRYSLER CORP.

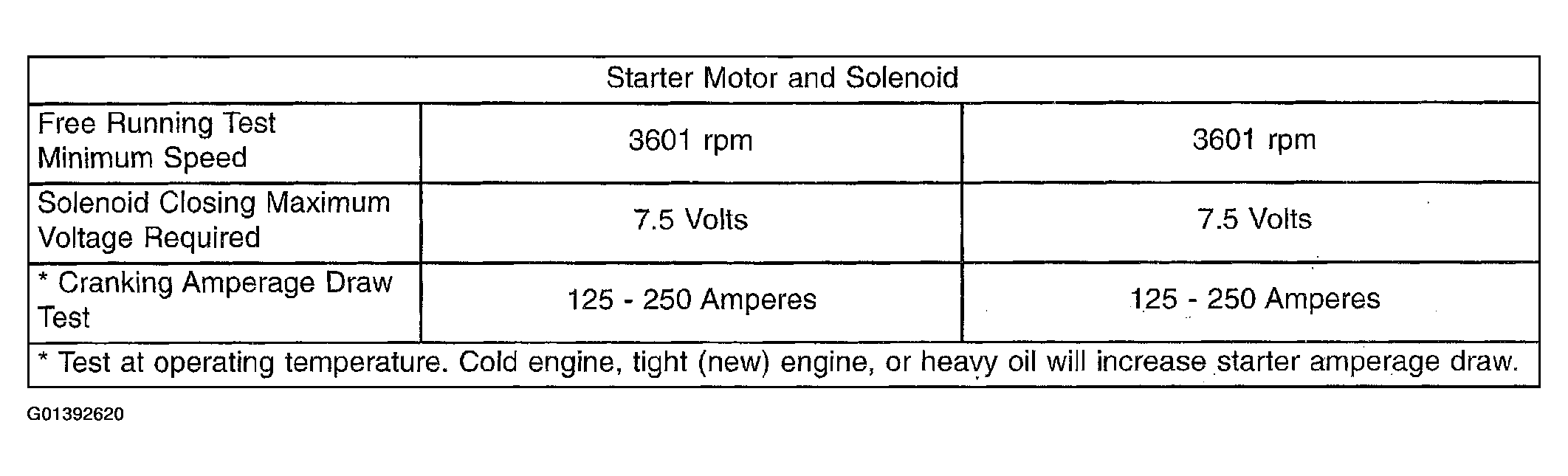

Fig 2: Starting System Specifications (2 Or 2)
G01392620Courtesy of DAIMLERCHRYSLER CORP.
