Chime Sounds With Drivers Door Open and Key Removed From Ignition

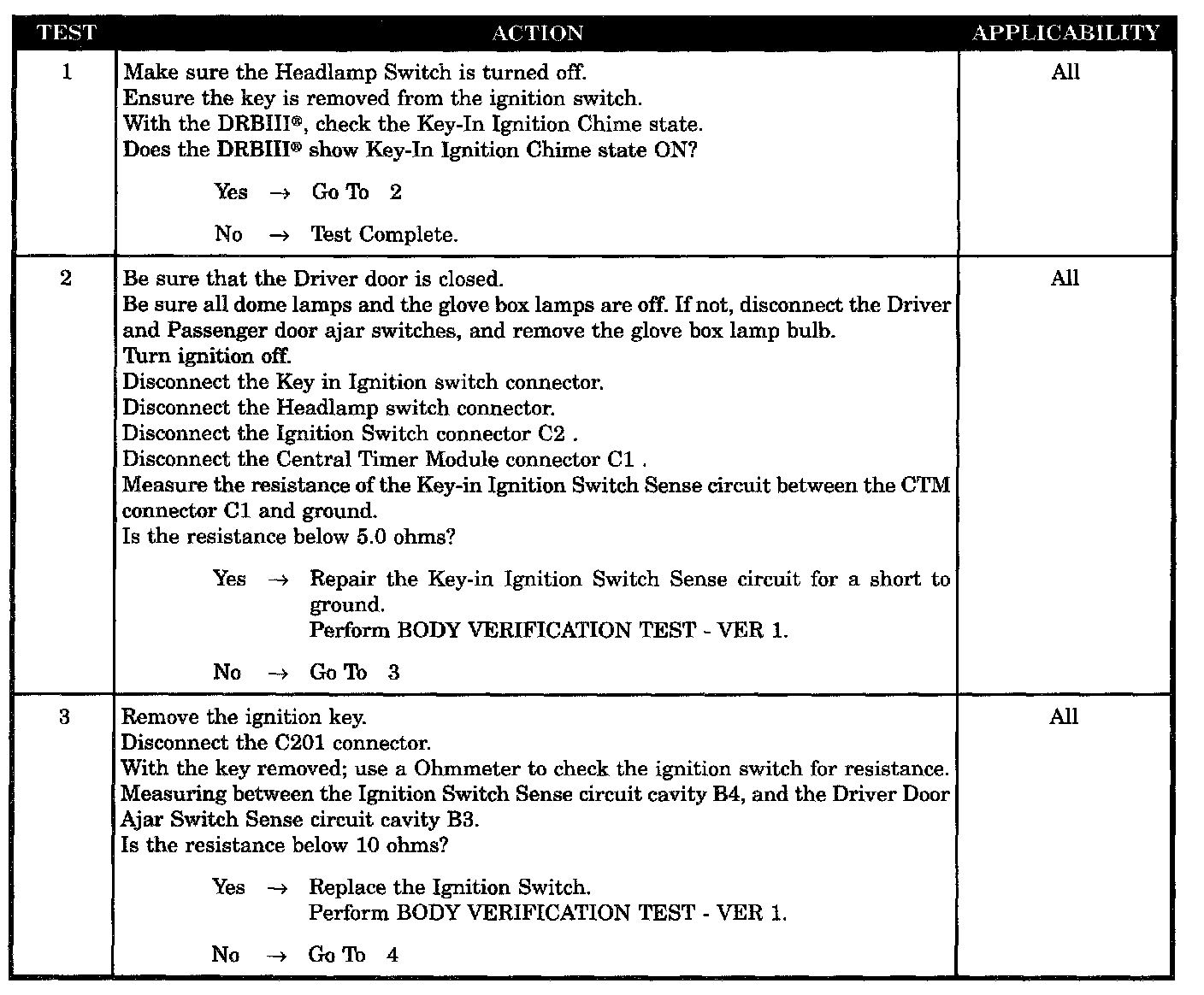

Tests 1 - 3:

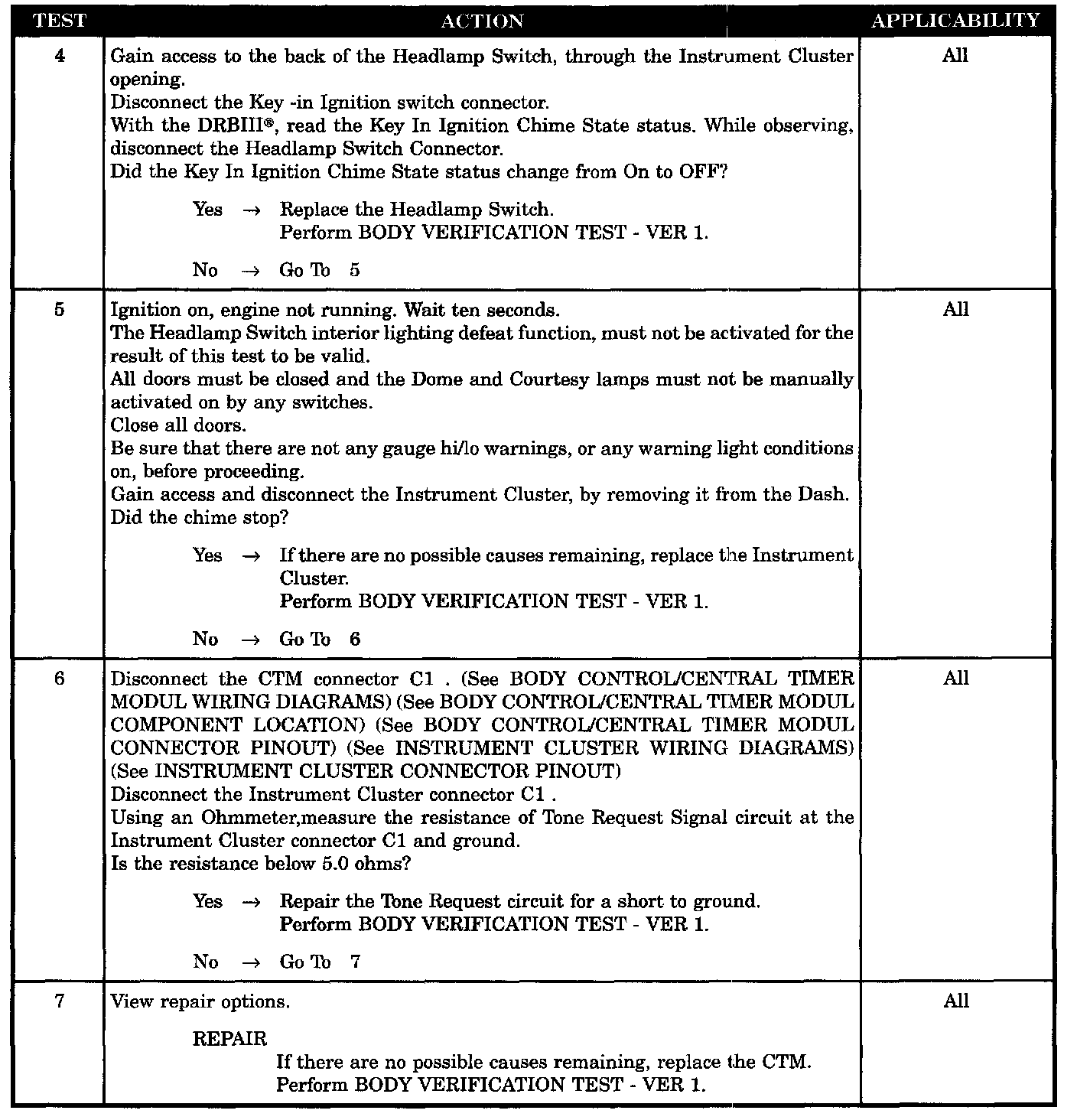

Tests 4 - 7:




SYMPTOM
CHIME SOUNDS WITH DRIVER'S DOOR OPEN, KEY REMOVED

POSSIBLE CAUSES
- Instrument cluster chime stays ON
- Tone request circuit shorted ground
- Key-in ignition switch sense circuit short to ground
- Key-in ignition switch shorted
- Headlamp switch shorted test, for chime system
- [1][2]CTM-chime stays ON
