Fuse Block
>>
Fuse Block
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuse Block

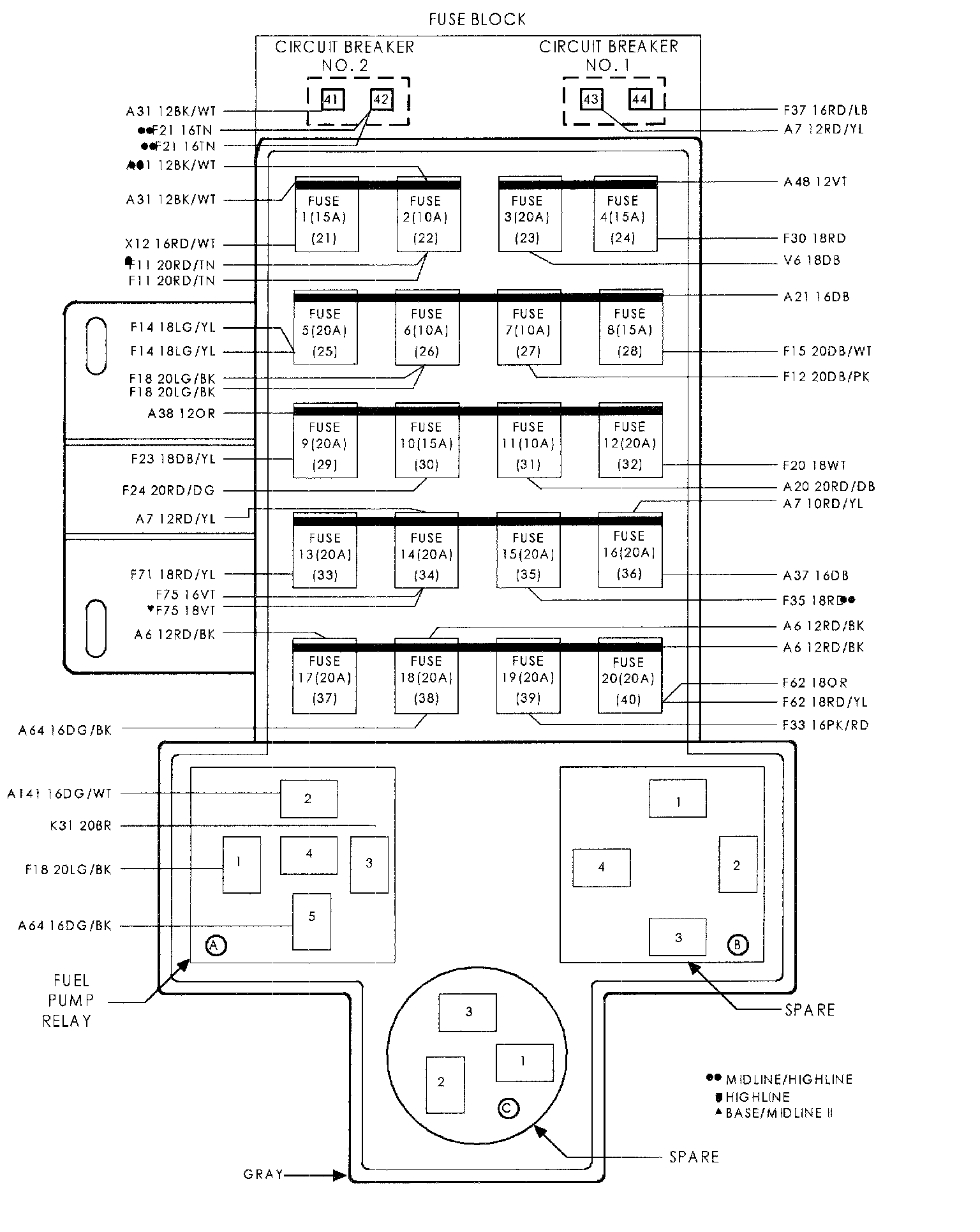

Fuse Block:

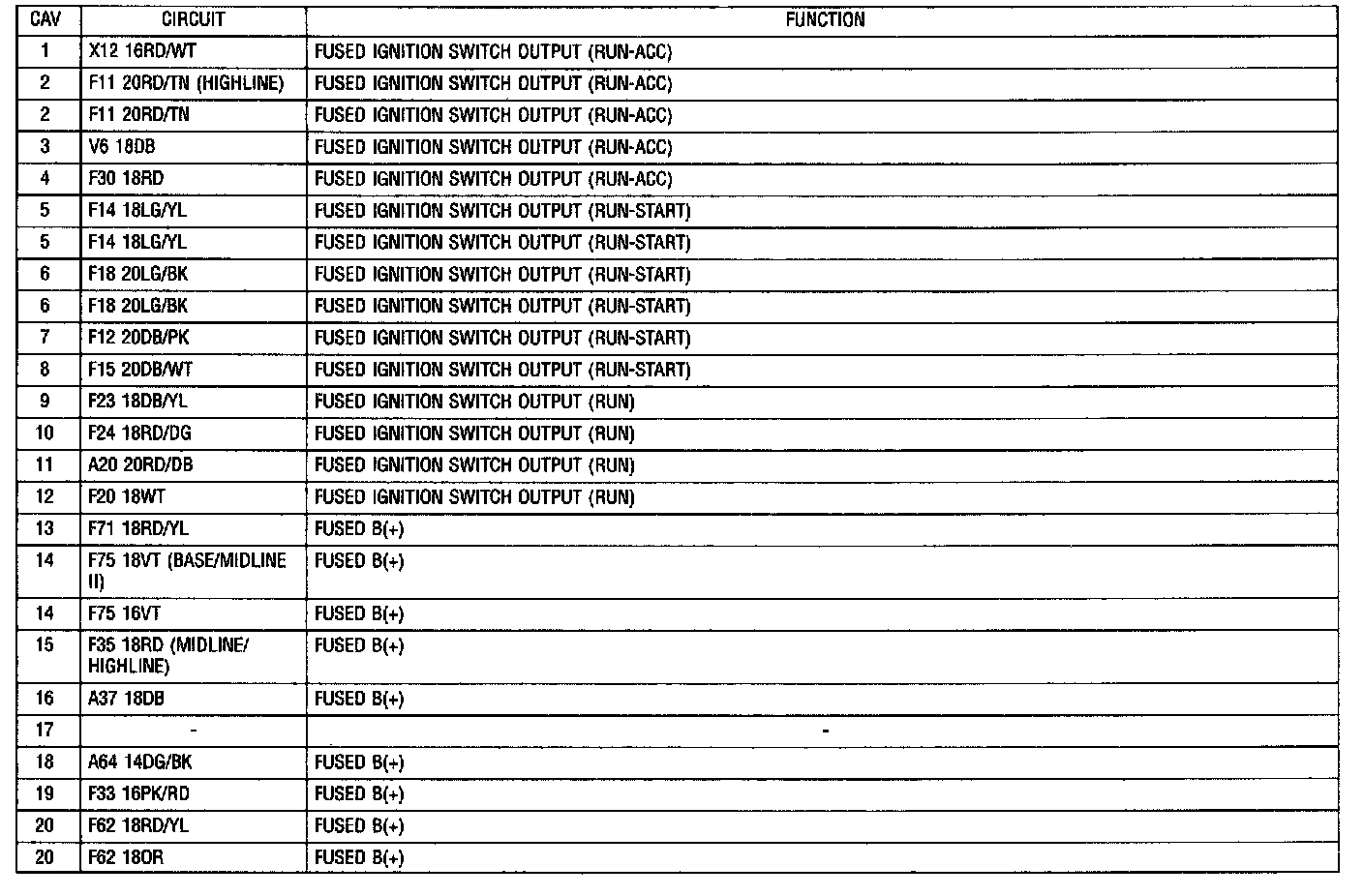

Fuses (FB):
Circuit Breakers:
Fuel Pump Relay:
