DTC P1388: Auto Shutdown Relay Control Circuit

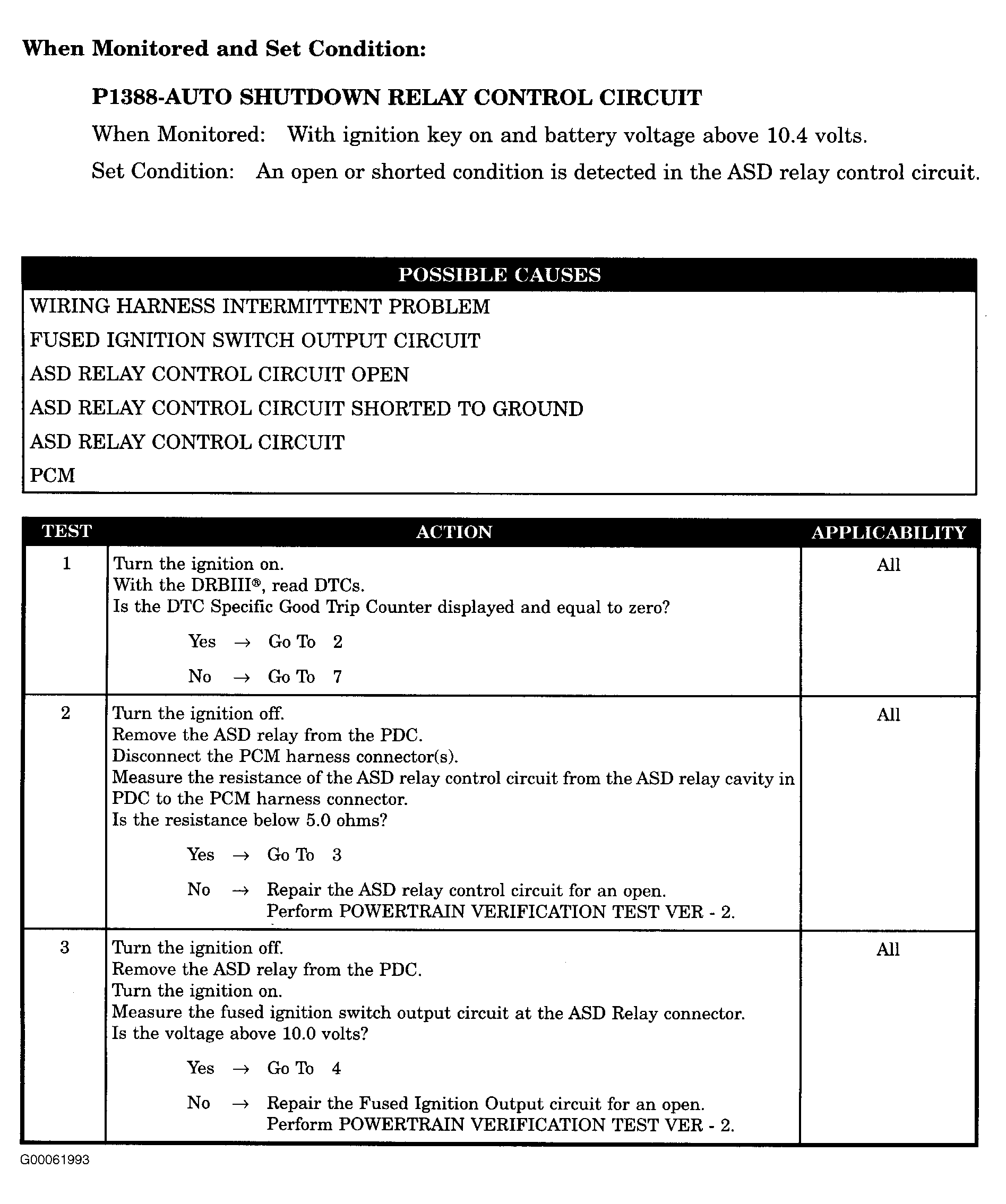

Fig 1: DTC P1388: Auto Shutdown Relay Control Circuit (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

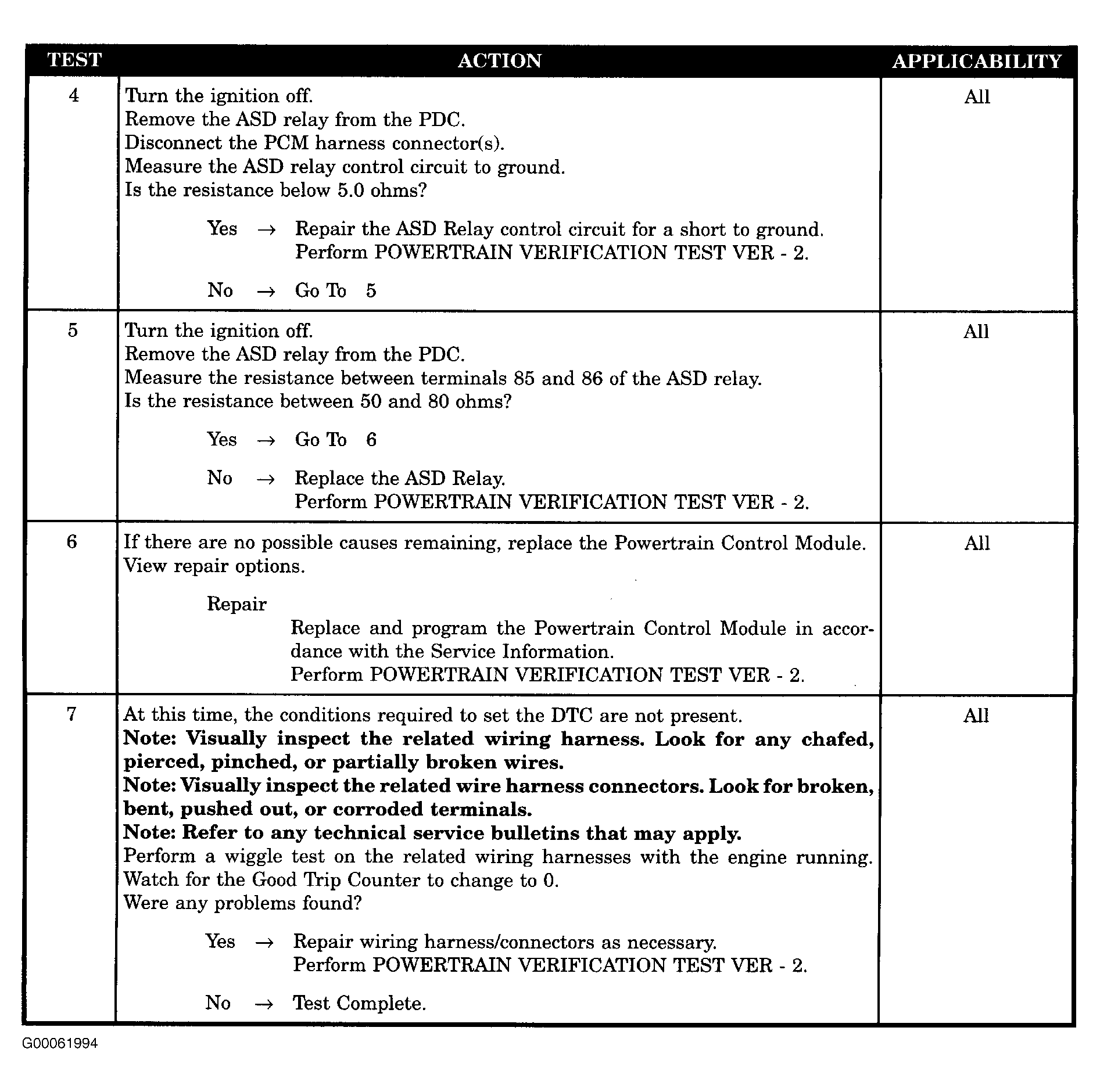

Fig 2: DTC P1388: Auto Shutdown Relay Control Circuit (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
