DTC P0505: Idle Air Control Motor Circuits

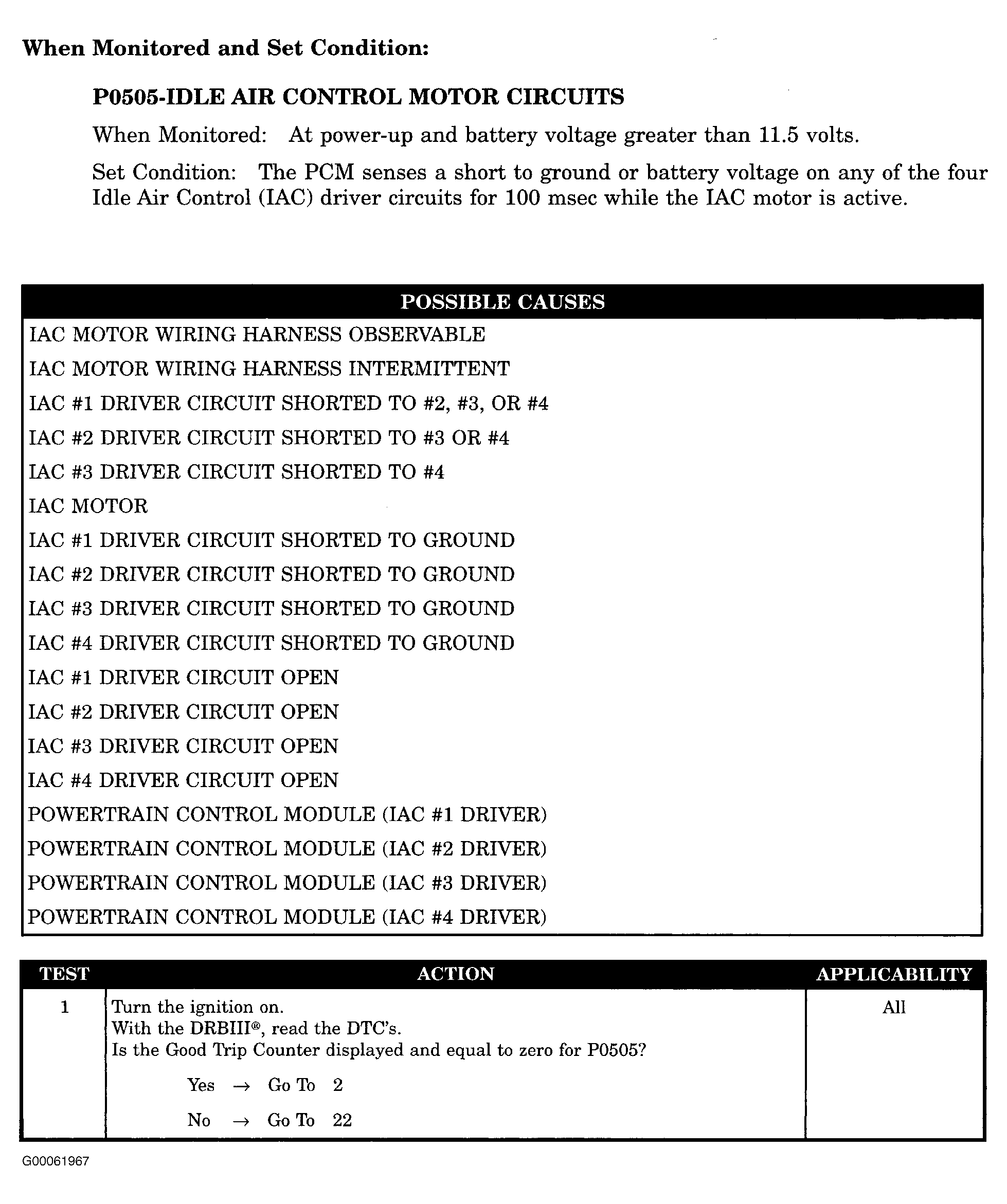

Fig 1: DTC P0505: Idle Air Control Motor Circuits (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

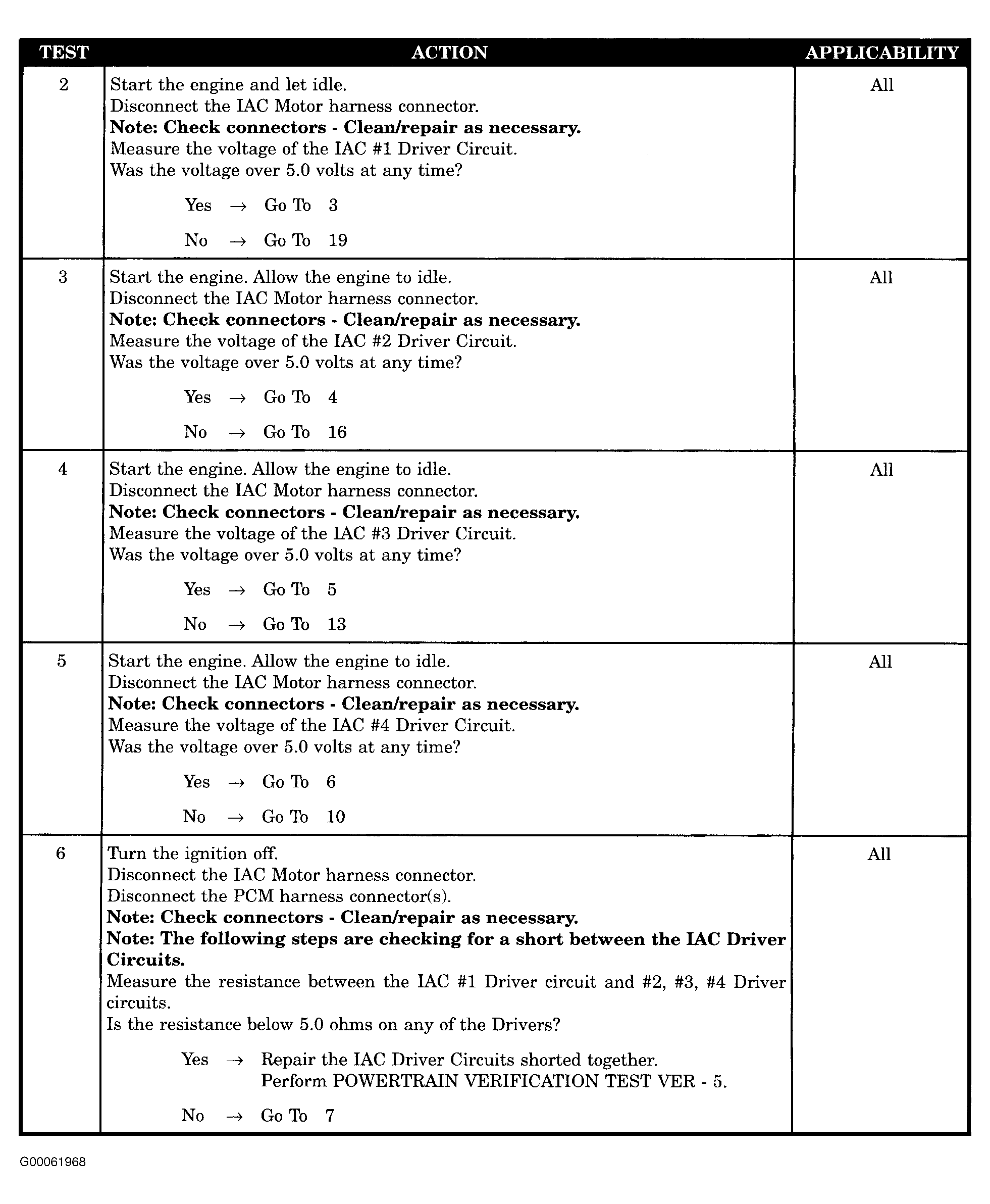

Fig 2: DTC P0505: Idle Air Control Motor Circuits (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

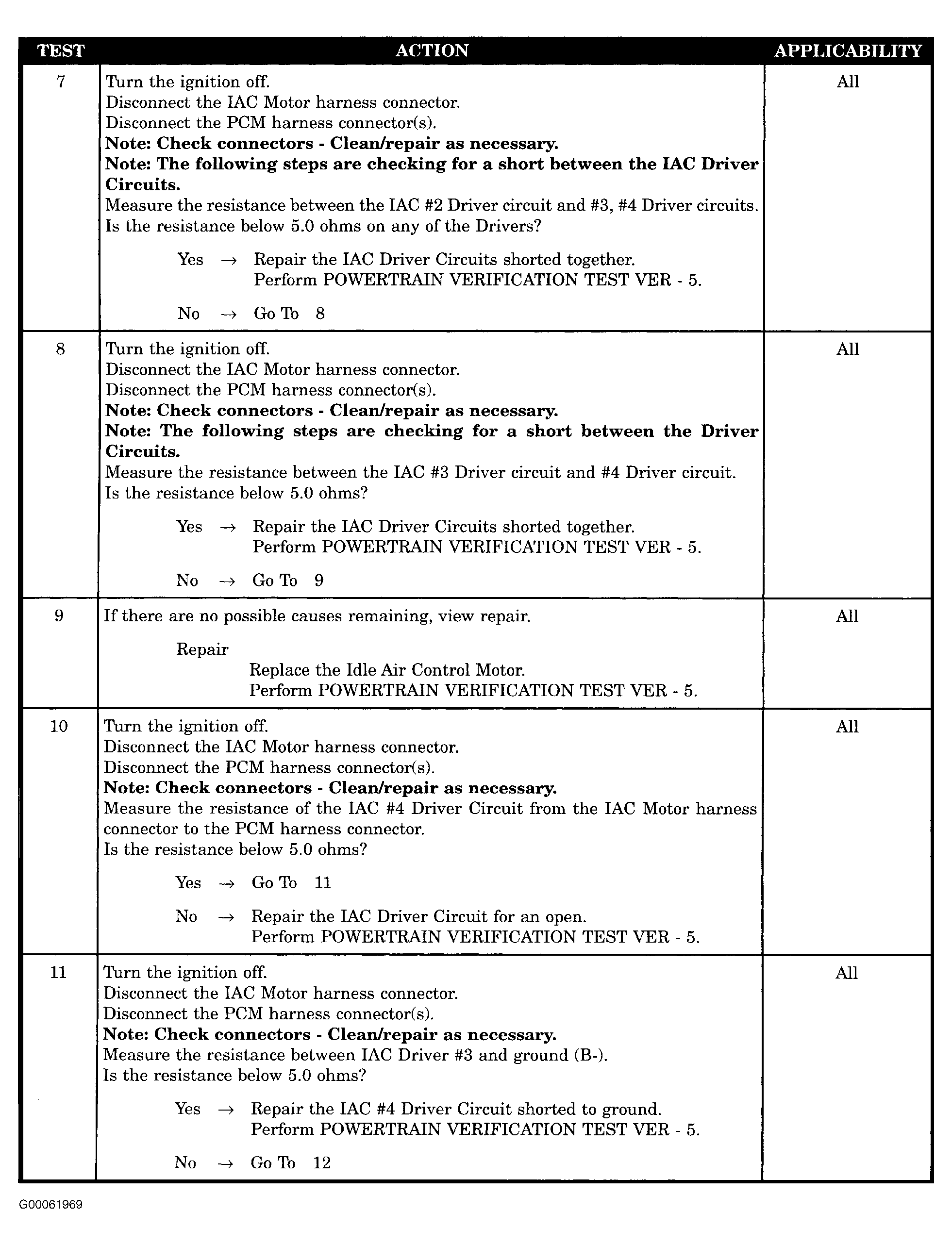

Fig 3: DTC P0505: Idle Air Control Motor Circuits (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

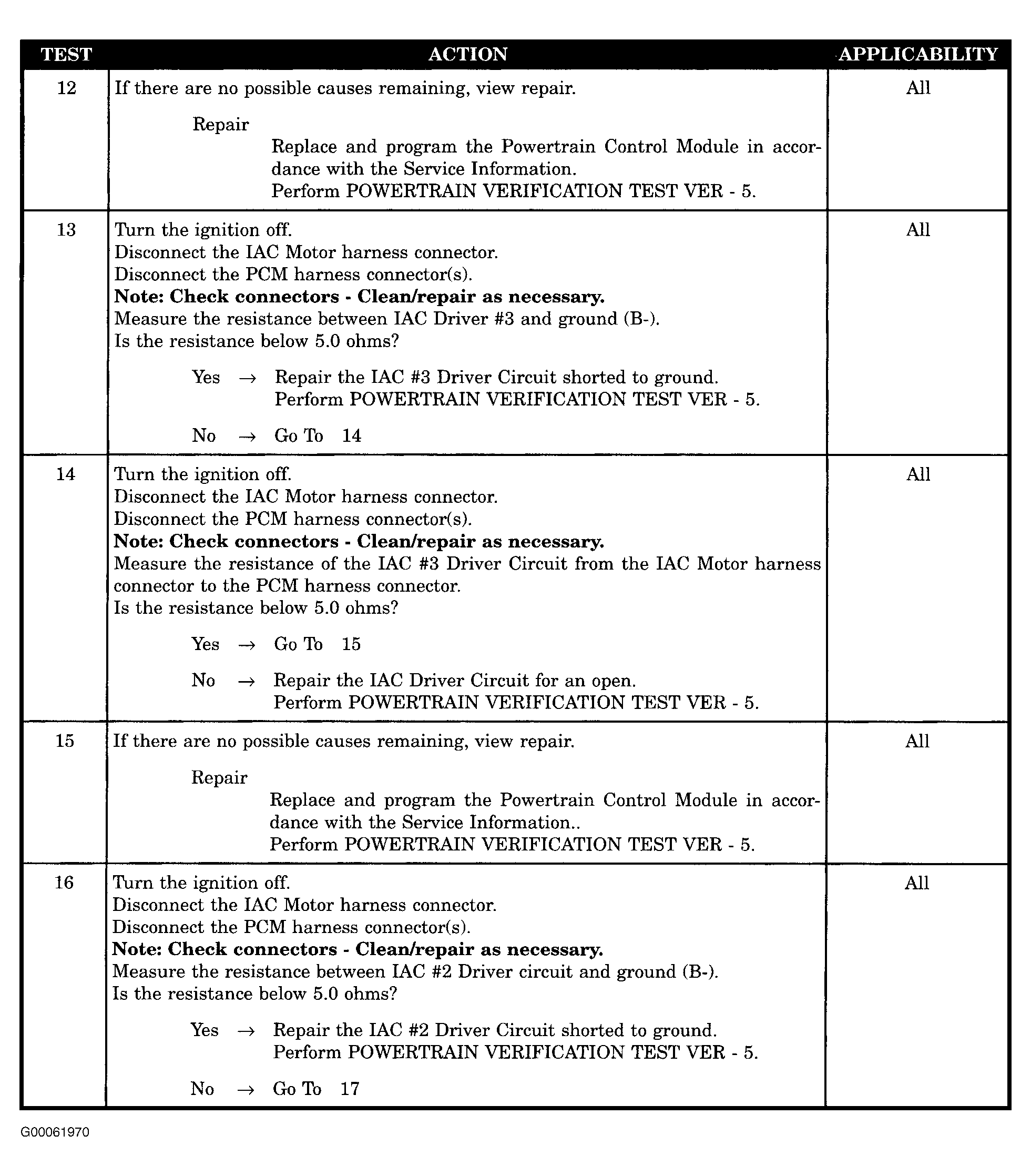

Fig 4: DTC P0505: Idle Air Control Motor Circuits (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

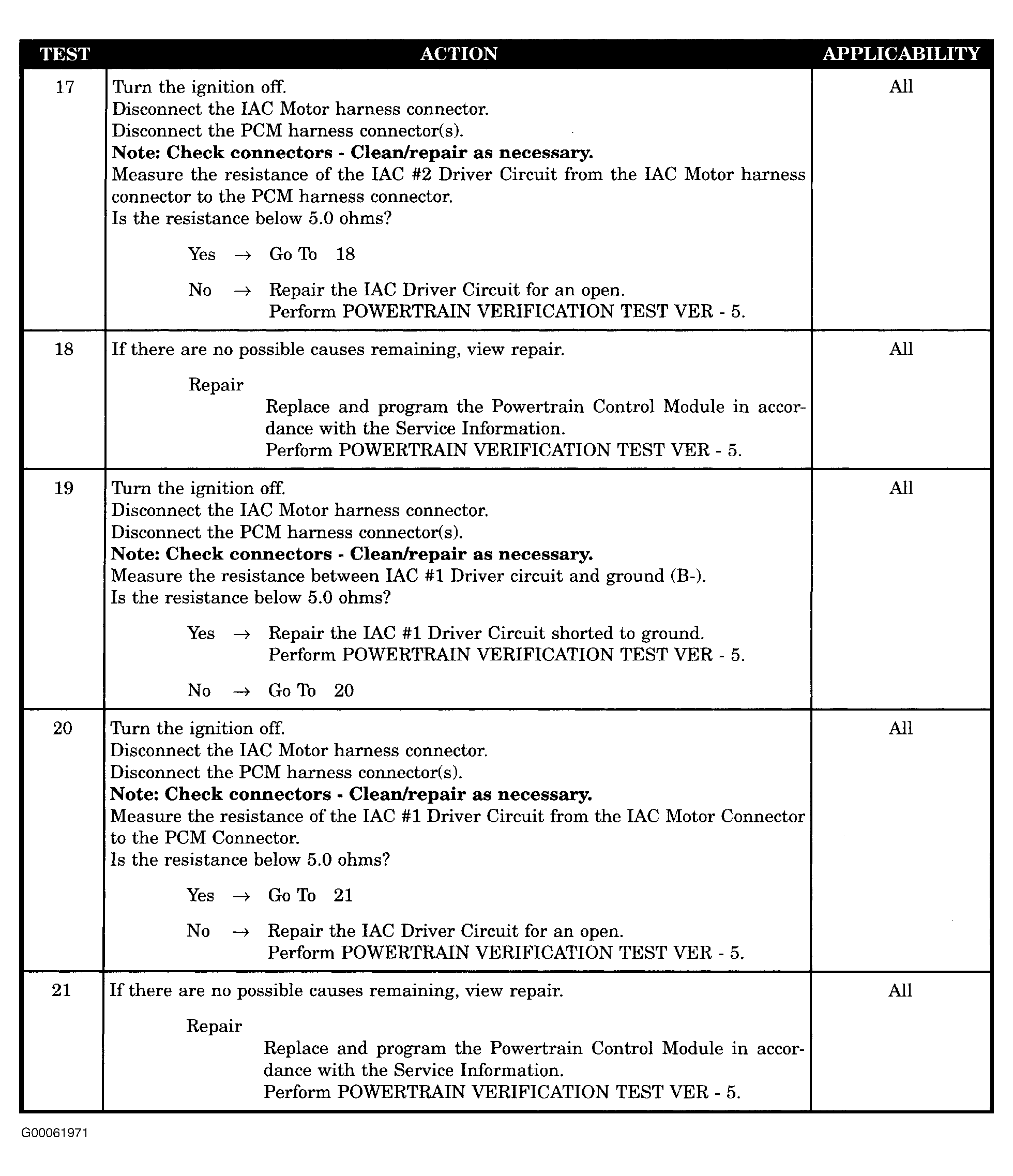

Fig 5: DTC P0505: Idle Air Control Motor Circuits (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

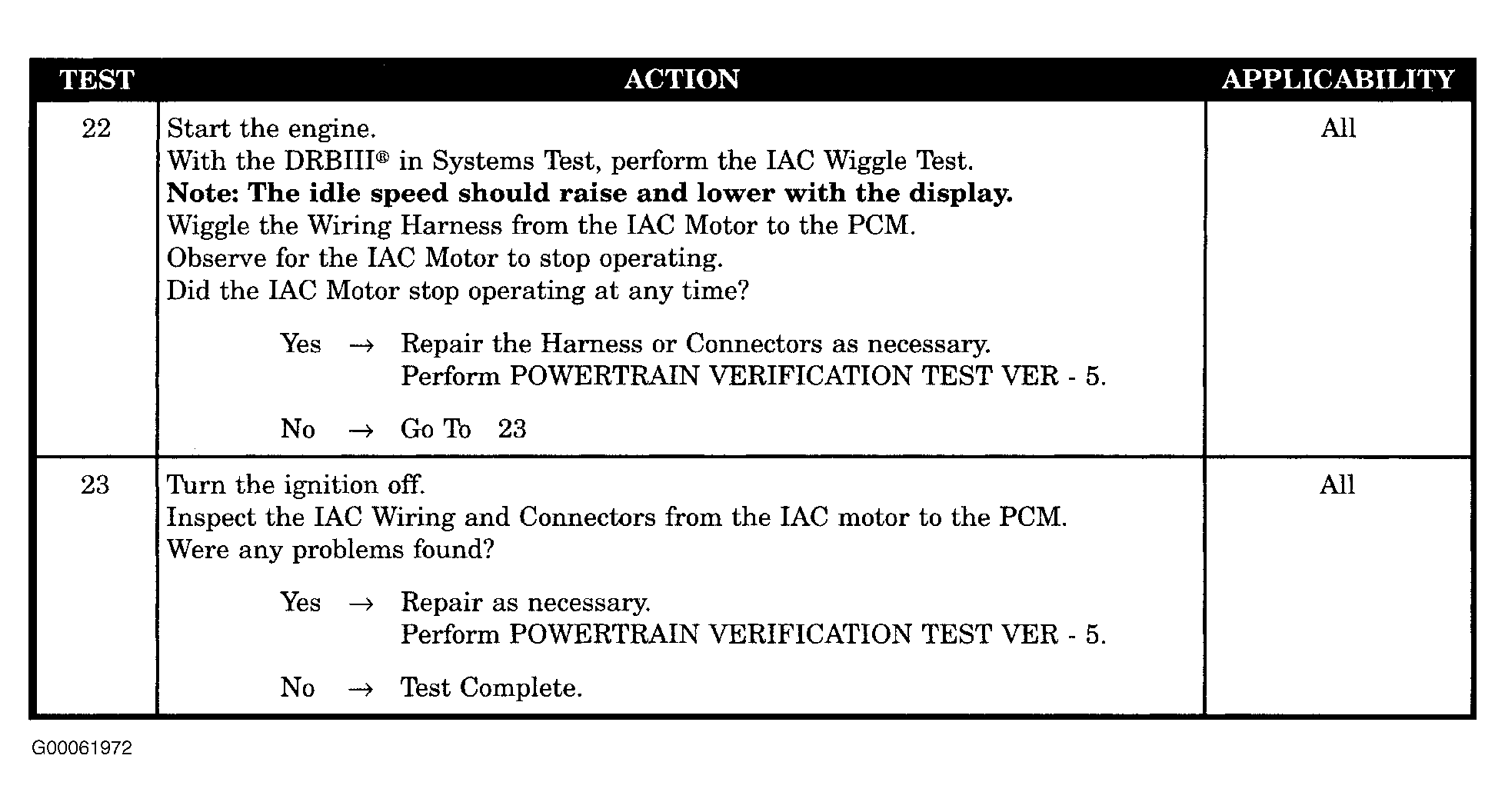

Fig 6: DTC P0505: Idle Air Control Motor Circuits (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
