DTC P0171; P0174: Fuel System Lean

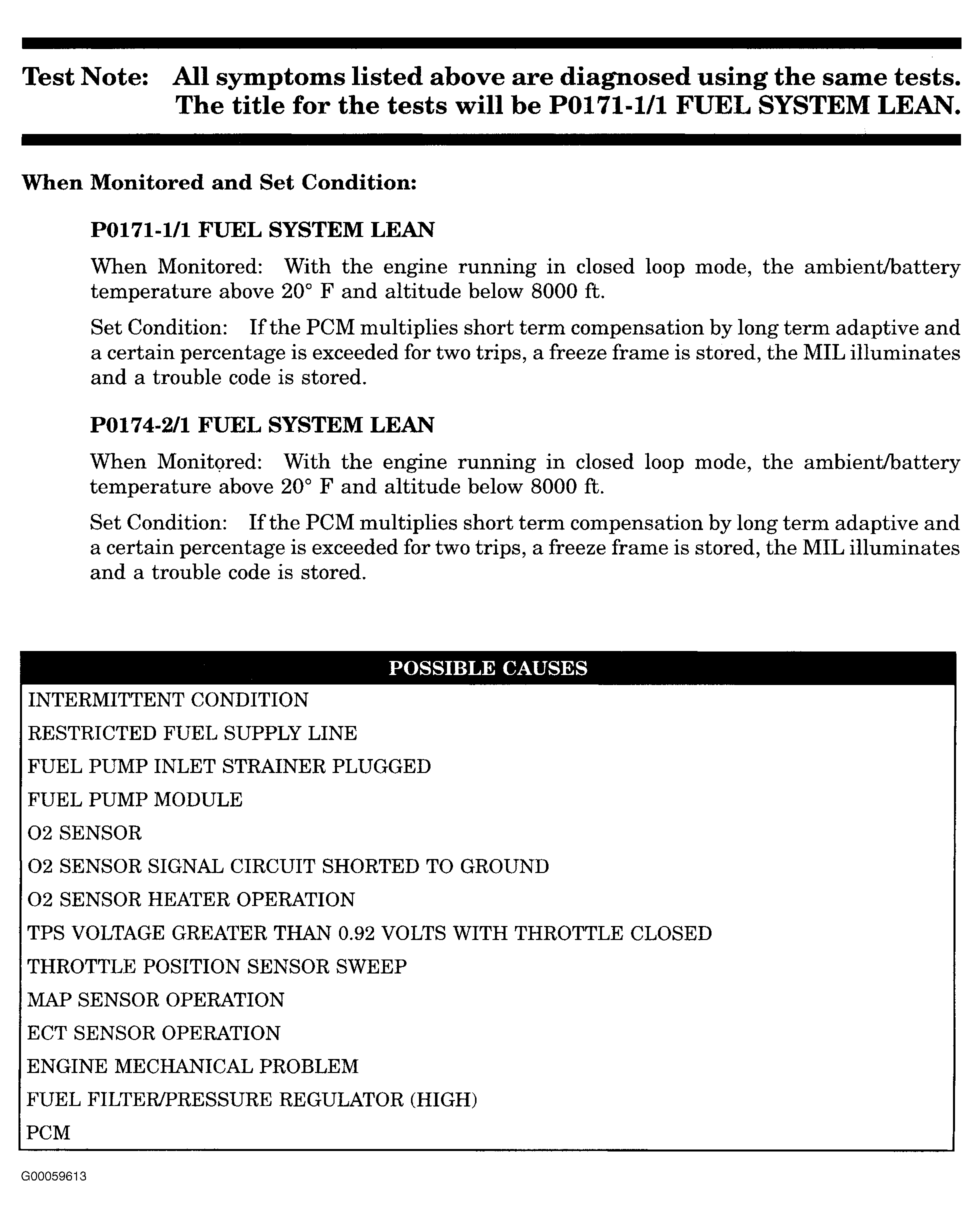

Fig 1: DTC P0171: Fuel System Lean (1 Of 5)

G00059613

Courtesy of DAIMLERCHRYSLER CORPORATION

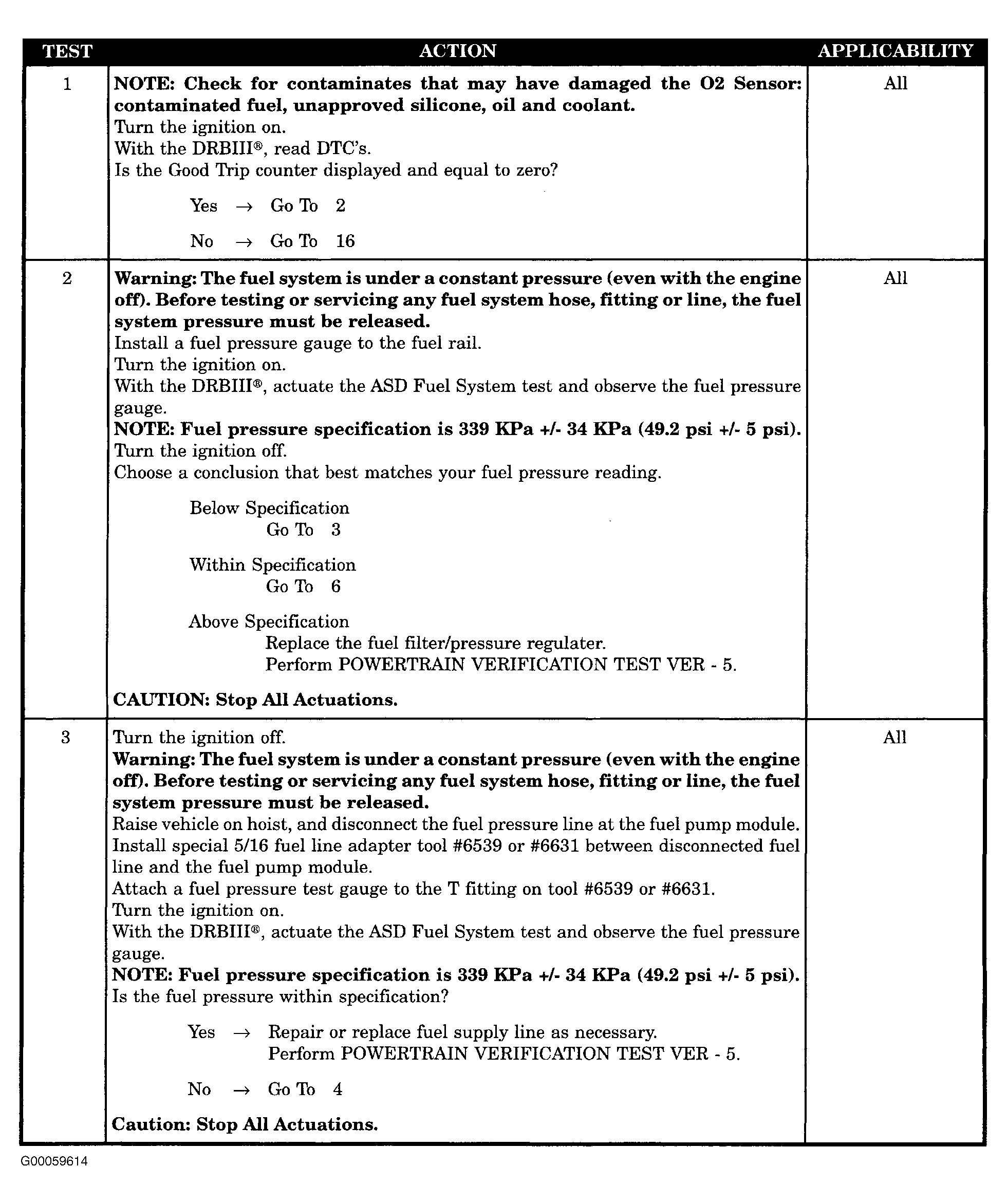

Fig 2: DTC P0171: Fuel System Lean (2 Of 5)

G00059614

Courtesy of DAIMLERCHRYSLER CORPORATION

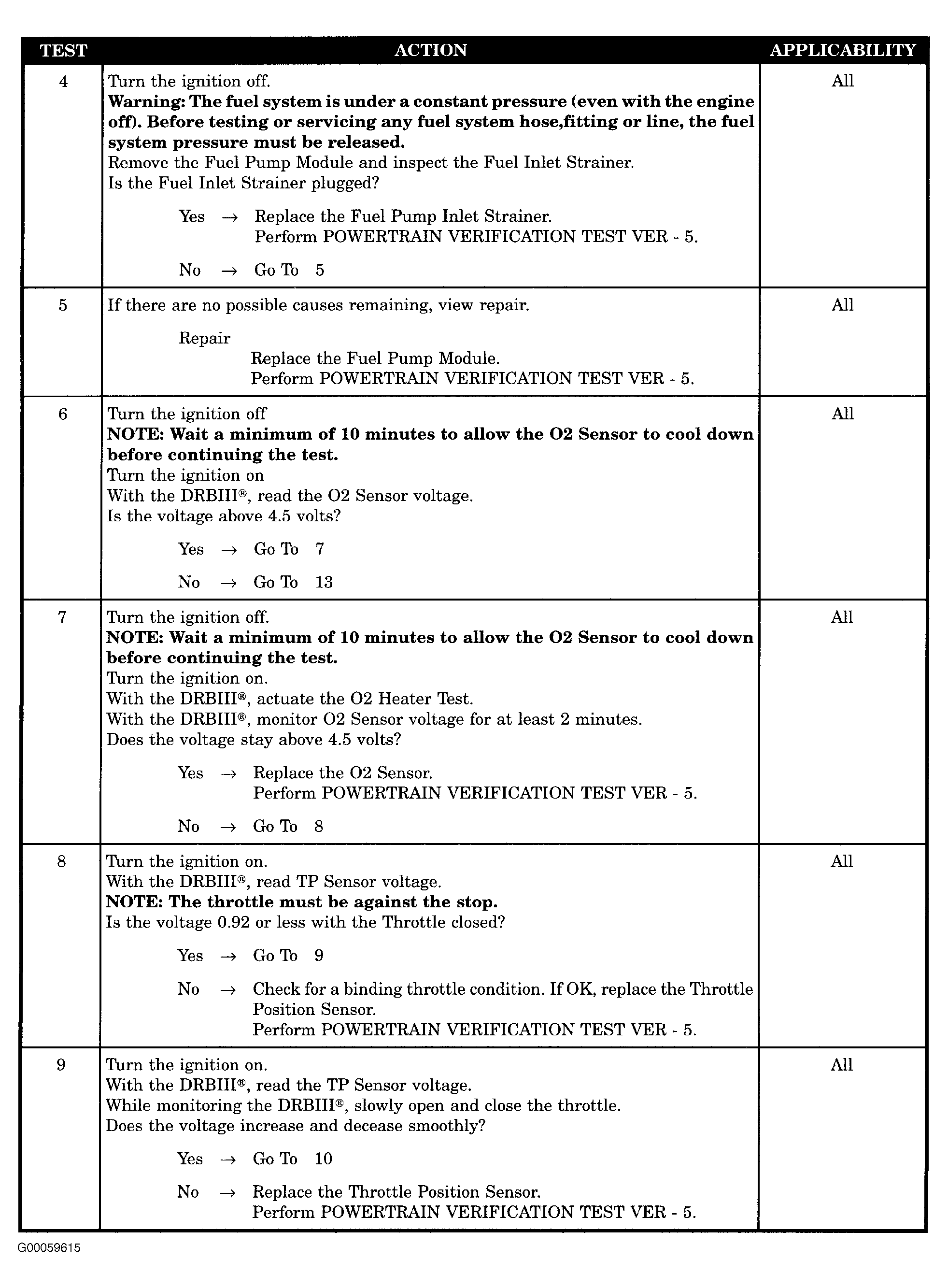

Fig 3: DTC P0171: Fuel System Lean (3 Of 5)

G00059615

Courtesy of DAIMLERCHRYSLER CORPORATION

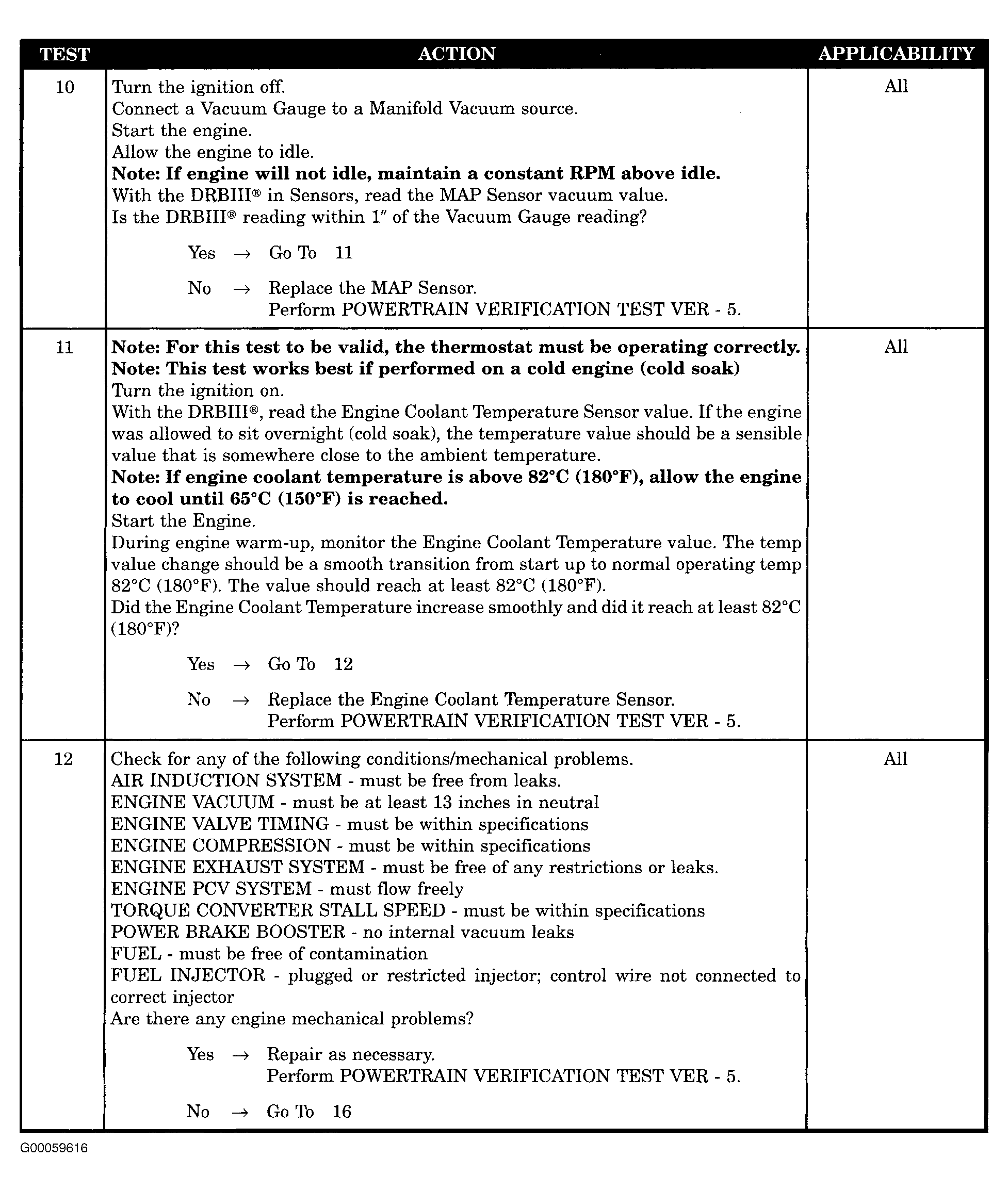

Fig 4: DTC P0171: Fuel System Lean (4 Of 5)

G00059616

Courtesy of DAIMLERCHRYSLER CORPORATION

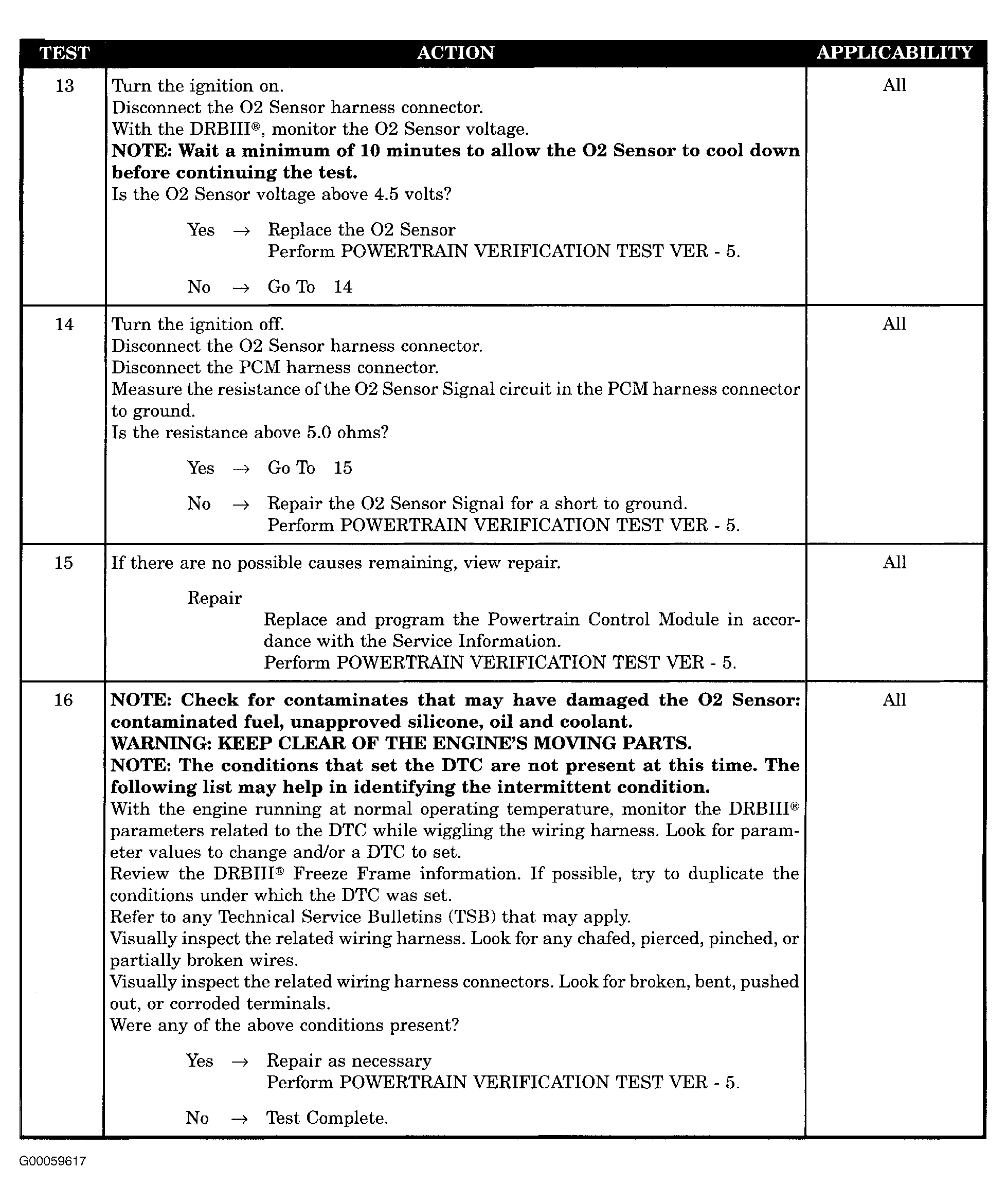

Fig 5: DTC P0171: Fuel System Lean (5 Of 5)

G00059617

Courtesy of DAIMLERCHRYSLER CORPORATION
