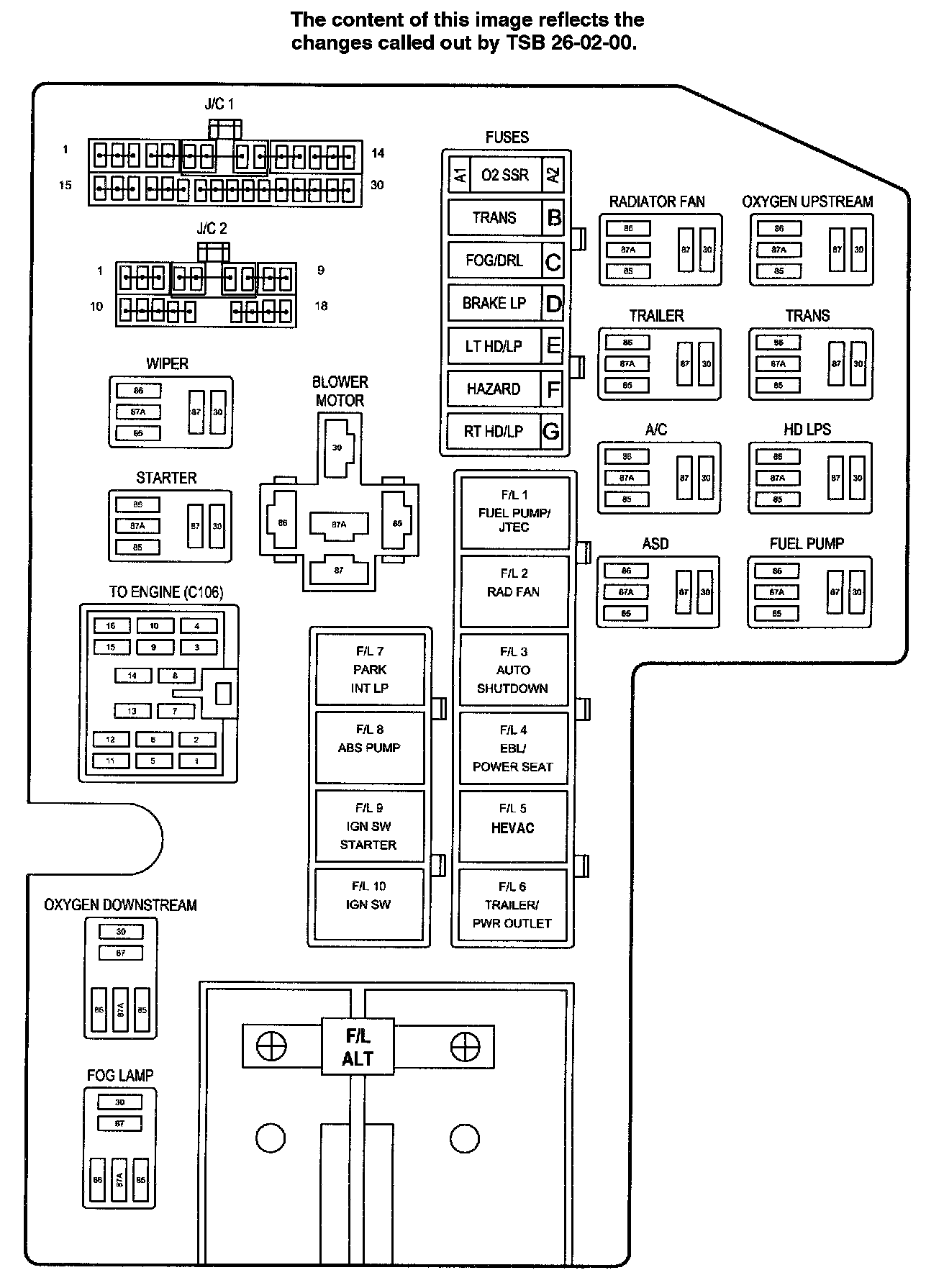

Power Distribution Center

8w-10-2:





8w-10-3:





8w-10-4:





8w-10-5:





8w-10-6:





8w-10-7:





8w-10-8:





8w-10-9:





8w-10-10:





8w-10-11:





8w-10-12:
