DTC P1296-A: No 5 Volts To Map Sensor

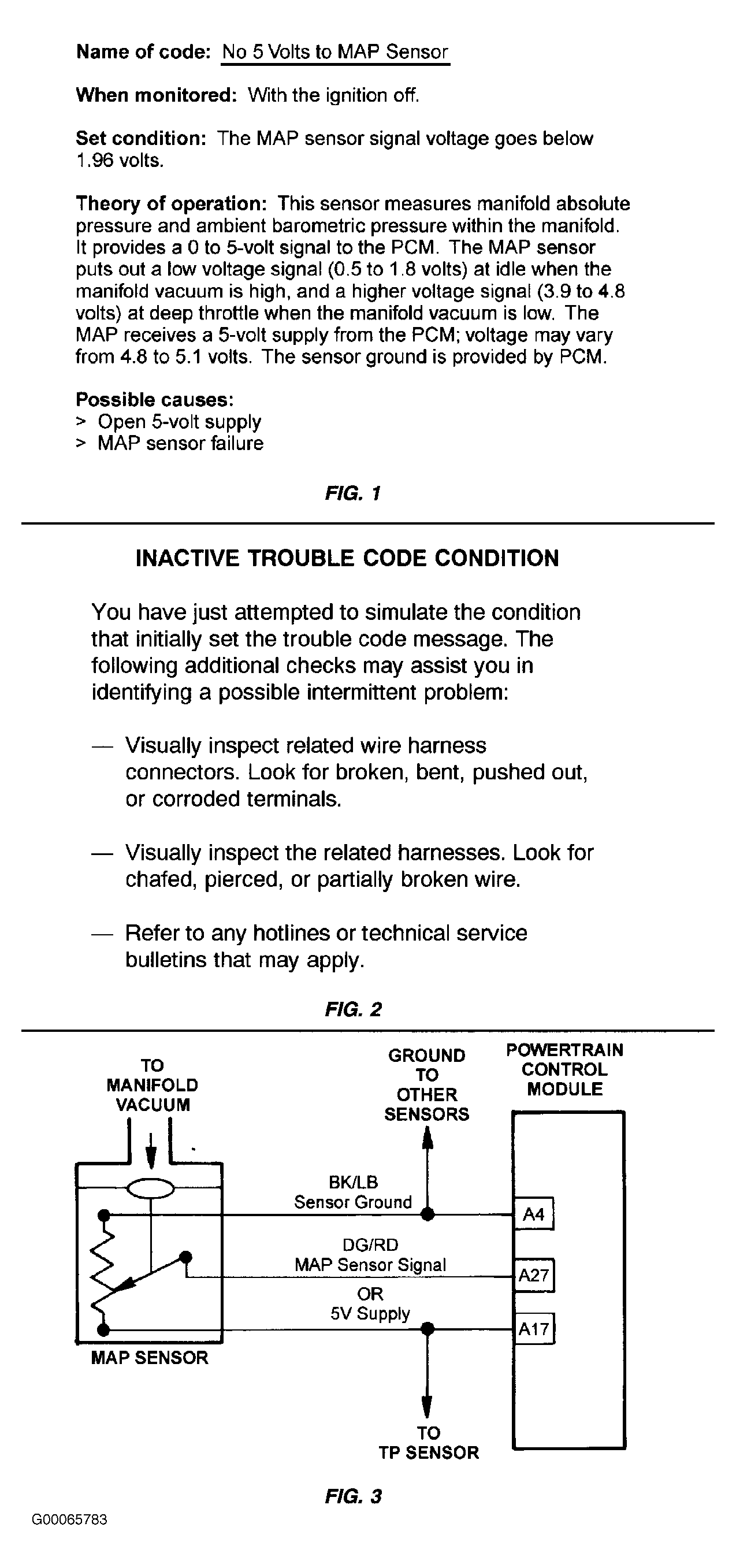

Fig 1: P1296-A: No 5 Volts To MAP Sensor (1 Of 4)

G00065783

Courtesy of DAIMLERCHRYSLER CORPORATION

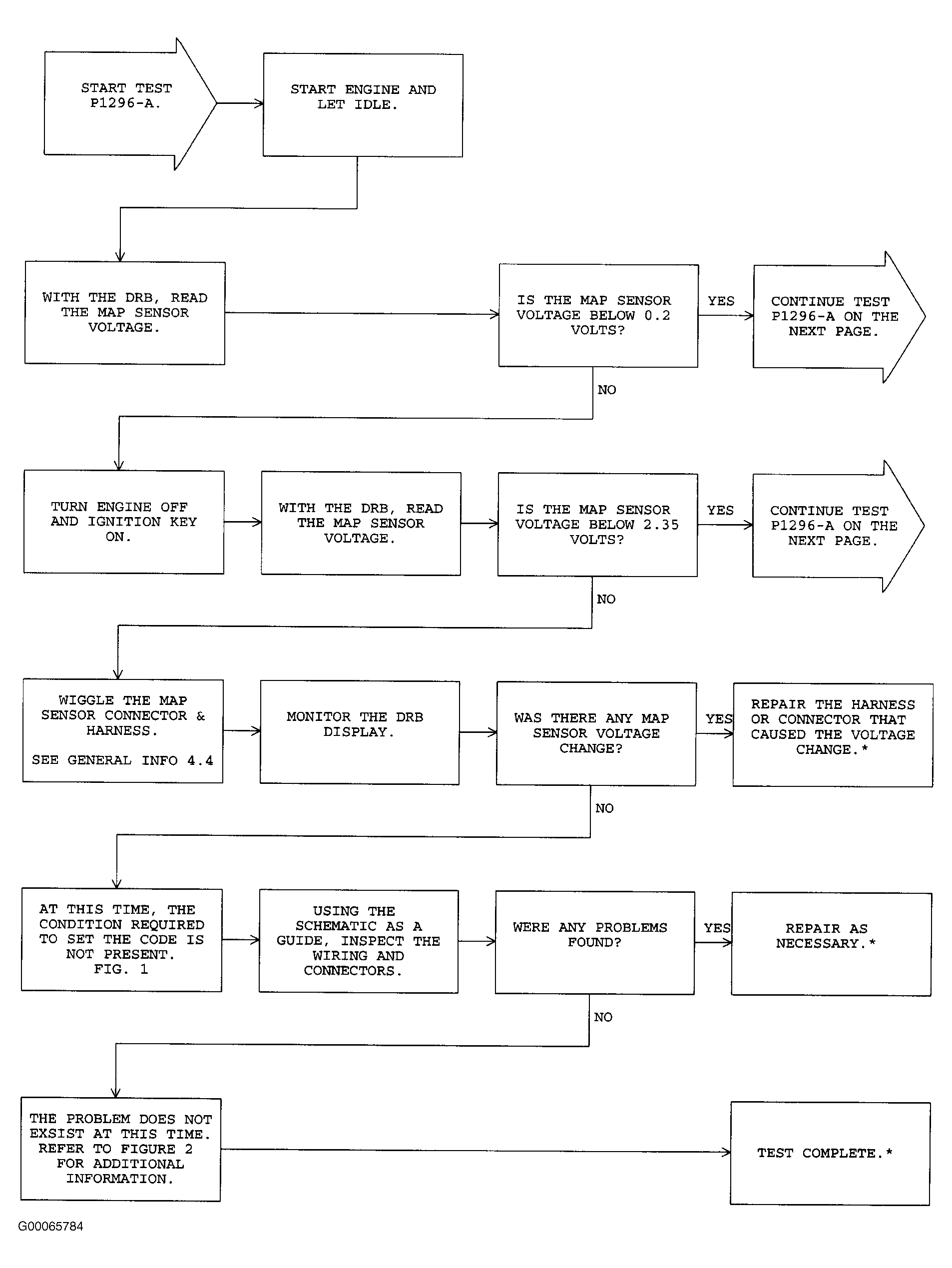

Fig 2: P1296-A: No 5 Volts To MAP Sensor (2 Of 4)

G00065784

Courtesy of DAIMLERCHRYSLER CORPORATION

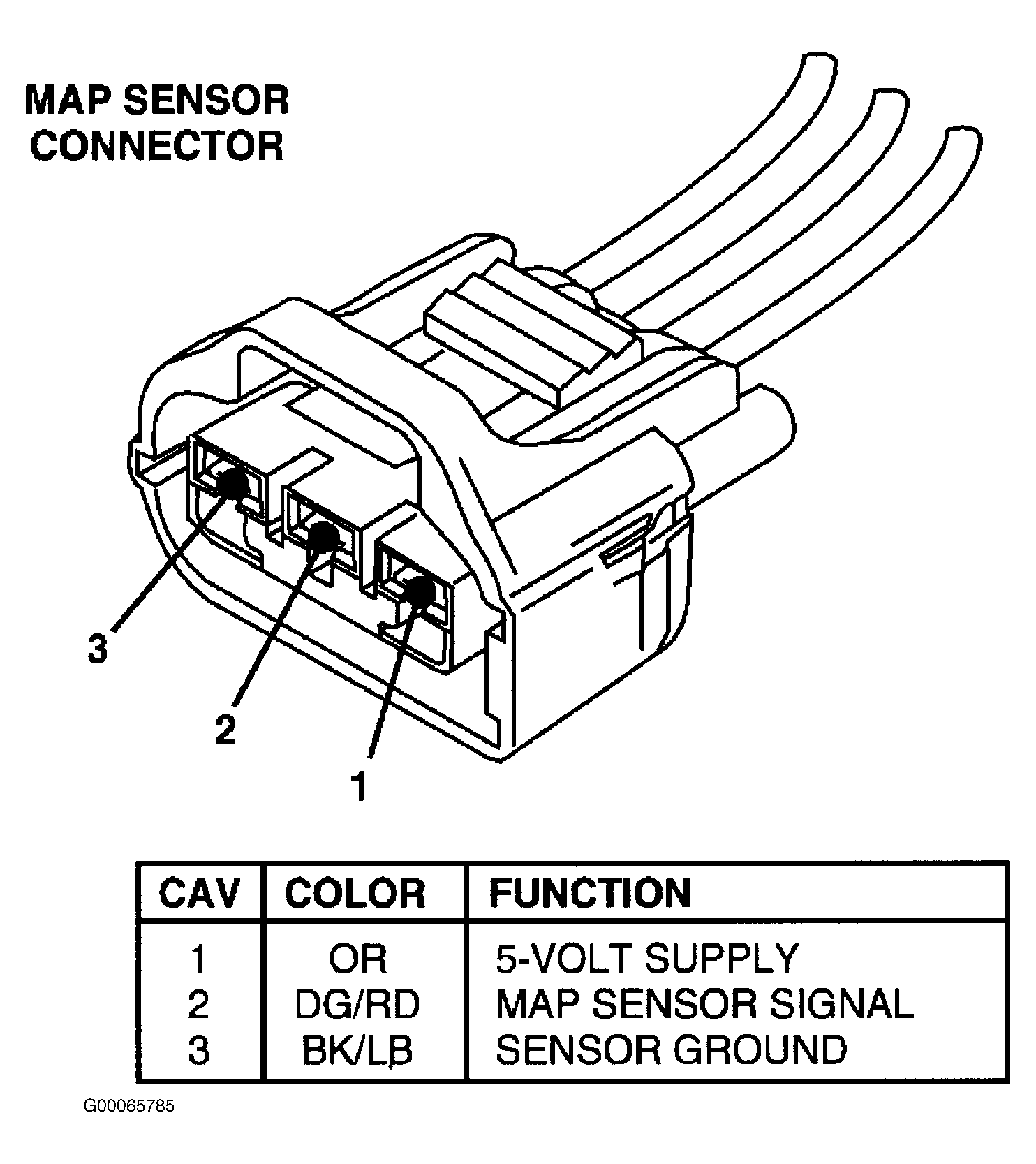

Fig 3: P1296-A: No 5 Volts To MAP Sensor (3 Of 4)

G00065785

Courtesy of DAIMLERCHRYSLER CORPORATION

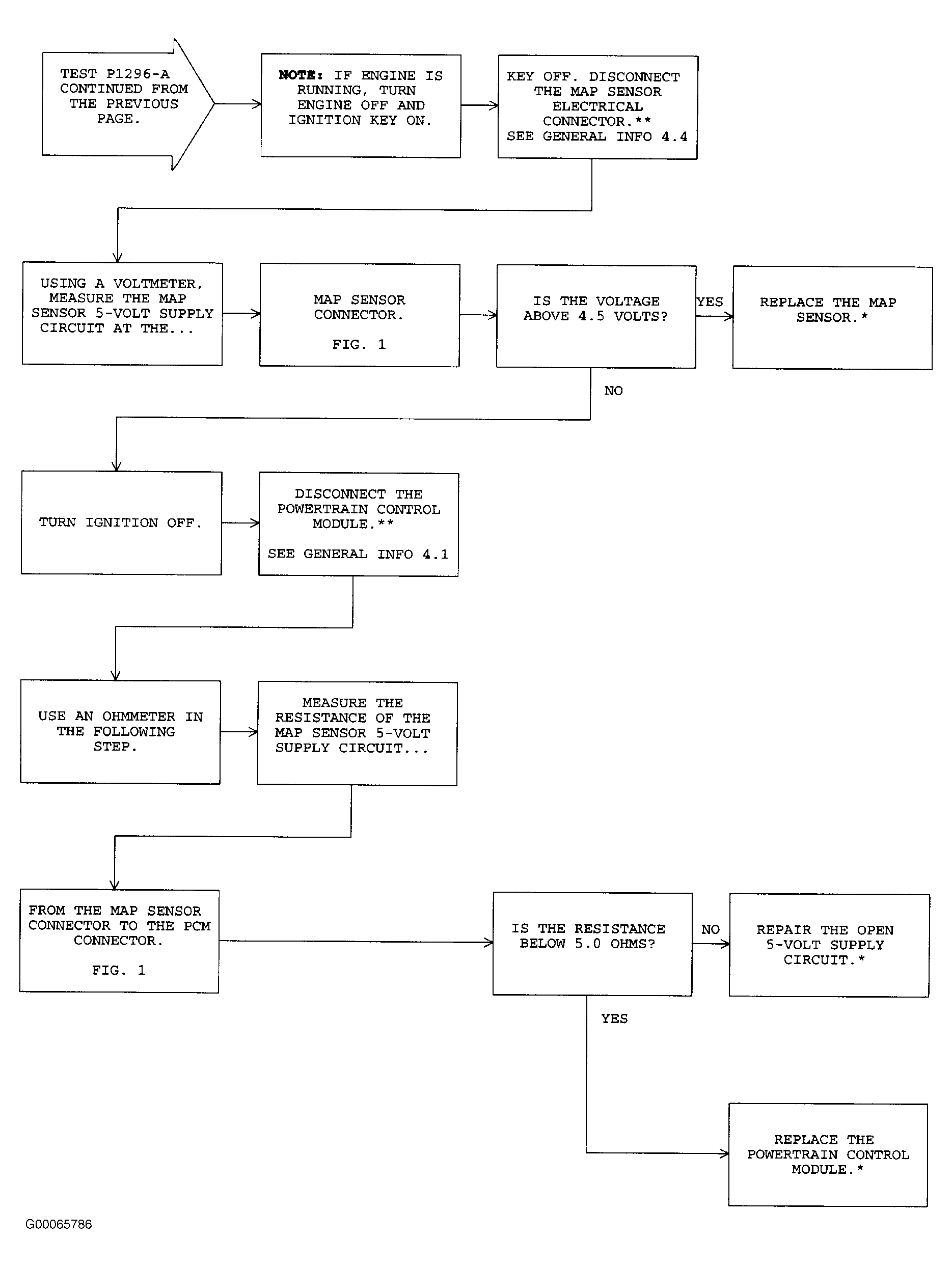

Fig 4: P1296-A: No 5 Volts To MAP Sensor (4 Of 4)

G00065786

Courtesy of DAIMLERCHRYSLER CORPORATION
