DTC P0505-A: Idle Air Control Motor Circuits

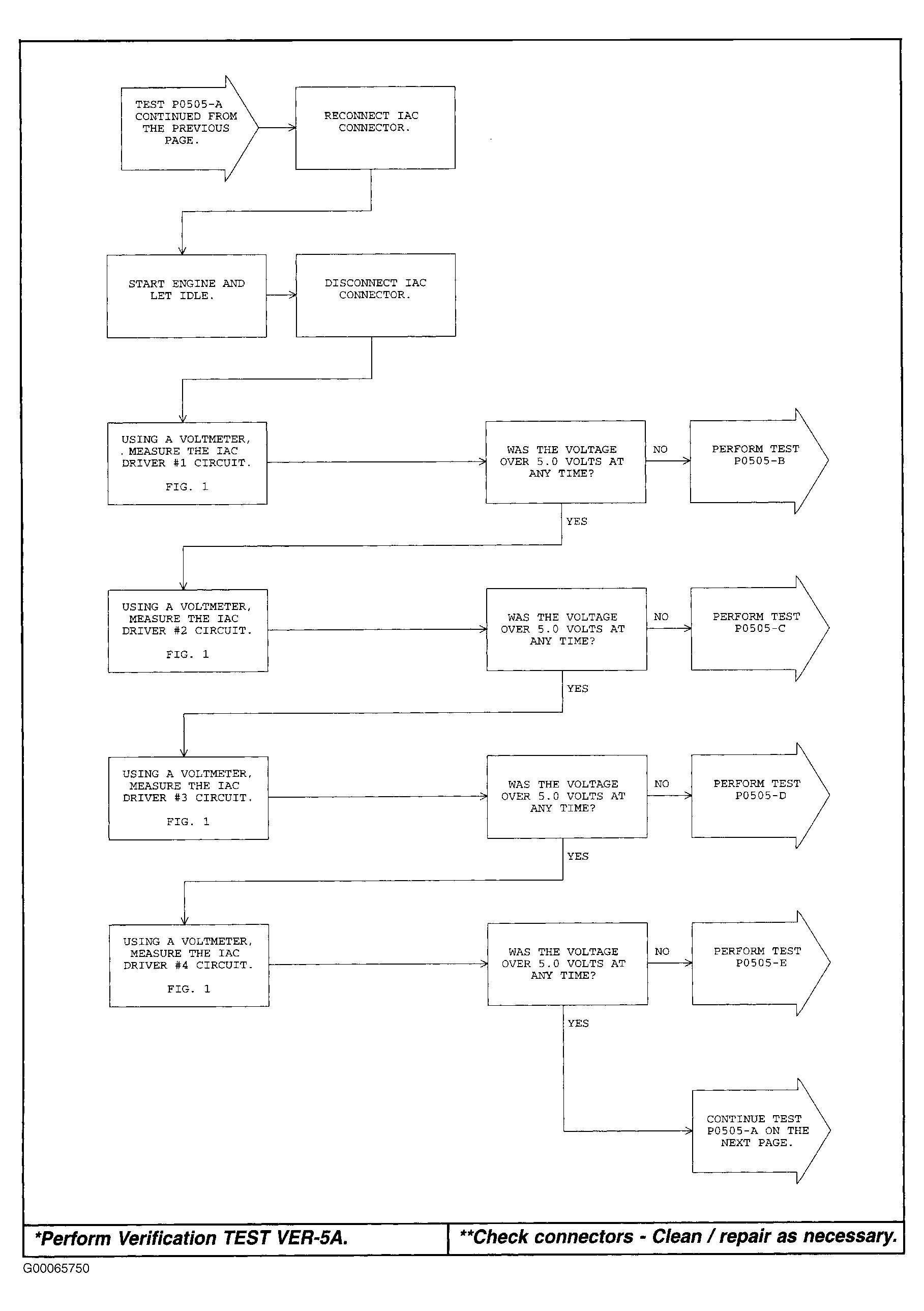

Fig 1: P0505-A: Idle Air Control Motor Circuits (1 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

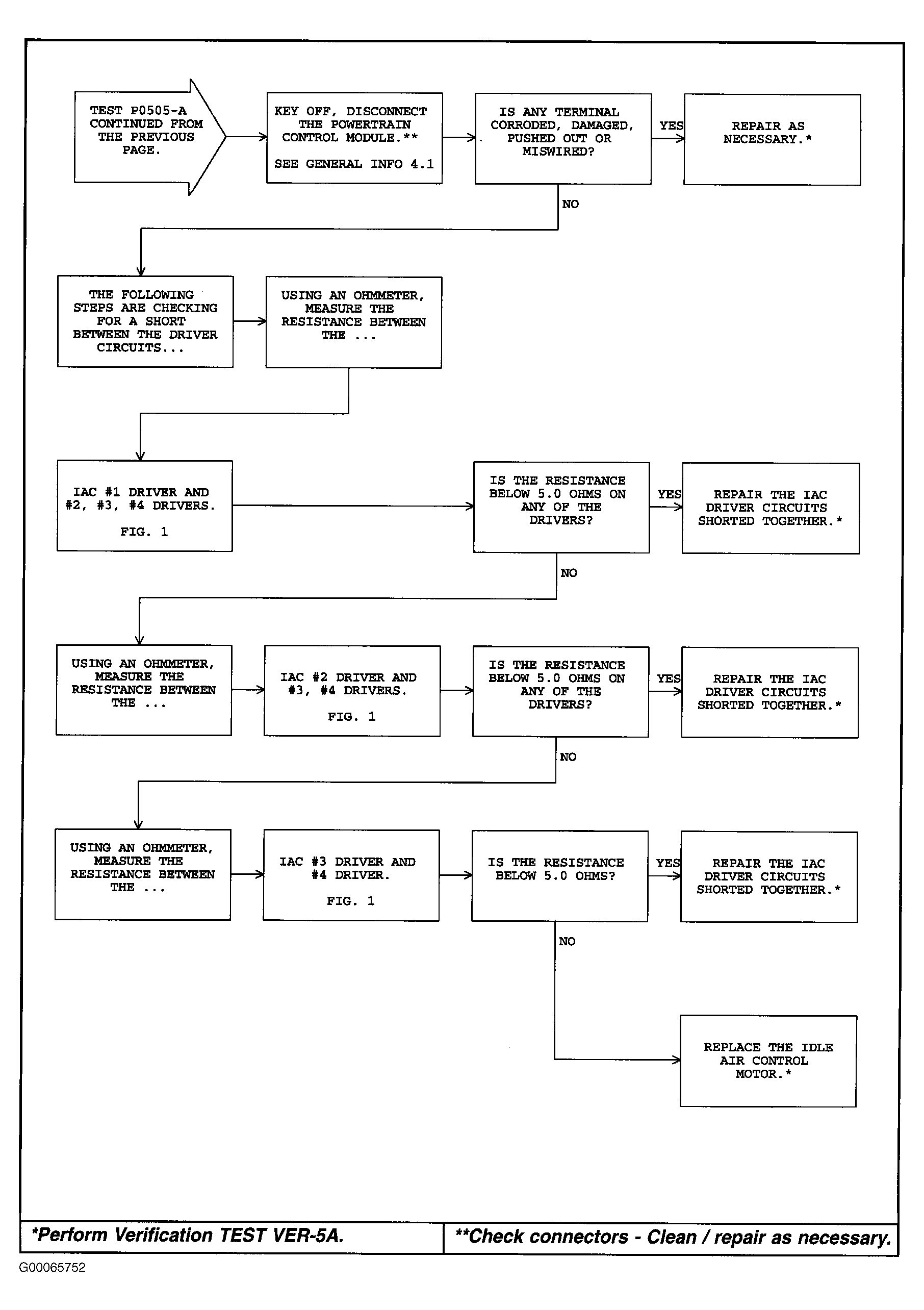

Fig 2: P0505-A: Idle Air Control Motor Circuits (2 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

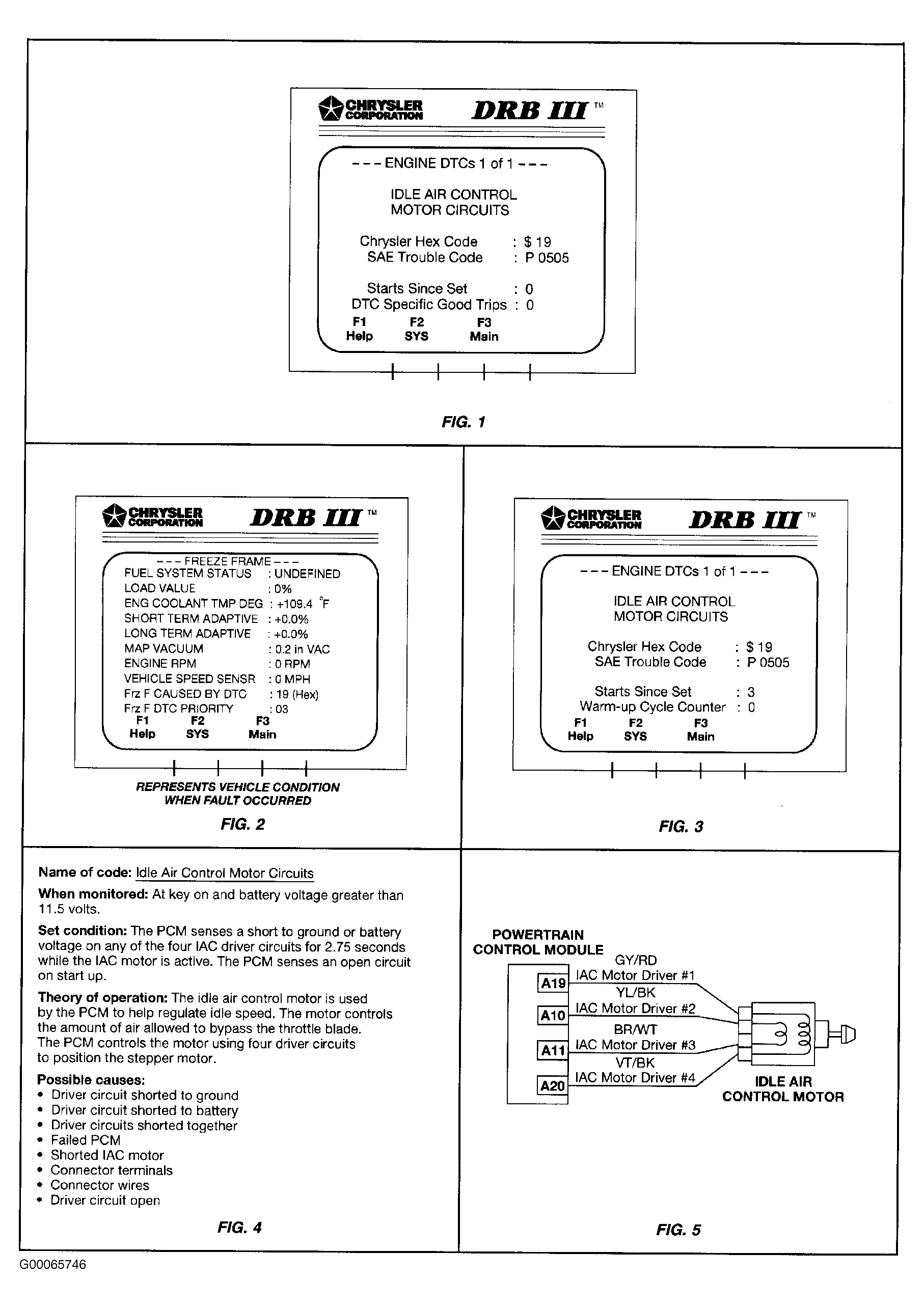

Fig 3: P0505-A: Idle Air Control Motor Circuits (3 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

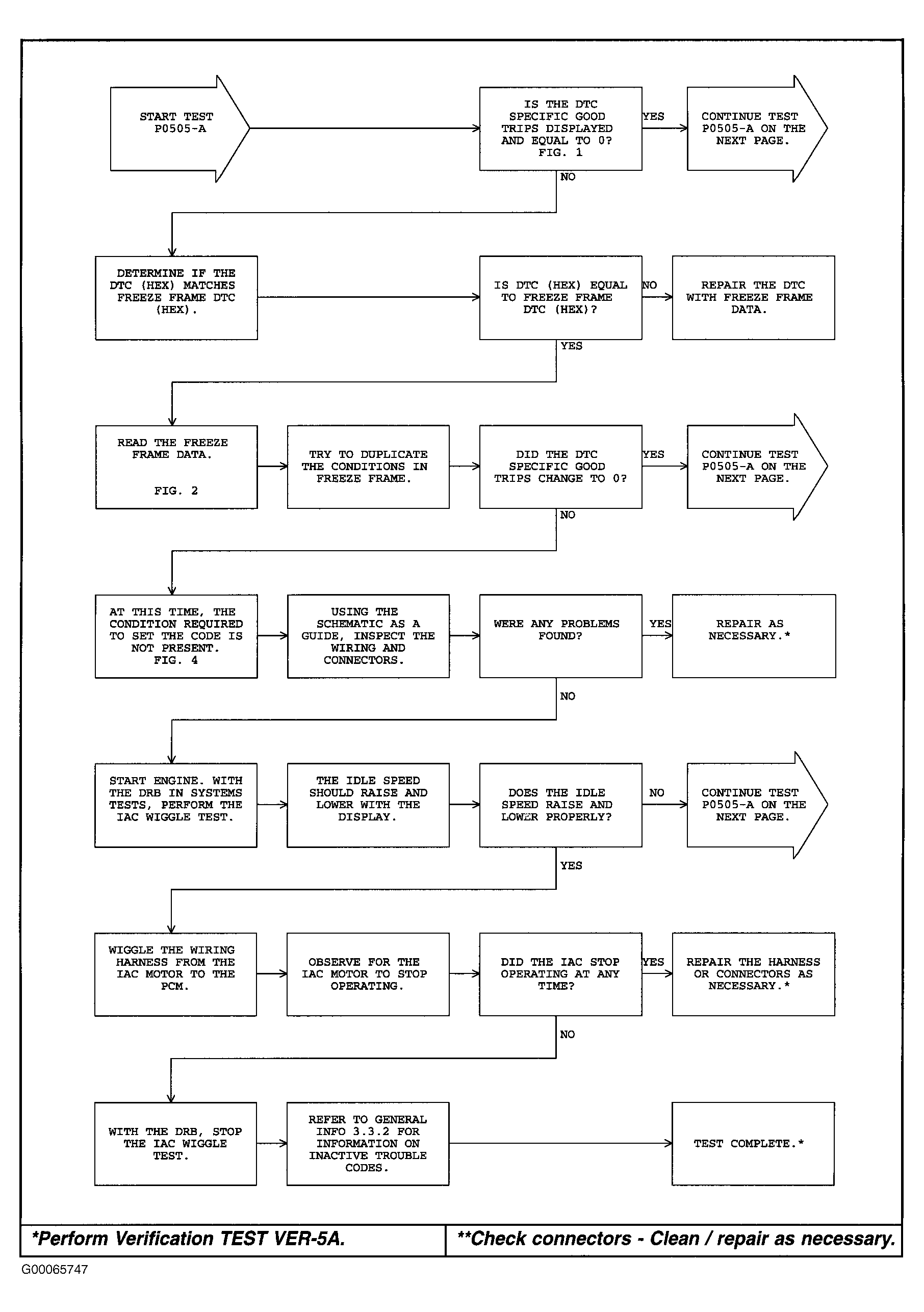

Fig 4: P0505-A: Idle Air Control Motor Circuits (4 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

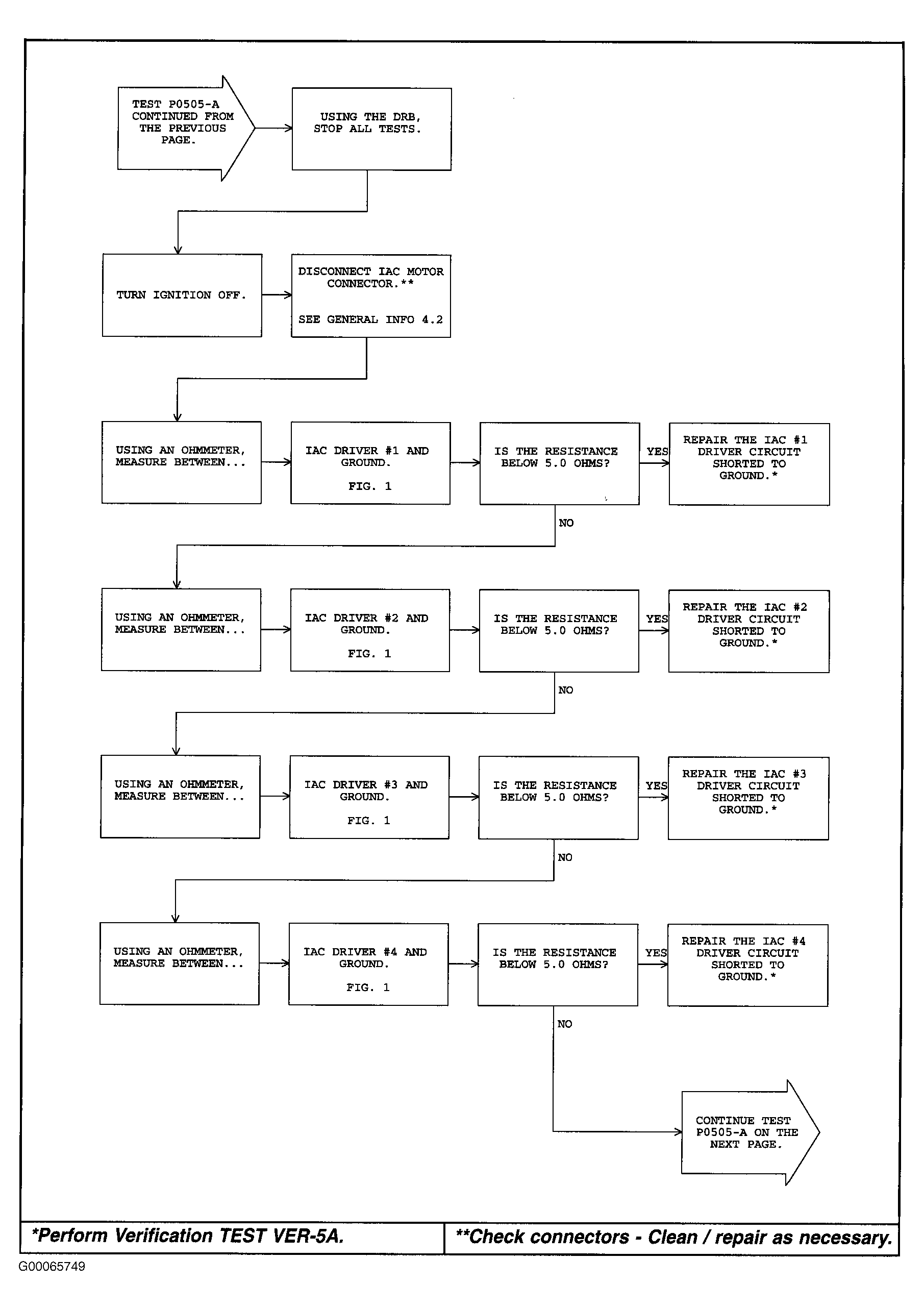

Fig 5: P0505-A: Idle Air Control Motor Circuits (5 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

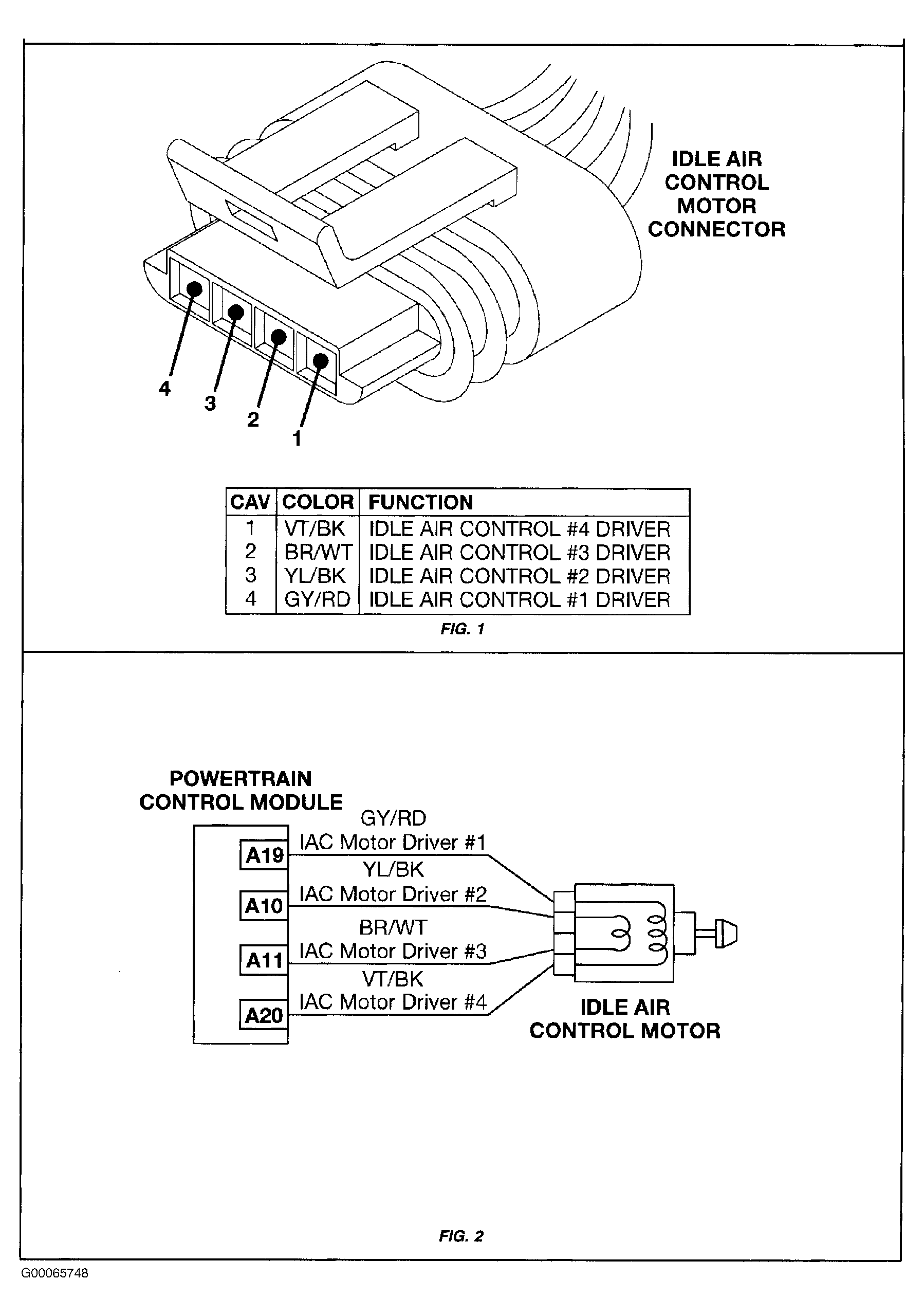

Fig 6: P0505-A: Idle Air Control Motor Circuits (6 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: P0505-A: Idle Air Control Motor Circuits (7 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: P0505-A: Idle Air Control Motor Circuits (8 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION
