DTC P0441-A: EVAP Purge Flow Monitor Failure

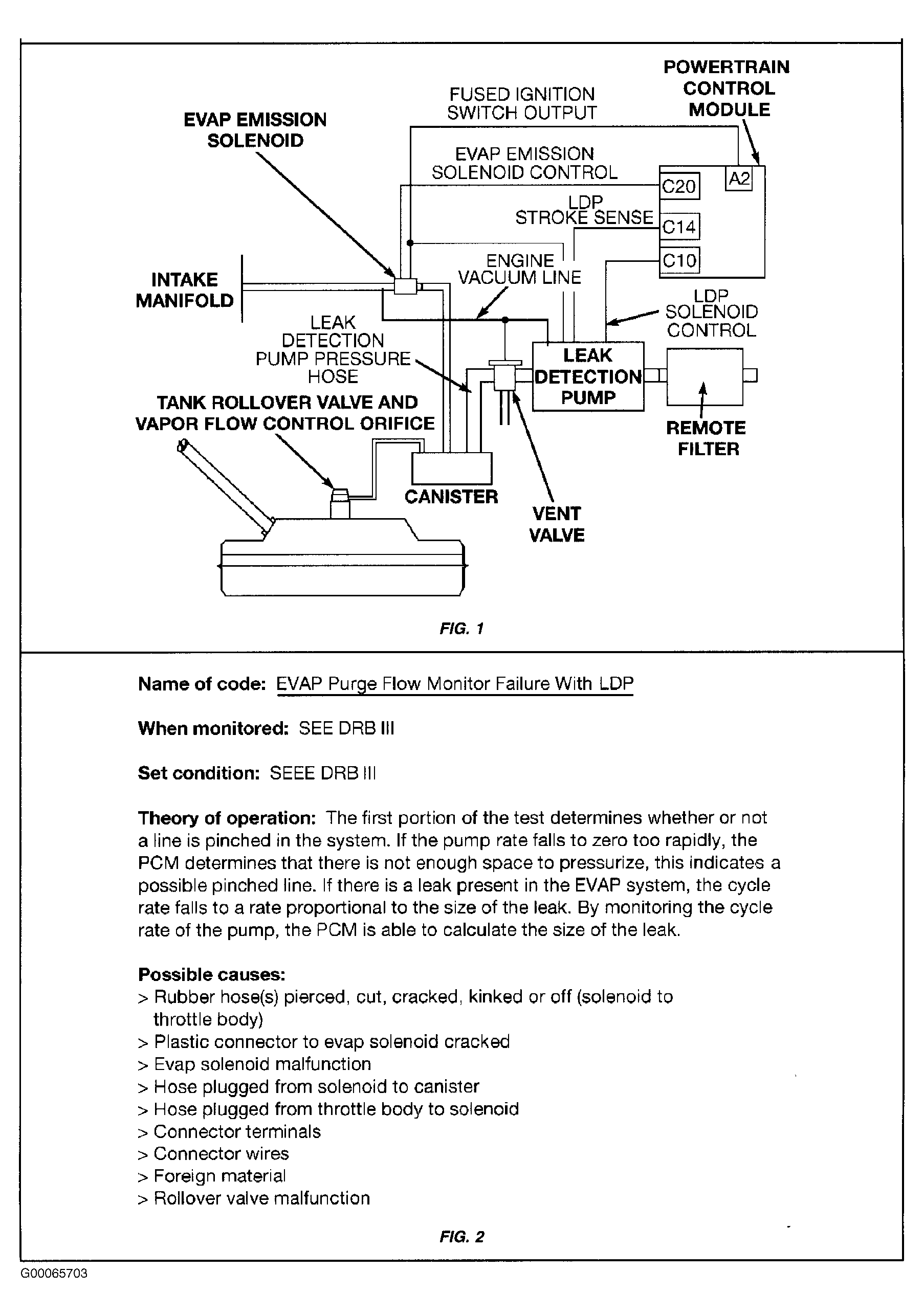

Fig 1: P0441-A: EVAP Purge Flow Monitor Failure (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

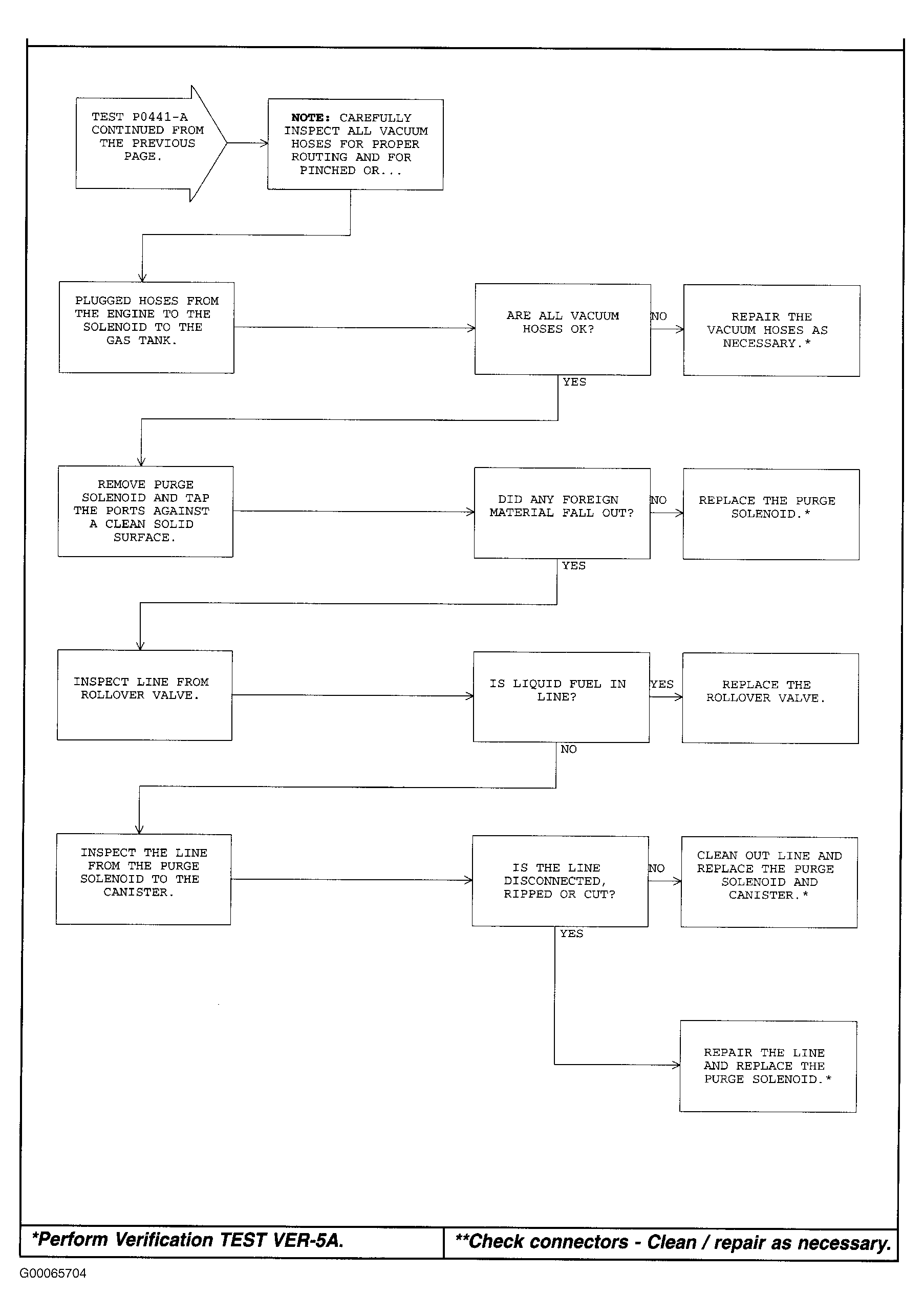

Fig 2: P0441-A: EVAP Purge Flow Monitor Failure (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

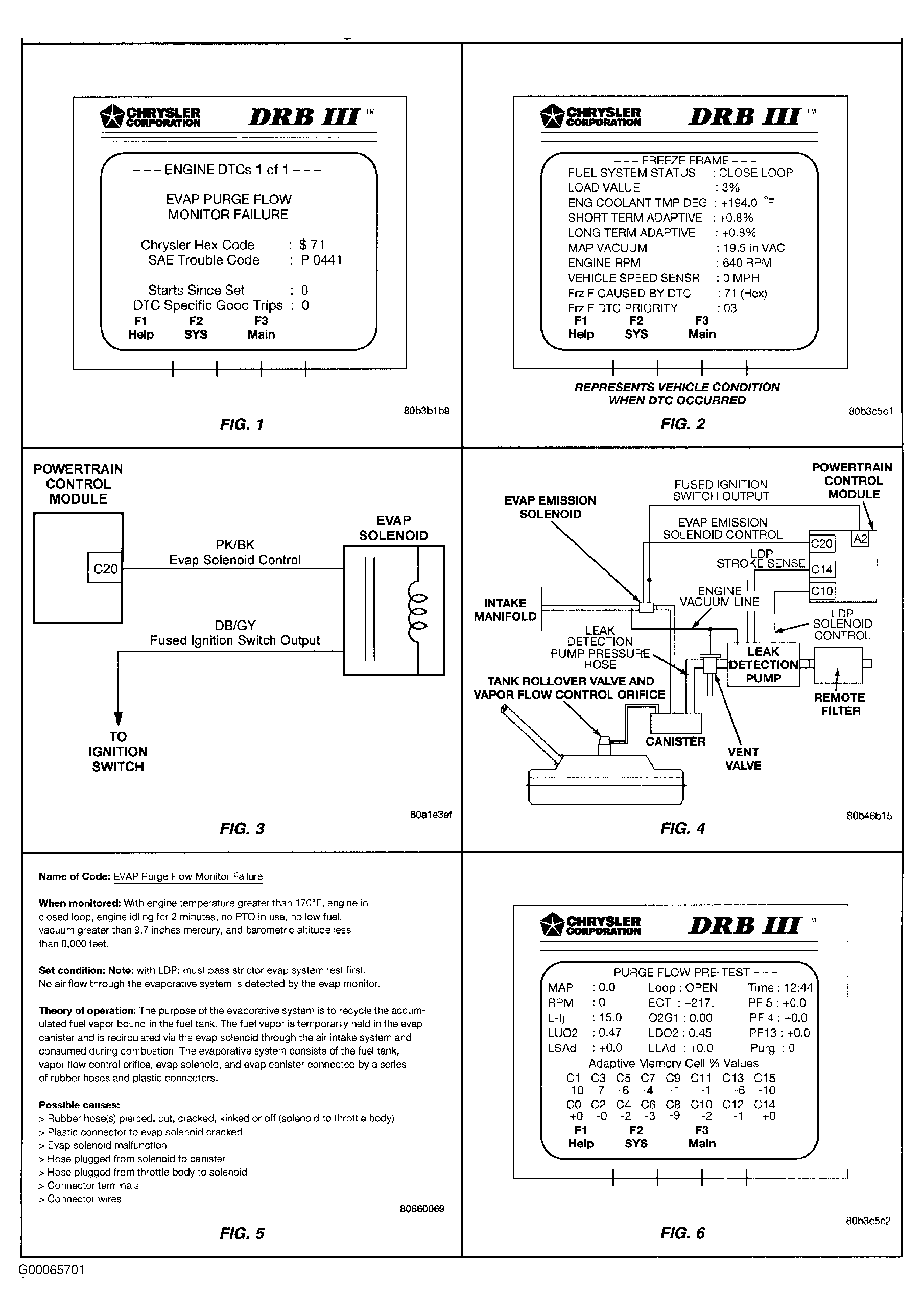

Fig 3: P0441-A: EVAP Purge Flow Monitor Failure (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

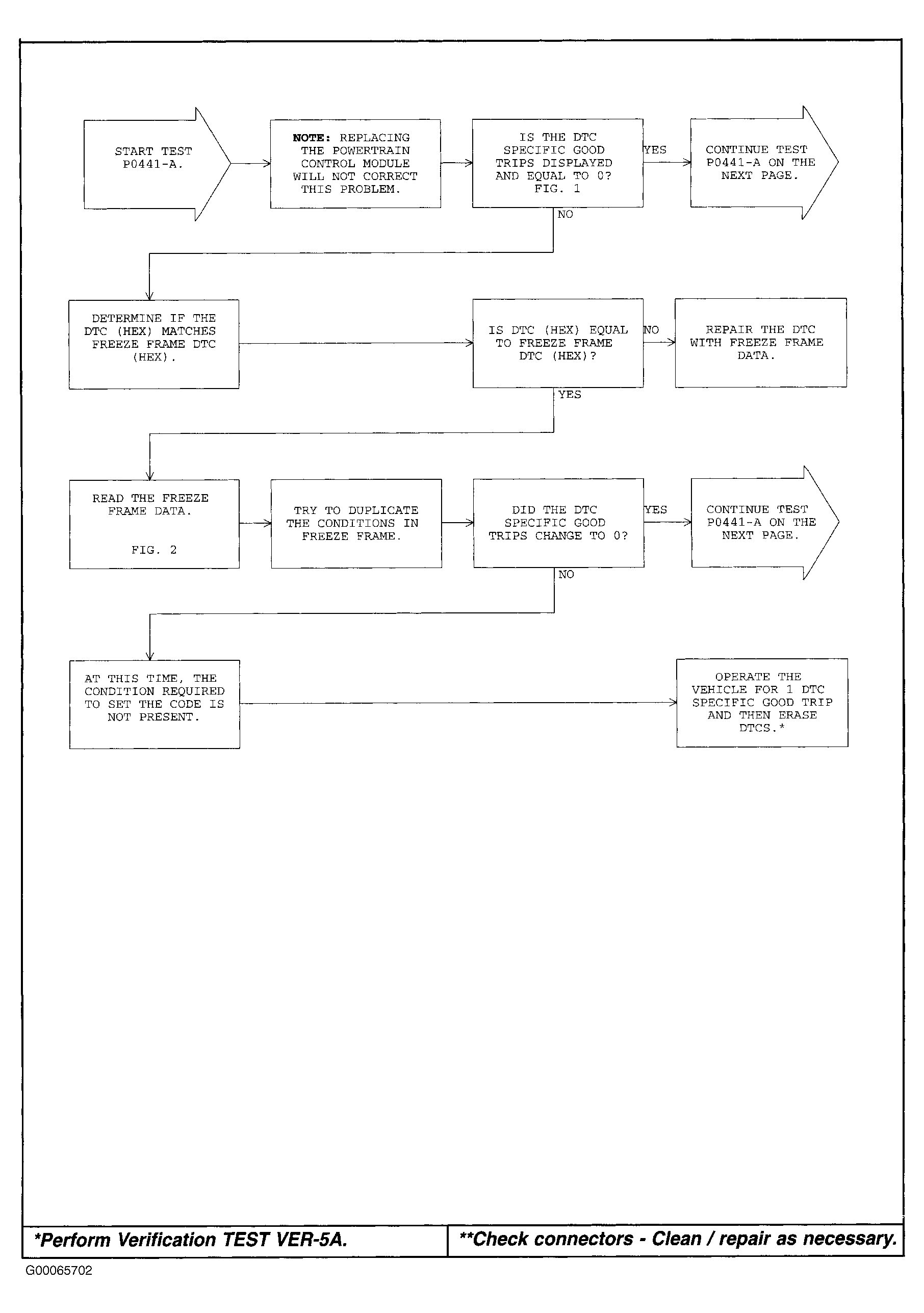

Fig 4: P0441-A: EVAP Purge Flow Monitor Failure (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
