DTC P0209-A: Injector No. 9 Control Circuit

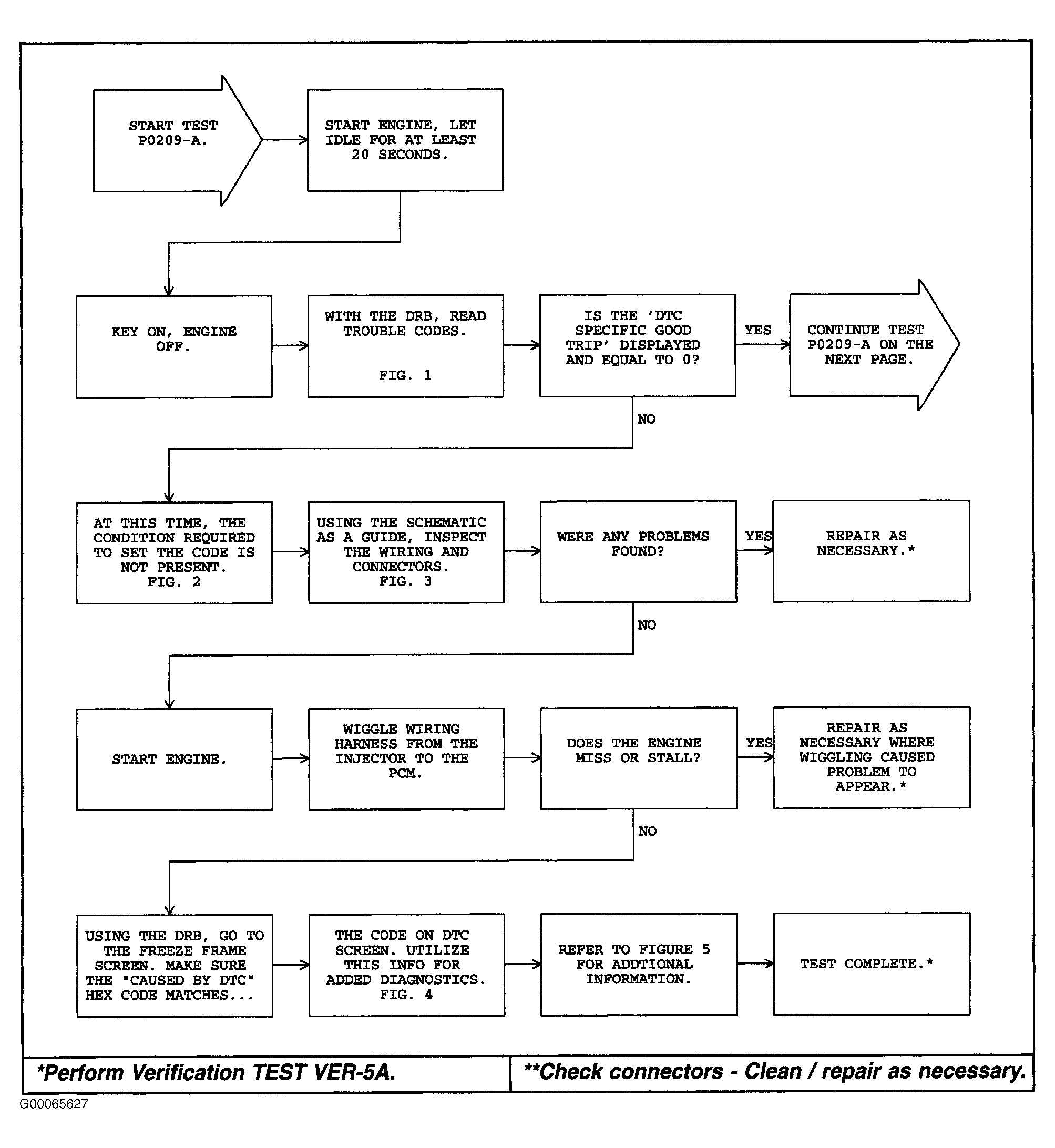

Fig 1: P0209-A: Injector No. 9 Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

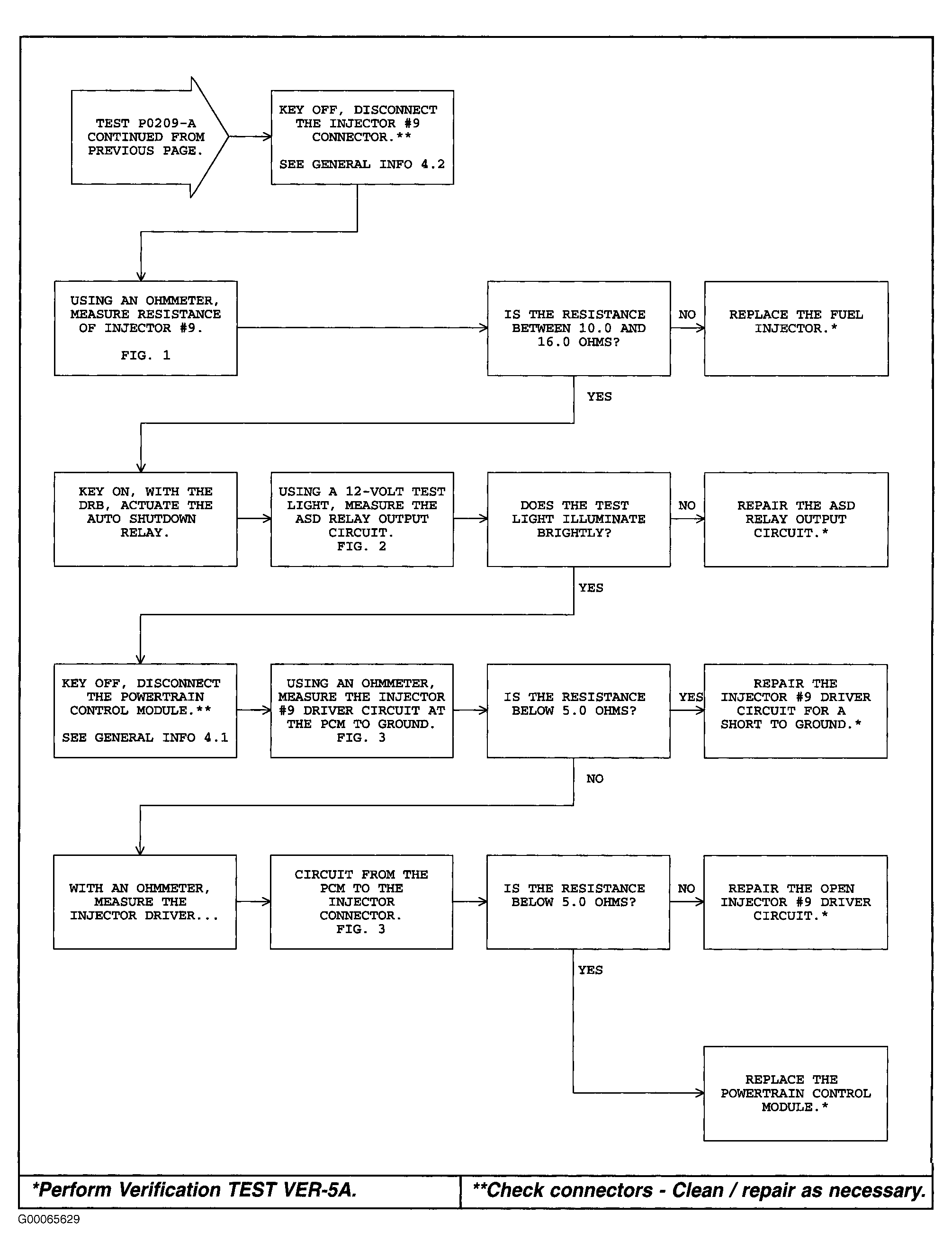

Fig 2: P0209-A: Injector No. 9 Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

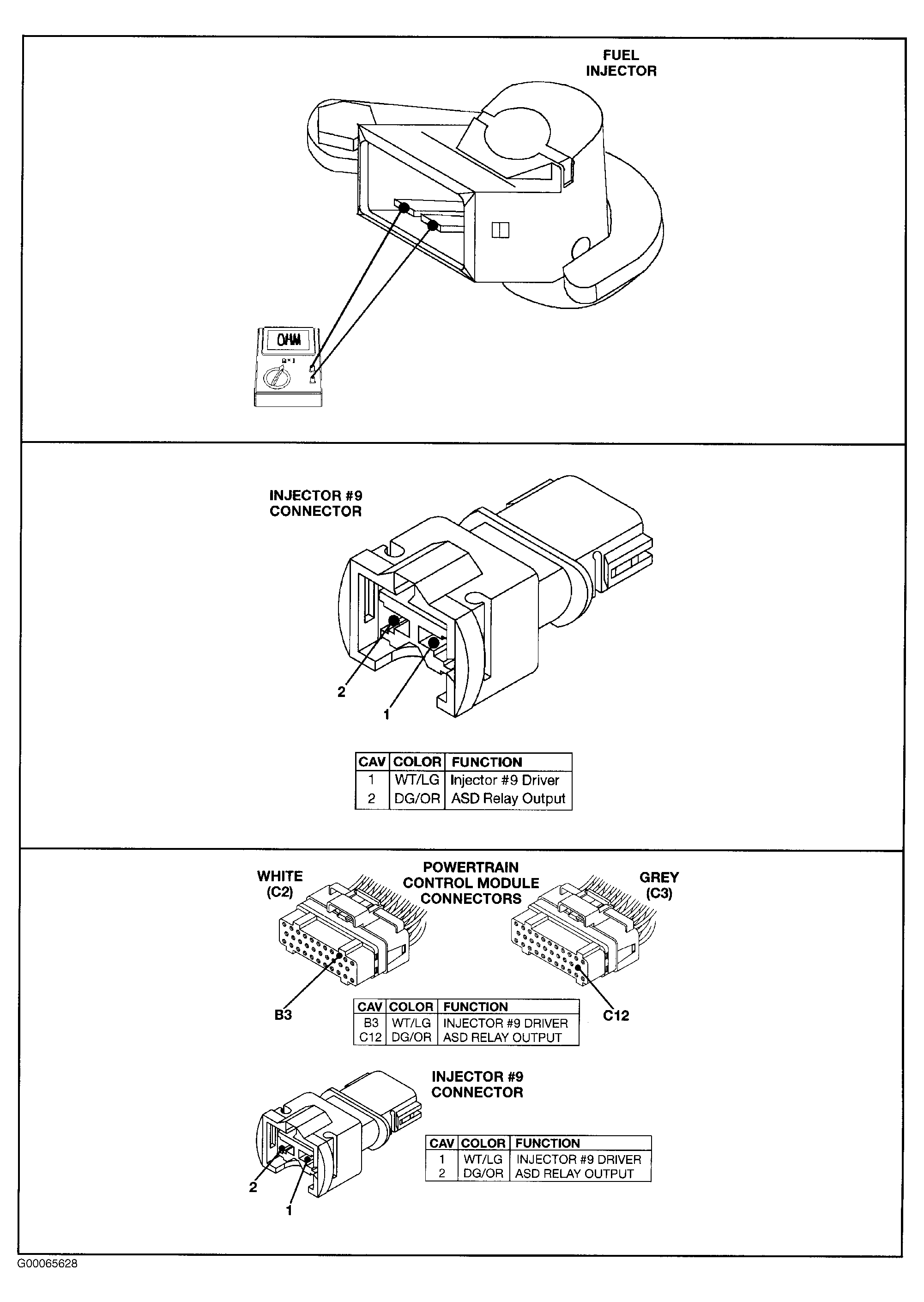

Fig 3: P0209-A: Injector No. 9 Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P0209-A: Injector No. 9 Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
