DTC P0205-A: Injector No. 5 Control Circuit

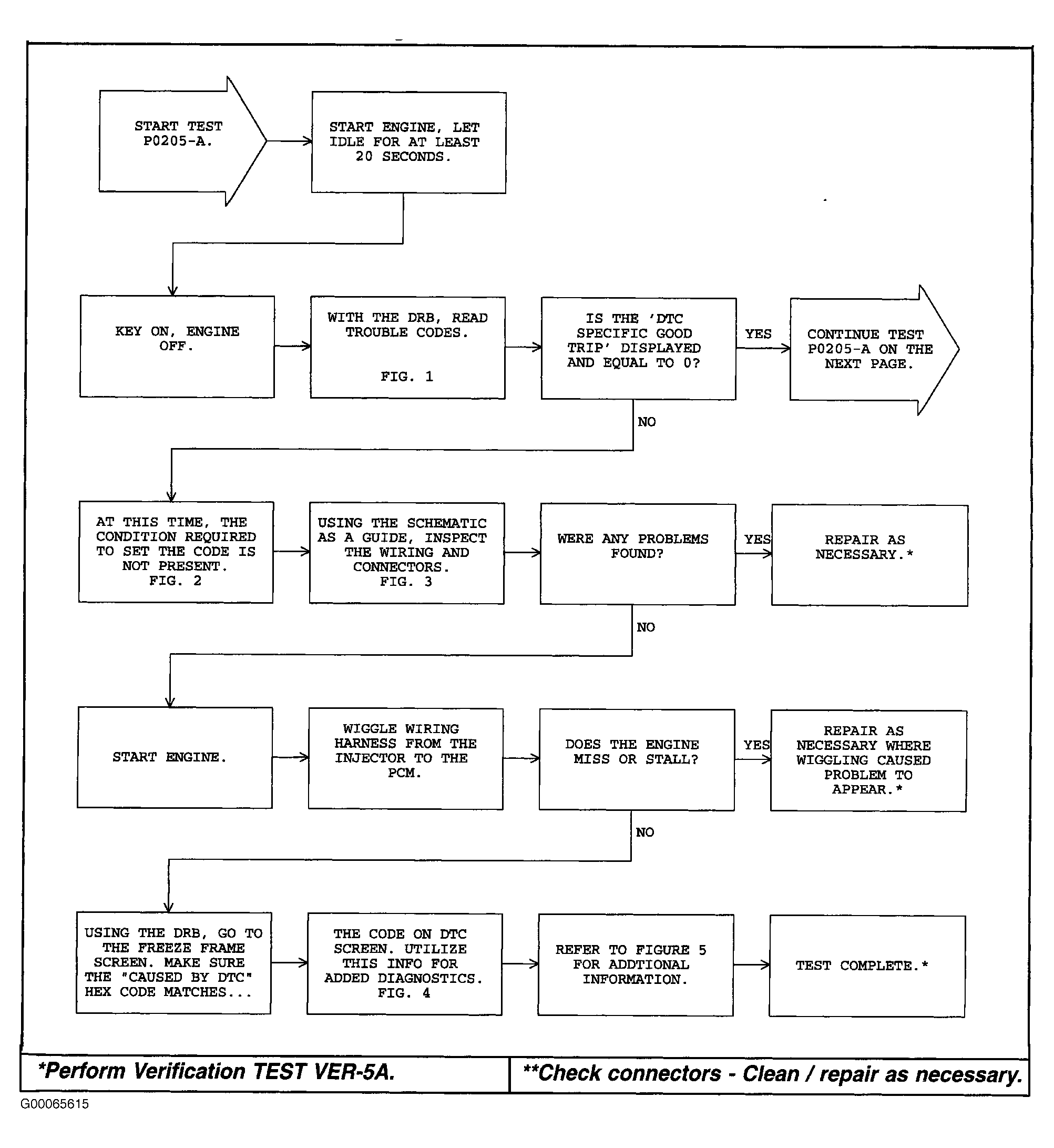

Fig 1: P0205-A: Injector No. 5 Control Circuit (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: P0205-A: Injector No. 5 Control Circuit (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: P0205-A: Injector No. 5 Control Circuit (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: P0205-A: Injector No. 5 Control Circuit (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
