Wiring Diagrams

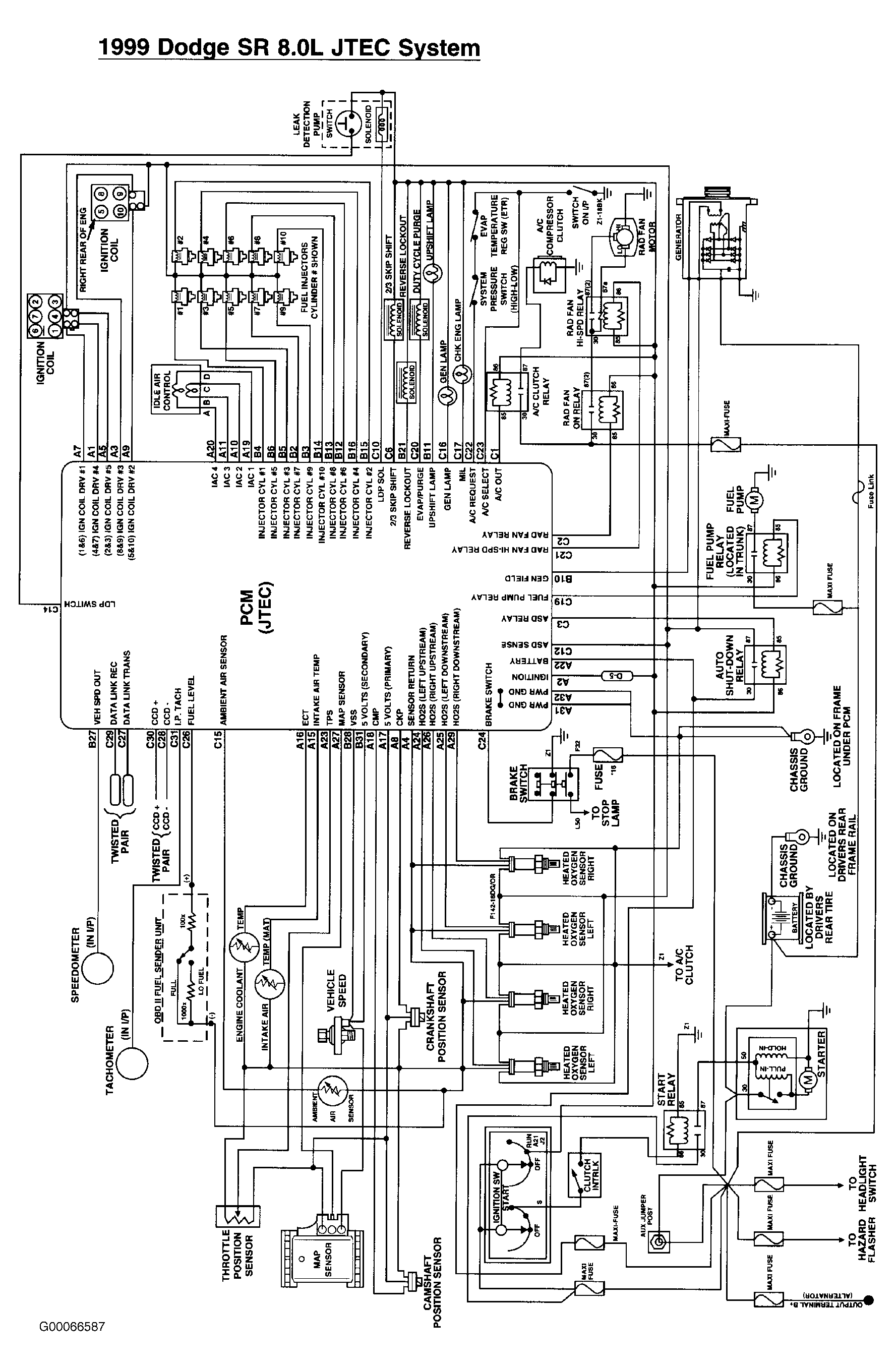

Fig 1: Engine Performance Wiring Diagram (1999 Viper)

G00066587

Courtesy of DAIMLERCHRYSLER CORPORATION
