DTC P0207-A: Injector No. 7 Control Circuit

Fig 1: P0207-A: Injector No. 7 Control Circuit (1 Of 4)
G00065599Courtesy of DAIMLERCHRYSLER CORPORATION

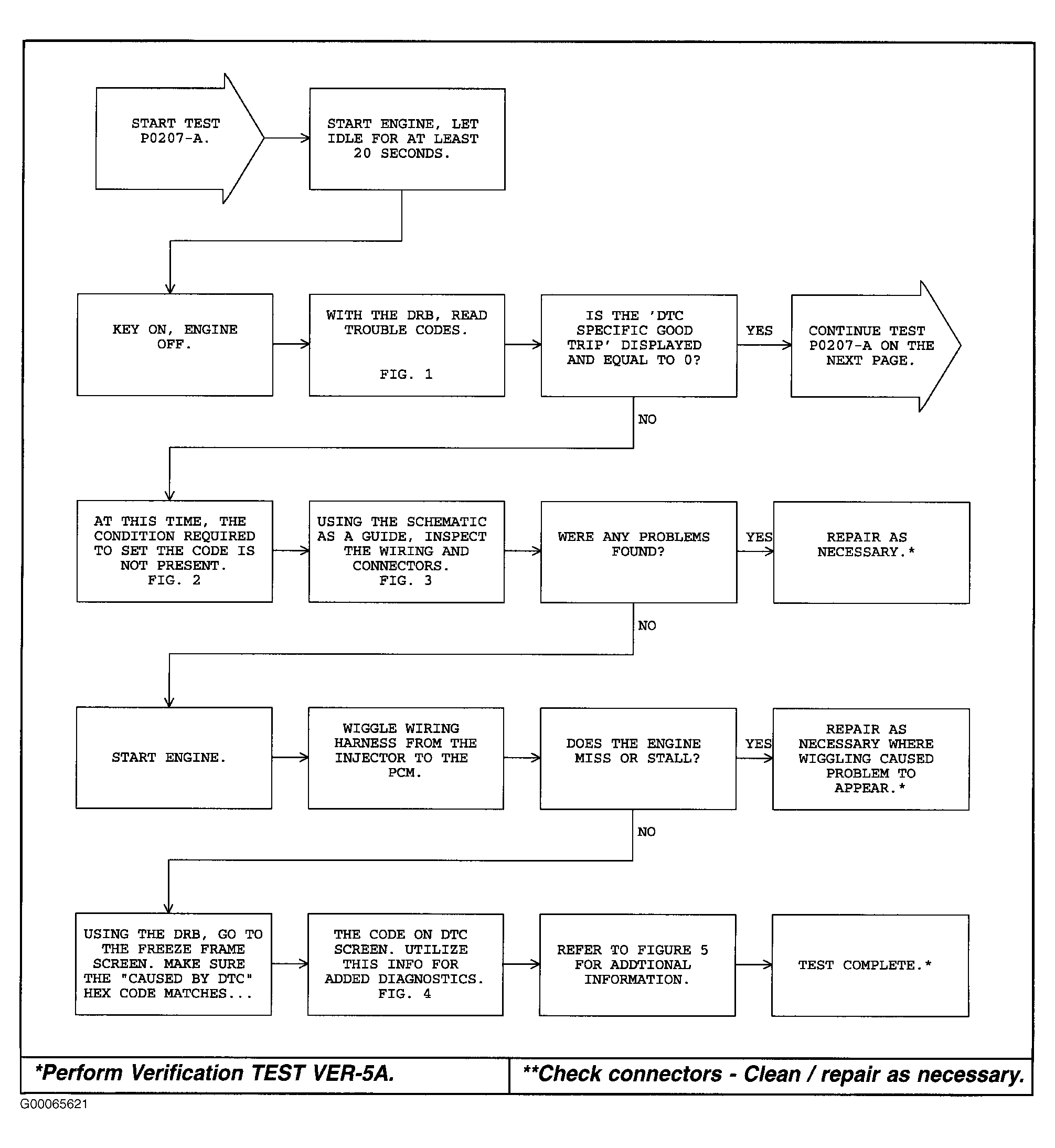

Fig 2: P0207-A: Injector No. 7 Control Circuit (2 Of 4)
G00065621Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 3: P0207-A: Injector No. 7 Control Circuit (3 Of 4)
G00065622Courtesy of DAIMLERCHRYSLER CORPORATION

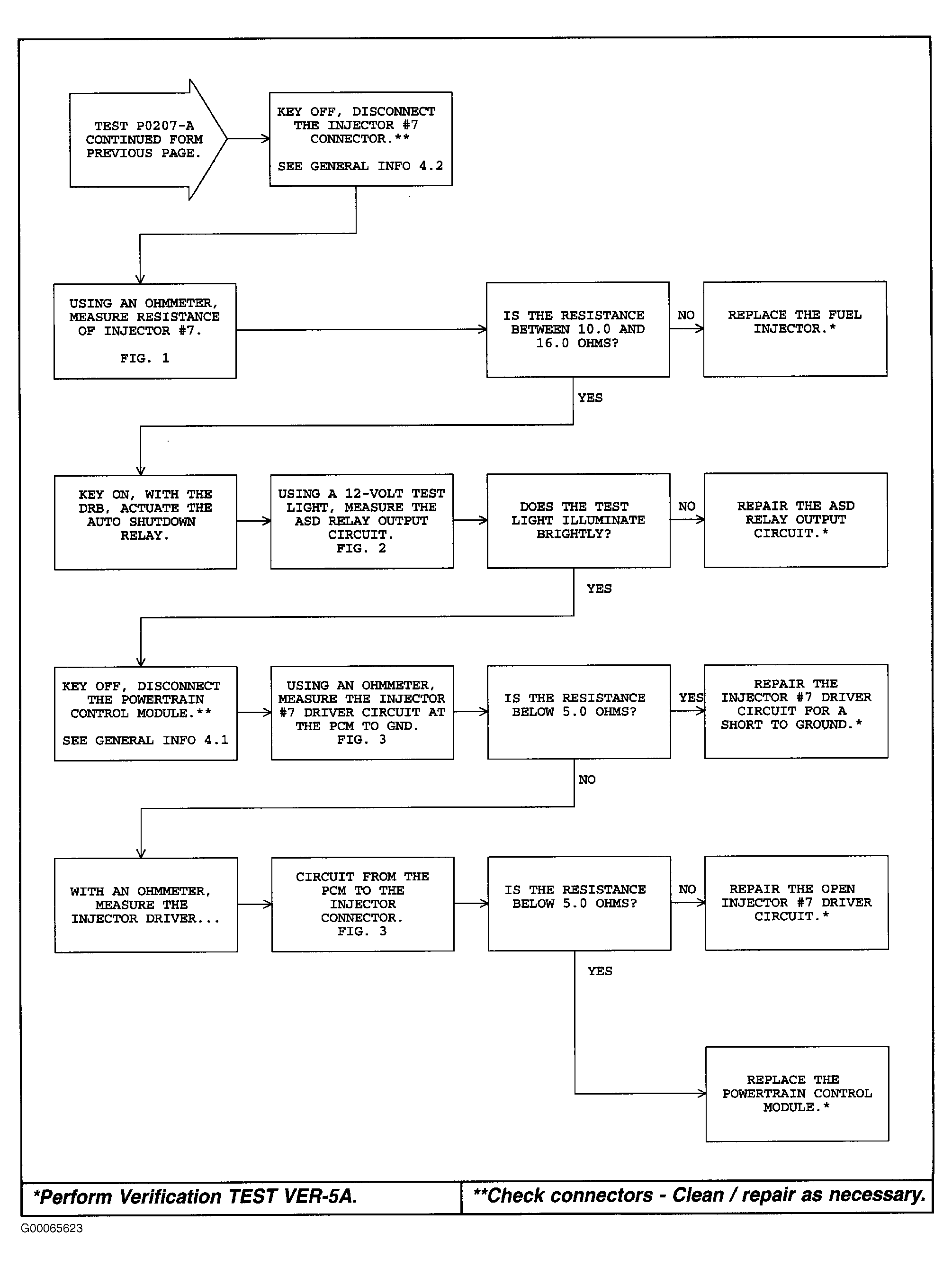

Fig 4: P0207-A: Injector No. 7 Control Circuit (4 Of 4)
G00065623Courtesy of DAIMLERCHRYSLER CORPORATION
