TC-35B: No Vehicle Speed Sensor Signal

NOTE: Perform Test TC-35A Before Proceeding

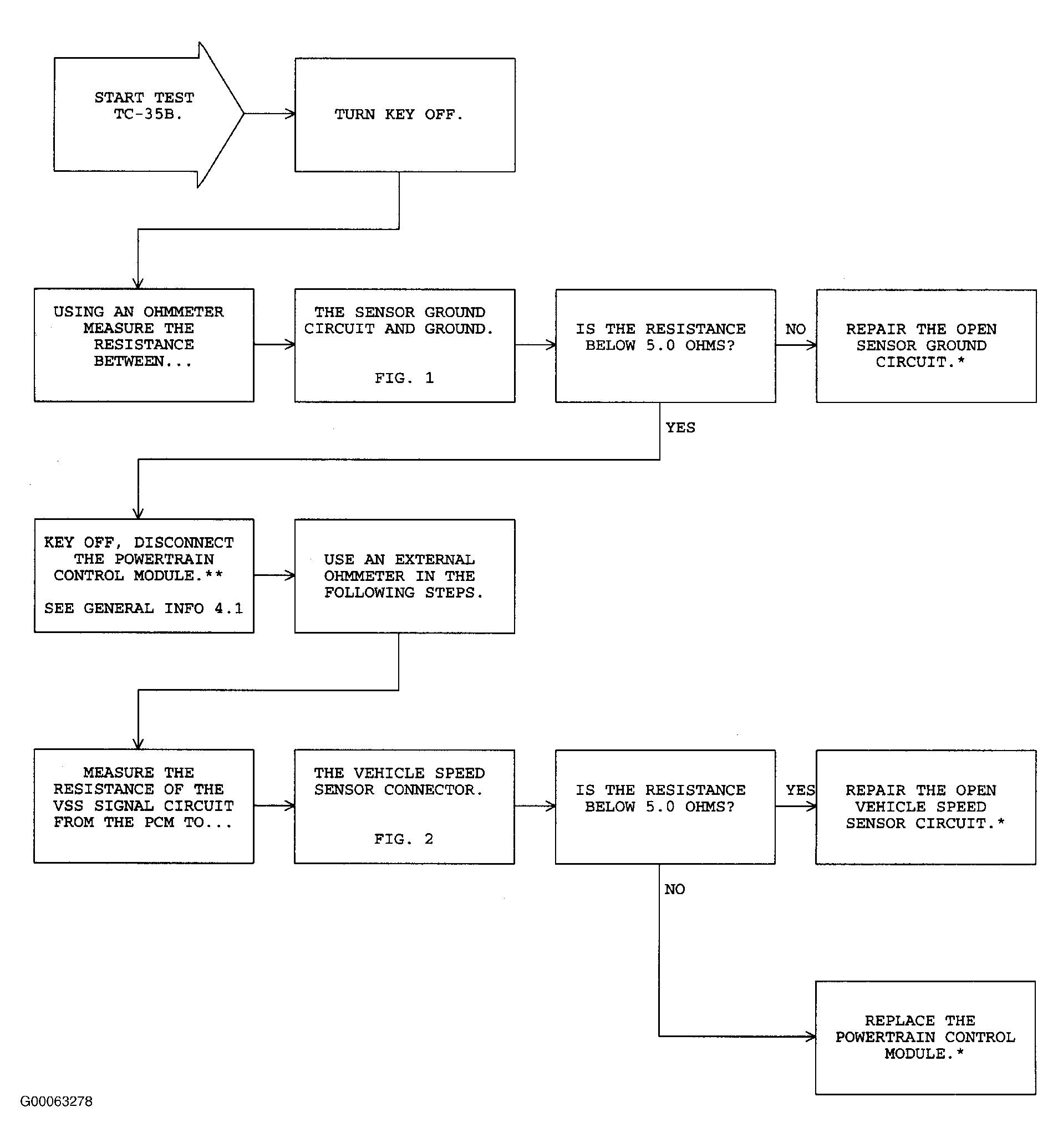

Fig 1: TC-35B: No Vehicle Speed Sensor Signal (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

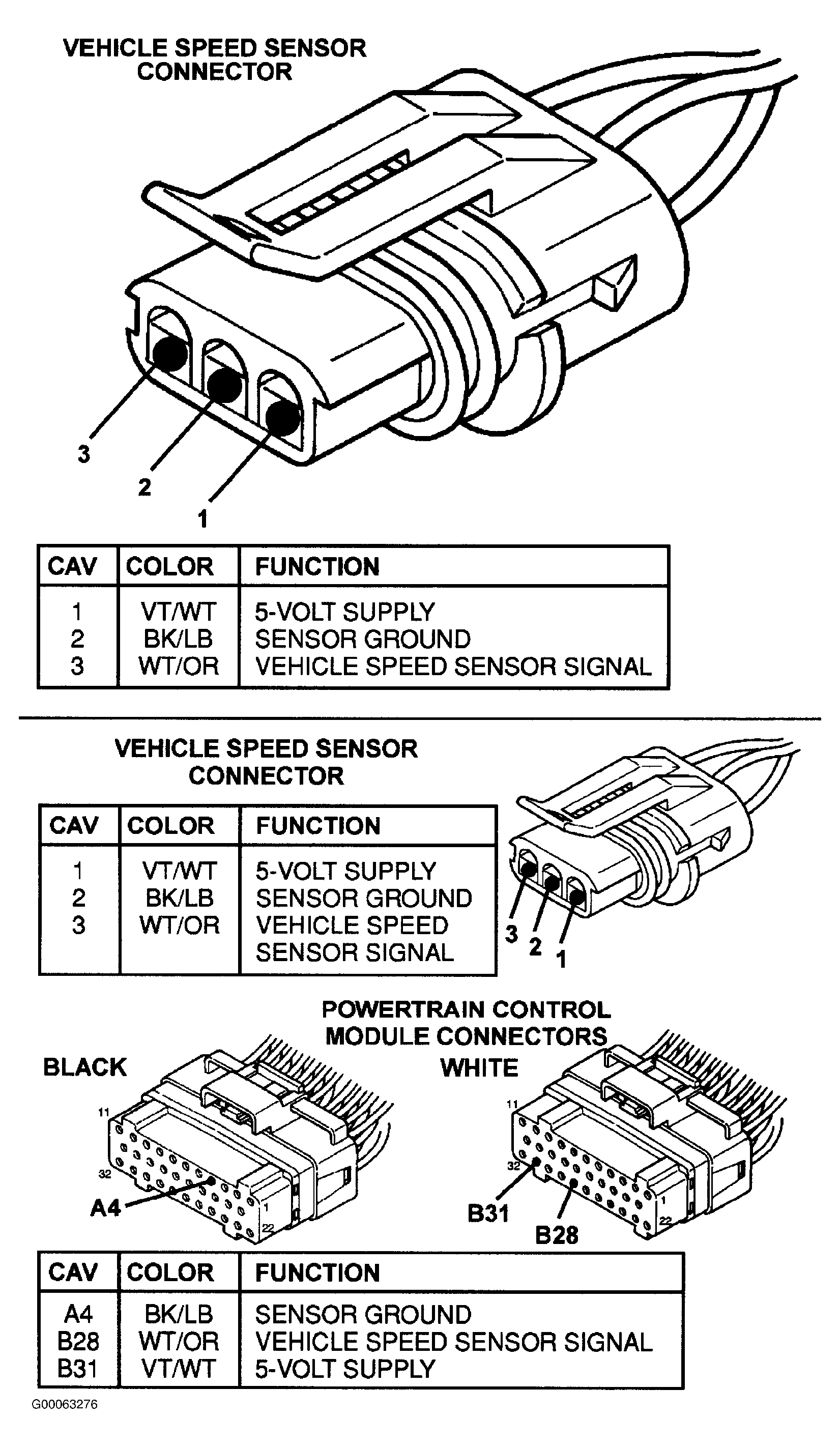

Fig 2: TC-35B: No Vehicle Speed Sensor Signal (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
