TC-112A: Catalyst 1/1 Efficiency Failure

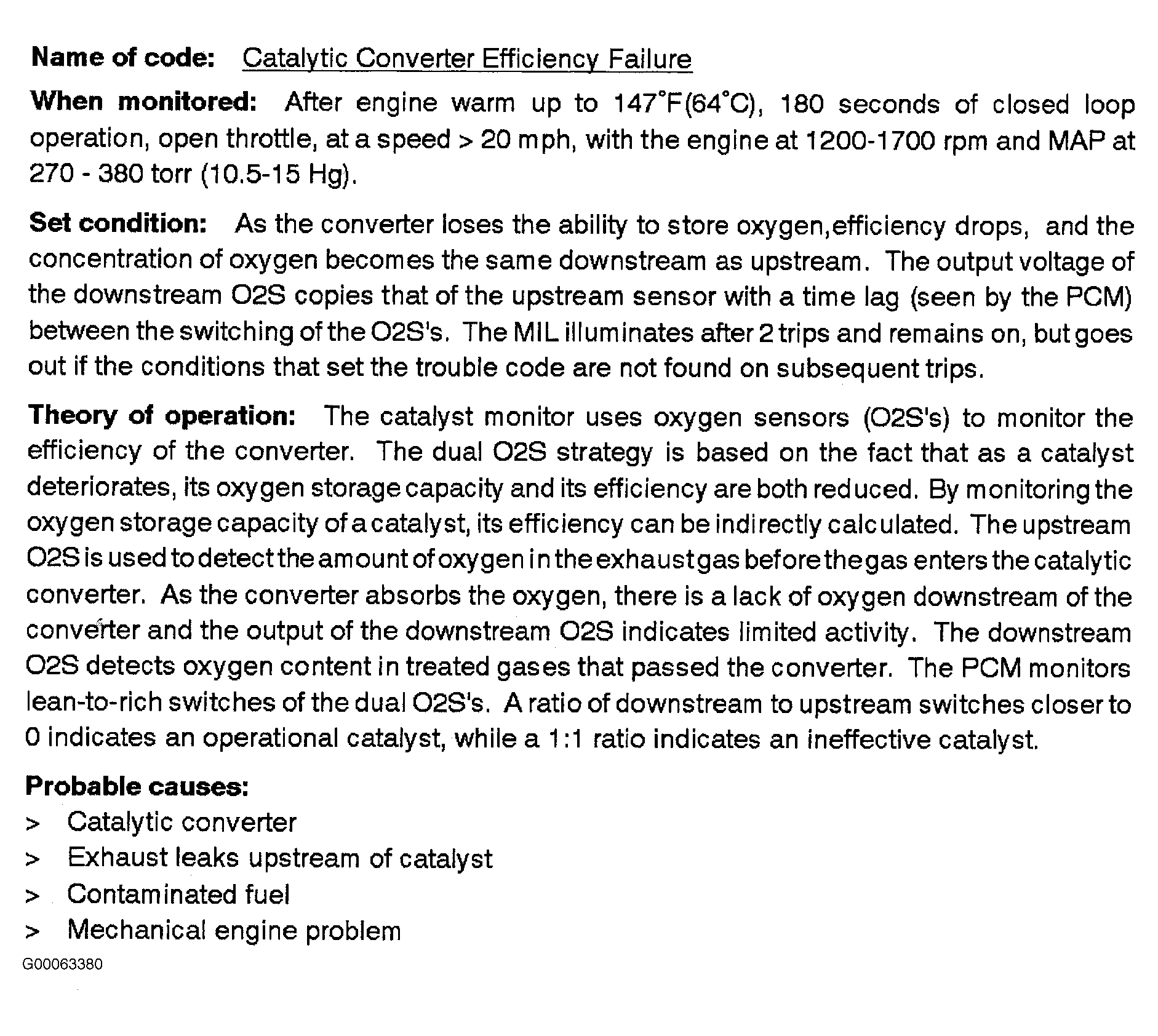

Fig 1: TC-112A: Catalyst 1/1 Efficiency Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

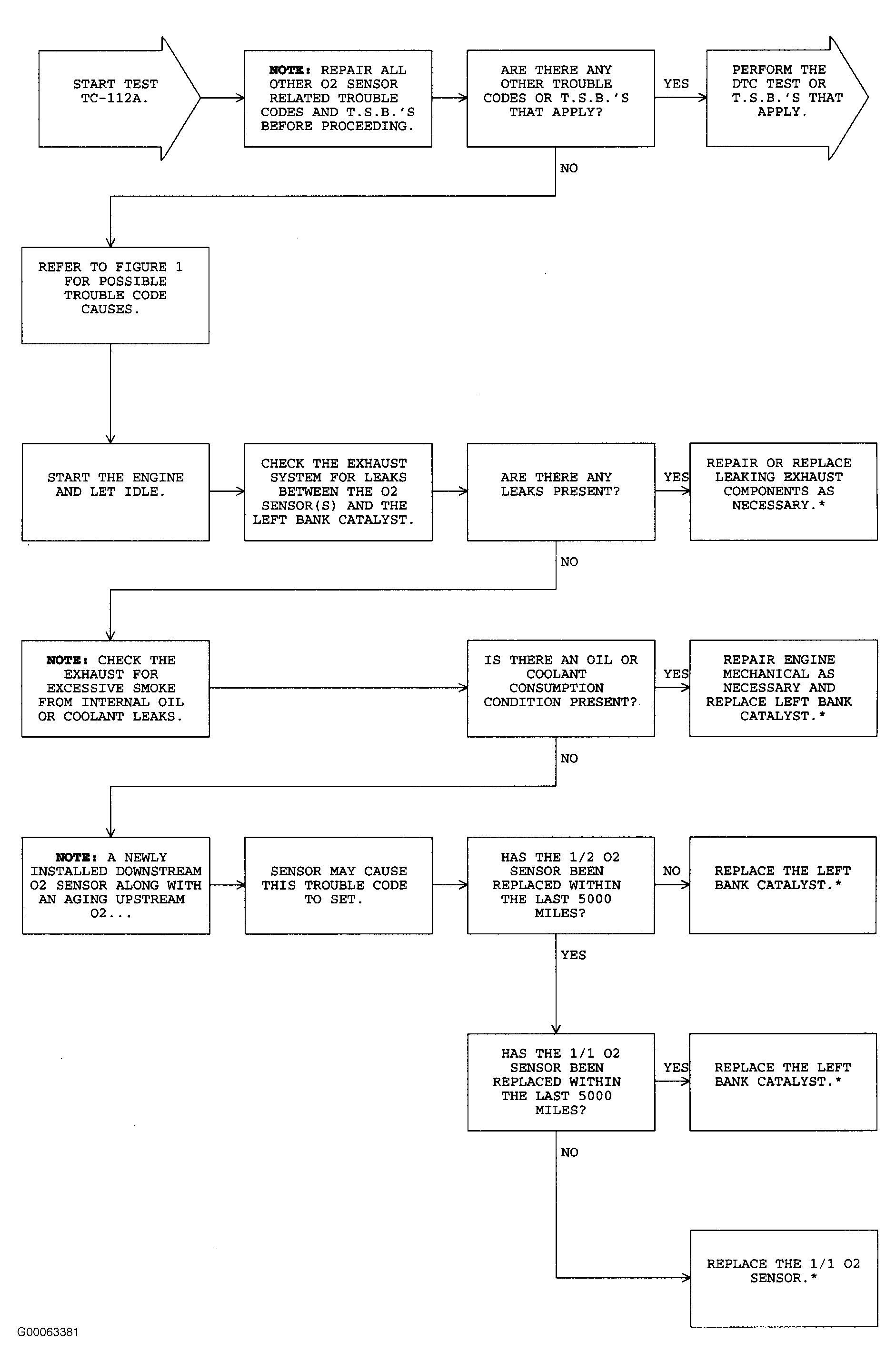

Fig 2: TC-112A: Catalyst 1/1 Efficiency Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
