NTC-5A: Checking Fuel Pressure

NOTE: Perform Test NTC-1A Or NTC-4A Before Proceeding

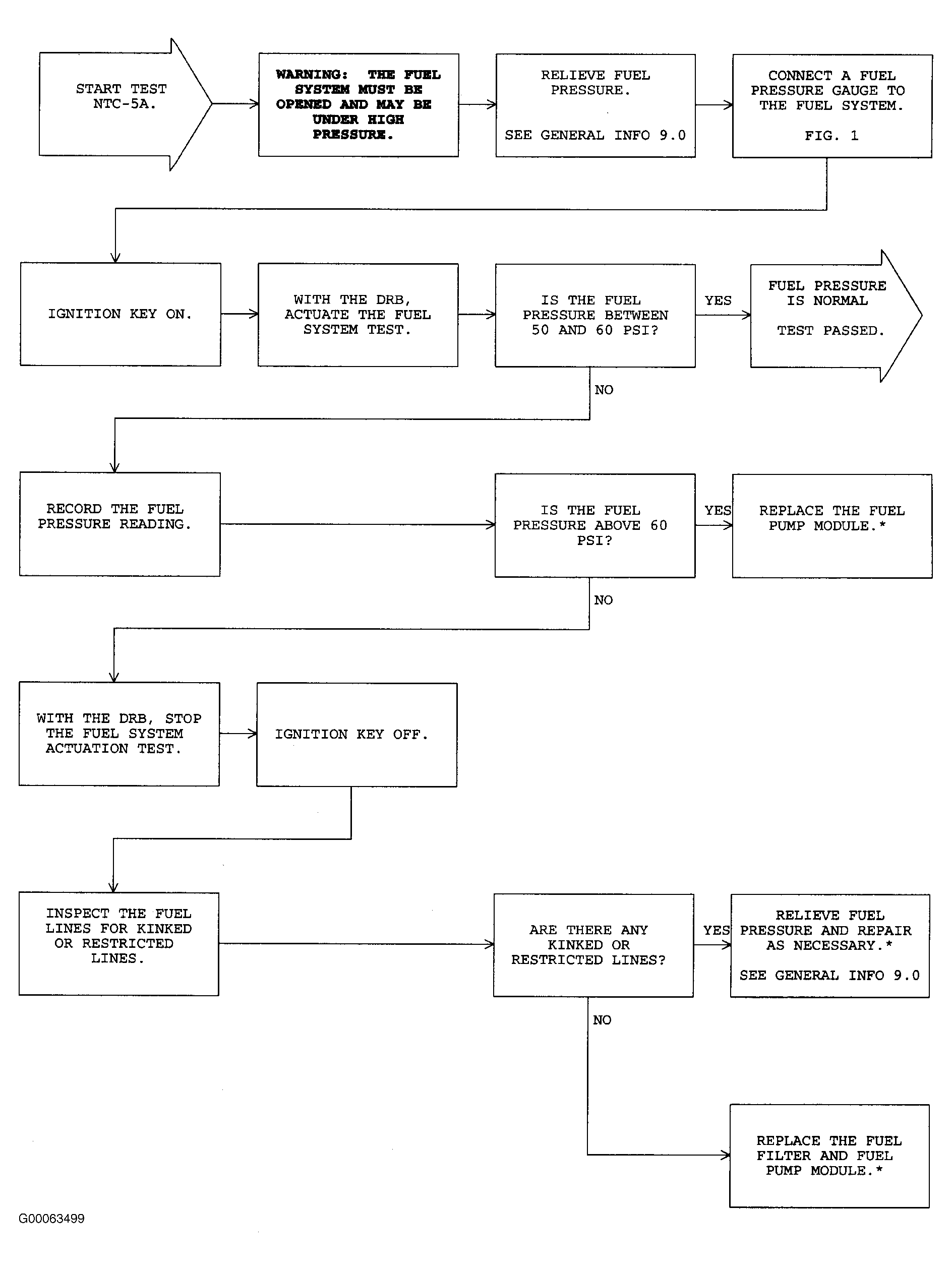

Fig 1: NTC-5A: Checking Fuel Pressure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

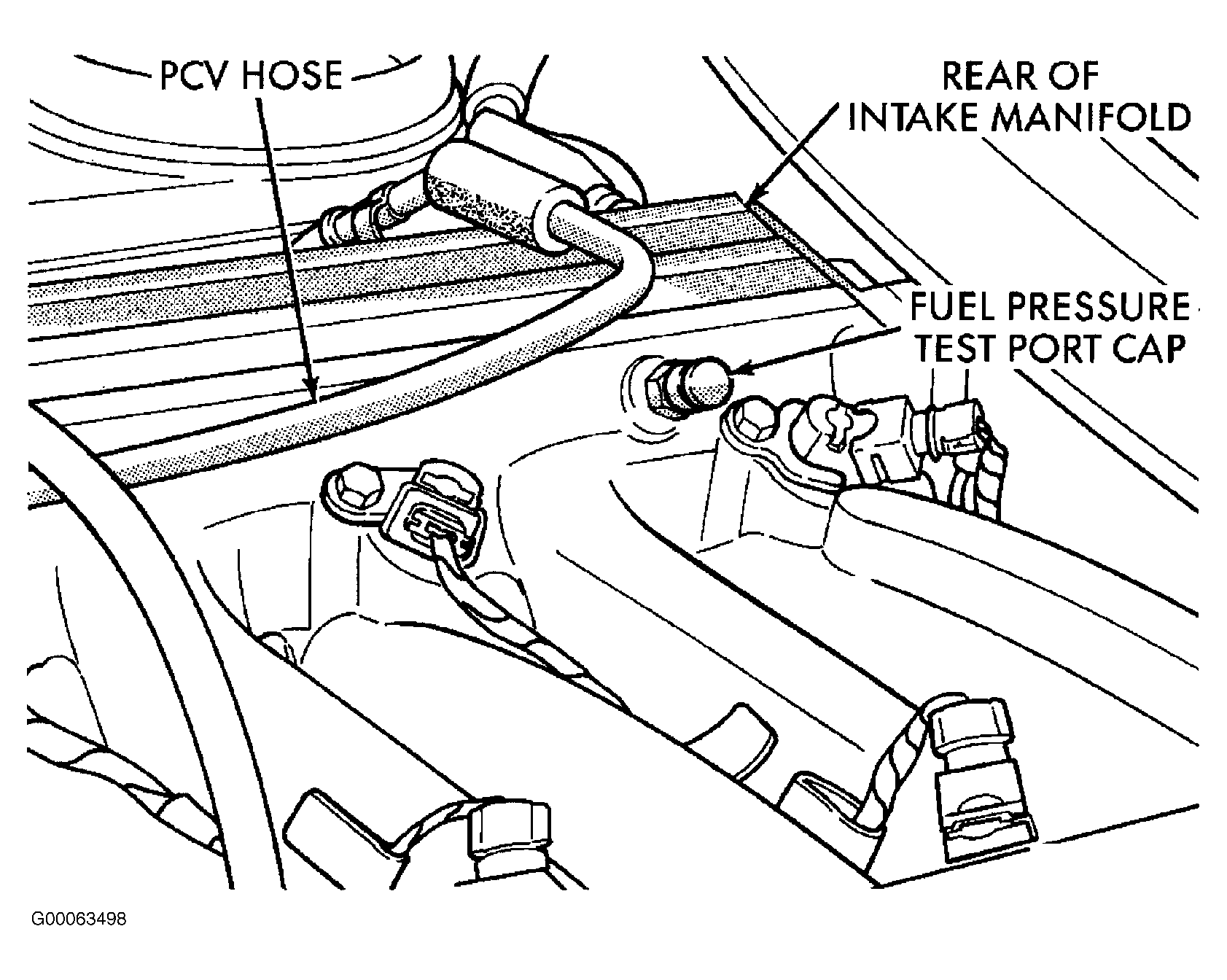

Fig 2: NTC-5A: Checking Fuel Pressure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
