Manifold Pressure/Vacuum Sensor: Service and Repair

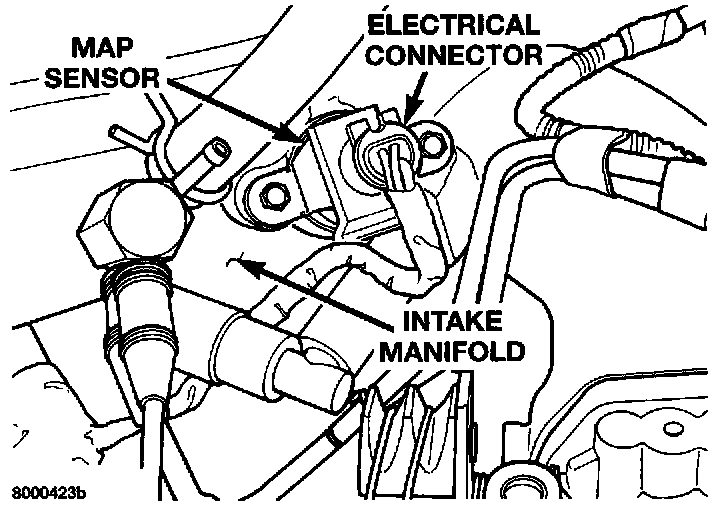

Fig 9 MAP Sensor:

REMOVAL
1. Disconnect electrical connector from MAP sensor.
2. Remove 2 screws holding sensor to intake manifold (Fig. 9).
3. Remove sensor from manifold.

INSTALLATION
- Reverse the above procedure for installation.
