Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Junction Block Behind left side of dash.

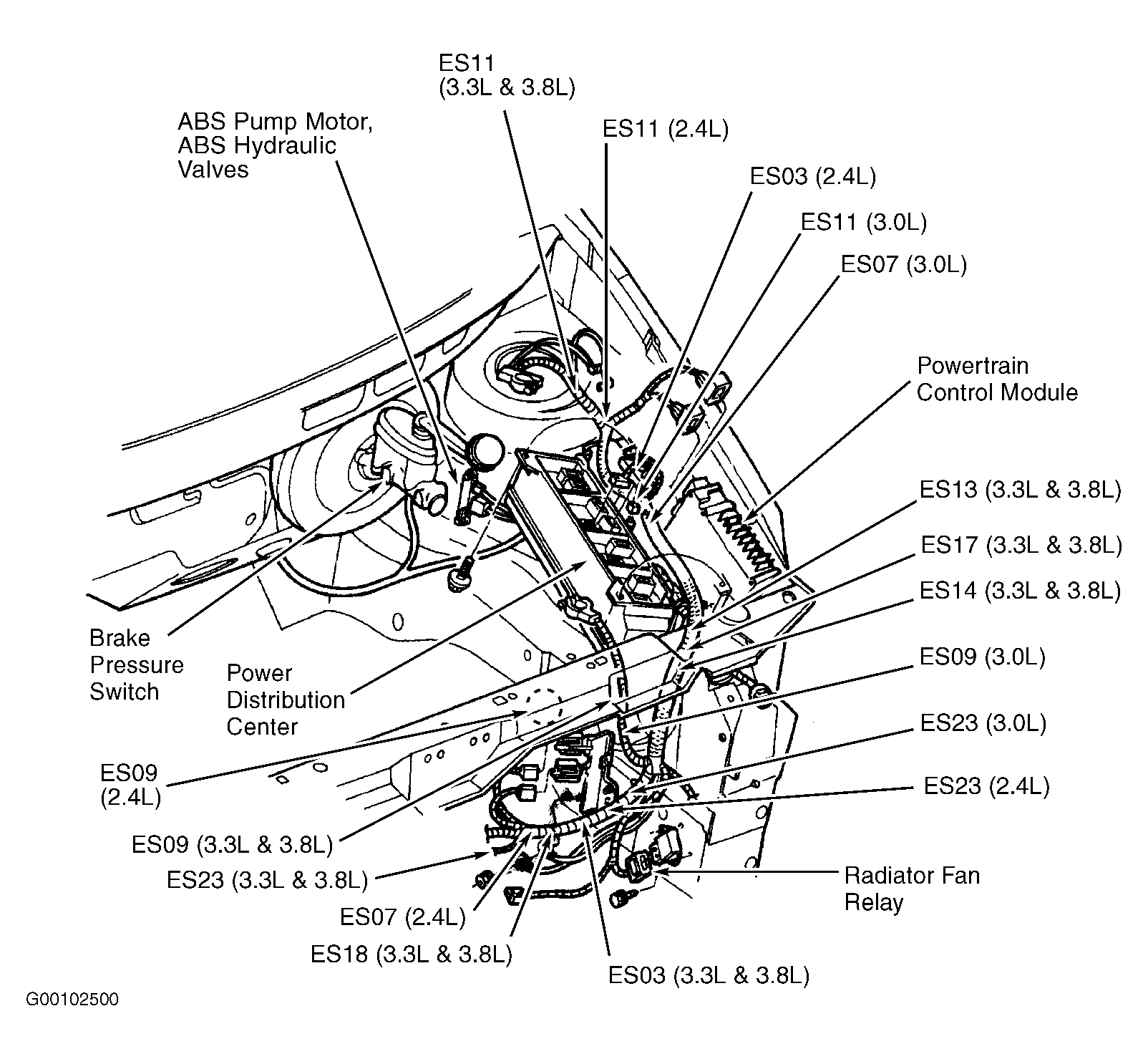

Power Distribution Center Left side of engine compartment. See Figure .

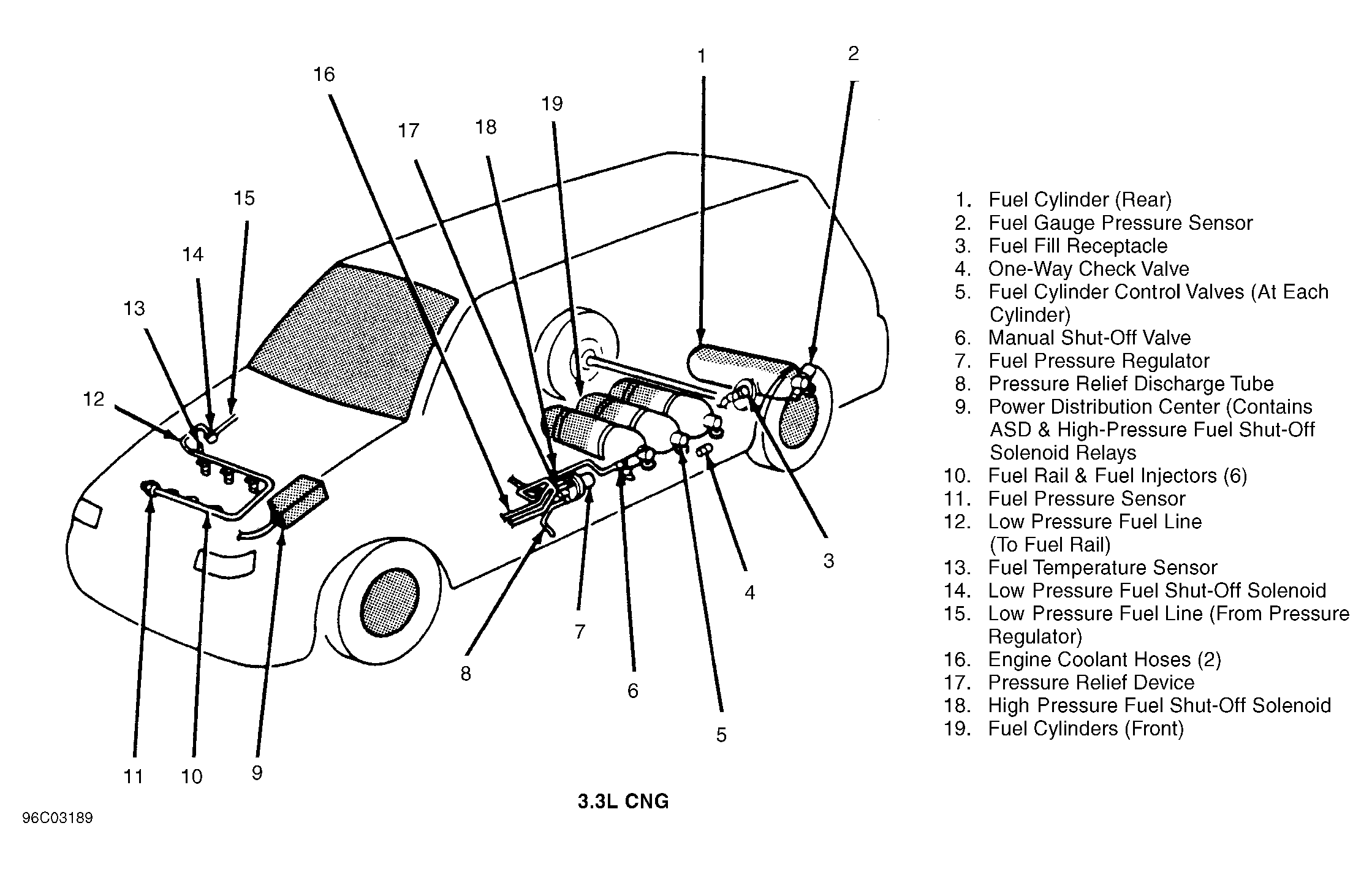

Power Distribution Center (CNG) Left inner fender panel, by battery. See Figure .
