Power Distribution Block

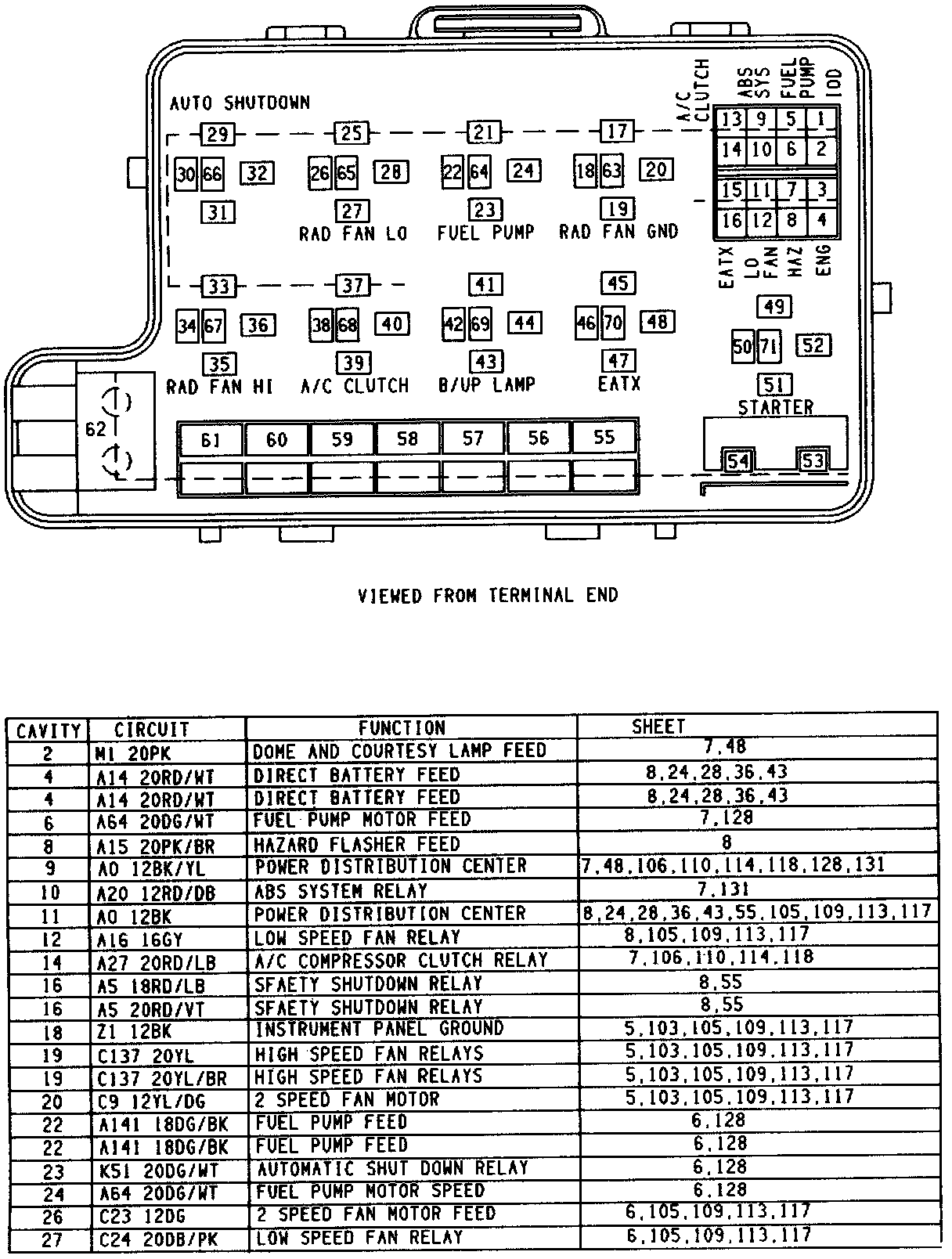

Power Distribution Center (Part 1 Of 2):

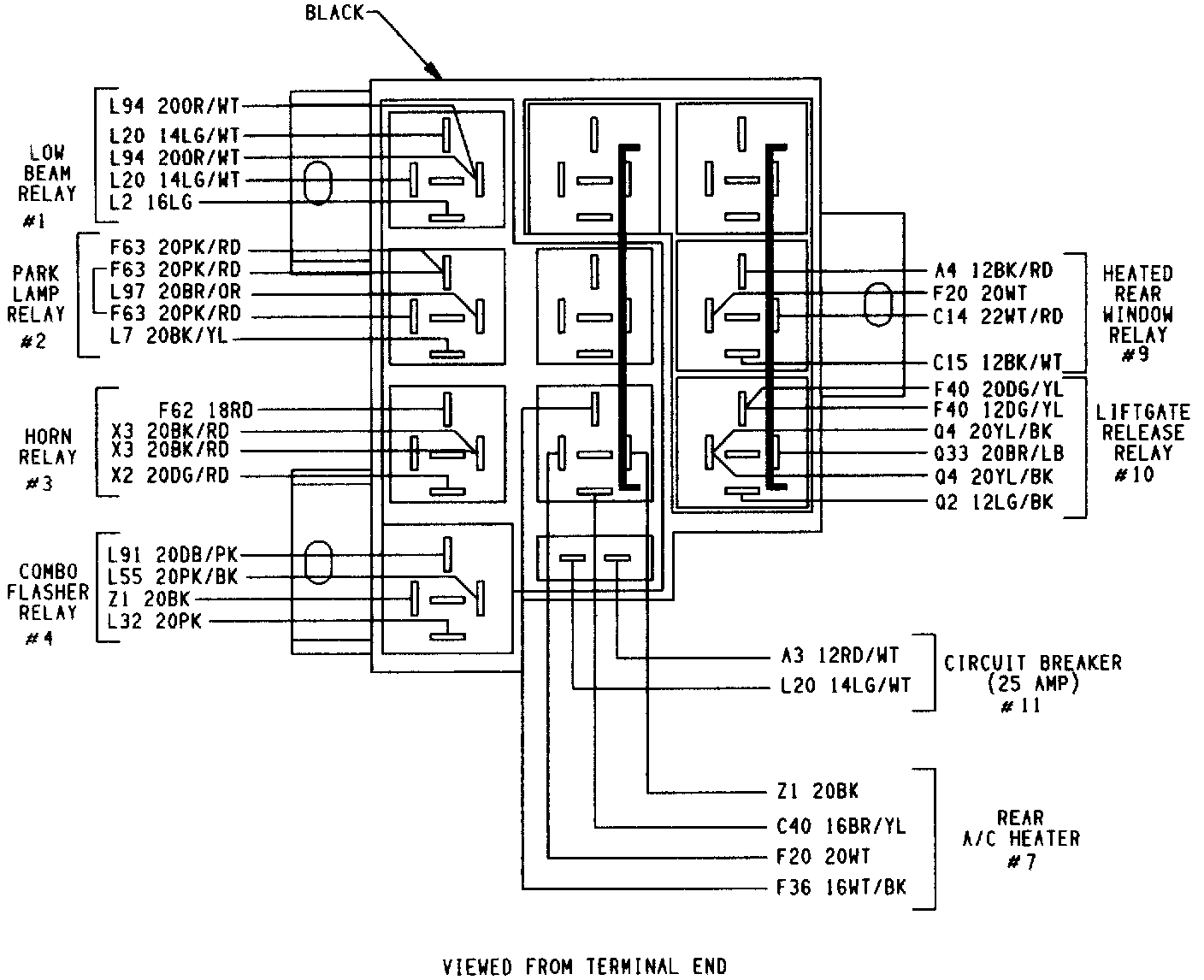

Relay Location Wire End View:






NOTE: To view sheets referred to in these Diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
