Fuse Block Module

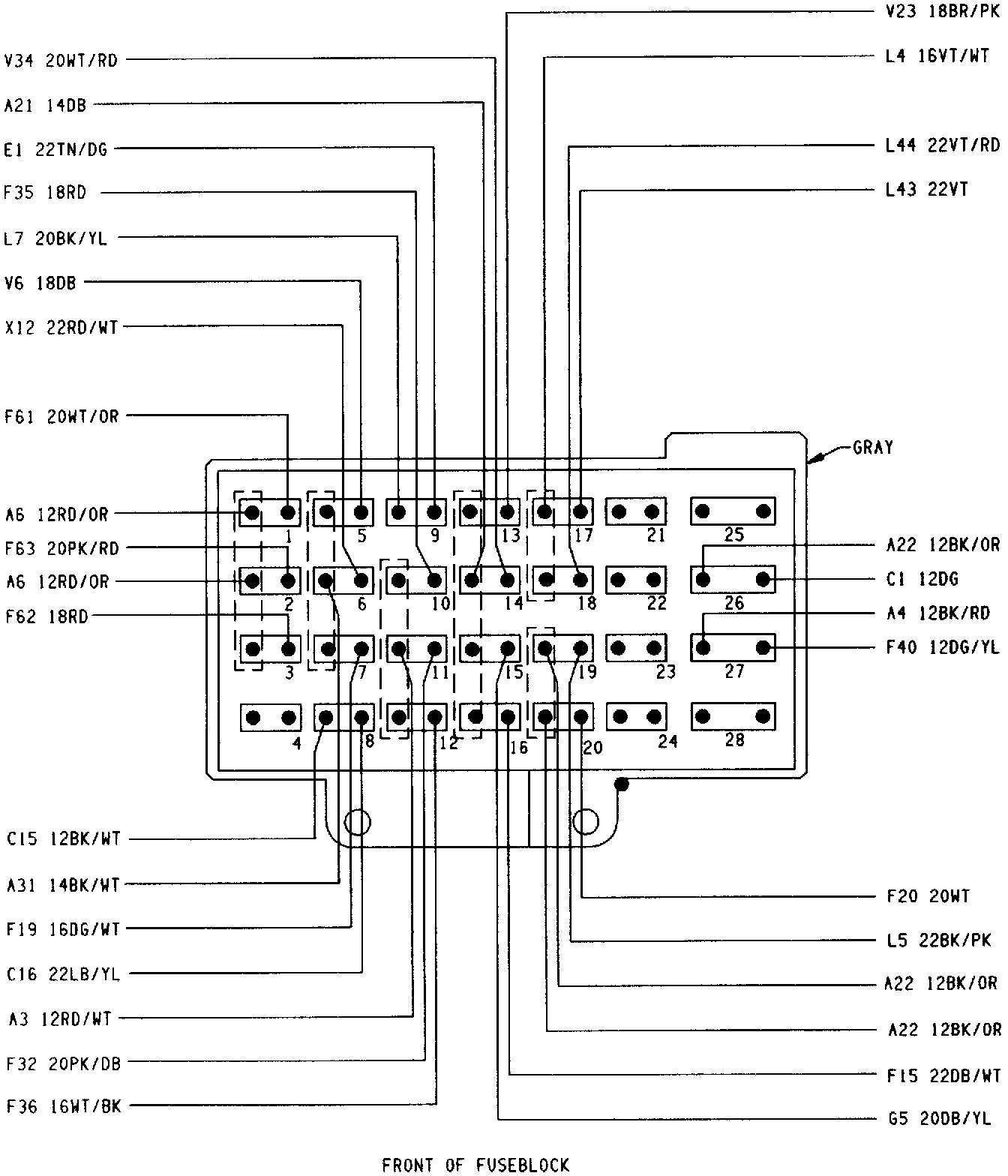

Fuse Block Module (Part 1 Of 2):

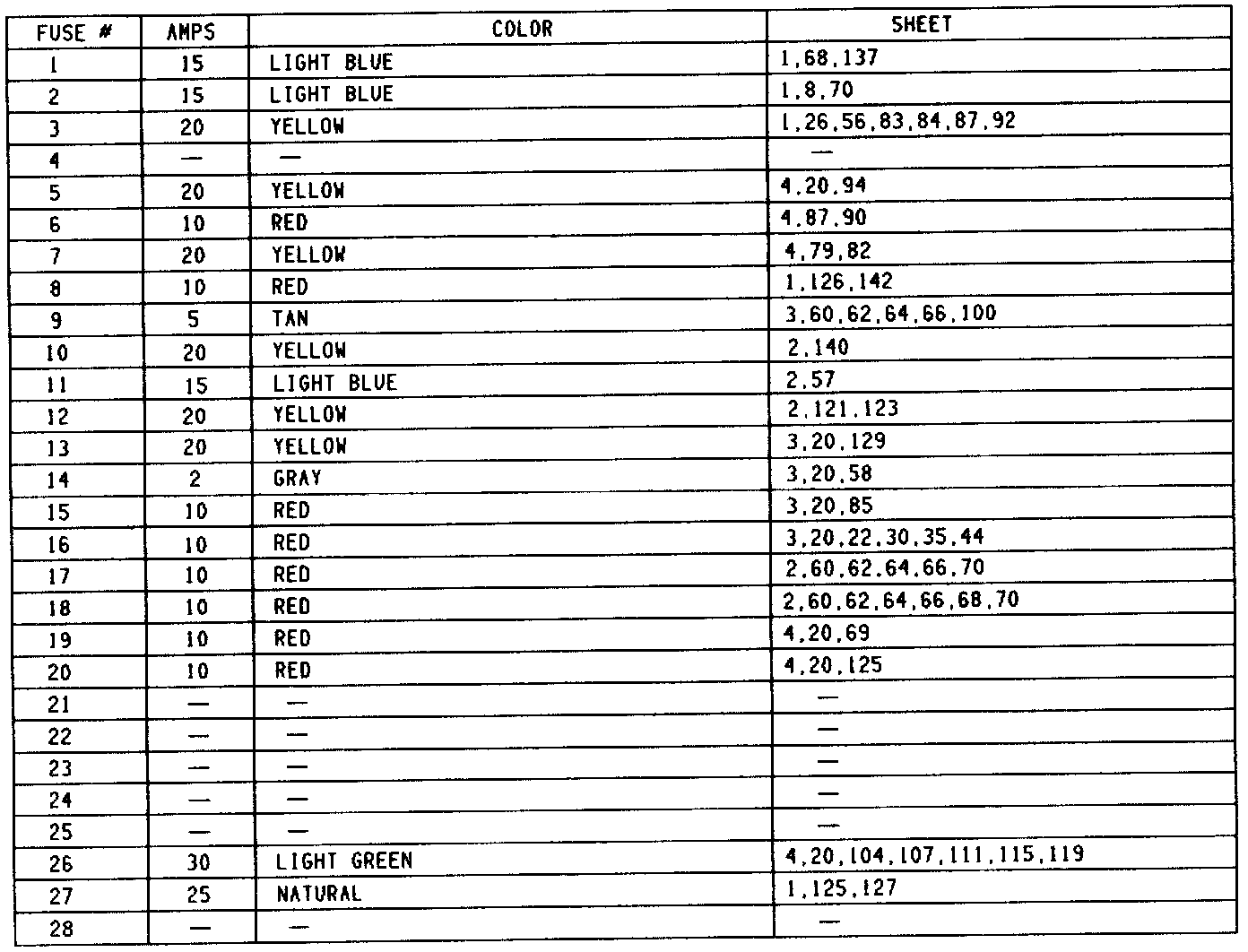

Fuse Block Module (Part 2 Of 2):






NOTE: To view sheets referred to in these Diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
