Viewed From Terminal End

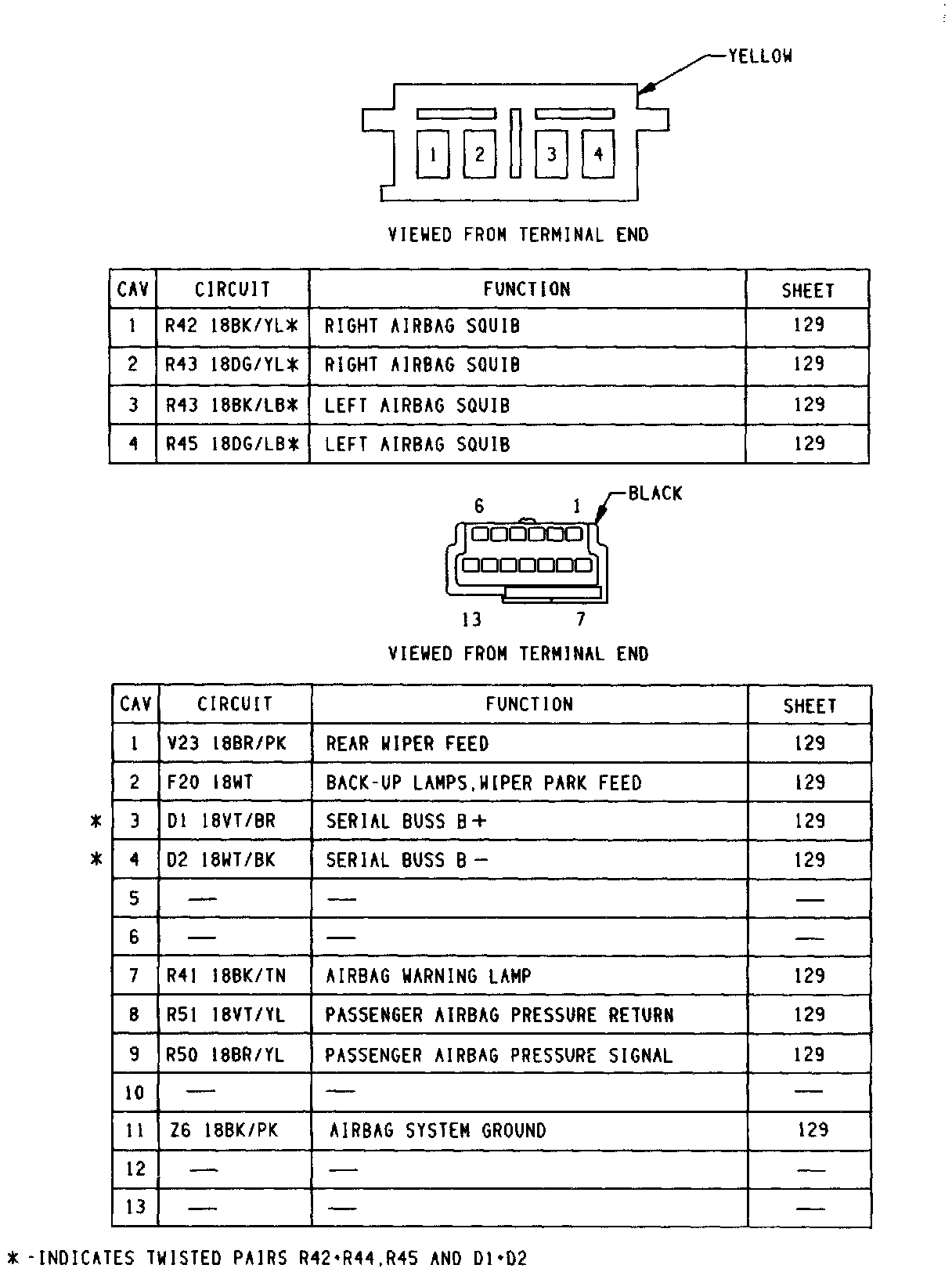

Airbag System Control Module Connector:







NOTE : To view sheets referred to in these Diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams
