NTC-11A: Checking Engine Vacuum
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
NTC-11A: Checking Engine Vacuum

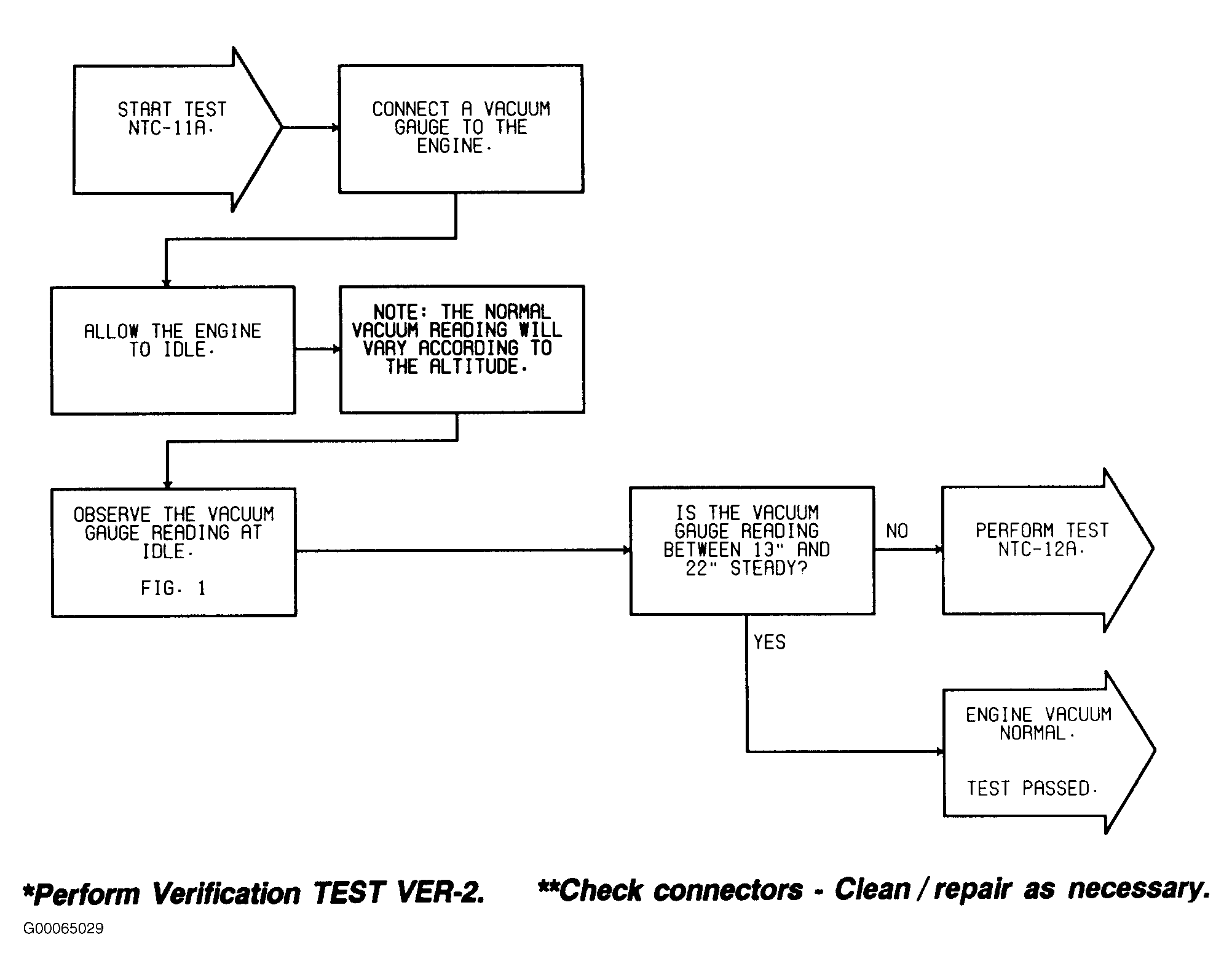

Fig 1: NTC-11A: Checking Engine Vacuum (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION

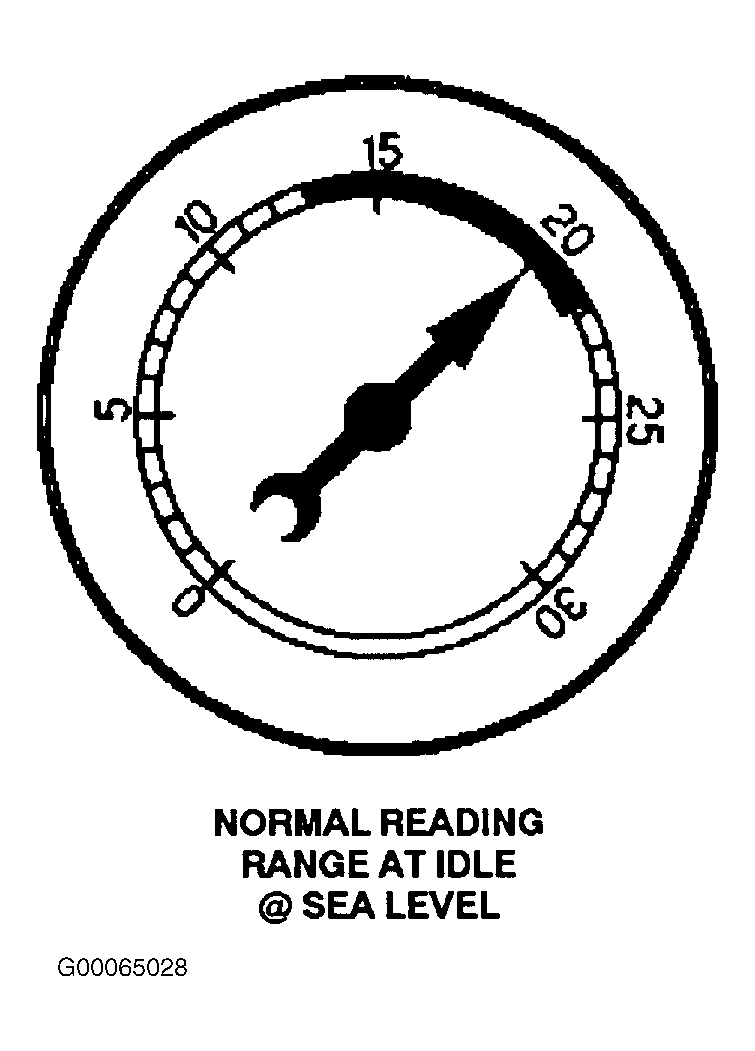

Fig 2: NTC-11A: Checking Engine Vacuum (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORPORATION
