TC-32A: Injector No. 8 Control Circuit

NOTE: Perform Test TC-25A Before Proceeding

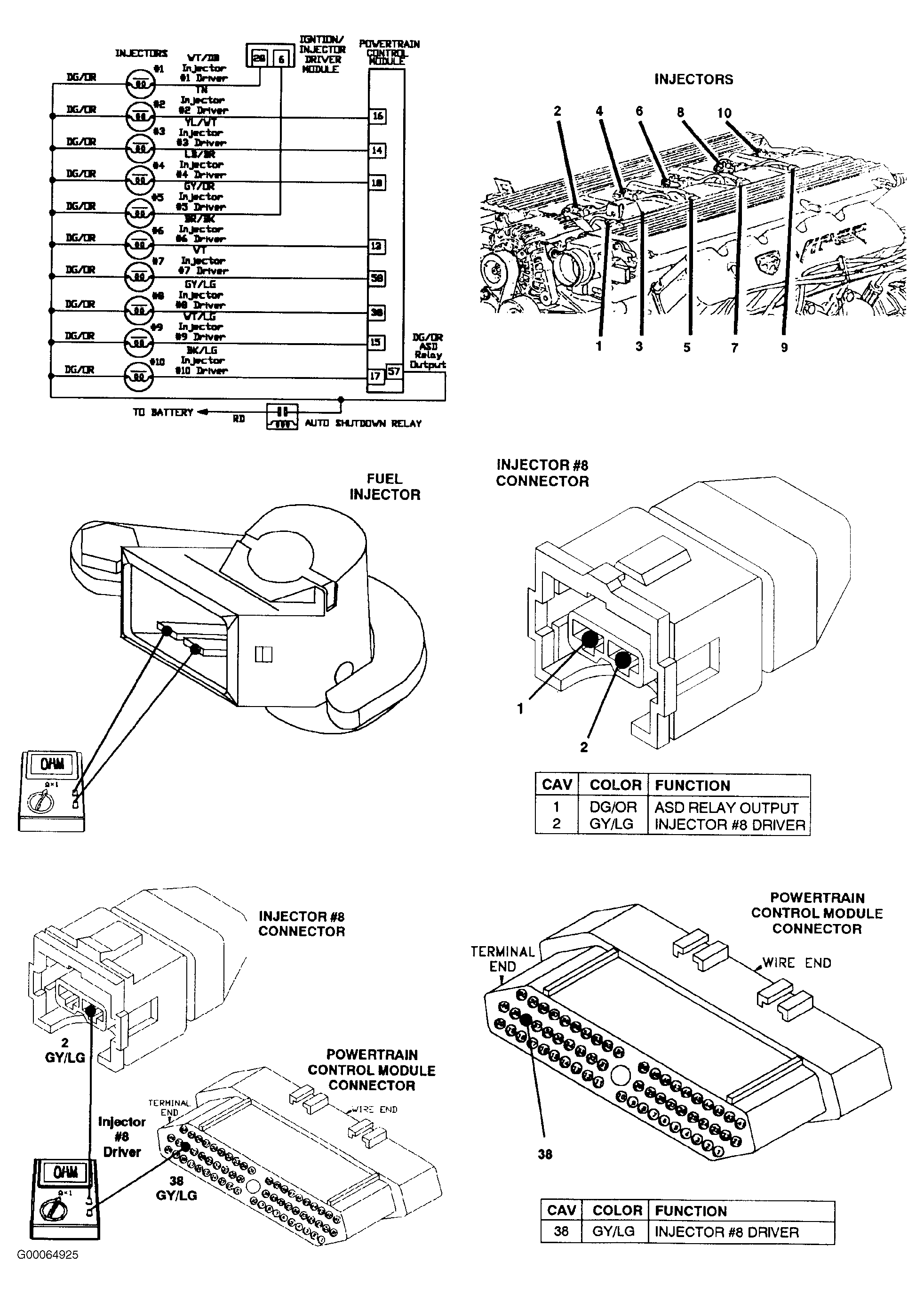

Fig 1: TC-32A: Injector No. 8 Control Circuit (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-32A: Injector No. 8 Control Circuit (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
