Test 53D: Repairing Motor Wiring For Open
Fig 1: Test 53D: Circuit Diagram

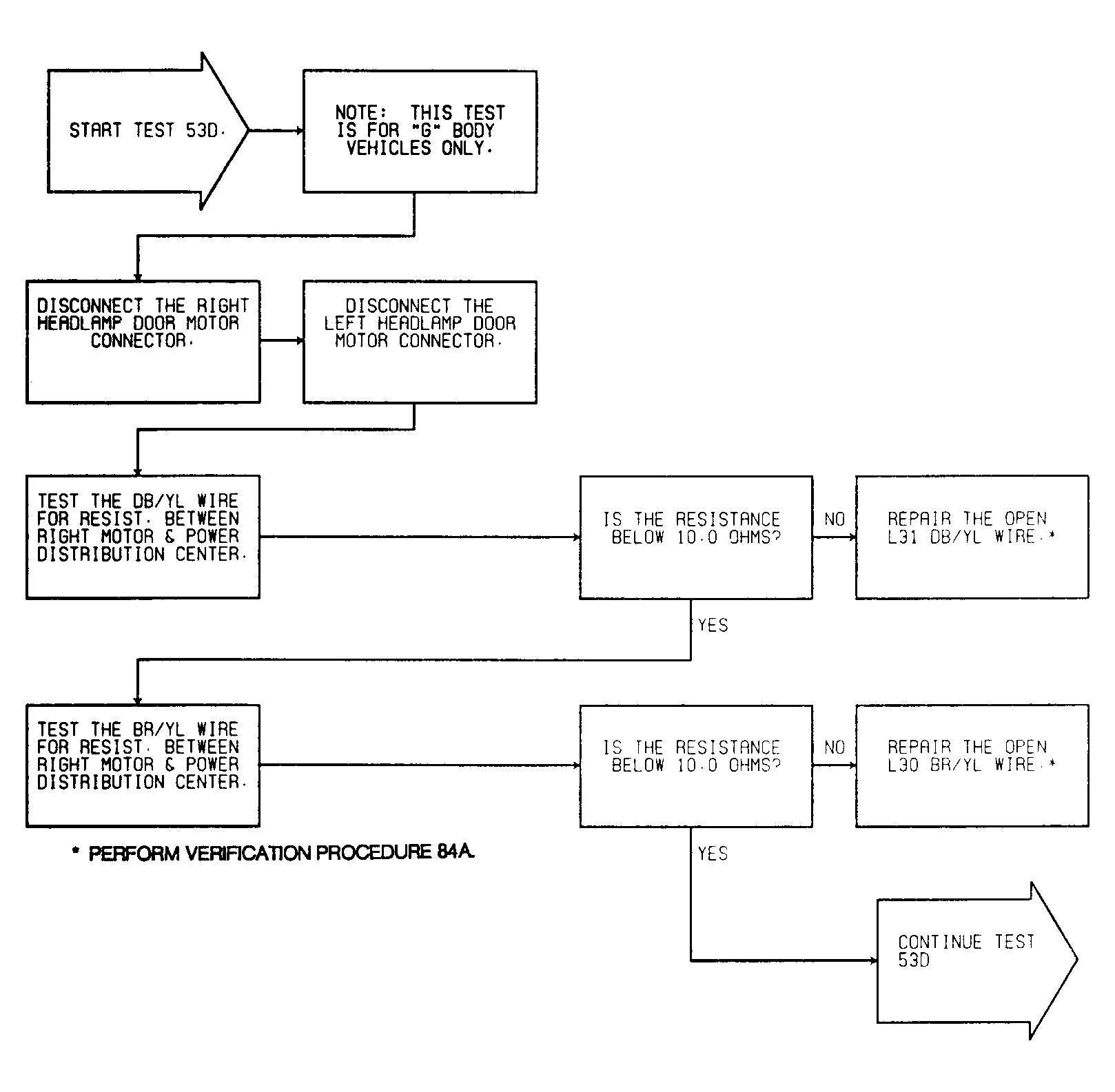

Fig 2: Test 53D: Repairing Motor Wiring for Open (1 of 2)

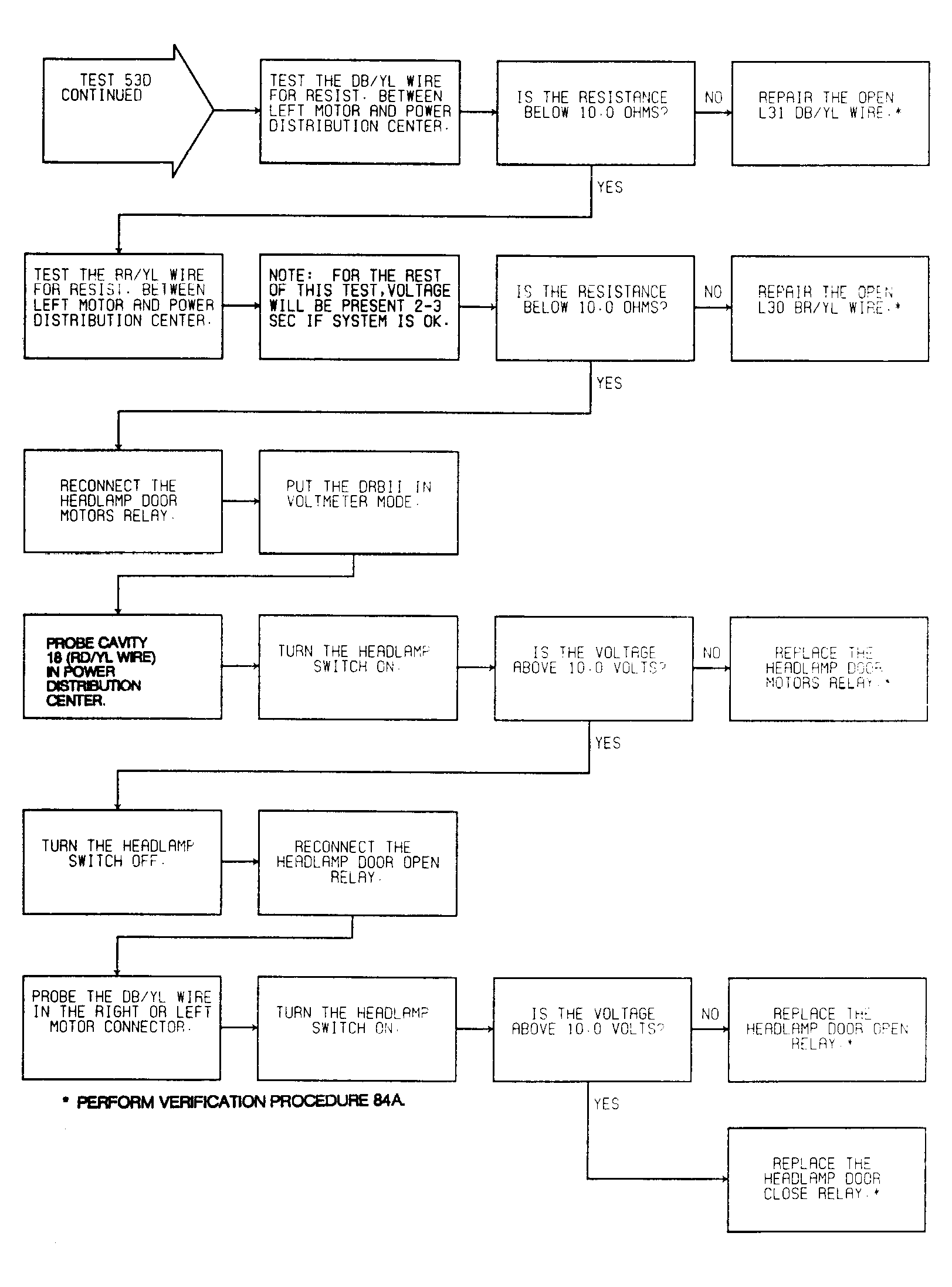

Fig 3: Test 53D: Repairing Motor Wiring for Open (2 of 2)
