Test 68A - Testing A-604 Controller For No Response

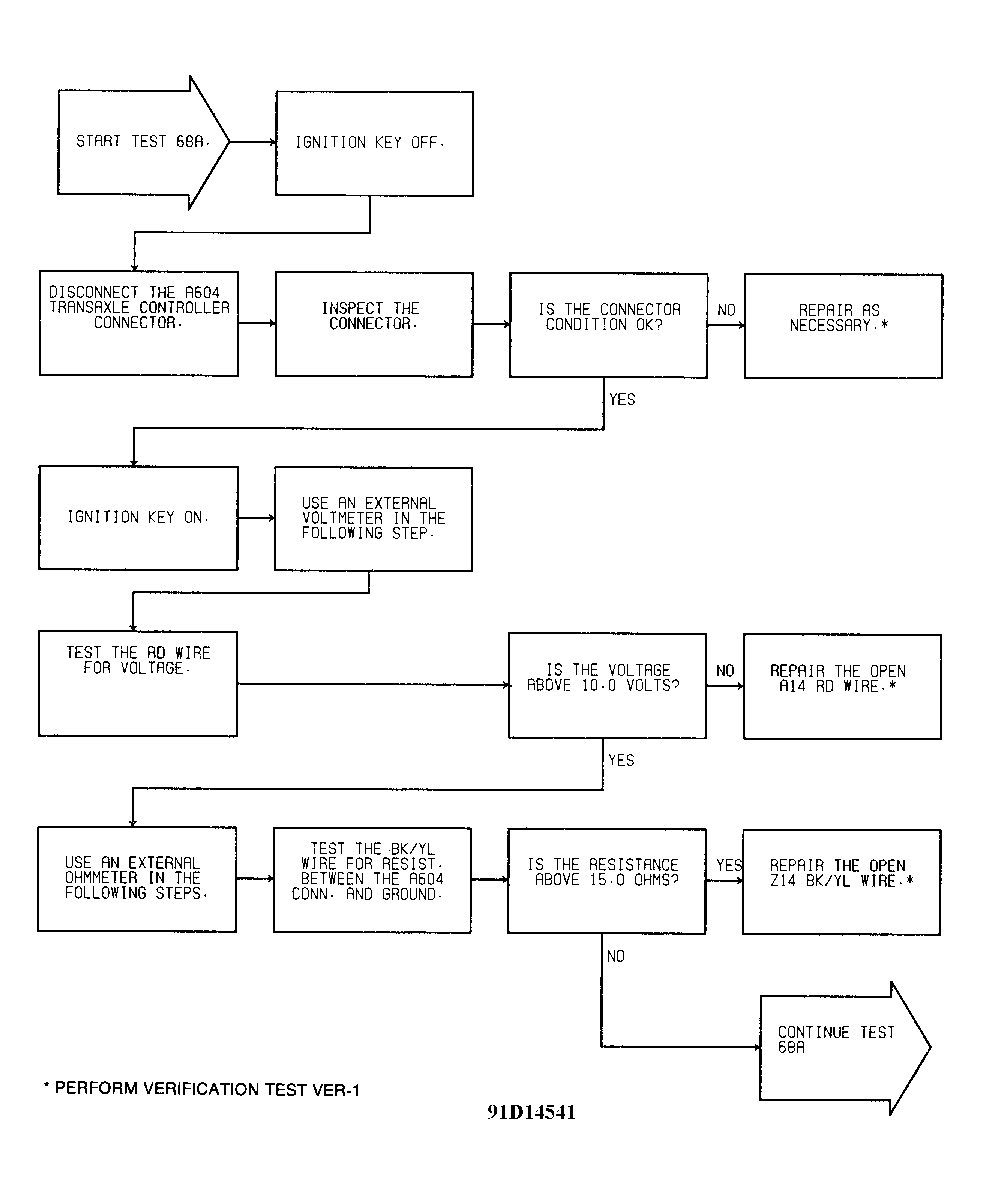

Fig 1: Test 68A (1 of 2) - Testing A-604 Controller For No Response
Fig 2: Test 68A (1 of 2) - Testing A-604 Controller For No Response
