Test 66B - Testing For Electronic Instrument Cluster No
RESPONSE

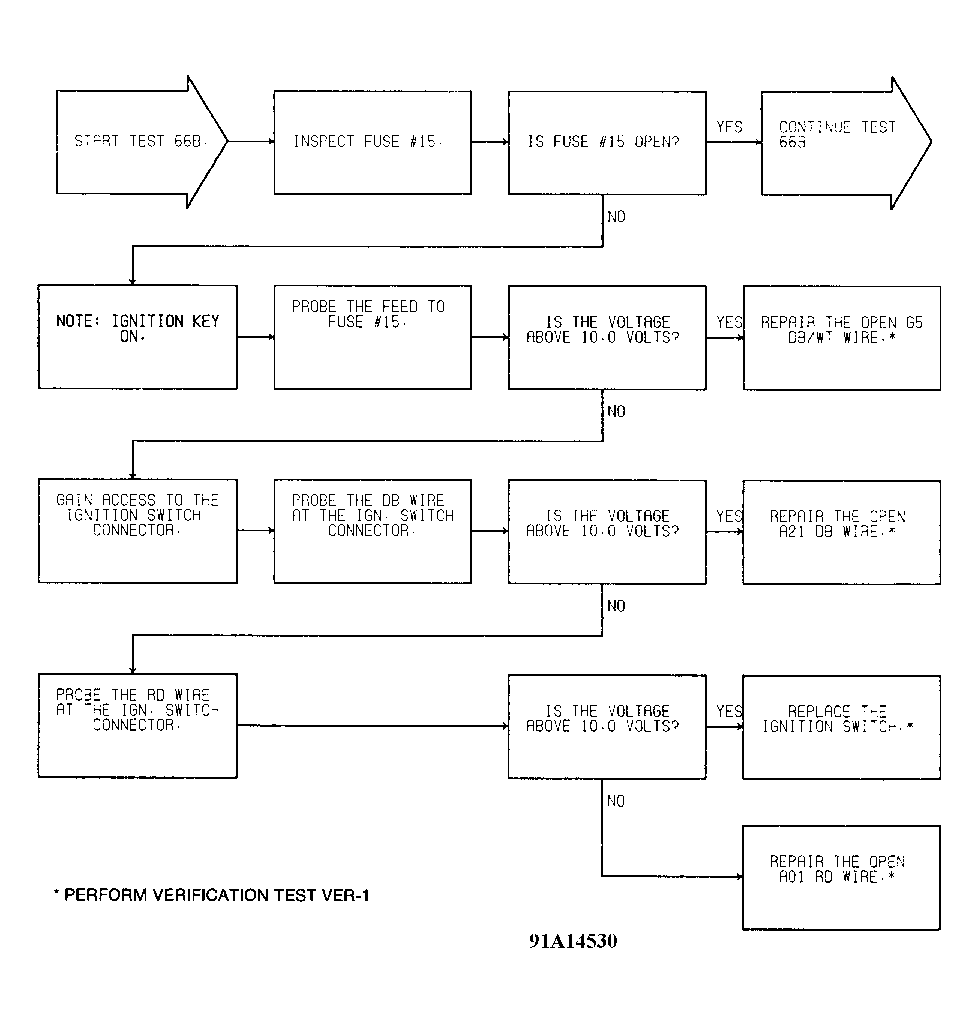

Fig 1: Test 66B (1 of 2) - Testing For Electronic Instrument Cluster No Response

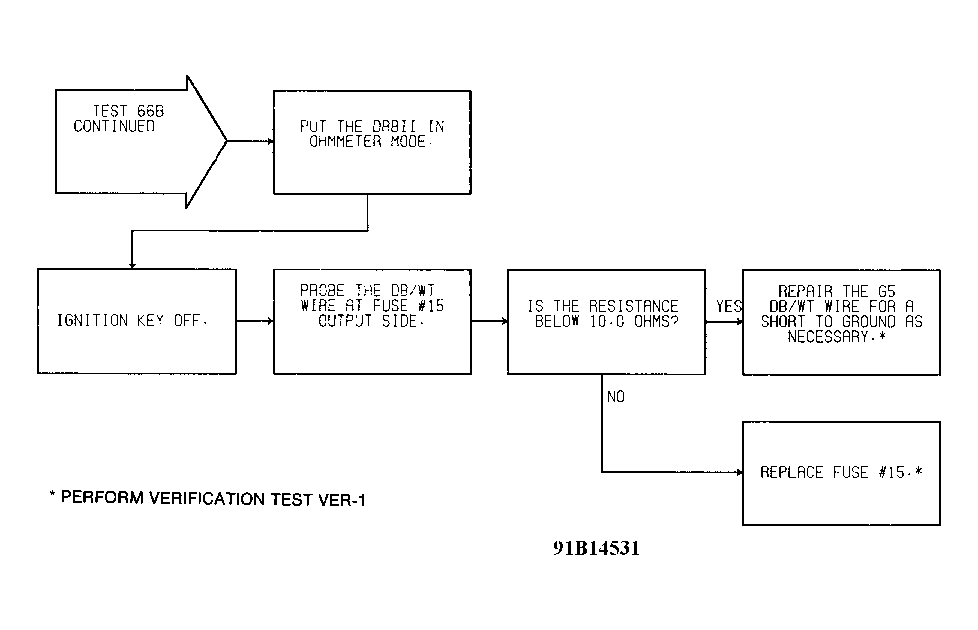

Fig 2: Test 66B (2 of 2) - Testing For Electronic Instrument Cluster No Response
