Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 54A - Testing For Short To 5 Volts On Bus
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test 54A - Testing For Short To 5 Volts On Bus

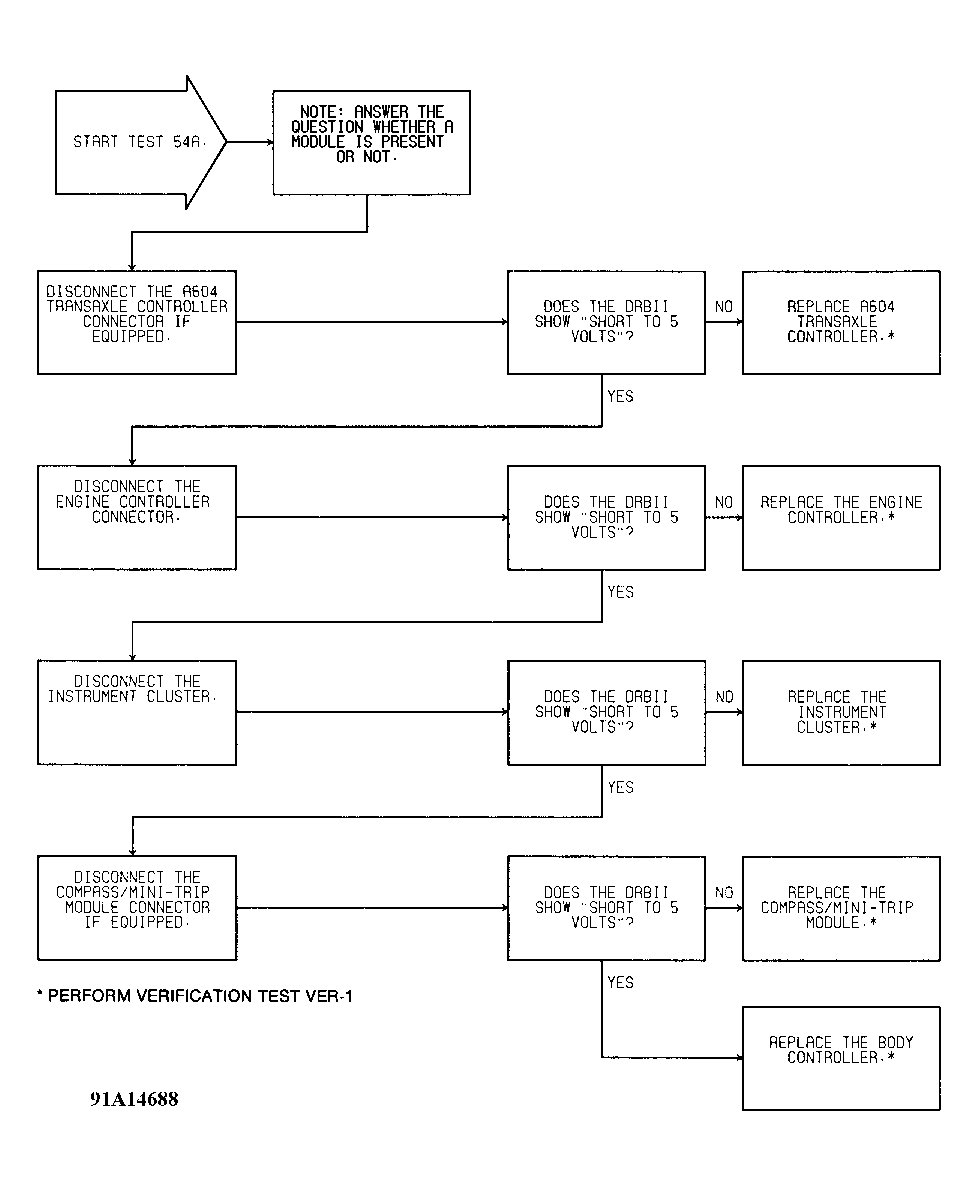

Fig 1: Test 54A - Testing For Short To 5 Volts On Bus
